haul off belt
Yonghang can manufacture all types of haul off belt, including surface coating applications, varying hardness levels, and pattern designs. We offer services such as tooth removal, perforation, attachment installation, and Various groove processing . We can also Manufacture various types of Extrusion haul off belts, such as timing extrusion puller belts, variable-speed extrusion puller belts, multi-ribbed extrusion puller belts, cable extrusion puller flat belts. The thickness ranges from 10 to 35 mm, Width limit: 550mm, and the length can reach up to 30 meters.Product Introduction
YONGHANG supplies Haul-off belts for all types of extruders, including caterpillar haul-off for cables, wires, pipes and profiles.
Haul-offs” are pulley-driven parallel belts that contact opposite sides of in-process products, usually by means of rollers exerting suitable pressure for the belts to grip and haul them, with the desired controlled pulling action.
Our range includes specific combination of base belts, tensile strengths and fabrication details to meet technical requirements of variety of extrusion applications, including specific resistance, hardness, temperature, friction needs.
Haul Off Belts
-
8M-3280 Coated synchronous belt slotting for Bending pipe pulling
By • 20.04.2026Parameters Brand Yonghang Type HTD 8M Timing Belt Pitch 8mm Coating Color gray Construction Gray CR rubber coated rubber synchronous belt Total thickness 20mm（Can be customized according to your needs.） Pitch Length 3280mm width 50mm or customized Teeth 410 Teeth Coating Hardness 55A-65A（Customizable from 35A to 85A） Working temperature -20℃~+85℃ Min. use diameter 80mm -
submarine cable extrusion haul off belts with Transverse Slots (Crosswise)
By • 19.04.2026Submarine Cable Extrusion Haul Off Belts with Transverse (Crosswise) Slots are core components for submarine cable extrusion and pulling equipment, mainly used in marine cable manufacturing and laying projects. Made of high-quality wear-resistant and corrosion-resistant materials and processed by advanced vulcanization technology, these belts are designed with transverse (crosswise) slots to enhance grip and heat… -

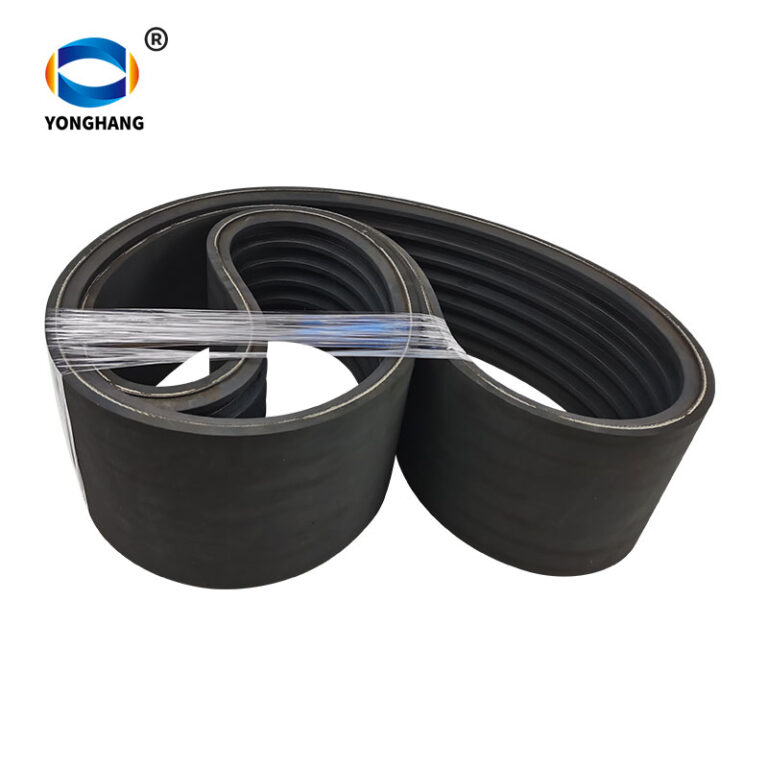

7V Banded Haul-Off Belts
By • 18.04.20267V Banded Haul-Off Belts (Large Wedge) is designed for high-power loads, and the “Banded” (Joined) construction is essential to prevent belt whip during the rhythmic vibrations of a thread rolling process. The integrated vulcanised coating on Yonghang’s 7V Banded Haul-Off Belts provides high friction, ensuring that there is no slippage or surface damage when gripping… -

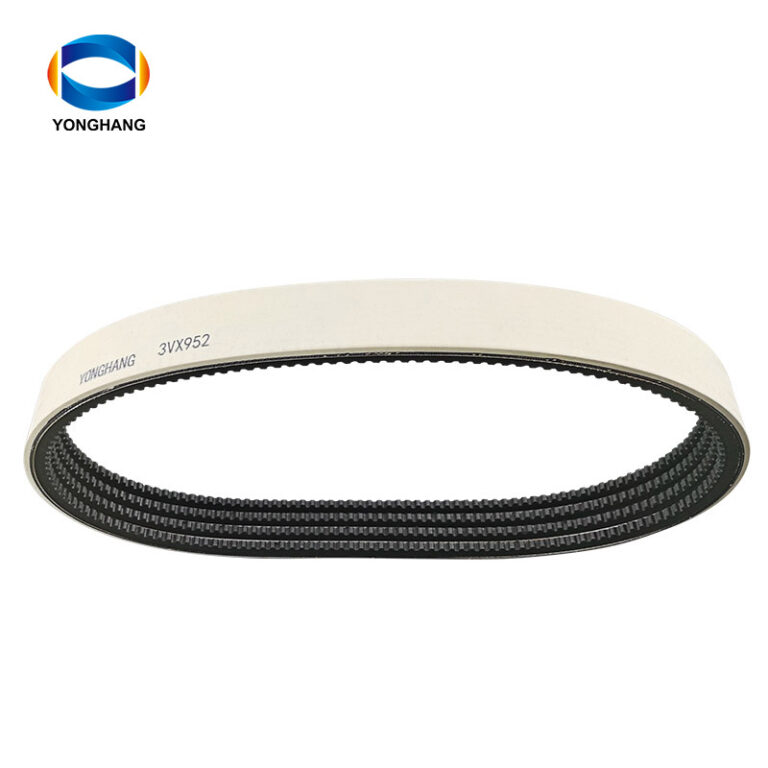

3VX952+3mm White Rubber Coated Joined V-Belts for Caterpillar Haul-Off Units
By • 18.04.2026Engineered for high-stability pulling, our 3VX952+3mm Joined V-belts are the premier choice for caterpillar haul-off machines in the pipe and profile extrusion industries. The ‘Joined’ (Banded) construction eliminates belt whip, vibration, and turnover, ensuring a smooth, synchronized pull even under high-tension loads. The 3mm white rubber coating is specifically formulated to provide maximum traction without… -

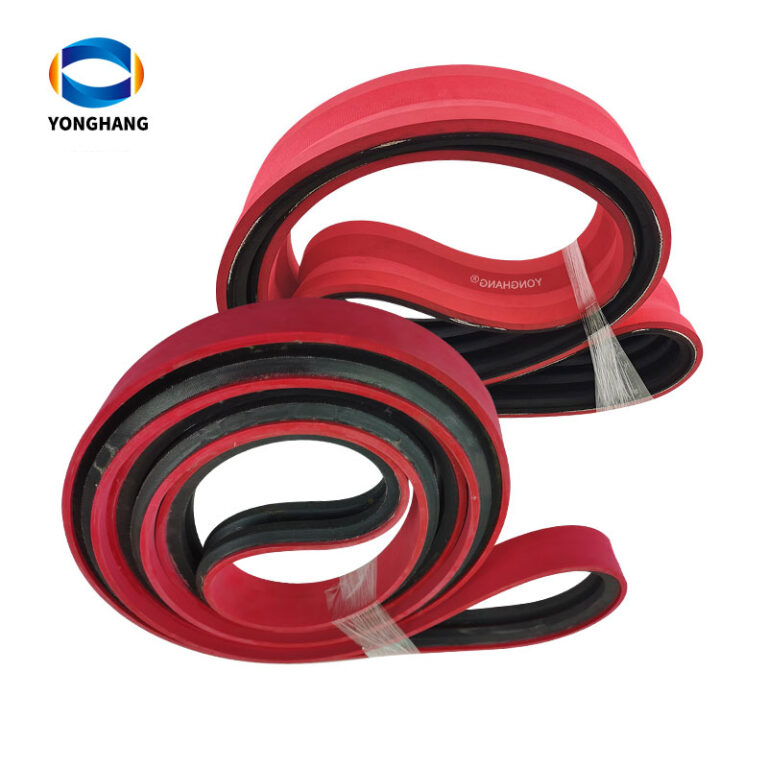

Truly Endless Coated Banded V-Belts: Precision Haul-Off Solutions
By • 18.04.2026Joined V-belt/Banded V Haul-Off Belts are manufactured by applying a wear-resistant coating to a Banded V-belt base and are used in haul-off machines; common specifications include 3V, 5V and 7V. Endless coated Banded V-belts deliver peak performance and durability for high-tension industrial drives. Essential to the Extrusion, Plastics, Rubber, and Cable industries, these belts ensure… -
endless TQD Cable haul-off falt belts
By • 17.04.2026Endless TQD cable haul-off falt belt series are mostly manufactured with fabric wrapped edges to prevent fraying and cord extraction. In case of high vertical pressure, we can add special Reinforcement Fabrics in order to avoid the longitudinal splitting of the belt. Parameter Base Model Falt belt:PU plastic, nylon, rubber Length Length can be chosen arbitrarily Coating…
Base Belt Options：
Timing Belt:T2.5, T5, AT5, T10, 3M, 5M, 8M, L, XL, H, RPP
Poly V Belt:PJ, PK, PL, PM
Flat Belt:Rubber&Polyurethane
Variable Speed belt
Joined v-belt/Banded Vee belts:3V,5V,7V
Various types of grooving
Machining:
Perforation
Slotting
Grinding
Grooving
Tooth removal
Profiling:
Cable side
all half-round profiles available upon request
V grooves: 90°, 100°, 110°, 116°, 120°, 136°, 150°
U grooves: 90°, 100°, 110°, 116°, 120°, 136°, 150°
Coating Materials that are fitting include:
CRC04 Black Neoprene foam (Flexible for the belt to fit small pulleys)
PUCC04 Microcellular Polyurethane foam
NR40 & NR50 Tan Natural rubbers（colour：Red, White, Black, Green, Grey, Blue, Brown）
NR60 & NR70 Red Natural / Synthetic rubbers
CR50 & CR60 Black Neoprene rubber
PU65 Polyurethane elastomer（Transparent or white）
NRF40 & NRF60 white rubber (for rigid profile; no oils and chemicals contact)
NR40XAR Red High abrasion Natural Rubber (no oils and chemicals contact)
Rubber rough pattern
PVC rough pattern
PVC
Silicone
Haul off belts commonly used PL pitch 4.7mm,suitable forall kinds of cable traction machine extrusion machine, PVC pipe shaped strip and other plastic products have high performance traction,seamless endless process,no joints,no breakage,smooth surface,strong tensile strength,wear resistance,long life,etc.hardness range 40-75 degrees,working temperature -10°C-80°C,the color can be made blue,red,green,white,black,or in the surface of the arc,V/U grooves,etc.red,green,white,black,or in the surface of the arc,V/U grooves,etc.
Haul off belts standard sizes:
| Parameters | PJ | PK | PL | PM |
| Ribs pitch | 2.34 | 3.56 | 4.7 | 9.4 |
| Width | 20~400 | 20~400 | 20~400 | 20~400 |
| Thickness | 6~12 | 7~15 | 12~30 | 20~50 |
| Length | 500~6000 | 500~6000 | 1000~6000 | 2000~ 200000 |
| Material | rubber | rubber | rubber | rubber |
| Rupture strength | 56~60 | 116~124 | 232~248 | 532~572 |
| Tensile Ratio | 0.5~0.6 | 0.6~0.7 | 0.75~0.85 | 0.95~1.1 |
| Tensile load | 14~15 | 29~31 | 85~62 | 133~143 |
| Surface friction coefficient | 1~2 | 1~2 | 1~2 | 1~2 |
| Min.use diameter | C50 | 85 | Ø150 | C240 |
| Working temperature | -20~+80 | -20~+80 | -20~+80 | -20~+80 |
Coating:
55~80 Duro Shore A
Excellent Grip
Abrasion Resistance
Strong Tensile Cord
Oil Resistant (Upon Request)
Non Marking (Upon Request)
Color: Red, White, Black, Green, Grey, Blue, Brown
Features of Haul Off Belts:
Endless – No joints or splicing
Thermal Bonding – Guards against cover delamination
Bi-Directional – Precision ground covers ensure adaptability
Custom Thickness
Customized covers available
Applications of yonghang haul off belt
Industrial Sector
Electric cables production
Plastic profiles Production
Wire cable production
Haul off unit capstan
Plastic extrusion cable pulling
Production of pipes&tubing
Automotive
Vinyl Siding
Why choose Yonghang’s haul off belts?
1. Yonghang haul off belts are molded in one piece through vulcanization, ensuring true seamless construction that prevents delamination and breakage.
2. Yonghang traction belts utilize the most durable modified CR rubber.Tested to withstand 1,000 friction cycles with only 0.1% wear,
3. Compared to splicing rubber belts requiring three replacements annually, Yonghang haul off belts only one replacement per year, save more maintenance costs.
4. Custom options include EPDM high-temperature resistant rubber belts, TPU materials, and food-grade silicone materials.
