Flour Roller Mill Belts
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar.
Call to ask any question
+86 198 6473 7116
OEM & customization Services
Product Description
Flour Power Roller Mill Drive Belts are potential replacement belts for flour roller milling machines.
Belts for flour roller milling machines are widely used in food-processing industries, for various applications such as grinding grains, corn and cereals.
Flour Roller Mill Belts combine the benefits of poly-v and synchronous belts.
Flour Roller Mill Belts offer different number of ribs such as 12pk, 16pk, 17pk, 18pk, 20pk, 22pk, 24pk, 26pk, 28pk, 30pk, 32pk, 35pk, 36pk and 38pk, while custom sizes (lengths, widths, ribs and pitches) are available upon request. .
Flour Roller Mill Belts usually consist of neoprene body, fiberglass cord and nylon tooth facing, while custom materials available upon request. Special cords include aramid (kevlar), steel and carbon fiber.
Features/Advantages
High performance advanced polymer compound for long belt life
Optimized tensile cord for strength and high torque loading
Graphite impregnated fabric facing for improved wear resistance
Jump and shear resistant belt teeth
Efficient and consistent power transfer
Heat, abrasion and wear resistant
Vibration-free performance
Durable and dependable
Antistatic, oil and heat resistant
Noise-free transmission
Suitable for multi-shaft transmission with reversed rotary directions of the pulleys
Applications
Roller Mills
Roller milling is a process used to separate the parts of grain and then grind into flour
The rollers rotate at different speeds and the material is sheared as it passes through the gap
Some flour mill machines use a belt with synchronous on one side and v-ribbed on the other
Other machines require a belt that is v-ribbed or synchronous on both sides
Market
Food processing Industry
Matched Sets
Flour Power belts are sold individually but are often used in sets of 2 or 3 on one mill
For example, 1760-S8M-PK20-3
Add a dash and the number of belts needed to the end of the part number to order a matched set
Part Number Explanation:
Synchronous/Poly V Roller Mill Belt:
1760-S8M-PK-20
- 1760 = Pitch Length [mm]
- S8M = Tooth Profile
- PK = K Rib Profile
- 20 = Number of Ribs

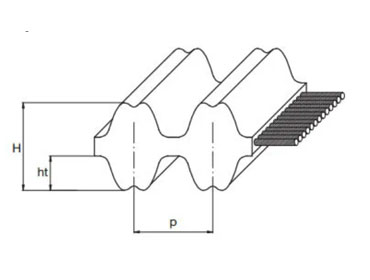

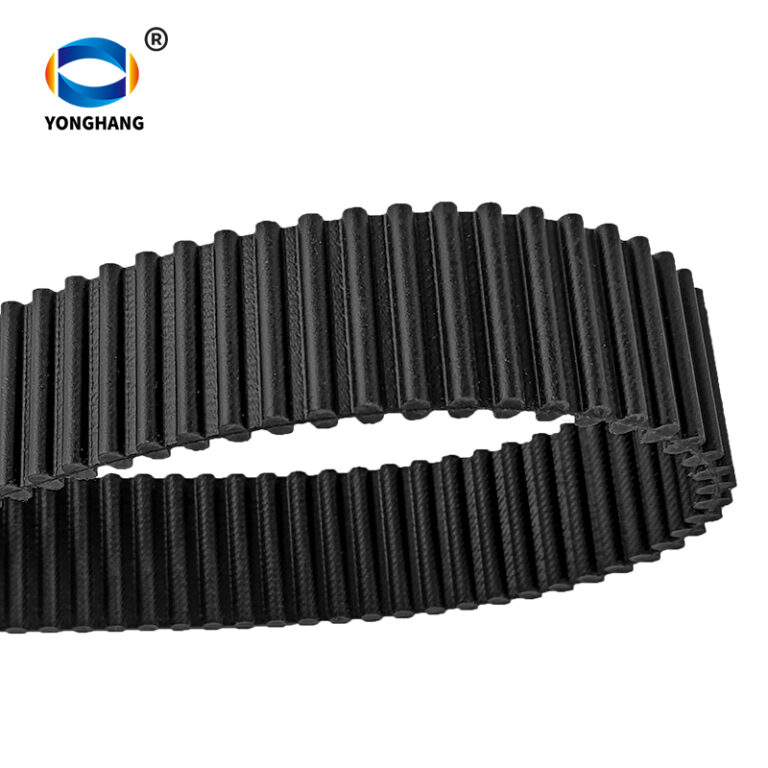

Dual Sided Synchronous Roller Mill Belt:
D-1778-RPP14M-75
- D = Dual Sided
- 1778 = Pitch Length [mm]
- RPP14M = Tooth Profile
- 75 = Width [mm]

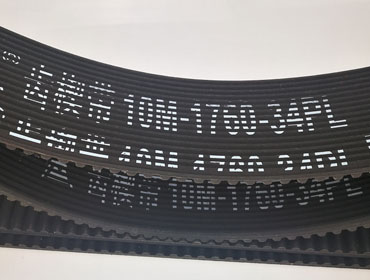

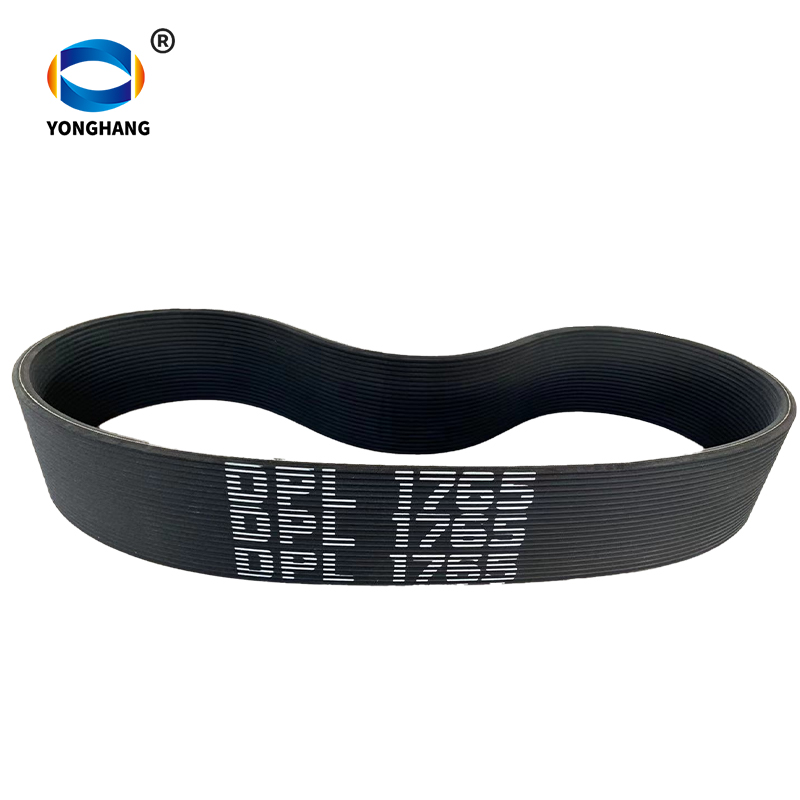

Dual Sided Poly V Roller Mill Belt:
1760-PVL-34-D
- 1760 = Pitch Length [mm]
- PVL = L Rib Profile
- 34 = Number of Ribs
- D = Dual Sided
Sizes

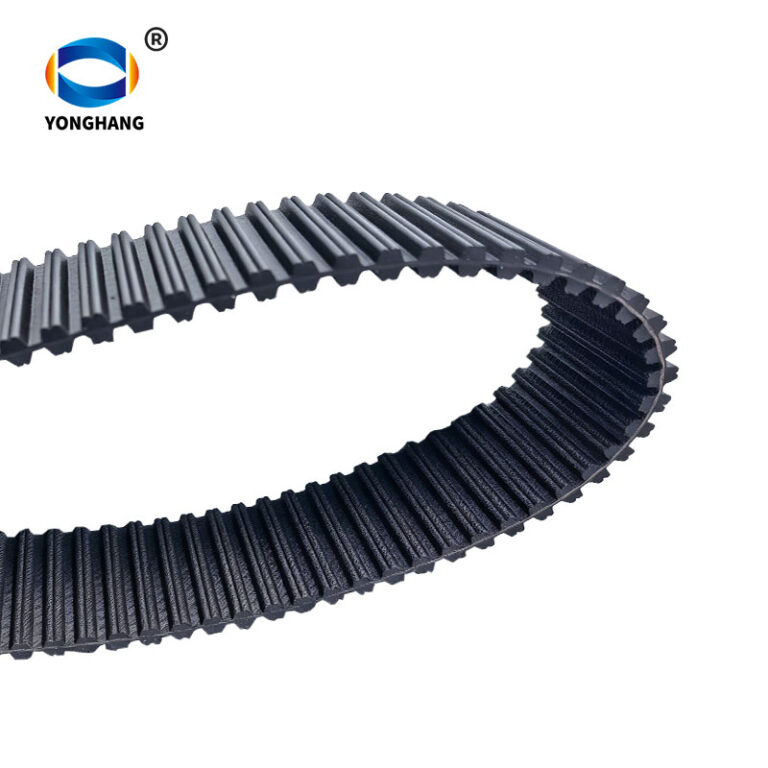

Available in 8M and14M synchronous on one side with PVK or PVL on the other
Dual sided synchronous and dual sided v-ribbed belts are also available
Contact us
WHY CHOOSE US?
YongHangbelt factory has 10,000mof production base, is a manufacturer of research anddevelopment, production and sales in one, using the factory direct sales model, to providecustomers with more profits; one-stop product application solutions, eliminating the dealer to earnthe difference, to reduce more costs for you, while providing more cost-effective quality products.
Everyday from
8:00 – 6:00
call to ask a question
+86 198 6473 7116

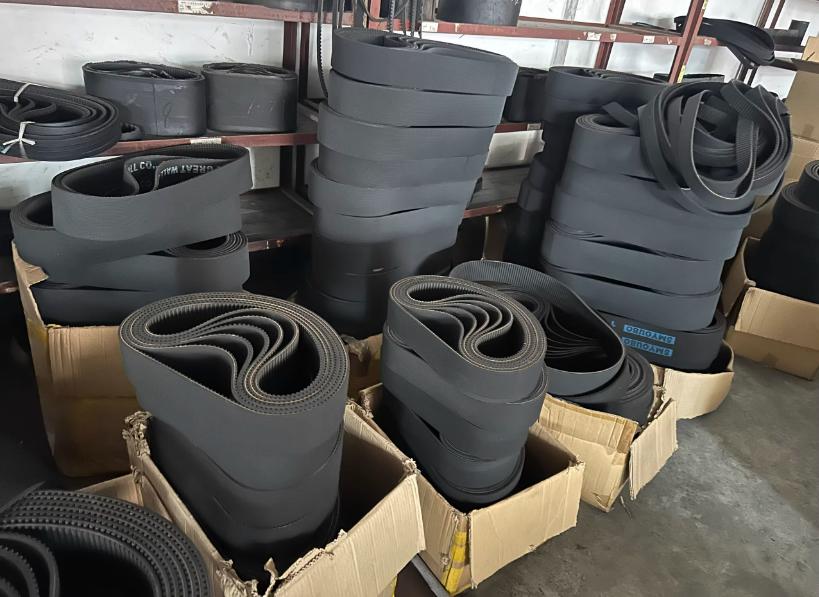

Flour mill belt warehouse

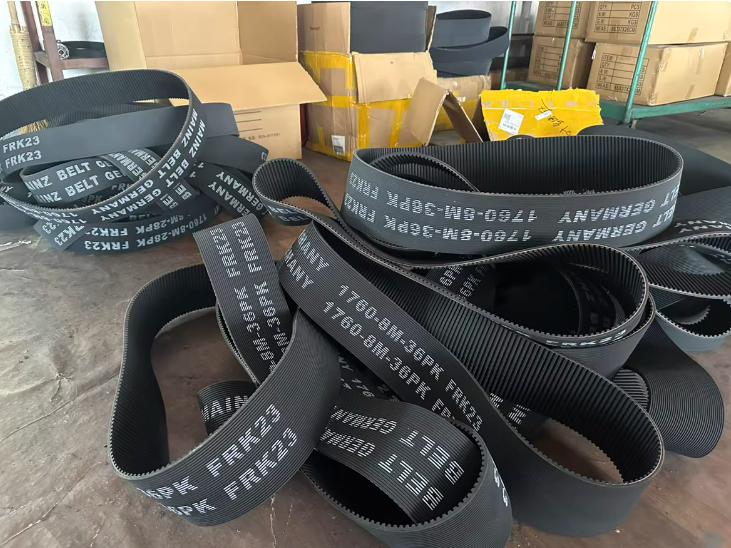

DPK Spot wholesale

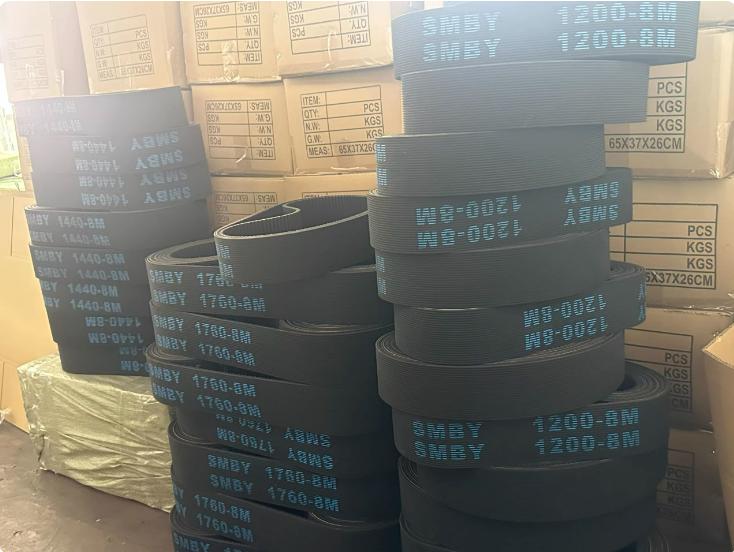

8M-1200 Spot wholesale
Our partners:
Customized Flour Roller Mill Belts and other series of products.Please contact us for an updated quotation!
Ordering Guide:
When placing an order, please provide the following information to receive an accurate quote:
Profile and Number of V-Grooves: For example, DPK (Double PK) or DPL (Double PL), along with the number of V-grooves (e.g., 12 V-grooves).If it is a Timing/Poly V Roller Mill Belts, simply add “timing belt type”
Effective Length: For example, DPL1552 (length is typically measured in mm).
Matching Pulleys: If you need to replace your pulleys, Yonghang can also provide
FAQ
Which material is more durable for flour mill belts?
We recommend EPDM belts reinforced with aramid cord, as they are wear-resistant, resistant to aging, and heat-resistant. They have a longer service life than standard CR rubber belts and are better suited for continuous operation in flour mills.
Can you customize belts with special lengths and widths?
We offer customization for non-standard specifications. Simply provide parameters such as perimeter, width, and model number. We specialize in small-batch, custom orders, offering greater flexibility to meet the needs of modified and specialized models.
How long do flour mill belts typically last? Are they prone to breaking?
Under normal continuous operation, high-quality EPDM rubber belts can last 6 to 12 months. Made from highly wear-resistant and tensile-strength materials, these belts are resistant to breaking and stretching, making them suitable for the long-term, high-load operation of flour mills.
How should quality issues be handled?
All bulk orders come with a warranty. For issues such as cracking, delamination, or broken straps that are not caused by improper installation, we will handle them through our standard after-sales service. Please contact our sales manager for more details.
Which models are your flour mill belts compatible with?
Our Synchronous/Poly V Roller Mill Belt , double sides timing flour mill belts, and double sides multi-ribbed flour mill belts are compatible with the vast majority of small and medium-sized flour mills, grain mills, and dough mixers on the market, and we carry a full range of common models. Simply provide the belt model or machine model, and we can help you find the right product.
