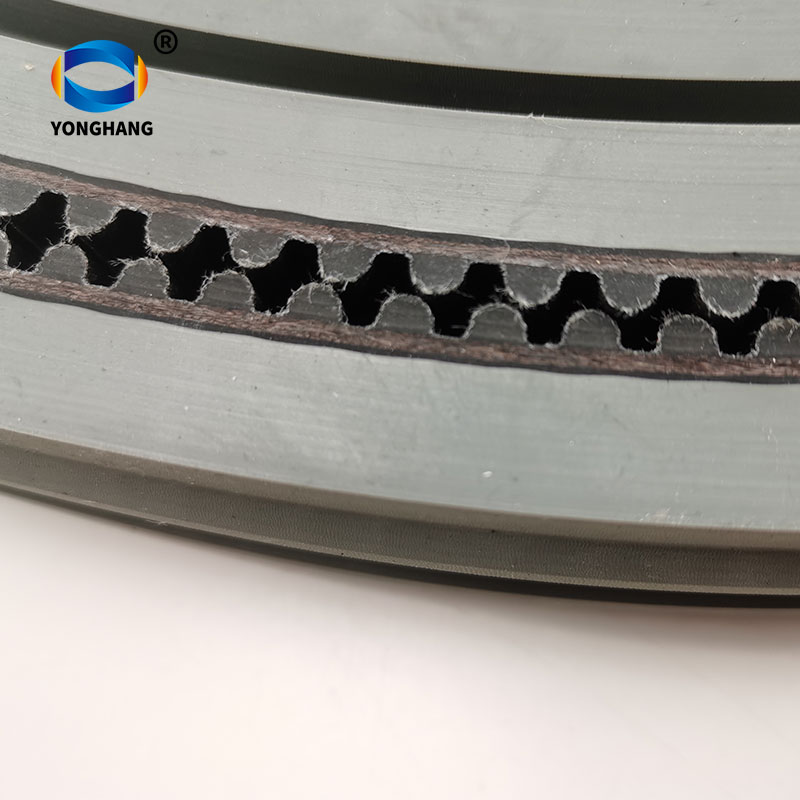

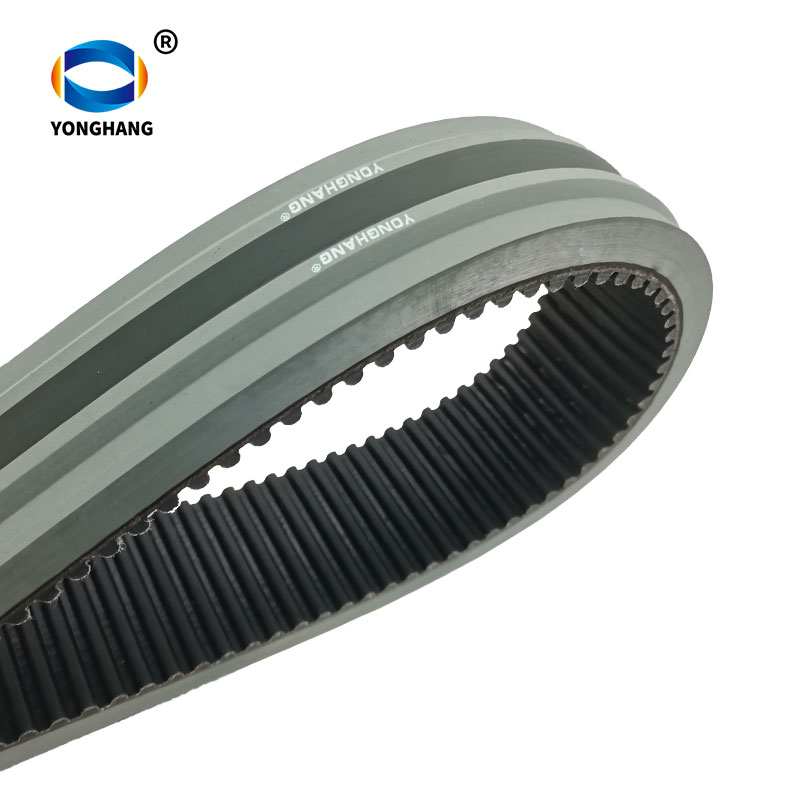

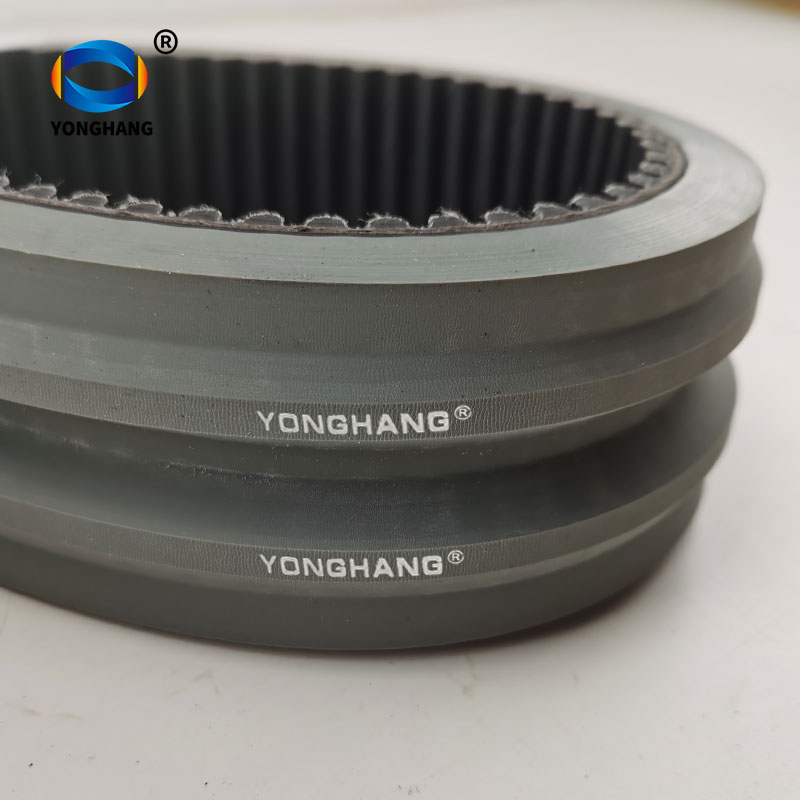

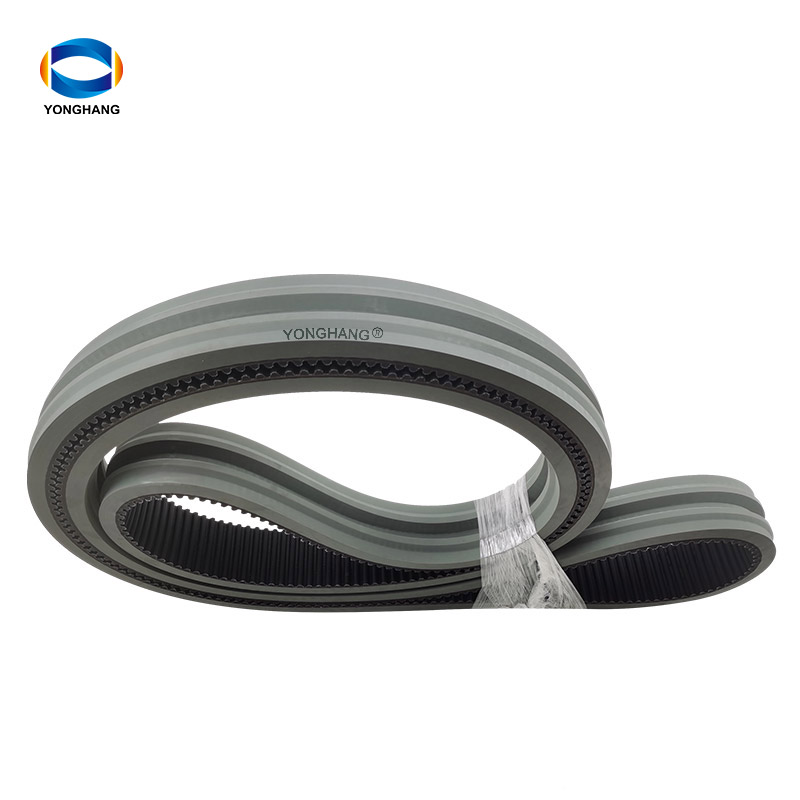

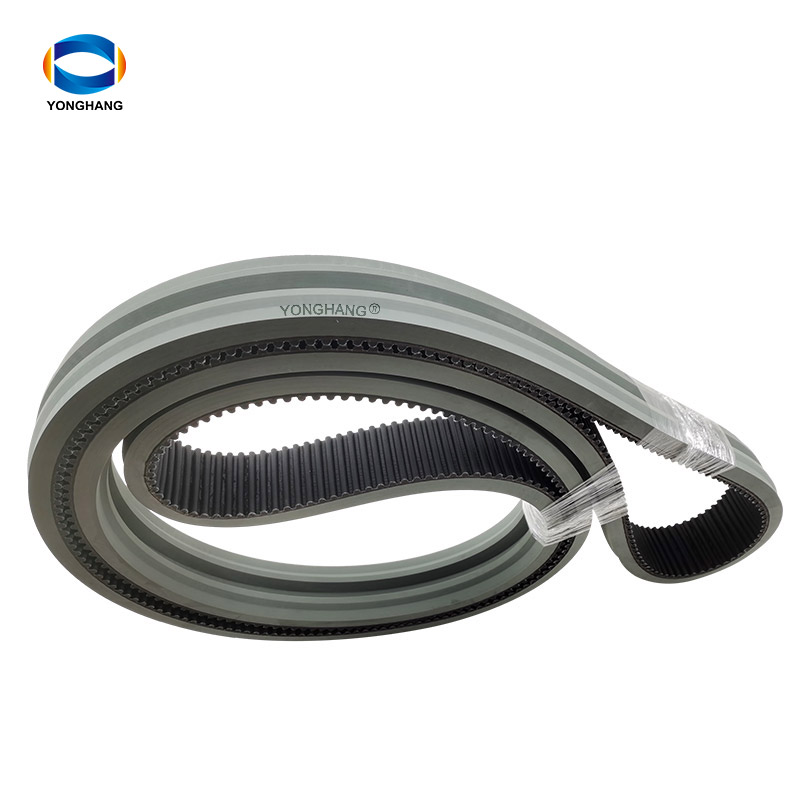

8M-3280 Coated synchronous belt slotting for Bending pipe pulling
Parameters Brand Yonghang Type HTD 8M Timing Belt Pitch 8mm Coating Color gray Construction Gray CR rubber coated rubber synchronous belt Total thickness 20mm（Can be customized according to your needs.） Pitch Length 3280mm width 50mm or customized Teeth 410 Teeth Coating Hardness 55A-65A（Customizable from 35A to 85A） Working temperature -20℃~+85℃ Min. use diameter 80mm
Parameters
| Brand | Yonghang |
| Type | HTD 8M Timing Belt |
| Pitch | 8mm |
| Coating Color | gray |
| Construction | Gray CR rubber coated rubber synchronous belt |
| Total thickness | 20mm（Can be customized according to your needs.） |
| Pitch Length | 3280mm |
| width | 50mm or customized |
| Teeth | 410 Teeth |
| Coating Hardness | 55A-65A（Customizable from 35A to 85A） |
| Working temperature | -20℃~+85℃ |
| Min. use diameter | 80mm |
