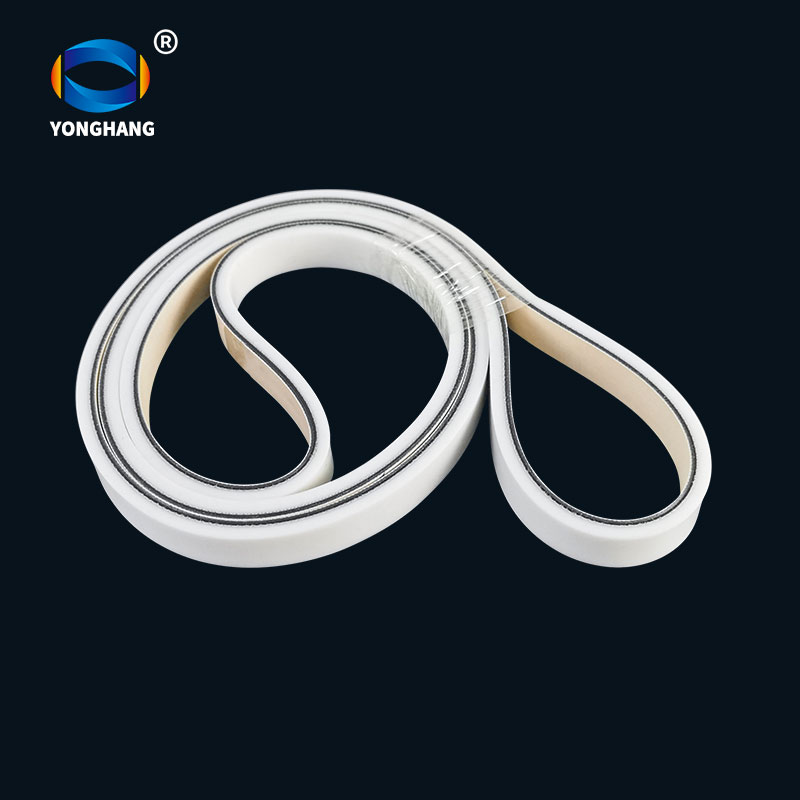

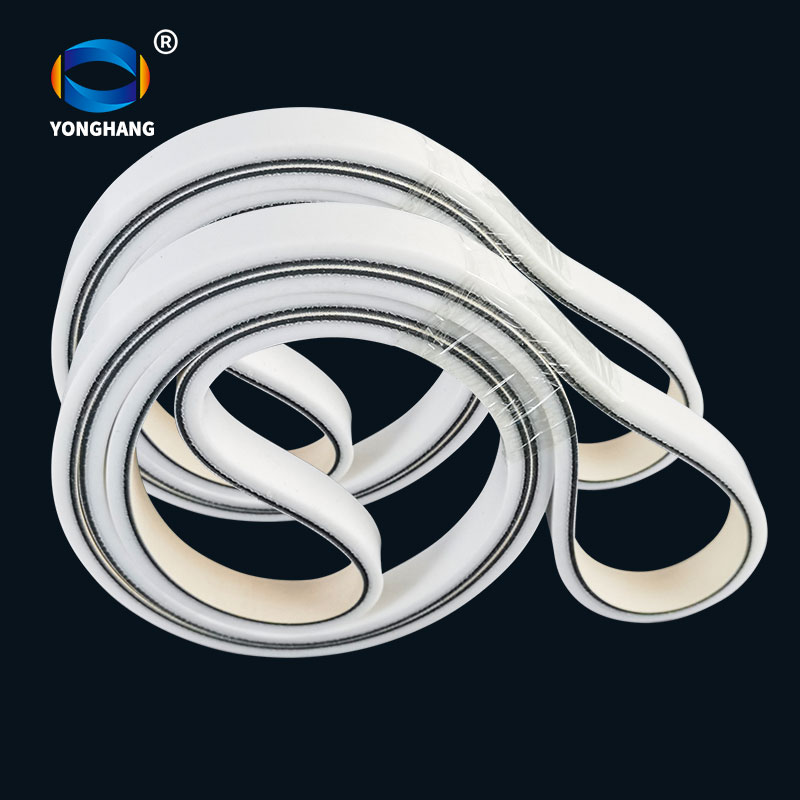

white silicone coated conveyor belt for electroplating industry

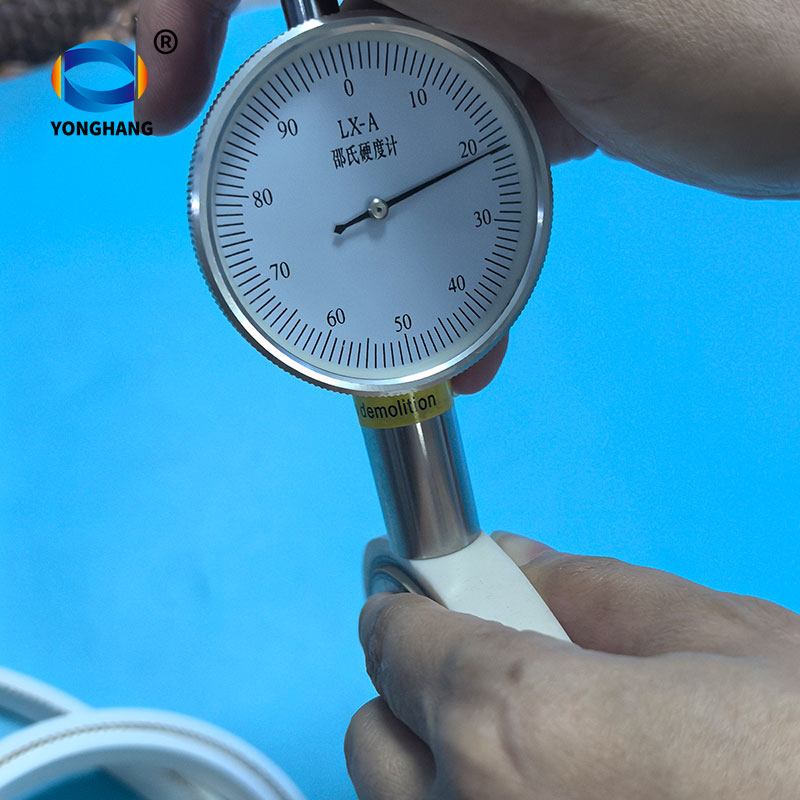

At our Yonghang factory, we develop and manufacture silicone conveyor belts for the electroplating industry with customizable hardness ranging from 15A to 40A on the Shore scale. Due to its exceptional chemical stability, our silicone is highly resistant to natural aging and remains chemically inert when exposed to electroplating solutions with a pH value between 4.5 and 12.5. Its hardness remains consistent throughout operation, significantly reducing the loss of costly chemical solutions during the electroplating process

The white silicone coated conveyor belt for electroplating industry currently manufactured by our company are available in the following standard lengths: 925 mm, 1050 mm, 1100 mm, 1200 mm, 1460 mm, 2450 mm, 3450 mm and 5400 mm; the minimum width is 6 mm and the maximum width is 150 mm; common widths are 50.8 mm, 75 mm and 76.2 mm; and the standard thickness, including the base belt, is 6 mm.the standard thicknesses are 4 mm and 6 mm.

Common Specifications Table

Length(mm)	Width(mm)	Thickness(mm)	Hardness	colour
925	50.8/75/76.2	4/6	Shore 20A	white
1050	50.8/75/76.2	4/6	Shore 20A	white
1100	50.8/75/76.2	4/6	Shore 20A	white
1200	50.8/75/76.2	4/6	Shore 20A	white
3450	50.8/75/76.2	4/6	Shore 20A	white
1460	70/50.8/75/76.2	4/6	Shore 20A	white
2450	70/50.8/75/76.2	4/6	Shore 20A	white
5400	70/50.8/75/76.2	4/6	Shore 20A	white
1650	70/50.8/75/76.2	4/6	Shore 20A	white
2000	70/50.8/75/76.2	4/6	Shore 20A	white
1260	50/70/50.8/75/76.2	4/6	Shore 20A	white

Advantages

Oil, acid and alkali resistant / Wear-resistant with no peeling / Does not release oil / Does not become sticky at high temperatures

Applications

Used in conjunction with electroplating moulds, the electroplating masking tape utilises a soft silicone surface to press firmly against the material strip, preventing leakage of the electroplating solution.
