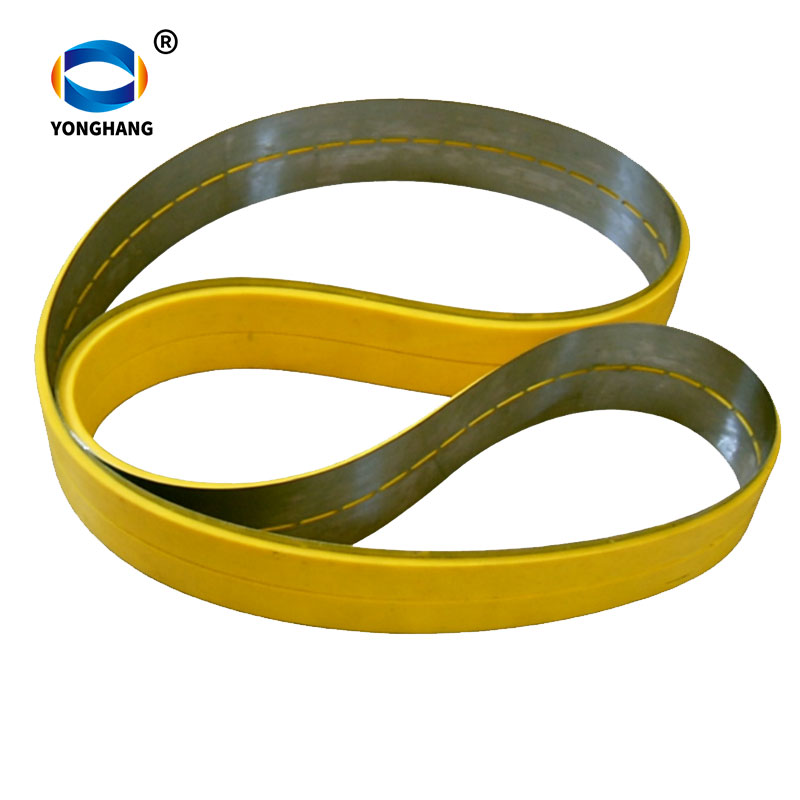

yellow silicone coated conveyor belt for electroplating industry& Spray Plating
Traditional electroplating conveyor belt constructed with stainless steel or titanium bases covered in standard black foam or rubber frequently suffer from premature wear and abrasion. As the surface rubber degrades, sealing performance plummets, resulting in critical chemical solution leakage and the waste of expensive plating agents. To solve this industry bottleneck, our company has engineered…
Traditional electroplating conveyor belt constructed with stainless steel or titanium bases covered in standard black foam or rubber frequently suffer from premature wear and abrasion. As the surface rubber degrades, sealing performance plummets, resulting in critical chemical solution leakage and the waste of expensive plating agents.
To solve this industry bottleneck, our company has engineered a next-generation Corrosion-Resistant Stainless Steel conveyor belt with a Premium Silicone Coating. Featuring a precision Shore 15A hardness, this advanced silicone matrix delivers unrivaled compressibility, a vastly extended service life, and superior wear resistance compared to traditional black rubber or foam strips.
Hermetic Anti-Leakage Seal: This design ensures that during the vulcanization process, the liquid silicone coating fully encapsulates and interlocks with the back grooves. By achieving a direct, seamless contact bond, we eliminate the risk of delamination and achieve a far more effective, chemical-tight hermetic seal under high pressure.

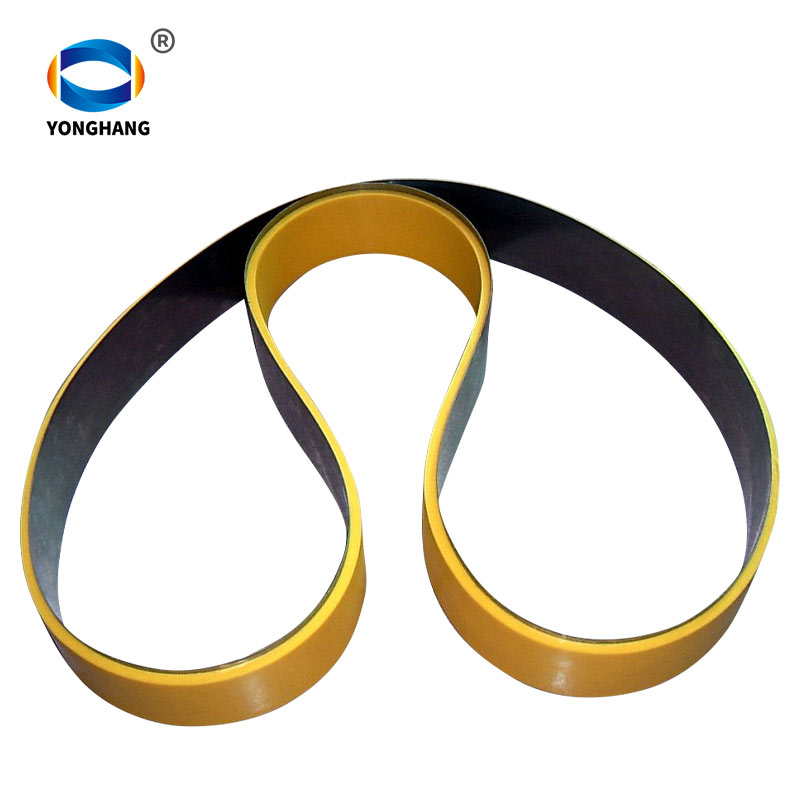

yellow silicone coated conveyor belt for Spray-coated pressure belts use 0.2 mm thick stainless steel as the base belt. The silicone is available in two hardness grades:Shore 15A and 25A. Common lengths are 2178 mm and 2225 mm; common widths are 50.8 mm, 75 mm and 76.2 mm; and the standard thickness, including the base belt, is 6 mm.
Common Specifications Table
| Length(mm) | Width(mm) | Thickness(mm) |
| 925 | 50.8/75/76.2 | 4/6 |
| 1050 | 50.8/75/76.2 | 4/6 |
| 1100 | 50.8/75/76.2 | 4/6 |
| 1200 | 50.8/75/76.2 | 4/6 |
| 3450 | 50.8/75/76.2 | 4/6 |
| 1460 | 70 | 4/6 |
| 2450 | 70 | 4/6 |
| 5400 | 70 | 4/6 |
| 1650 | 70 | 4/6 |
| 2000 | 70 | 4/6 |
| 1260 | 50 | 4/6 |
| 2178 | 50.8/75/76.2 | 6 |
| 2225 | 50.8/75/76.2 | 6 |
All the above specifications are available with molds and are produced in seamless silicone material.
Advantages
- Shore 15A Ultra-Soft Compliance: The ultra-low durometer (15A) silicone conforms flawlessly to irregular plating surfaces and tank edges, providing a zero-gap seal under lower clamping pressure.
- Elite Chemical & Corrosion Resistance: Fully immune to aggressive electroplating acids, alkaline baths, high-temperature spray plating environments, and chemical oxidation.
- Advanced Wear Resistance & Lifespan: Engineered to withstand high-frequency mechanical friction, significantly reducing maintenance downtime and replacing frequency.
- Zero Contamination: Unlike black foam that sheds particles as it degrades, our high-purity silicone leaves zero residue, protecting the purity of your plating baths.
Application
Electroplating lines, Automatic Spray Plating Machinery, Chemical Tank Sealing
