PVC Fishbone Pattern Conveyor Belts For Wood Process

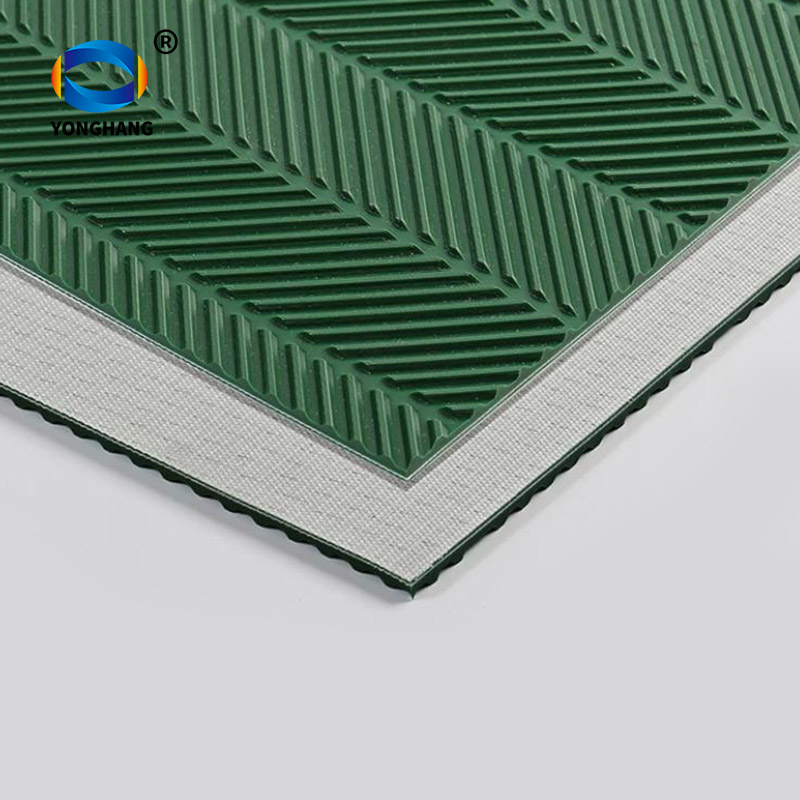

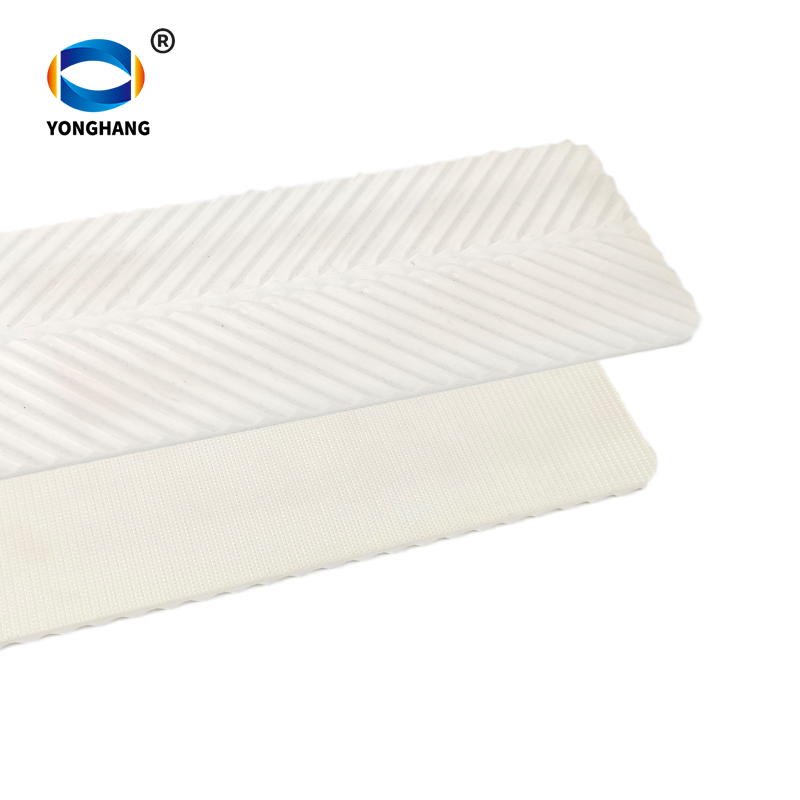

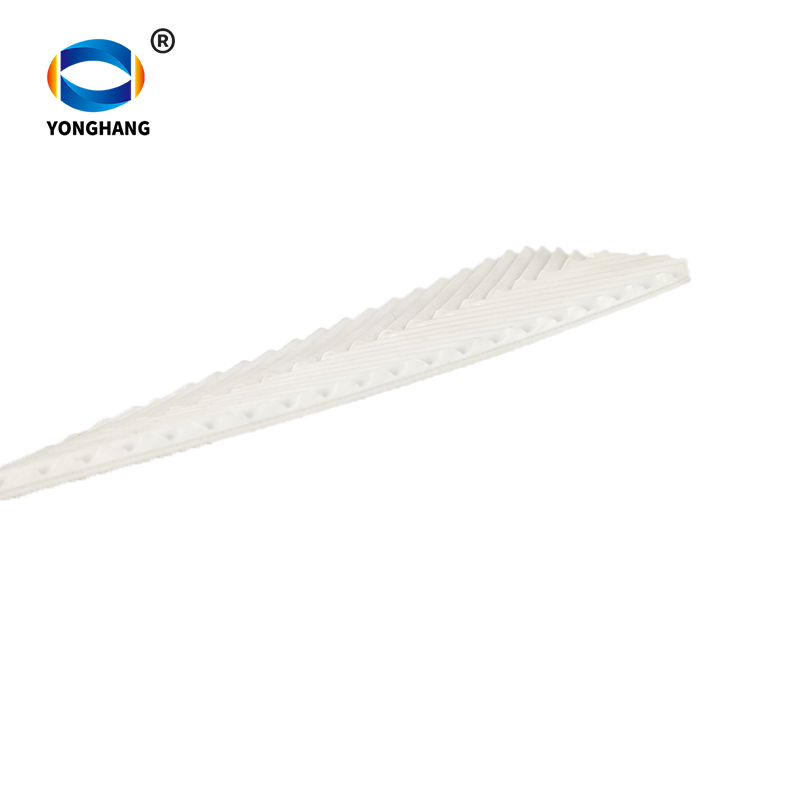

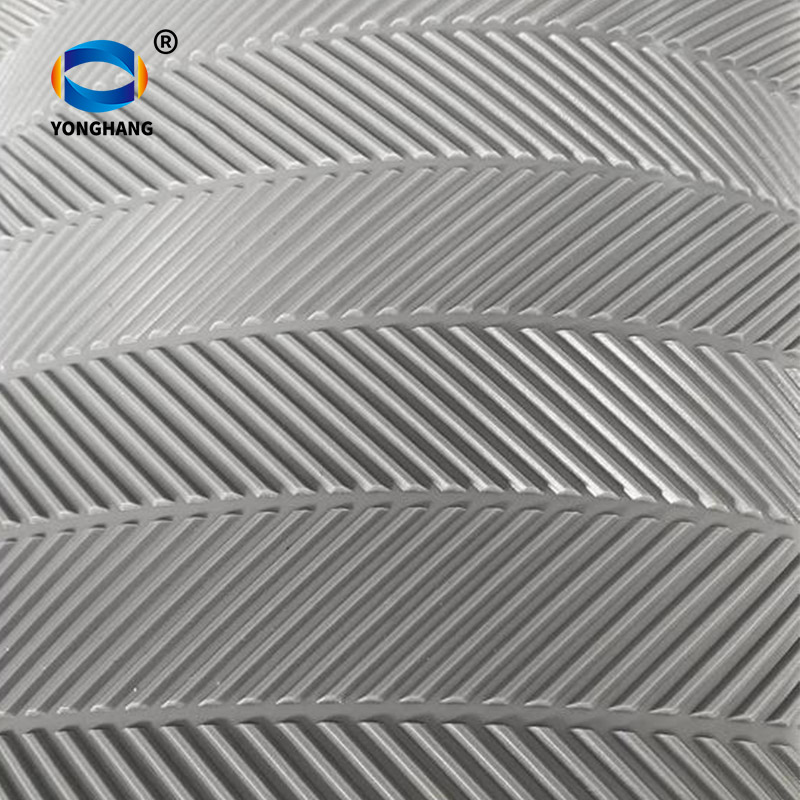

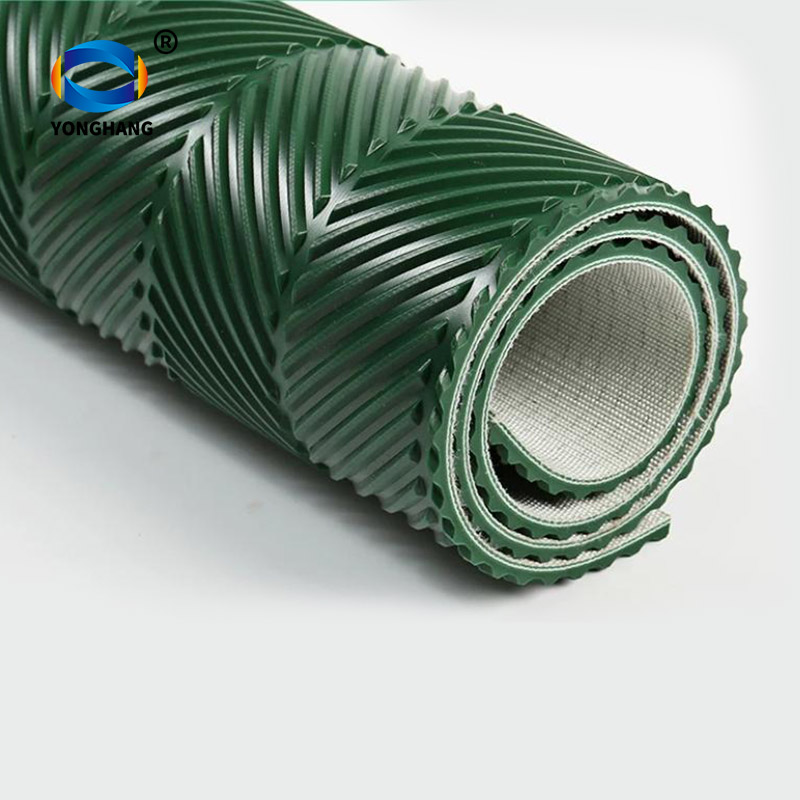

PVC Fishbone Pattern Conveyor Belts is specially engineered for woodworking sanding, polishing, cutting and board conveying lines. The surface features a raised fishbone anti-slip textured pattern molded integrally with the PVC belt body. Made of multi-layer high-tensile polyester fabric core covered by wear-resistant PVC surface layer, the belt delivers stable flat transmission, excellent traction for…

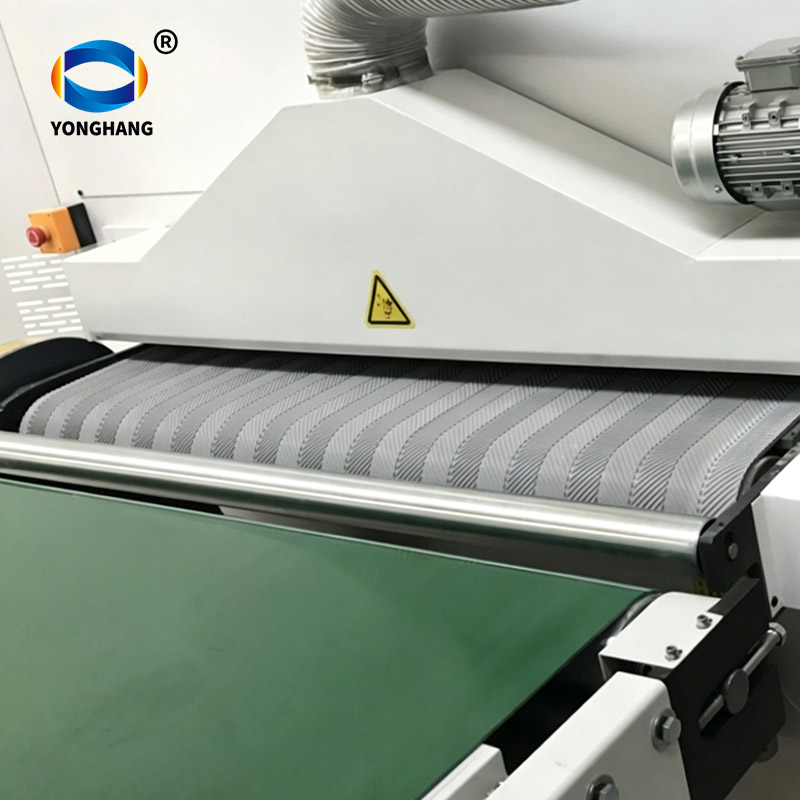

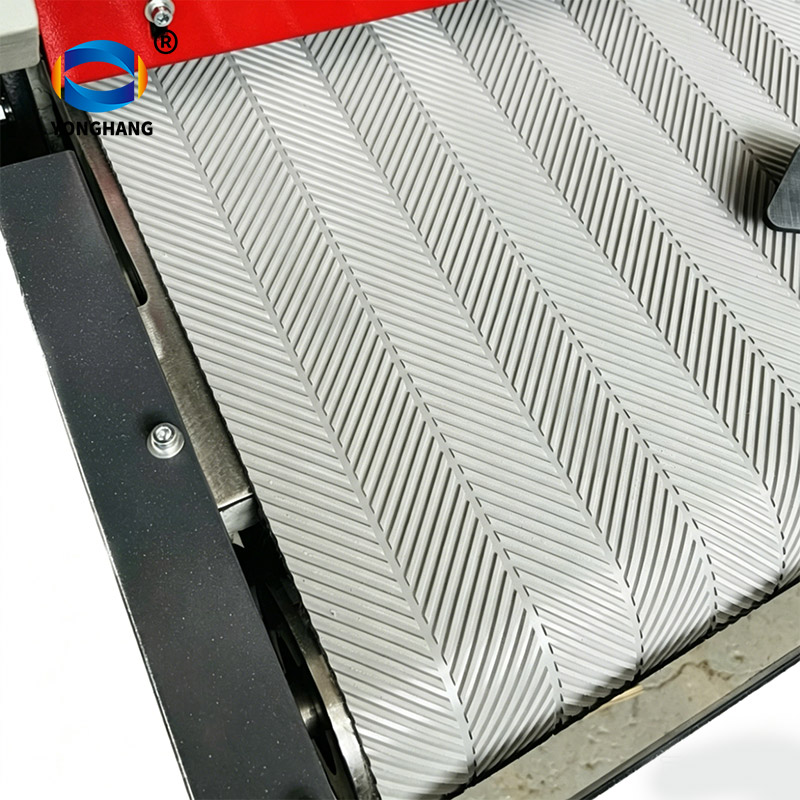

PVC Fishbone Pattern Conveyor Belts is specially engineered for woodworking sanding, polishing, cutting and board conveying lines. The surface features a raised fishbone anti-slip textured pattern molded integrally with the PVC belt body. Made of multi-layer high-tensile polyester fabric core covered by wear-resistant PVC surface layer, the belt delivers stable flat transmission, excellent traction for wood panels, plywood, MDF, solid wood and particle boards. Compatible with roller driving systems, sanding machine platforms and wood feeding conveyors, it runs smoothly under heavy load and long-hour continuous operation in sawdust, abrasive dust working environments.
Product parameter
| Product | PVC Fishbone Conveyor Belt |
| specifications | Flexible customization |
| Material | Polyester fabric carcass + PVC cover |
| Width | Maximum 3000 mm |
| Thickness | 3.0mm / 4.0mm / 5.0mm / 6.0mm |
| Colour | White/Grey/green |
| Pattern | Fishbone PVC pattern |
| Structure | 2ply / 3ply / 4ply (thicker plies for heavier load) |
| Working temperature | -20℃~+85℃ |
| Base Material | polyester fabric |
| Coating | PVC |
| Coating Hardness | Shore A 60±5 |
| Joint Method | Hot melt splicing,, metal fastener joint |
Key Advantages
- Superior Anti-slip Traction Fishbone staggered texture creates strong friction, prevents wood boards sliding, shifting or bouncing during high-speed sanding and inclined conveying, greatly improving processing precision.
- Outstanding Wear & Abrasion Resistance Thick PVC cover resists scratches from wood chips, sand grains and sharp board edges, extending service life versus plain smooth belts.
- High Tensile & Stable Dimension Multi-ply polyester fabric reinforcement offers low elongation, no stretching after long running, maintains consistent flatness without warping.
- Good Impact & Tear Resistance Tough PVC structure withstands heavy board impact, hard bumps and sharp wood corner tearing, suitable for thick solid wood heavy-duty transport.
- Dust & Moisture Repellent Compact non-porous PVC surface repels sawdust buildup, easy to wipe and clean; moderate moisture-proof performance avoids swelling in slightly humid wood workshops.
- Stable Running & Low Noise Flexible yet rigid structure fits standard drive rollers well, less vibration and running noise during high-speed woodworking production.
- Easy Processing & Installation Can be cut, jointed, perforated, edged trimmed on-site; supports endless splicing for circular conveyor systems.
Application Load:
Light to medium-heavy wood panel conveying & sanding feeding
Extra Custom Options
- Anti-static PVC formula for dust explosion-proof wood factories
- Higher hardness top layer for ultra-heavy abrasive sanding lines
- Custom fishbone pattern depth for extra high friction demand
