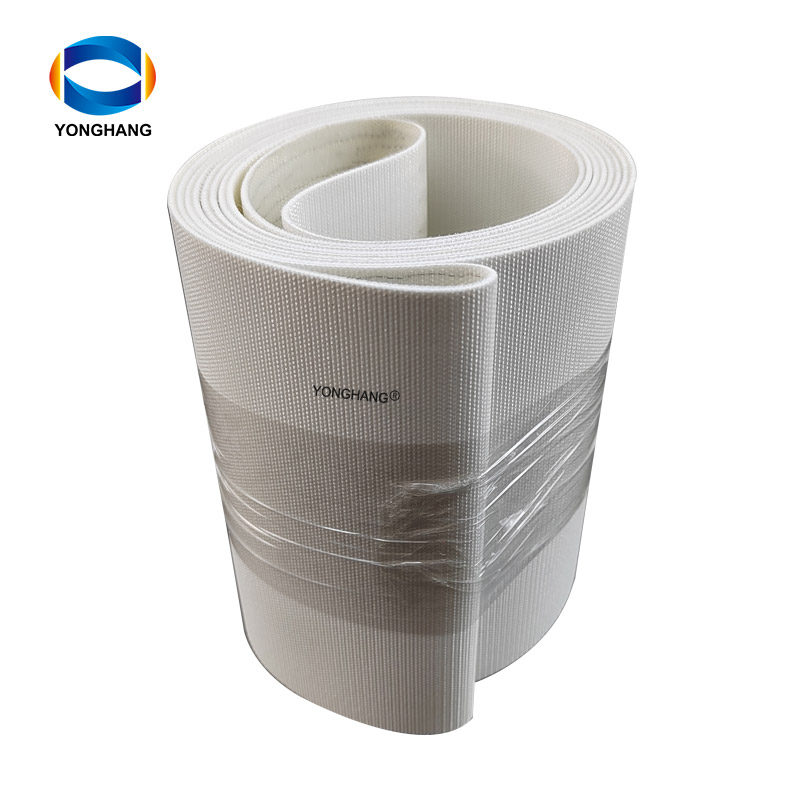

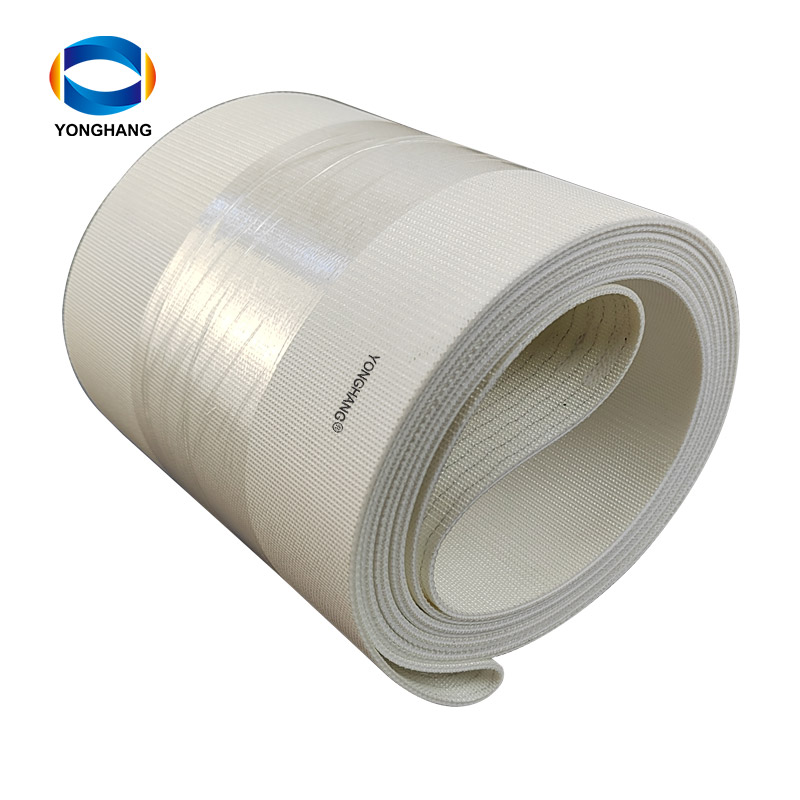

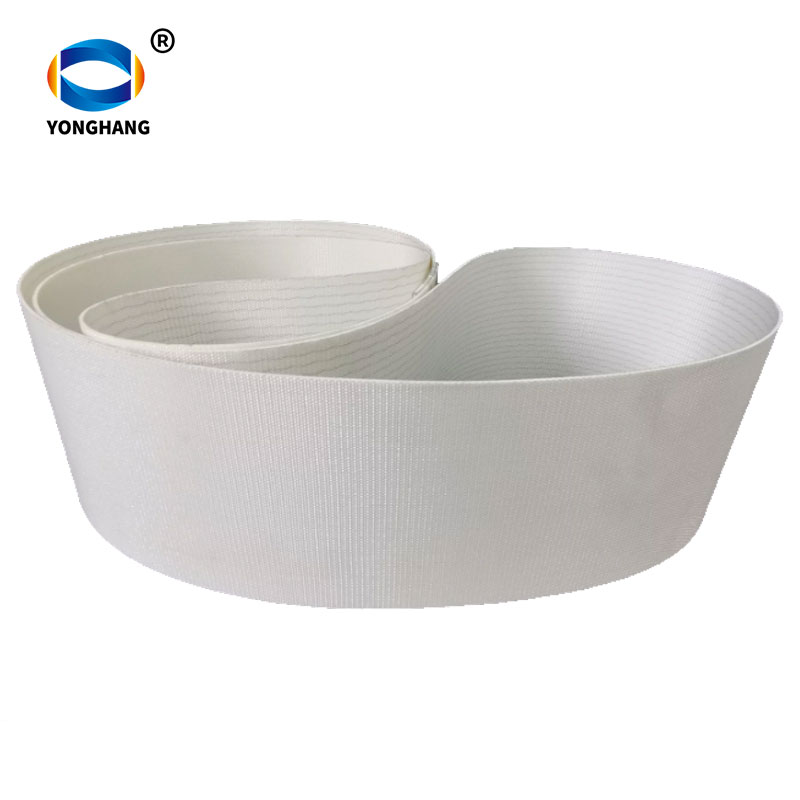

Pvc double-sided fibre conveyor belt
PVC double-sided fibre conveyor belt is a specialized material handling solution designed for industrial applications that require a balance between durability and controlled friction. Unlike traditional PVC belts with a smooth or textured top cover, this version features a fabric or fiber layer on both the top and bottom surfaces. The standard thicknesses are 1.8mm,…

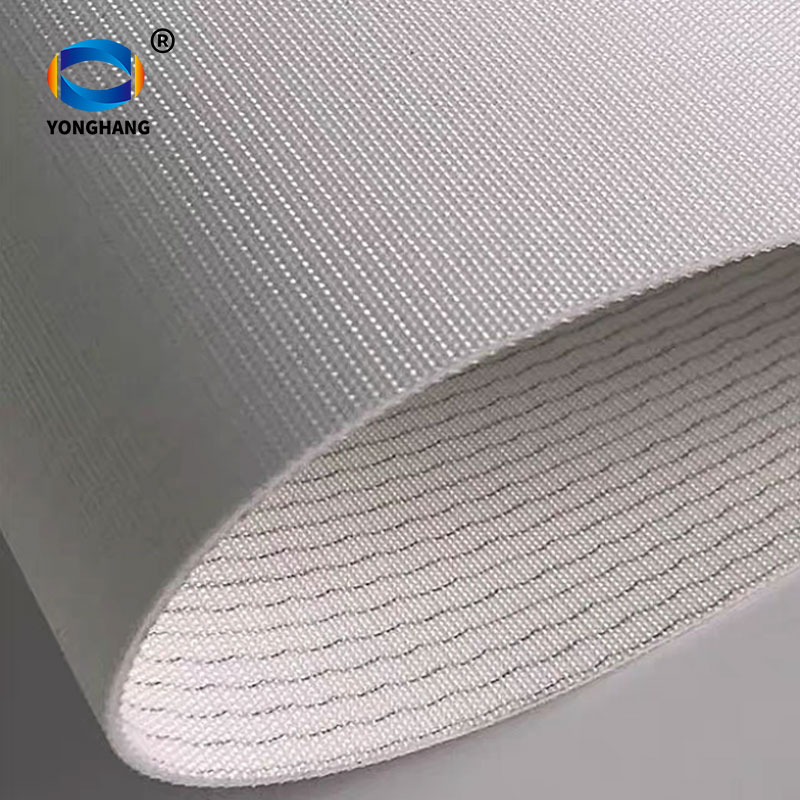

PVC double-sided fibre conveyor belt is a specialized material handling solution designed for industrial applications that require a balance between durability and controlled friction. Unlike traditional PVC belts with a smooth or textured top cover, this version features a fabric or fiber layer on both the top and bottom surfaces.
The standard thicknesses are 1.8mm, 2.2mm and 3.0mm.The maximum width is 3000mm. The length can be customized as per your requirements. We offer wholesale roll materials. Please feel free to inquire. Mainly used for small conveying lines of dough, mooncakes, etc.
Technical Specifications
| Product | PVC double-sided fibre conveyor belt |
| specifications | Flexible customization |
| Surface | Fabric pattern |
| Width | Maximum 3000mm |
| Thickness | 1.8mm/2.2mm/3.0mm |
| Colour | white |
| Working temperature | -0℃~+80℃ |
| Material | food-grade pvc |
| Coating Hardness | ≈75 Shore A |
| Joint treatment | hot finger– joining |
| Number of layers | 2/3 |
Key Features
- Low-Friction Performance: The fiber layers on both sides reduce friction against the conveyor bed and the product, making it ideal for accumulation and lateral sliding.
- Noise Dampening: The textile exterior significantly reduces operational noise compared to solid plastic belts, creating a quieter work environment.
- Non-Marking Surface: The soft fiber texture prevents scratches and scuffs on sensitive products, such as electronics or painted automotive parts.
- Durability: The internal PVC core provides essential oil, grease, and chemical resistance while maintaining the belt’s structural integrity.
- Ease of Installation: The low-friction bottom side reduces the power required to drive the belt, often extending the life of the motor and pulleys.
- Flexibility: The absence of a thick, rigid top cover allows these belts to navigate smaller pulley diameters and knife-edge transitions.

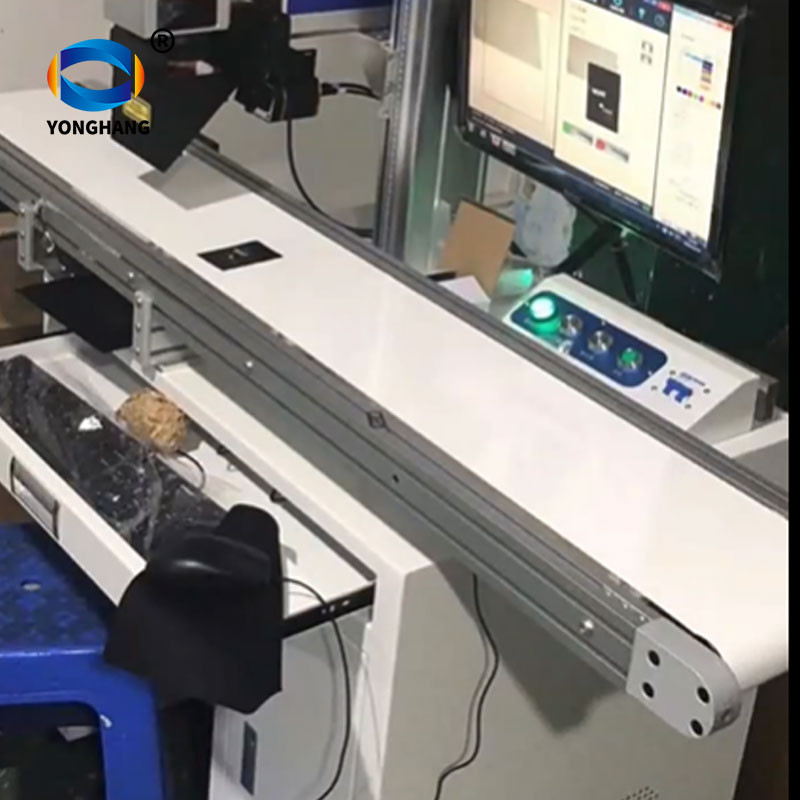

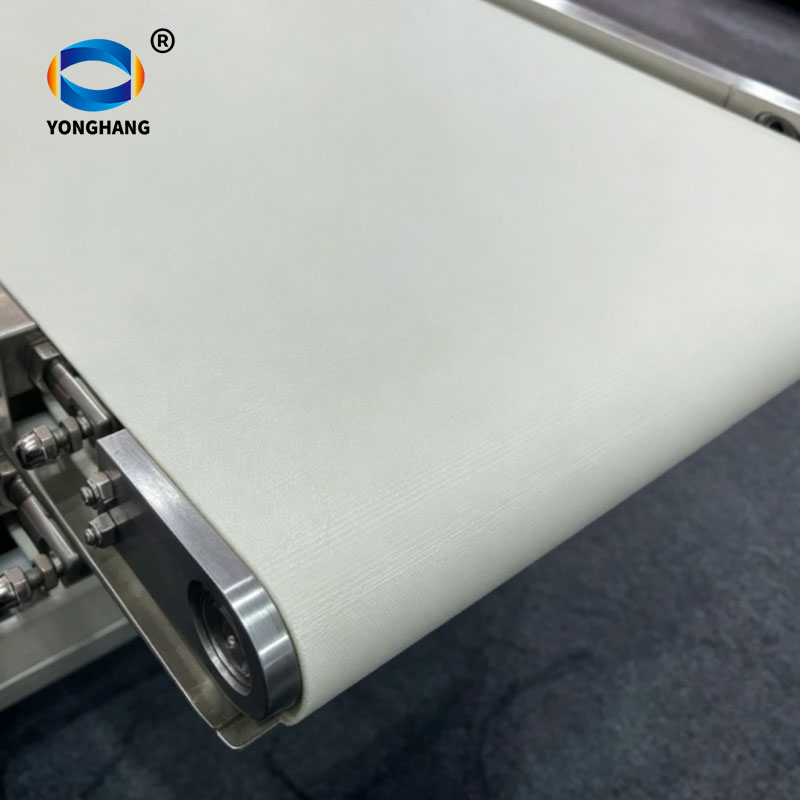

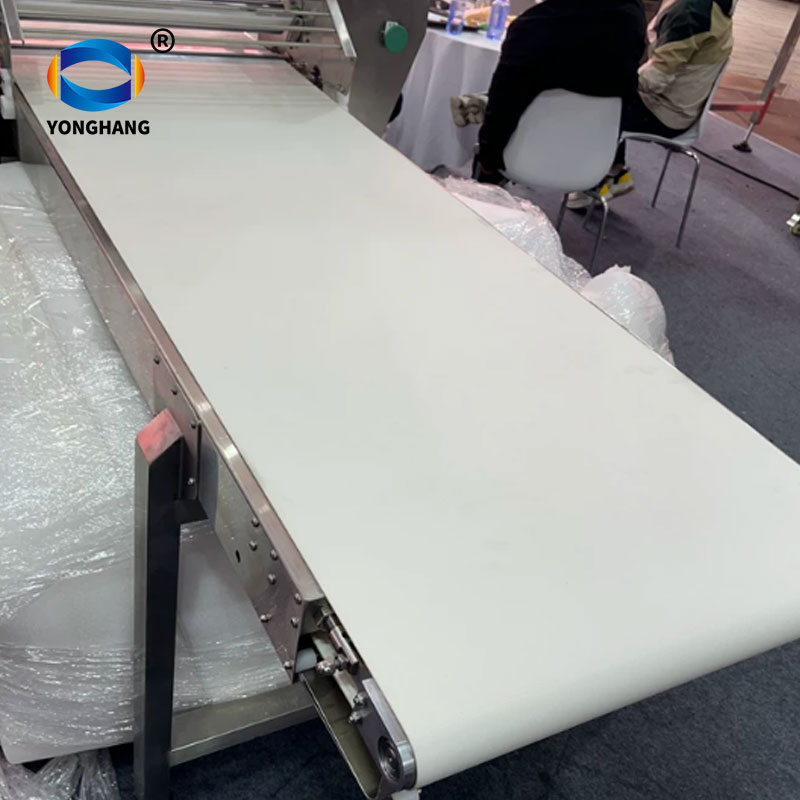

Applications
Mainly used for conveying food products such as biscuits, dough, mooncakes and puff pastry
