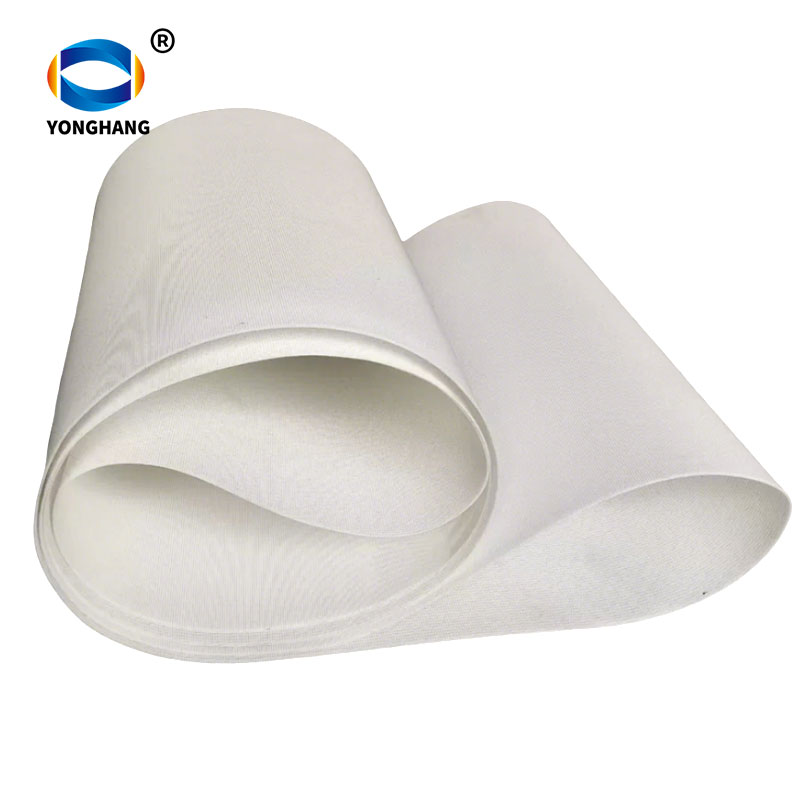

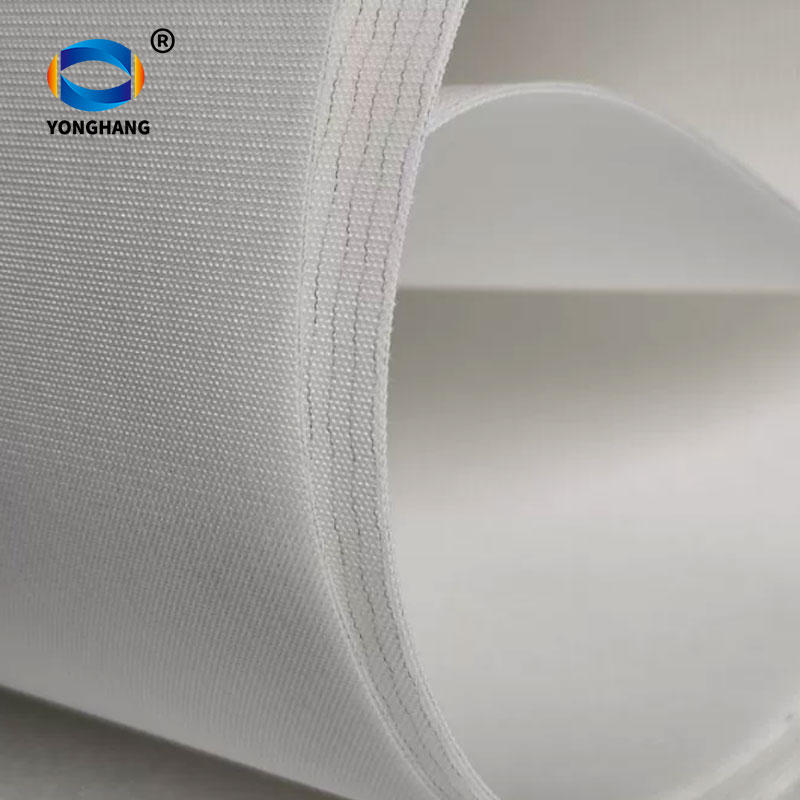

PU double-sided fibre conveyor belt
PU double-sided fibre conveyor belts are specialized industrial belts designed for applications where low friction, high durability, and product protection are critical. Unlike standard belts with a smooth top cover, these feature a fabric or fiber layer on both the top and bottom surfaces.Non-stick, fine-textured pastry roller conveyor belt The standard thicknesses are 1.2mm, 1.5mm…
PU double-sided fibre conveyor belts are specialized industrial belts designed for applications where low friction, high durability, and product protection are critical. Unlike standard belts with a smooth top cover, these feature a fabric or fiber layer on both the top and bottom surfaces.Non-stick, fine-textured pastry roller conveyor belt
The standard thicknesses are 1.2mm, 1.5mm and 1.8mm.The maximum width is 3000mm. The length can be customized as per your requirements. We offer wholesale roll materials. Please feel free to inquire. Mainly used for small conveying lines of dough, mooncakes, etc.
Technical Specifications
| Product | PU double-sided fibre conveyor belt |
| specifications | Flexible customization |
| Surface | Fabric pattern |
| Width | Maximum 3000mm |

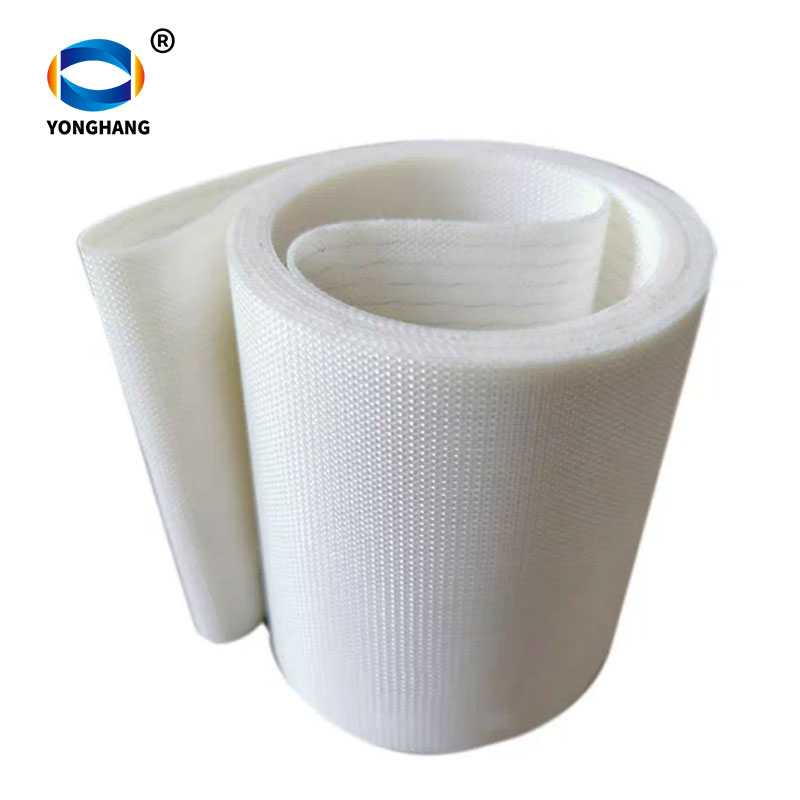

| Thickness | 1.2mm/1.5mm/1.8mm |

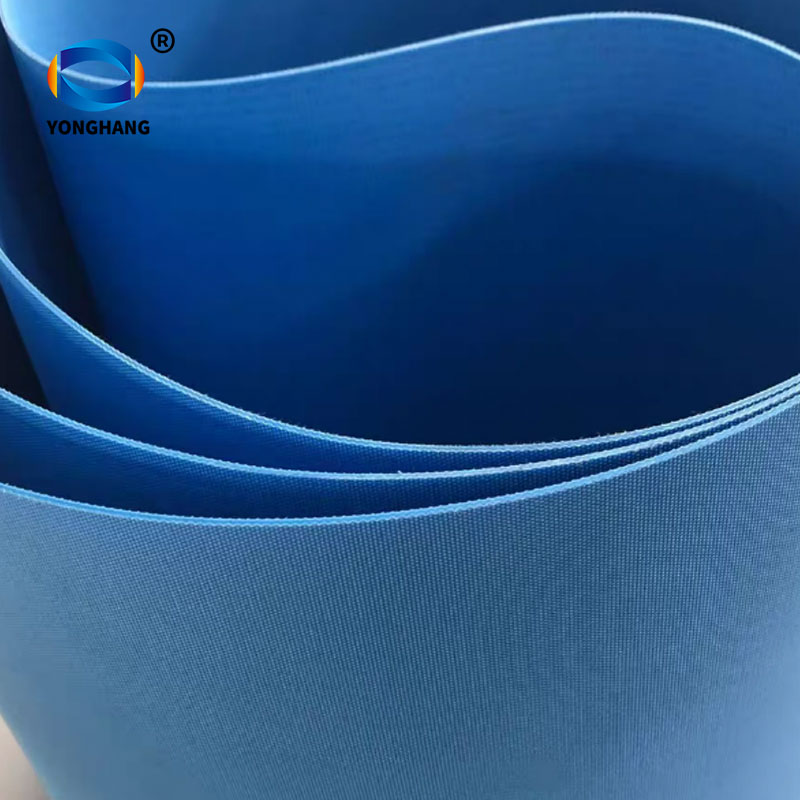

| Colour | blue/white |
| Working temperature | -20℃~+80℃ |
| Material | food-grade PU |
| Coating Hardness | ≈75 Shore A |
| Joint treatment | hot finger– joining |
| Number of layers | 2 |
| Bottom Cover Material | Polyester Fabrics |
Key Features
- Low Friction Surface: The fiber (typically polyester or felt) on both sides allows for controlled accumulation and easy sliding of products.
- Non-Marking: The soft fiber exterior ensures that delicate items are transported without scratches, scuffs, or oil contamination.
- Noise Reduction: The textile layers dampen mechanical noise, making them significantly quieter than solid PU belts during high-speed operation.
- High Flexibility: These belts are ideal for small pulley diameters and knife-edge transfers due to the supple nature of the fiber-reinforced structure.
Technical Composition
- Core Material: A central layer of Thermoplastic Polyurethane (PU) provides the necessary tensile strength and oil/grease resistance.
- Fibre Layers: The “double-sided” aspect refers to the fabric (often impregnated with PU) that covers both the driving side and the carrying side.
- Reinforcement: Usually contains high-strength polyester monofilament to prevent elongation under load.
Applications
Mainly used for conveying food products such as biscuits, dough, mooncakes and puff pastry
