6001 Series high temperature resistance ptfe conveyor mesh belt

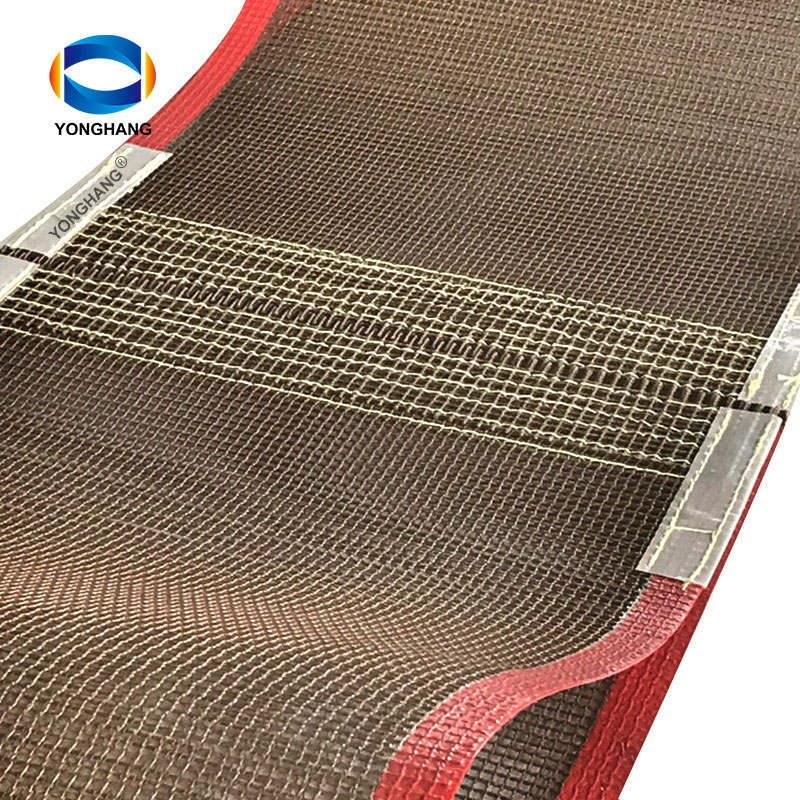

Teflon mesh belt, also known as Teflon mesh belt, PTFE conveyor mesh belt, is an industrial conveyor belt made of glass fiber cloth coated with polytetrafluoroethylene (PTFE) resin. It is mainly used in textile printing and dyeing drying, food baking transmission, ultraviolet curing equipment, pharmaceutical sterilization production line and electronic and electrical manufacturing, etc. It is…

Enqury Now

Teflon mesh belt, also known as Teflon mesh belt, PTFE conveyor mesh belt, is an industrial conveyor belt made of glass fiber cloth coated with polytetrafluoroethylene (PTFE) resin. It is mainly used in textile printing and dyeing drying, food baking transmission, ultraviolet curing equipment, pharmaceutical sterilization production line and electronic and electrical manufacturing, etc. It is suitable for high temperature, corrosive environment of the material conveying needs.

The product’s temperature resistance ranges from -70℃ to 260℃, with chemical corrosion resistance, anti-adhesion, breathable and flame retardant properties, outstanding mechanical strength and dimensional stability. Its mesh specification covers 1×1mm to 10×10mm, the weaving structure contains single weft and double weft process, and the bandwidth and edge joints can be customized according to the needs of the equipment, such as bullnose flexible joints, steel buckle joints, and so on. As a non-standardized industrial component, it supports individual structural design and material selection, such as Kevlar composite edging or food-grade safety coating.

6001 Series PTFE Mesh Belts specification

Model	Hole diameter	Material	thickness	Weight	Working temperature	Max.width	Tensile strength	Colour
6001	1x1mm	Fiberglass	0.5mm	390g/m2	-70℃~+260℃	4m	1600/1500N/5cm	maize-yellow
6003	4x4mm	Fiberglass	1.0mm	500g/m2	-70℃~+260℃	4m	2100/1500N/5cm	black
6004	4x4mm	Fiberglass	1.0mm	480g/m2	-70℃~+260℃	4m	2100/1500N/5cm	maize-yellow
6007	4x4mm	Kevlar+Fiberglass	1.2mm	560g/m2	-70℃~+260℃	4m	3300/2800N/5cm	yellow
6008	4x4mm	Fiberglass	1.0mm	570g/m2	-70℃~+260℃	4m	2800/1580N/5cm	brown
6010	4x4mm	Kevlar	1.0mm	460g/m2	-70℃~+260℃	4m	3500/3300N/5cm	yellow
6012	4x4mm	Fiberglass	1.0mm	580g/m2	-70℃~+260℃	4m	2800/1500N/5cm	black anti-static
6013	10x10mm	Fiberglass	1.2mm	450g/m2	-70℃~+260℃	4m	1100/1000N/5cm	maize-yellow
6015	2×2.5mm	Fiberglass	0.9mm	470g/m2	-70℃~+260℃	3m	2200/1500N/5cm	maize-yellow
6019	4x4mm	Fiberglass	1.2mm	890g/m2	-70℃~+260℃	4m	4000/3200N/5cm	maize-yellow

6001 Series PTFE Mesh Belts model picture

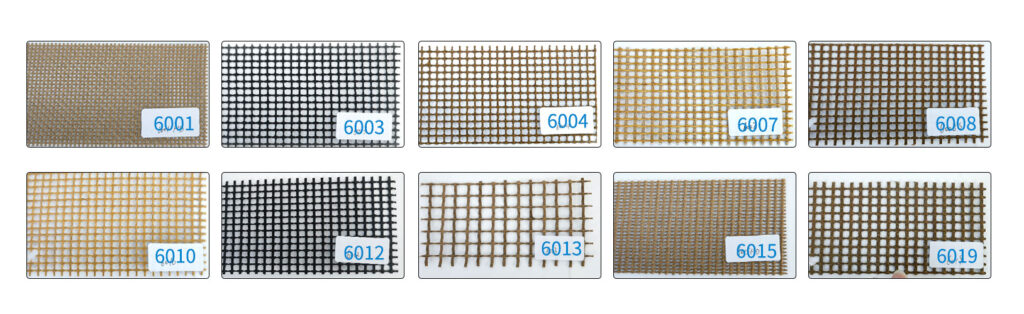

6001 Series PTFE Mesh Belt flat patternmaking

ptfe（Teflon） Features

Resistant to high and low temperatures -70℃-260℃. Weather resistant, anti-aging, long life cycle.
– Anti-adhesion, easy to clean.
– Resistant to all kinds of strong acid and alkali corrosion, chemical resistance, non-toxic.
– Dimensional stability, ductility coefficient less than 5 ‰, high strength, with good mechanical properties.
– Resistant to bending fatigue, can be used for smaller wheel diameter.
– Fire retardant, with permeability, reduce heat loss, improve drying efficiency.

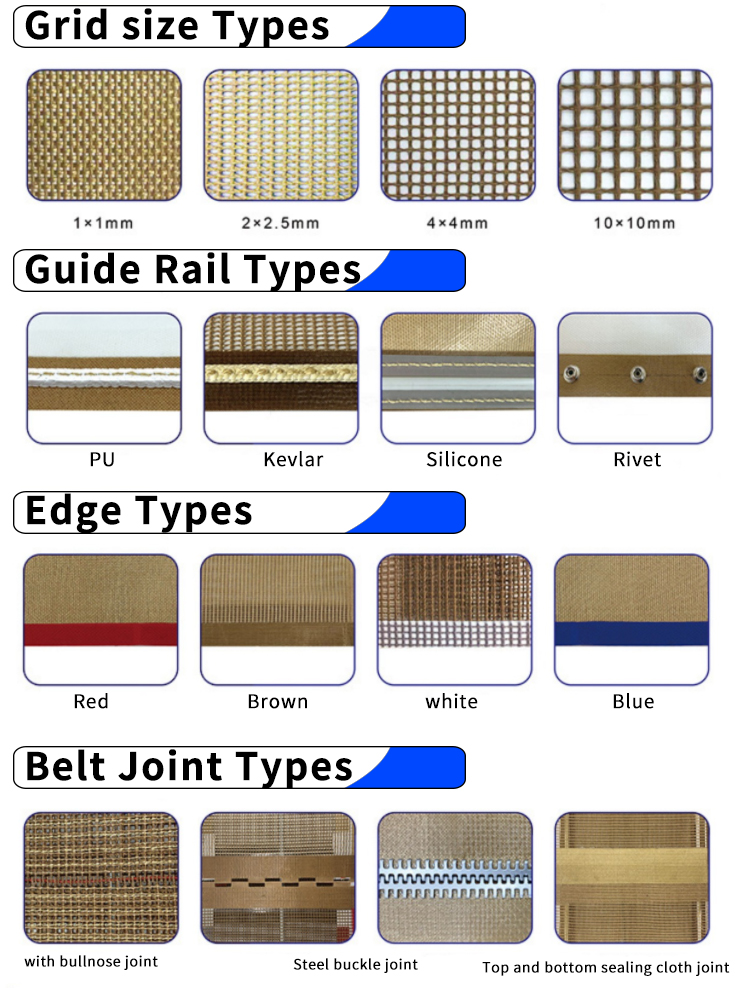

We also provide abundant edge reinforcement, guides and joints for PTFE Coated Fiberglass Open Mesh Belts to meet customers’ different applications.

Applications of ptfe(Teflon) Mesh Belts

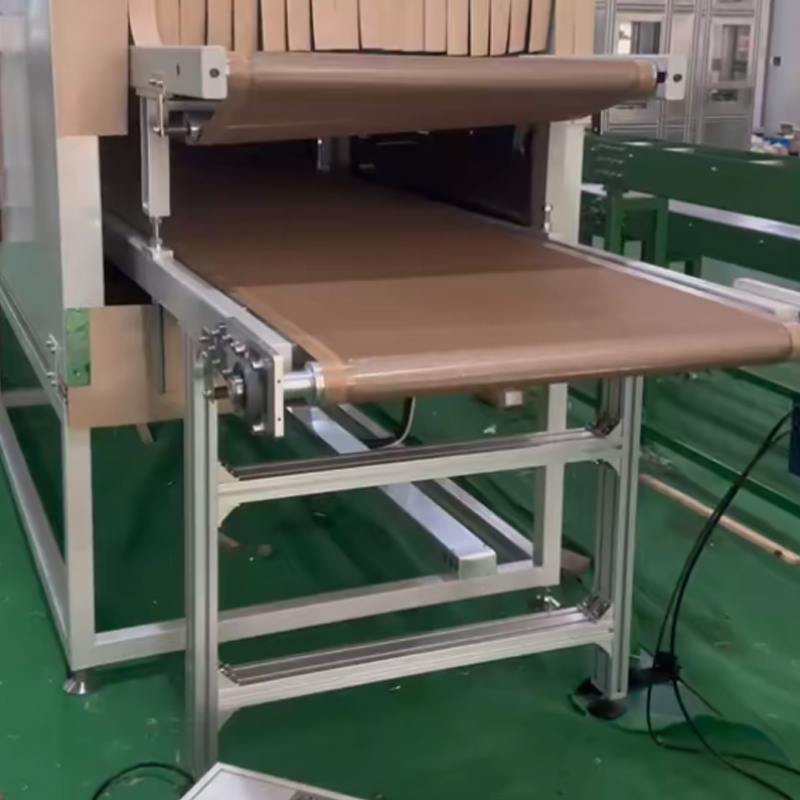

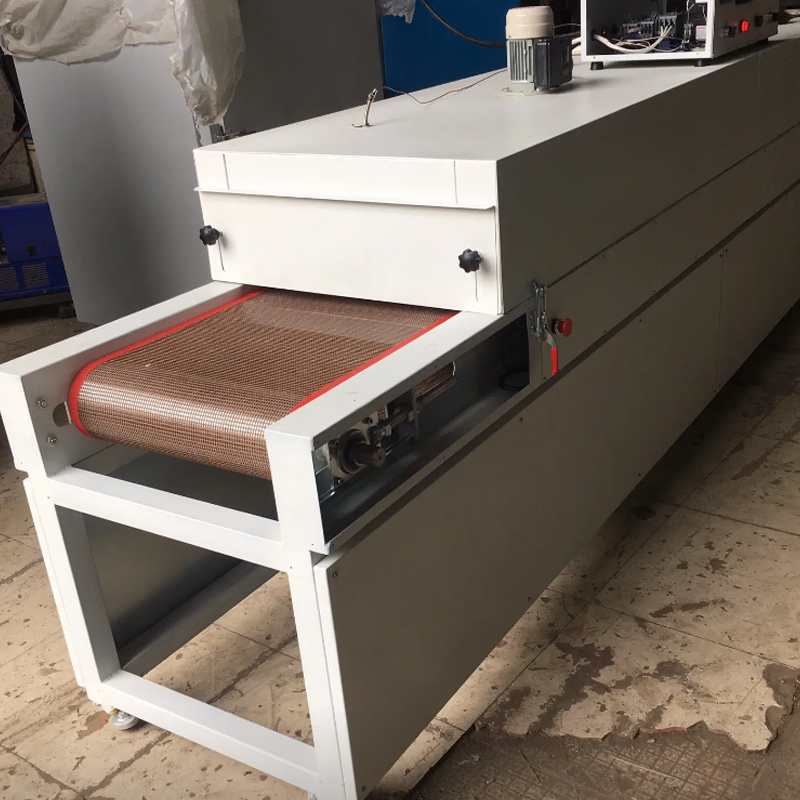

PTFE Teflon mesh belts are characterised by their breathable mesh structure, high-temperature resistance and non-stick properties, making them widely used in textile printing and dyeing, as conveyor belts for print drying, screen printing, UV drying, UV systems, light-curing machines, offset printing presses, loose-type dryers, non-woven fabric dryers, high-frequency dryers, conveyor belts for food baking machines, temperature-controlled drying chambers, rapid drying of solvent-based inks, and drying of general moisture-containing items.
