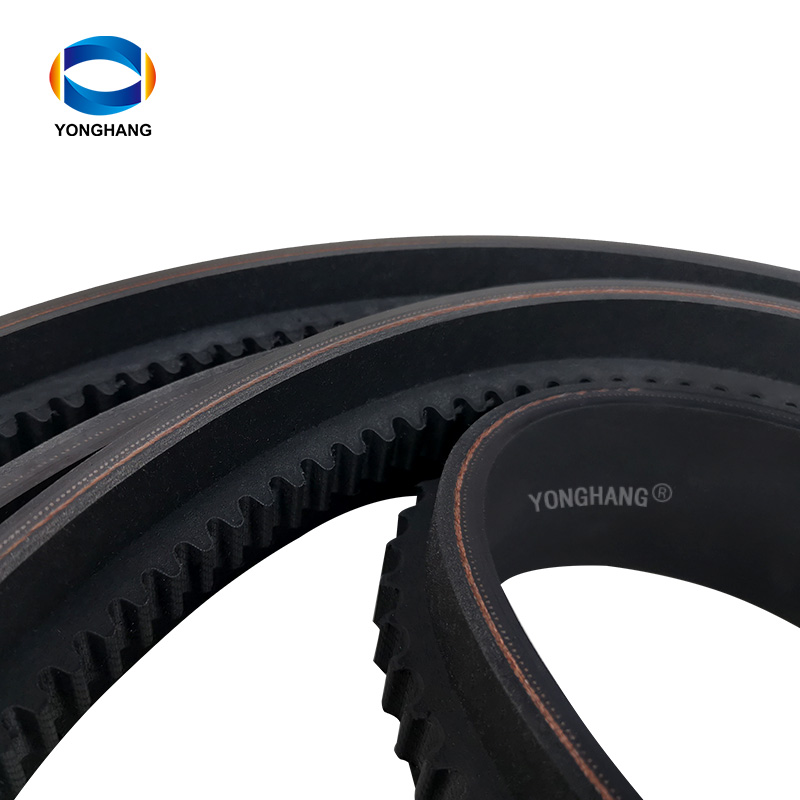

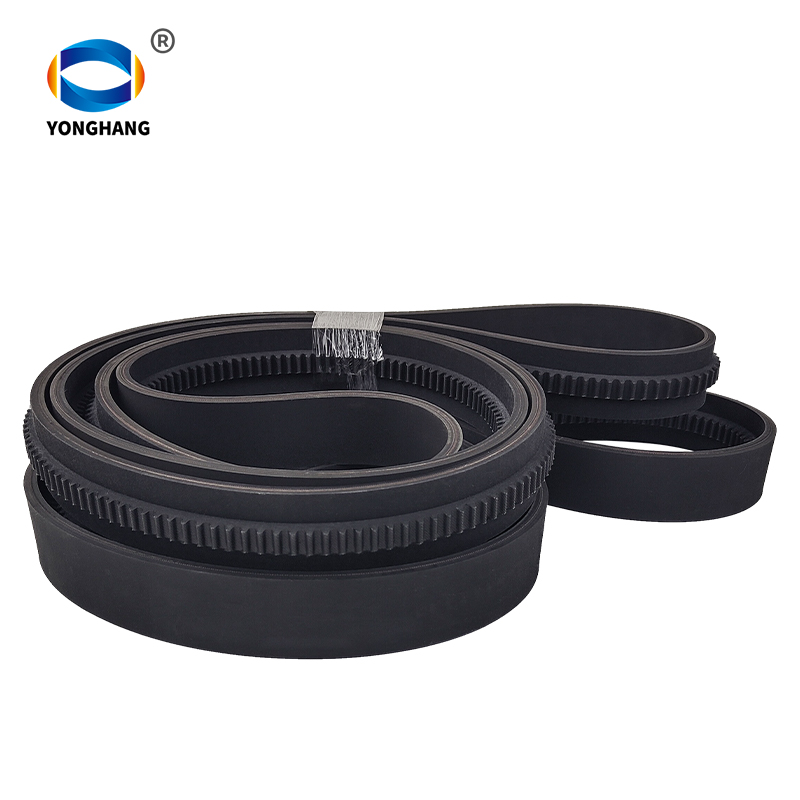

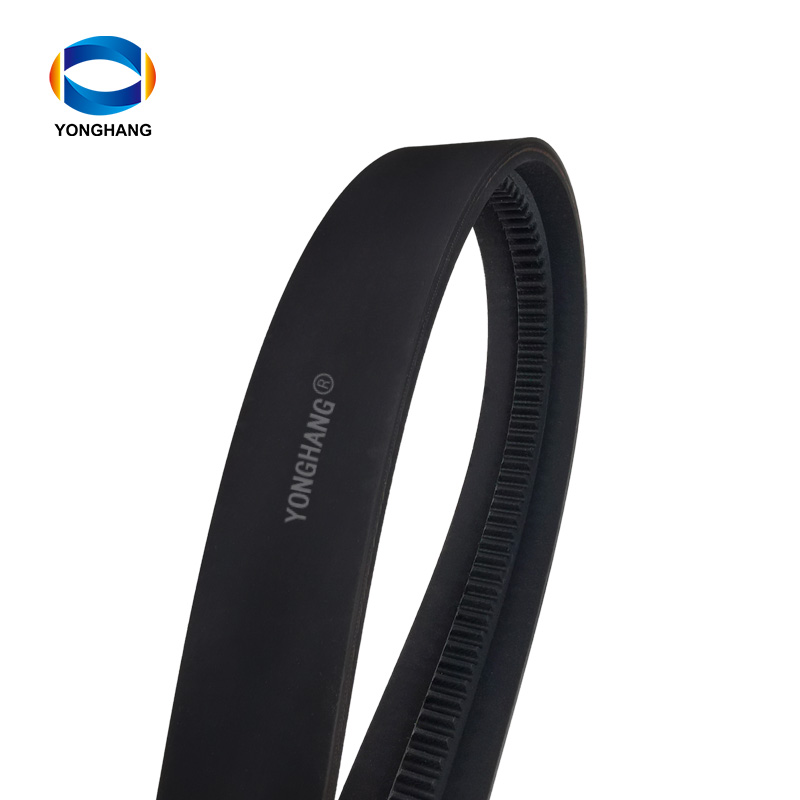

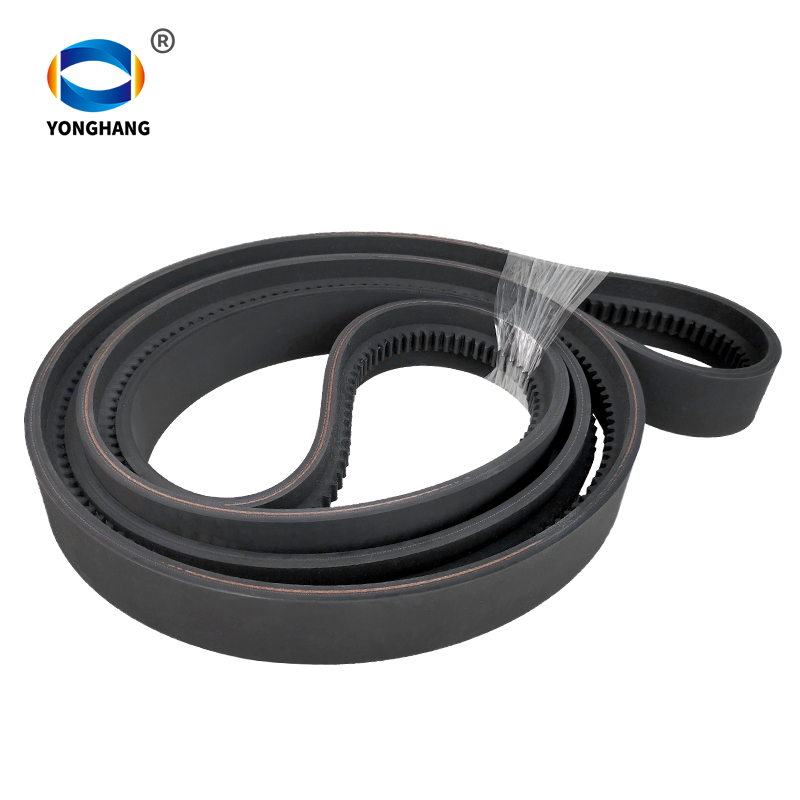

Belt Ball Lift Pbl T000 024 604 AMF Bowling Timing Belt
PBL Ball Lift Timing Belt T000 024 604, replacement spare part for Qubica AMF 90XLi, XLi EDGE pinspotter machine, size 3600×50×14mm, 8M rubber toothed timing belt, oil & wear resistant, interchangeable with T090002450 / T088001233. parameter Brand Yonghang Material EPDM rubber Traction Surface 65 Shore A EPDM rubber Substrate type HTD8M Length 3600mm Width 50mm Thickness…
PBL Ball Lift Timing Belt T000 024 604, replacement spare part for Qubica AMF 90XLi, XLi EDGE pinspotter machine, size 3600×50×14mm, 8M rubber toothed timing belt, oil & wear resistant, interchangeable with T090002450 / T088001233.
parameter
| Brand | Yonghang |
| Material | EPDM rubber |
| Traction Surface | 65 Shore A EPDM rubber |
| Substrate type | HTD8M |
| Length | 3600mm |
| Width | 50mm |
| Thickness | 14mm |
| Hardness | 65 Shore A Black EPDM rubber |
| Reinforcement Core | Aramid Cords |
| Characteristic | Oil-resistant, wear-resistant, tear-resistant, and resistant to breakage and chipping |
advantages
Uniform, seamless outer layer that resists delamination and ageing
Fully encased V-shaped ribs for secure positioning and no delamination
Satin-finish, non-slip surface that maintains a firm grip on the bowling ball even when greasy
Applications
Installed on the ball-lifting conveyor mechanism of the AMF ball machine, this power-driven synchronous drive is responsible for smoothly lifting and conveying the released bowling ball back to the front of the lane; it is the core drive component of the ball recovery cycle.
