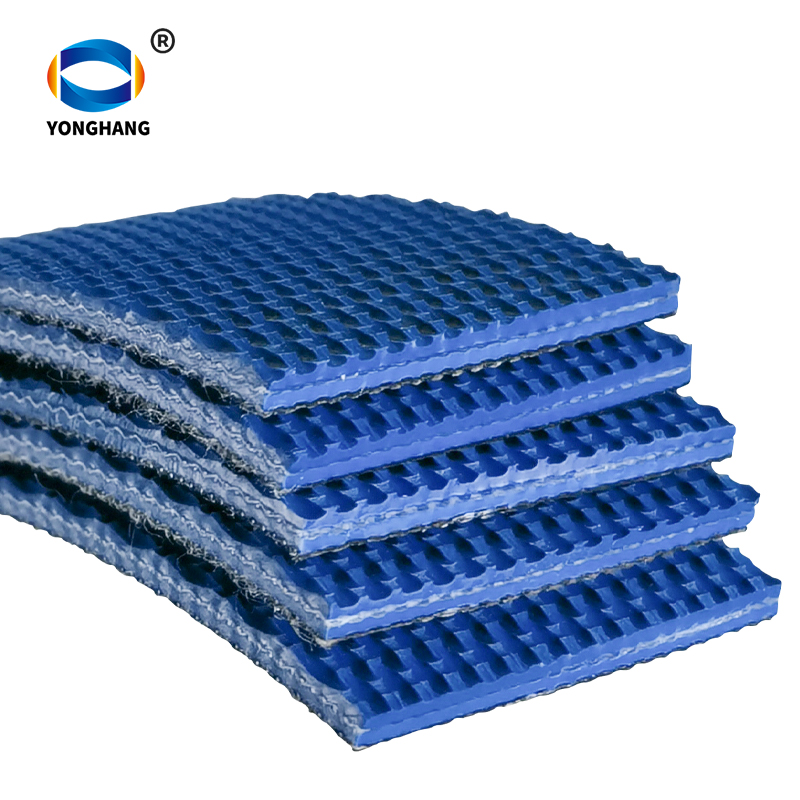

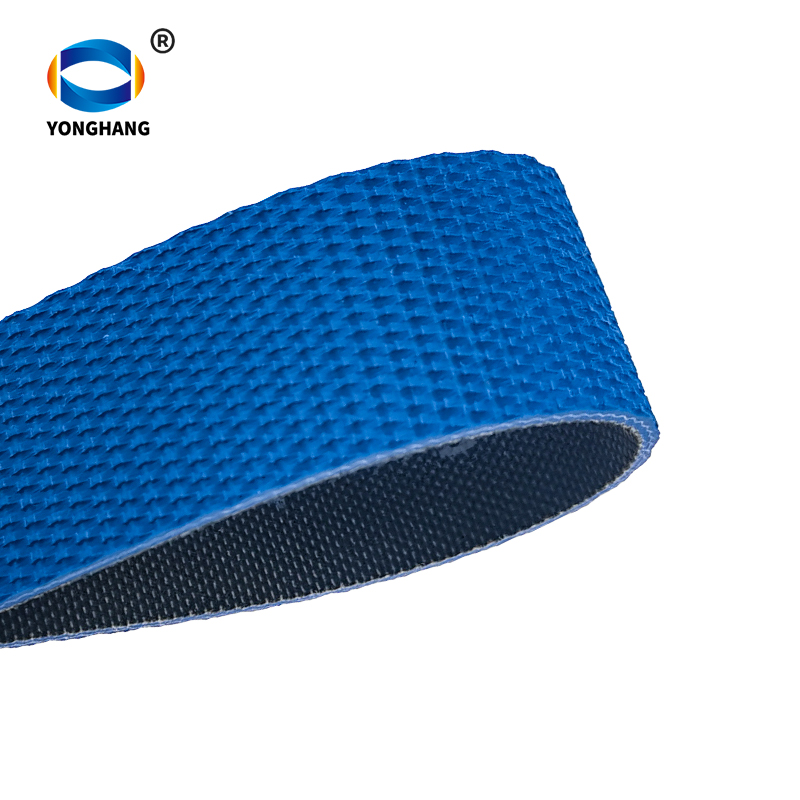

Blue TPU pattern Bowling ball conveyor belt

Our Blue Pattern TPU Bowling Ball Conveyor Belt is custom-engineered exclusively for automatic bowling alley ball return & sorting conveying systems, crafted from premium food-grade thermoplastic polyurethane (TPU) raw material. The anti-slip patterned top surface greatly boosts friction to prevent heavy bowling balls from sliding, rolling back or bouncing during uphill & horizontal circulation transport, ensuring stable continuous ball delivery for bowling equipment

We support full customization on belt thickness, width, length, surface anti-slip patterns and endless joint processing (scarf joint / seamless welding) to match all mainstream domestic and imported bowling machine models. Widely applied for bowling ball return tracks, ball sorting conveyor and automatic pin-setting auxiliary conveying lines in bowling centers worldwide.

Product parameter

Product	Blue TPU Rough top Conveyor Belt
specifications	Flexible customization
Surface	Grass pattern
Width	Maximum 500 mm
Thickness	2.2 ± 0.1 mm
Colour	Blue/Black
Working temperature	-10℃~+80℃

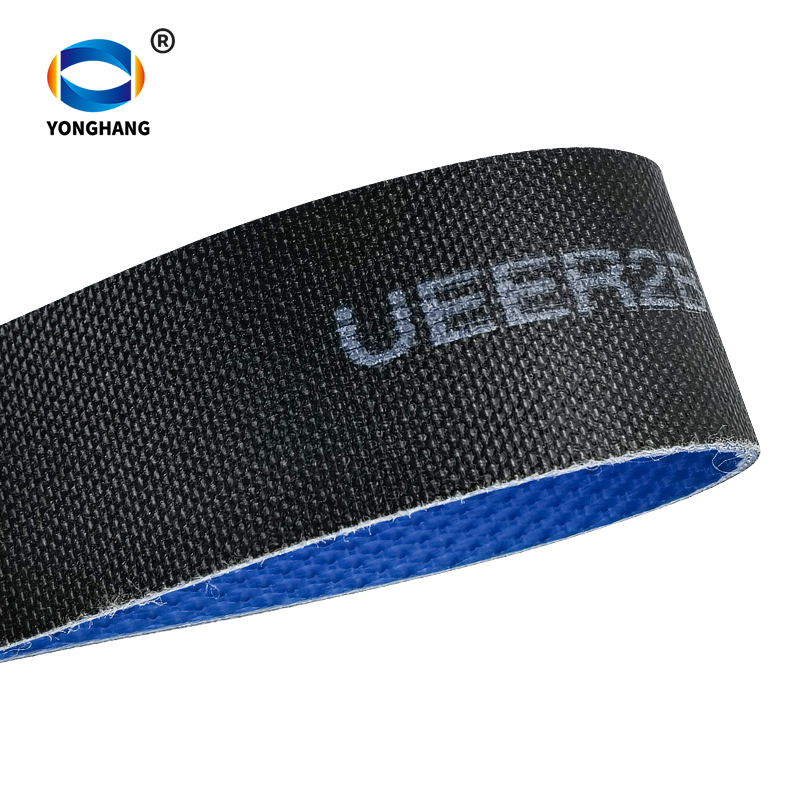

Base Material	polyester fabric
Top Cover Material and Structure	Thermoplastic Polyurethane (TPU) / Special Patterned Surface;
Reinforcement Layer Material	Polyester Fabric (PET)
Top Cover Coating Thickness:	0.7 mm
Coating	CR rubber/NBR rubber
Coating Hardness	≈50 Shore A
Joint treatment	Seamless hot – joining
Number of layers	2
Tensile Strength at 1% Elongation	12 N/mm
Maximum Allowable Tensile Strength (N/mm)	30 N/mm
Minimum Pulley Diameter	30 mm (40 mm for reverse-running applications)

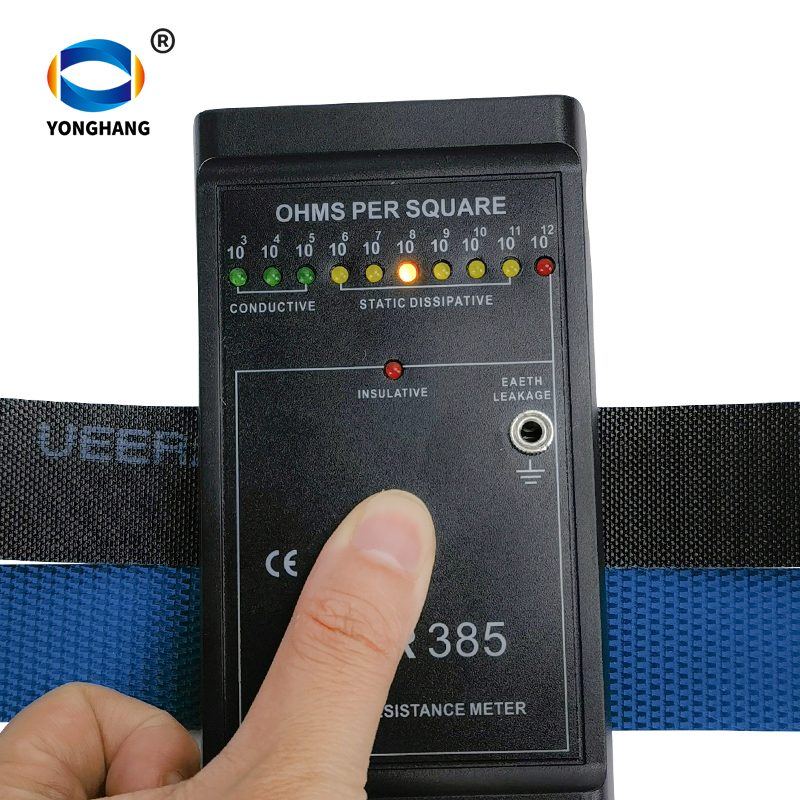

Anti-static Performance:	10⁷ Ω to 10⁹ Ω
Coefficient of friction between Top Cover/Bottom Cover and steel plate (per internal test standards):	1.5/0.5
Belt weight (kg/m2):	2.5 ± 0.1

Features:

Special textured surface, ultra-high grip, smooth and non-slip material transport, anti-static.

Applications:

Conveyor lines in the electronics, medical, sports and fitness equipment, food, and other industries
