Our PU Timing Belts with Cleats (Profiles) are the ultimate solution for applications requiring precise positioning, indexing, and synchronized conveying. Made from high-quality thermoplastic polyurethane with steel or aramid (Kevlar) tension cords, these belts offer exceptional tensile strength and tooth shear resistance.
By thermally welding or mechanically attaching custom-shaped profiles to the back of the belt, we help you achieve flawless sorting, separation, and pushing of products on your automated production lines.
Infinite Profile Customization: We can produce cleats in virtually any shape or size (T-shape, I-shape, U-shape, etc.) via CNC machining or custom molding to perfectly match your product’s geometry.
High-Strength Molecular Bonding : Profiles are thermally welded directly onto the polyurethane belt backing, creating a homogeneous bond that prevents delamination and withstands high shear forces.
Precision Pitch & Indexing: The integration of timing teeth and cleats ensures perfect synchronization without cumulative error or slippage. The positioning accuracy of the cleats can reach ±0.05 mm
Clean & FDA Compliant Options: Polyurethane is naturally resistant to oils, greases, and chemicals. We also offer FDA-approved materials for food and pharmaceutical packaging.
Thermal Welding: The most commonly used method, offering high strength and a smooth surface, suitable for most packaging and conveying applications.
Mechanical Fastening (False Tooth/ATFC): For applications requiring extremely high strength or frequent replacement of the guide plates, we offer “false tooth” technology, which secures the guide plates directly to the timing belt teeth using screws.
Yonghang transmission belts serve as comprehensive drive system solutions widely applied across diverse industries and scenarios. PU timing belts, also known as PU synchronous belts, We can help you optimize your design and recommend the right solution, including custom-made polyurethane synchronous belts and surfaces plus PU/holes/rubber/sponge/baffle/cleats, etc.

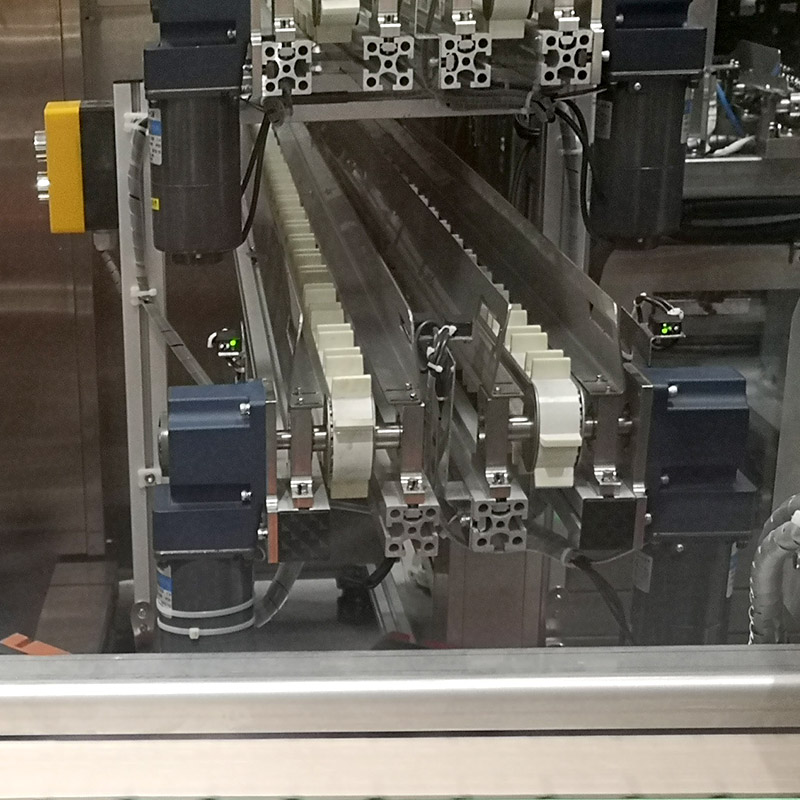

Packaging: Used for spaced sorting and feeding of products.

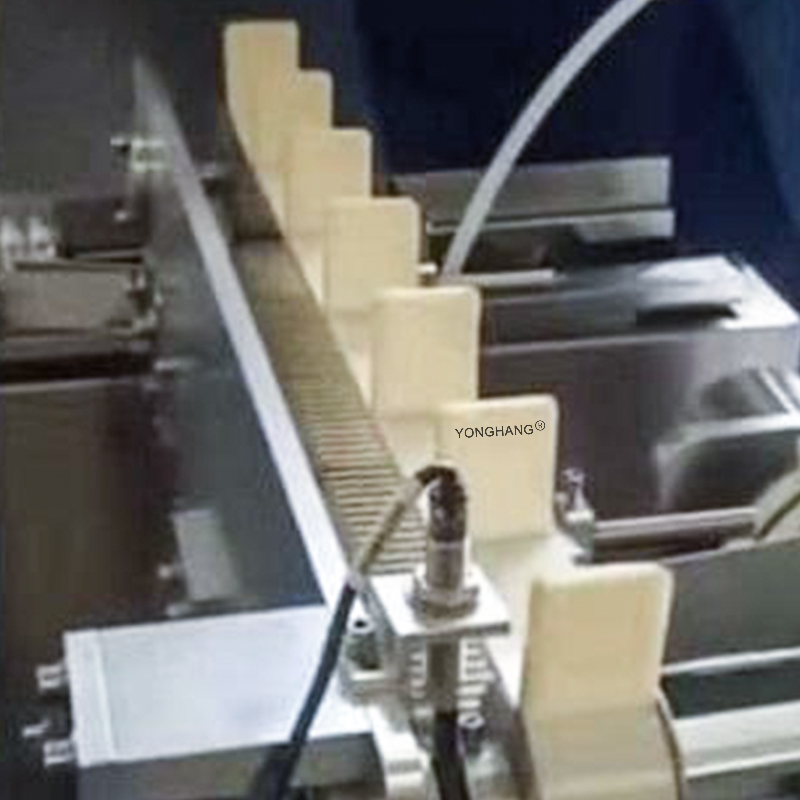

Electronics: Step-by-step positioning and transfer of precision components.
Food Industry: Inclined conveyors for transporting meat, vegetables, or candy.
Pharmaceutical: Quantitative conveyance of medicine bottles and syringes.

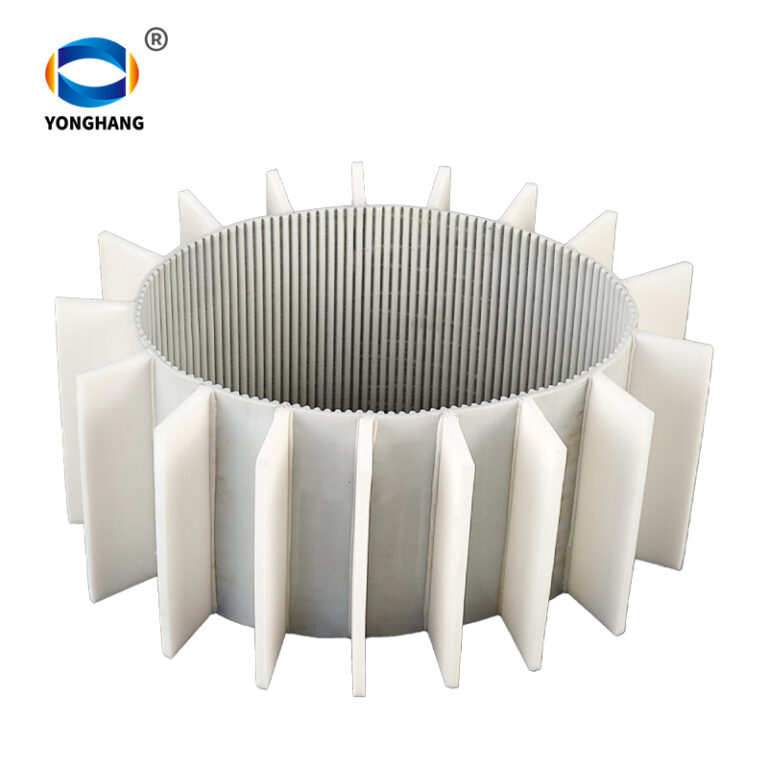

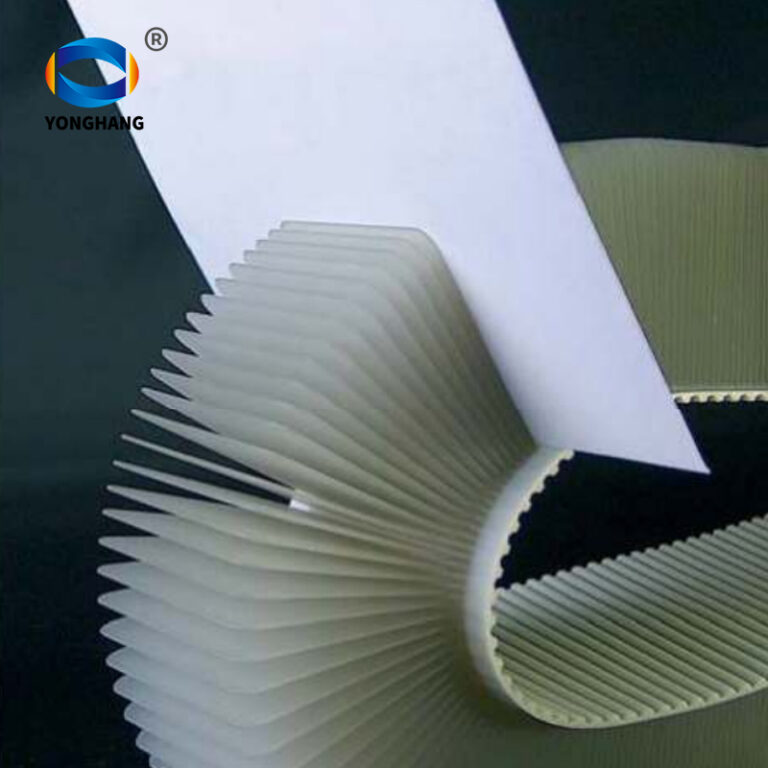

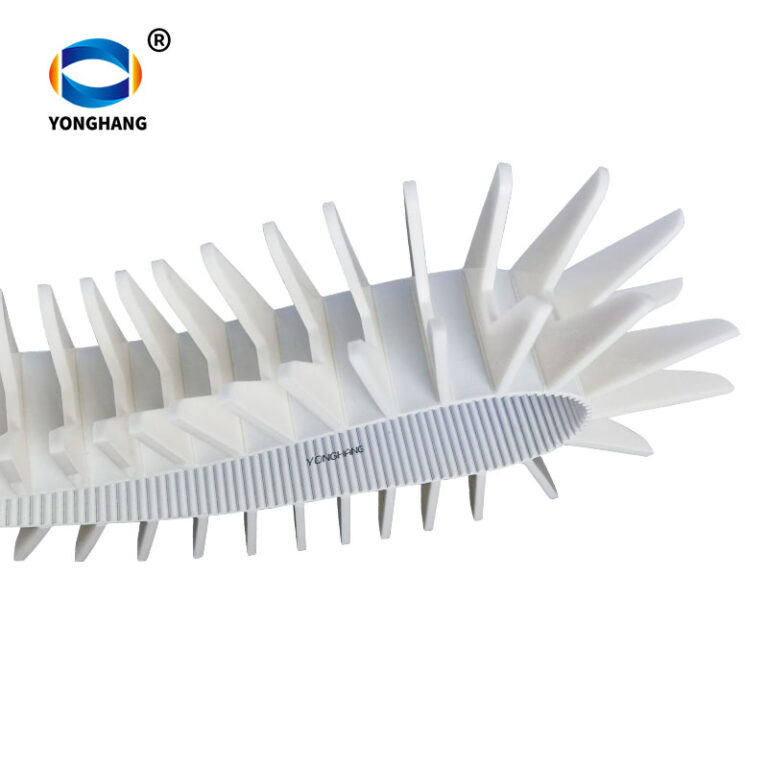

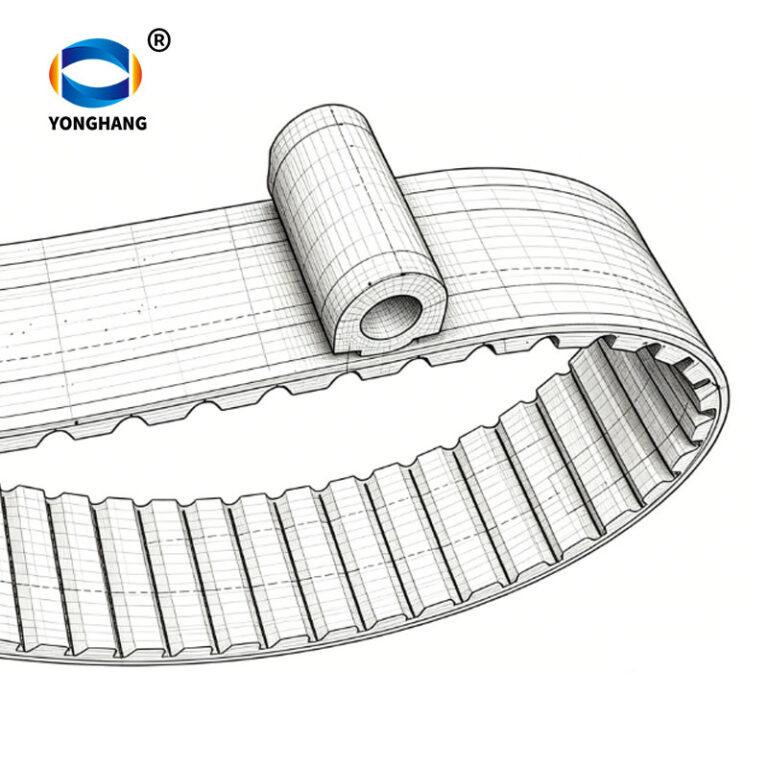

The standard cleats are available in different versions. We produce cleats according to your drawing or according to an example. The cleats below are…
Belt Part No: 26T10-3040+84 Buttons Applications: Truetzschler TC03,TC05,TC06, TCO7, TC10, TC11, TC12, TC15. TC19i. TC 19i Color Yellow White
Polyurethane timing belt mainly has three types core, one is carbon steel core, Kevlar core and the stainless steel core. Carbon steel core is widely used for high strength, Kevlar core is used for timing belt with more flexible feature, as for stainless steel core, it is designed for special use, likely direct contact with salt.
A: This is a common concern for high-load applications. We utilize High-Frequency (HF) Welding or Thermal Fusion technology rather than simple gluing. This process creates a molecular bond between the cleat and the belt base, making them a single, integrated unit. The weld strength is typically higher than the material itself, ensuring the cleats remain intact even under frequent start-stop impacts and high-speed operation.
A: Yes, it does. Thicker or taller cleats increase “back-bending” stress as the belt wraps around the pulley. To prevent root cracking and ensure a long service life:
We recommend specific pulley diameters based on your cleat dimensions.
If your pulleys are small, we can provide grooved cleats or thinner base designs to increase flexibility without sacrificing grip or push strength.
A: Precision is our priority. We use automated CNC welding equipment to ensure every cleat is positioned with high accuracy (tolerance within ± 0.5mm).
We offer both “Cleat-on-Tooth” and “Cleat-between-Teeth” configurations depending on your synchronization needs. This is critical for pharmaceutical or electronic assembly lines where micro-second timing is required.
A: Absolutely. Our TPU (Thermoplastic Polyurethane) material is naturally resistant to oils, greases, and many chemicals.
For the food and packaging industry, we offer FDA/EU-certified materials (available in transparent or blue). These belts are non-porous, hydrolysis-resistant, and easy to clean, making them ideal for direct food contact or wash-down environments.
A: Yes, we specialize in bespoke solutions. Beyond standard T-shaped or I-shaped profiles, we offer:
CNC Machining: Adding grooves, holes, or chamfers to the cleats.
Metal Inserts: Embedding nuts or sensors inside the cleat for heavy-duty mechanical fastening or electronic detection.
Custom Molds: For high-volume orders with complex geometries (e.g., U-shaped grippers).
Of course, we have designers with 10 years of experience to assist you with drafting, and our team of experts provides comprehensive solutions.
