haul off belt

Yonghang can manufacture all types of haul off belt, including surface coating applications, varying hardness levels, and pattern designs. We offer services such as tooth removal, perforation, attachment installation, and Various groove processing . We can also Manufacture various types of Extrusion haul off belts, such as timing extrusion puller belts, variable-speed extrusion puller belts, multi-ribbed extrusion puller belts, cable extrusion puller flat belts. The thickness ranges from 10 to 35 mm, Width limit: 550mm, and the length can reach up to 30 meters.
Send Inquiry Now
Product Introduction

YONGHANG supplies Haul-off belts for all types of extruders, including caterpillar haul-off for cables, wires, pipes and profiles.

Haul-offs” are pulley-driven parallel belts that contact opposite sides of in-process products, usually by means of rollers exerting suitable pressure for the belts to grip and haul them, with the desired controlled pulling action.

Our range includes specific combination of base belts, tensile strengths and fabrication details to meet technical requirements of variety of extrusion applications, including specific resistance, hardness, temperature, friction needs.

Haul Off Belts

  • Black rubber TQD cable Pulling Belts
    By • 17.04.2026
    Black rubber TQD cable Pulling Belts is a special type of industrial belt used for pulling, transporting, guiding and fixing of cables, hoses and similar products.Yonghang has 20 years’ experience in the manufacture of haul-off belts. Our products are manufactured as seamless, one-piece units. They can be fitted with horizontal grooves on the surface to…
    Read More

  • submarine cables haul-off caterpillar belts
    By • 17.04.2026
    During the laying of submarine cables, submarine haul-off caterpillar belts are used to pull the cable from the vessel or the shore to a designated location on the seabed, ensuring accurate laying and high-quality installation! Yonghang submarine cable haul-off caterpillar belts are manufactured using an integrated mould vulcanisation process, ensuring they do not delaminate or…
    Read More

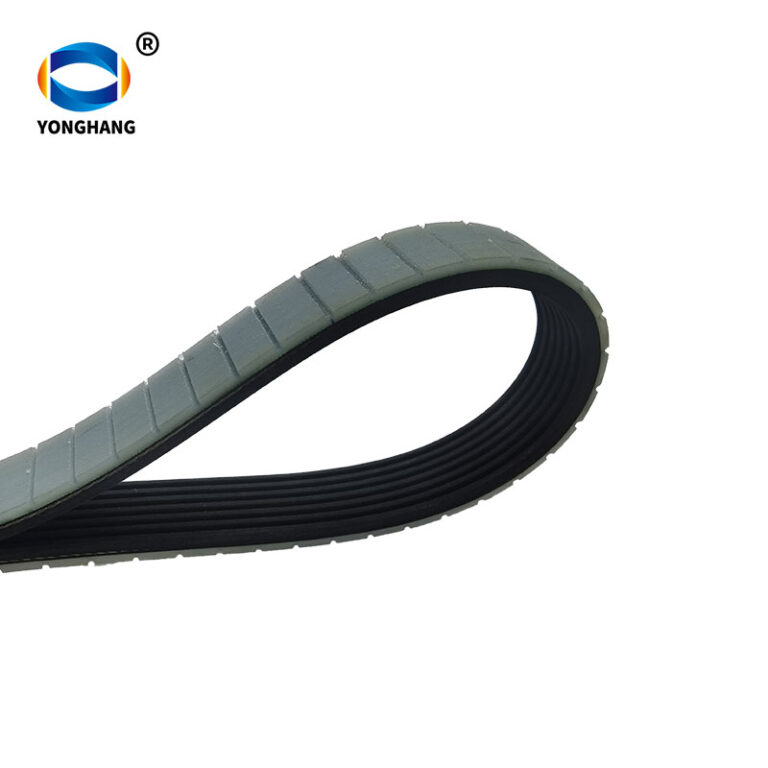

  • 12PK1295+3Pu Multi-V Belt with transverse grooves
    By • 16.04.2026
    Yonghang’s 12PK1295+3mm PU Multi-V Belt. Featuring a high-strength 12PK multi-V base, this belt is reinforced with a 3mm integrated vulcanized top coating for heavy-duty pulling，transverse grooves are engineered to eliminate hydroplaning in wet extrusion environments by facilitating rapid water drainage. This design also reduces bending resistance, allowing for smoother operation and higher flexibility Parameter Base…
    Read More

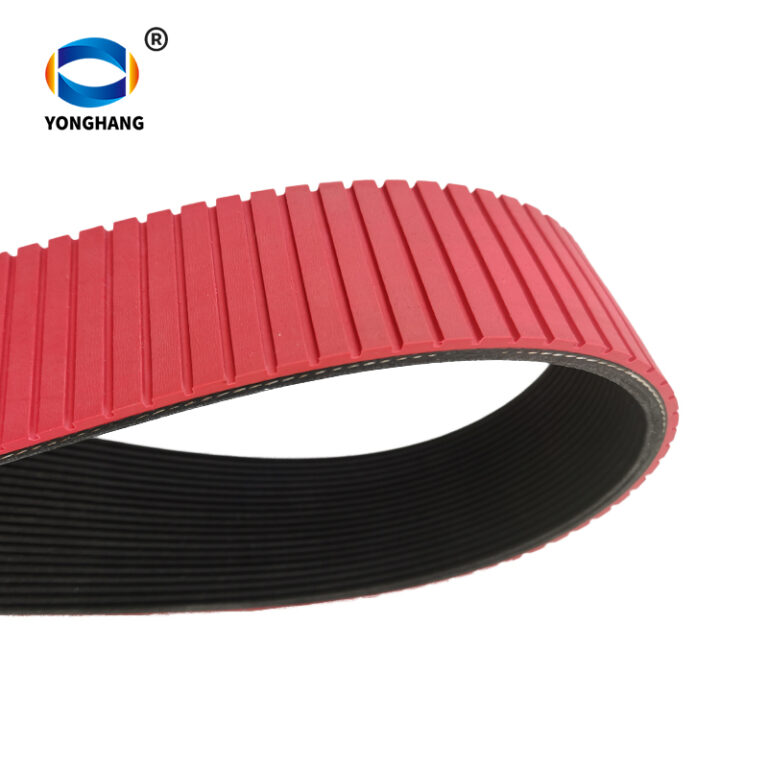

  • Haul-Off Belt with Transverse Slots (Crosswise)grooves
    By • 16.04.2026
    Haul-Off Belt with transverse/crosswise slots; this design is the key solution to addressing the issues of ‘grip’ and ‘water drainage and heat dissipation’ in extrusion production lines. These Haul-Off Belt with transverse/crosswise slots are specifically designed for high-performance extrusion lines, with their transverse (cross) grooves precision-machined using CNC technology. The seamless, one-piece vulcanised construction ensures…
    Read More

  • Caterpillar haul off Conveyor Belts
    By • 16.04.2026
    Caterpillar haul off Conveyor Belts are manufactured using a seamless, one-piece vulcanization process that eliminates traditional joints, thereby significantly enhancing tensile strength and long-term durability. Their specially designed rubber surface features integrated open grooves that serve three purposes: absorbing mechanical shocks, reducing the minimum bending radius for smoother pulley engagement, and promoting rapid heat dissipation…
    Read More

  • haul off belts slotting
    By • 15.04.2026
    haul off belts Slotting is a secondary machining process where material is removed from the coating (usually rubber or polyurethane) to create specific patterns.Grooves are typically used to secure the product in place, and there is no fixed design for them; we can customize them according to customer requirements. Common options include V-grooves and U-grooves,…
    Read More

Base Belt Options：


Timing Belt:T2.5, T5, AT5, T10, 3M, 5M, 8M, L, XL, H, RPP
Poly V Belt:PJ, PK, PL, PM
Flat Belt:Rubber&Polyurethane
Variable Speed belt
Joined v-belt/Banded Vee belts:3V,5V,7V

haul off belts Base Belt Options

Various types of grooving

Various types of grooving
Haul off belts Various types of grooving

Machining:
Perforation
Slotting
Grinding
Grooving
Tooth removal

Haul off belts Various types of Longitudinal Grooves (Lengthwise) grooving
Haul off belts Various types of Longitudinal Grooves (Lengthwise) grooving

Profiling:
Cable side
all half-round profiles available upon request
V grooves: 90°, 100°, 110°, 116°, 120°, 136°, 150°
U grooves: 90°, 100°, 110°, 116°, 120°, 136°, 150°

Haul off belts Coating Materials
Haul off belts Coating Materials

Coating Materials that are fitting include:

CRC04 Black Neoprene foam (Flexible for the belt to fit small pulleys)
PUCC04 Microcellular Polyurethane foam
NR40 & NR50 Tan Natural rubbers（colour：Red, White, Black, Green, Grey, Blue, Brown）
NR60 & NR70 Red Natural / Synthetic rubbers
CR50 & CR60 Black Neoprene rubber
PU65 Polyurethane elastomer（Transparent or white）
NRF40 & NRF60 white rubber (for rigid profile; no oils and chemicals contact)
NR40XAR Red High abrasion Natural Rubber (no oils and chemicals contact)
Rubber rough pattern
PVC rough pattern
PVC
Silicone

Haul off belts commonly used PL pitch 4.7mm,suitable forall kinds of cable traction machine extrusion machine, PVC pipe shaped strip and  other plastic products have high performance traction,seamless endless process,no joints,no breakage,smooth surface,strong tensile strength,wear resistance,long life,etc.hardness range 40-75 degrees,working temperature -10°C-80°C,the color can be made blue,red,green,white,black,or in the surface of the arc,V/U grooves,etc.red,green,white,black,or in the surface of the arc,V/U grooves,etc.

Haul off belts standard sizes:
Parameters  PJ      PK      PL      PM
Ribs pitch 2.34 3.56      4.7      9.4
Width 20~400 20~400 20~400 20~400
Thickness 6~12 7~15 12~30 20~50
Length 500~6000 500~6000 1000~6000 2000~ 200000
Material rubber rubber rubber rubber
Rupture strength 56~60 116~124 232~248 532~572
Tensile Ratio 0.5~0.6   0.6~0.7  0.75~0.85   0.95~1.1
Tensile load 14~15 29~31  85~62 133~143
Surface friction coefficient 1~2 1~2 1~2 1~2
Min.use diameter  C50  85    Ø150    C240
Working temperature -20~+80 -20~+80 -20~+80 -20~+80

Coating:
55~80 Duro Shore A
Excellent Grip
Abrasion Resistance
Strong Tensile Cord
Oil Resistant (Upon Request)
Non Marking (Upon Request)
Color: Red, White, Black, Green, Grey, Blue, Brown
Features of Haul Off Belts:
Endless – No joints or splicing
Thermal Bonding – Guards against cover delamination
Bi-Directional – Precision ground covers ensure adaptability
Custom Thickness
Customized covers available

Applications of yonghang haul off belt

Industrial Sector
Electric cables production
Plastic profiles Production
Wire cable production
Haul off unit capstan
Plastic extrusion cable pulling
Production of pipes&tubing
Automotive
Vinyl Siding

Send Inquiry Now

Why choose Yonghang’s haul off belts?

1. Yonghang haul off belts are molded in one piece through vulcanization, ensuring true seamless construction that prevents delamination and breakage.
2. Yonghang traction belts utilize the most durable modified CR rubber.Tested to withstand 1,000 friction cycles with only 0.1% wear,
3. Compared to splicing rubber belts requiring three replacements annually, Yonghang haul off belts only one replacement per year, save more maintenance costs.
4. Custom options include EPDM high-temperature resistant rubber belts, TPU materials, and food-grade silicone materials.

Related Posts

  • Poly V haul off belts

    haul off belts

    （Products Presentation： Extrusion machine belt（haul off belts ） commonly used PL pitch 4.7mm, suitable for all kinds of cable traction machine extrusion machine, PVC…

    Read more

  • Which Better of haul off belts Materials: Rubber, TPU, or Composite Material？

    In the precise operation of industrial transmission systems, the haul off belts is like the “artery” of the equipment. The choice of its material directly…

    Read more

  • Extending Service Life: Daily Maintenance and Common Troubleshooting for haul off belts

    As a critical transmission component in industrial equipment, the operational status of haul off belts directly impacts production efficiency and equipment safety. Proper daily maintenance…

    Read more

FAQ of yonghang haul off belts

For more information about haul off belts, if you can’t find your answer below, feel free to contact our online customer service team or send us an email. We’re happy to assist you. For pricing inquiries, please reach out to our sales team anytime.

EPDM high-temperature rubber is the preferred choice in the following scenarios: If your haul-off belt requires long-term operation in high-temperature environments (e.g., exceeding 105°C) or is primarily used outdoors where it must withstand prolonged exposure to sunlight, rain, and ozone erosion, EPDM offers greater reliability.
Preferred scenarios for TPU: If your application prioritizes the belt’s mechanical strength, durability, and abrasion resistance—such as in high-tension or high-friction conditions—TPU delivers extended service life. Additionally, if your production process demands high efficiency, low scrap rates, and material recyclability, TPU’s thermoplastic processing characteristics offer significant advantages. For further details, consult our sales manager for tailored selection recommendations.

Yes. We provide food-grade polyurethane or silicone belts compliant with FDA or EU standards, and can supply relevant certification documents to ensure your production safety.

Most Common General Purpose: CR rubber & EPDM
Oil-Contaminated Environments: Nitrile rubber
High-Temperature Environments: Silicone rubber
Food Industry: Food-grade polyurethane or silicone rubber

This is typically caused by insufficient friction or tension. We recommend selecting materials with higher friction coefficients (e.g., patterned PU or EPDM) and inspecting the tensioning system for proper function.

poly-V belts：PJ PK PL PM
Timing belt：T2.5 T5 T10 AT5 AT10 3M 5M 8M RPP etc.
Falt belt:PU plastic, nylon, rubber
Variable Speed belt
Joined v-belt
All of the above can be used as the transmission type of “haul off belts”. Various wear-resistant coatings of different materials are added on the surface, such as TPU, EPDM, CR rubber, PVC, silicone, etc.

Western Union, Paypal, Ali Secure Pay or T/T (company account and personal account)
Russia accepts payments from VTB Bank

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

We conduct R&D in China first. The Yonghang brand is particularly popular in China. We have collaborated with many well-known domestic companies such as Rifeng and Liansu to develop numerous models of haul off belts. These belts perform exceptionally well when used on pipe, wire, and cable extrusion machines.

A simple method is the “finger-press test”: Press the belt between two rollers; it should exhibit moderate elasticity (typically depressing 1-2 cm). The most accurate method is to measure with a tension gauge.

Of course. All our products undergo 100% factory inspection before shipment to customers. We conduct visual inspections, hardness tests, tensile tests, dimensional measurements, and a series of other checks. We have 5 QC staff members, and we also hold a monthly company-wide quality feedback meeting.
