haul off belt

Yonghang can manufacture all types of haul off belt, including surface coating applications, varying hardness levels, and pattern designs. We offer services such as tooth removal, perforation, attachment installation, and Various groove processing . We can also Manufacture various types of Extrusion haul off belts, such as timing extrusion puller belts, variable-speed extrusion puller belts, multi-ribbed extrusion puller belts, cable extrusion puller flat belts. The thickness ranges from 10 to 35 mm, Width limit: 550mm, and the length can reach up to 30 meters.
Send Inquiry Now
Product Introduction

YONGHANG supplies Haul-off belts for all types of extruders, including caterpillar haul-off for cables, wires, pipes and profiles.

Haul-offs” are pulley-driven parallel belts that contact opposite sides of in-process products, usually by means of rollers exerting suitable pressure for the belts to grip and haul them, with the desired controlled pulling action.

Our range includes specific combination of base belts, tensile strengths and fabrication details to meet technical requirements of variety of extrusion applications, including specific resistance, hardness, temperature, friction needs.

Haul Off Belts

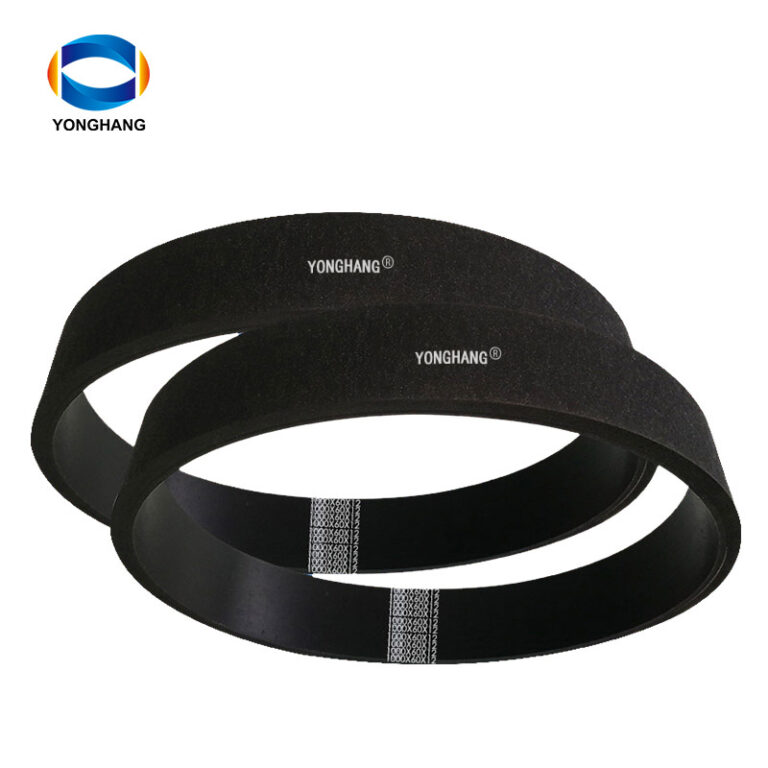

  • 1000X60X12 optical cable haul off belts
    By • 23.04.2026
    The 1000X60X12 optical cable haul off belt is a high-performance transmission belt specifically designed for the traction of optical cables, fiber optic haul off machines, extruders and other related equipment, with the specification of 1000mm in circumference, 60mm in width and 12mm in thickness — a precise size that perfectly matches the mainstream optical cable…
    Read More

  • 700X60X12 optical cable haul off belts
    By • 23.04.2026
    The 700X60X12 optical cable haul off belt is a high-performance transmission belt specifically designed for the traction of optical cables, fiber optic haul off machines, extruders and other related equipment, with the specification of 700mm in circumference, 60mm in width and 12mm in thickness — a precise size that perfectly matches the mainstream optical cable…
    Read More

  • 3M-1002-60+12mm green rubber coated timing belt for Cable Laying & optical Cable Routing Equipment
    By • 23.04.2026
    3M-1002-60+12mm green rubber coated timing belt，This is a precision synchronous belt-driven fibre optic cable laying and pulling system launched by Yonghang in 2019. It offers more precise pulling capabilities than flat belts and tracks, prevents slippage, and allows for precise and controllable cable laying lengths, making it ideal for routine fibre optic cable laying operations….
    Read More

  • at5-700-50 for Optical Cable Blowing Machine
    By • 20.04.2026
    Yonghang Optical Cable Blowing Machine Belts: T5/AT5/AT10 grooved synchronous belts with lightweight tracks, available in PU + red rubber,black rubber or APL rubber. The core consists of steel wire rope or glass fibre rope, offering high tensile strength and resistance to breakage! The surface can be grooved with V-shaped or special grooves as required to…
    Read More

  • T5-610-40+6 rubber timing belts coating with U-shaped groove for Cable Blowing Machine
    By • 20.04.2026
    Yonghang Cable Blowing Machine belts and lightweight tracks, offering customisation options to suit a variety of processes. Coating materials include PU with red rubber, green rubber,One-piece moulded vulcanisation. The core is available in steel wire (for PU timing belts) or glass fibre (for rubber timing belts), The surface can be grooved with U-shaped or special…
    Read More

  • Underground Cable Pulling Machine haul off belts
    By • 20.04.2026
    Underground Cable Pulling Machine Haul Off Belts are core components for underground cable pulling equipment, mainly used in power, communication and other underground cable laying projects. Made of high-quality materials and processed by advanced vulcanization technology, they have excellent tensile strength, wear resistance and anti-slip performance, which can stably transmit traction, avoid cable slipping and…
    Read More

Base Belt Options：


Timing Belt:T2.5, T5, AT5, T10, 3M, 5M, 8M, L, XL, H, RPP
Poly V Belt:PJ, PK, PL, PM
Flat Belt:Rubber&Polyurethane
Variable Speed belt
Joined v-belt/Banded Vee belts:3V,5V,7V

haul off belts Base Belt Options

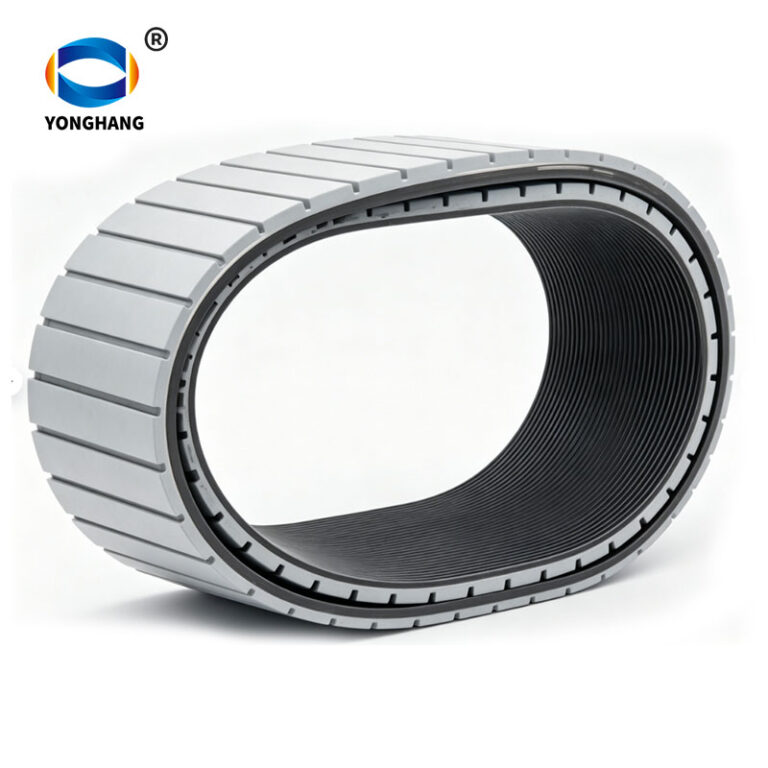

Various types of grooving

Various types of grooving
Haul off belts Various types of grooving

Machining:
Perforation
Slotting
Grinding
Grooving
Tooth removal

Haul off belts Various types of Longitudinal Grooves (Lengthwise) grooving
Haul off belts Various types of Longitudinal Grooves (Lengthwise) grooving

Profiling:
Cable side
all half-round profiles available upon request
V grooves: 90°, 100°, 110°, 116°, 120°, 136°, 150°
U grooves: 90°, 100°, 110°, 116°, 120°, 136°, 150°

Haul off belts Coating Materials
Haul off belts Coating Materials

Coating Materials that are fitting include:

CRC04 Black Neoprene foam (Flexible for the belt to fit small pulleys)
PUCC04 Microcellular Polyurethane foam
NR40 & NR50 Tan Natural rubbers（colour：Red, White, Black, Green, Grey, Blue, Brown）
NR60 & NR70 Red Natural / Synthetic rubbers
CR50 & CR60 Black Neoprene rubber
PU65 Polyurethane elastomer（Transparent or white）
NRF40 & NRF60 white rubber (for rigid profile; no oils and chemicals contact)
NR40XAR Red High abrasion Natural Rubber (no oils and chemicals contact)
Rubber rough pattern
PVC rough pattern
PVC
Silicone

Haul off belts commonly used PL pitch 4.7mm,suitable forall kinds of cable traction machine extrusion machine, PVC pipe shaped strip and  other plastic products have high performance traction,seamless endless process,no joints,no breakage,smooth surface,strong tensile strength,wear resistance,long life,etc.hardness range 40-75 degrees,working temperature -10°C-80°C,the color can be made blue,red,green,white,black,or in the surface of the arc,V/U grooves,etc.red,green,white,black,or in the surface of the arc,V/U grooves,etc.

Haul off belts standard sizes:
Parameters  PJ      PK      PL      PM
Ribs pitch 2.34 3.56      4.7      9.4
Width 20~400 20~400 20~400 20~400
Thickness 6~12 7~15 12~30 20~50
Length 500~6000 500~6000 1000~6000 2000~ 200000
Material rubber rubber rubber rubber
Rupture strength 56~60 116~124 232~248 532~572
Tensile Ratio 0.5~0.6   0.6~0.7  0.75~0.85   0.95~1.1
Tensile load 14~15 29~31  85~62 133~143
Surface friction coefficient 1~2 1~2 1~2 1~2
Min.use diameter  C50  85    Ø150    C240
Working temperature -20~+80 -20~+80 -20~+80 -20~+80

Coating:
55~80 Duro Shore A
Excellent Grip
Abrasion Resistance
Strong Tensile Cord
Oil Resistant (Upon Request)
Non Marking (Upon Request)
Color: Red, White, Black, Green, Grey, Blue, Brown
Features of Haul Off Belts:
Endless – No joints or splicing
Thermal Bonding – Guards against cover delamination
Bi-Directional – Precision ground covers ensure adaptability
Custom Thickness
Customized covers available

Applications of yonghang haul off belt

Industrial Sector
Electric cables production
Plastic profiles Production
Wire cable production
Haul off unit capstan
Plastic extrusion cable pulling
Production of pipes&tubing
Automotive
Vinyl Siding

Send Inquiry Now

Why choose Yonghang’s haul off belts?

1. Yonghang haul off belts are molded in one piece through vulcanization, ensuring true seamless construction that prevents delamination and breakage.
2. Yonghang traction belts utilize the most durable modified CR rubber.Tested to withstand 1,000 friction cycles with only 0.1% wear,
3. Compared to splicing rubber belts requiring three replacements annually, Yonghang haul off belts only one replacement per year, save more maintenance costs.
4. Custom options include EPDM high-temperature resistant rubber belts, TPU materials, and food-grade silicone materials.

Related Posts

  • Poly V haul off belts

    haul off belts

    （Products Presentation： Extrusion machine belt（haul off belts ） commonly used PL pitch 4.7mm, suitable for all kinds of cable traction machine extrusion machine, PVC…

    Read more

  • Which Better of haul off belts Materials: Rubber, TPU, or Composite Material？

    In the precise operation of industrial transmission systems, the haul off belts is like the “artery” of the equipment. The choice of its material directly…

    Read more

  • Extending Service Life: Daily Maintenance and Common Troubleshooting for haul off belts

    As a critical transmission component in industrial equipment, the operational status of haul off belts directly impacts production efficiency and equipment safety. Proper daily maintenance…

    Read more

FAQ of yonghang haul off belts

For more information about haul off belts, if you can’t find your answer below, feel free to contact our online customer service team or send us an email. We’re happy to assist you. For pricing inquiries, please reach out to our sales team anytime.

EPDM high-temperature rubber is the preferred choice in the following scenarios: If your haul-off belt requires long-term operation in high-temperature environments (e.g., exceeding 105°C) or is primarily used outdoors where it must withstand prolonged exposure to sunlight, rain, and ozone erosion, EPDM offers greater reliability.
Preferred scenarios for TPU: If your application prioritizes the belt’s mechanical strength, durability, and abrasion resistance—such as in high-tension or high-friction conditions—TPU delivers extended service life. Additionally, if your production process demands high efficiency, low scrap rates, and material recyclability, TPU’s thermoplastic processing characteristics offer significant advantages. For further details, consult our sales manager for tailored selection recommendations.

Yes. We provide food-grade polyurethane or silicone belts compliant with FDA or EU standards, and can supply relevant certification documents to ensure your production safety.

Most Common General Purpose: CR rubber & EPDM
Oil-Contaminated Environments: Nitrile rubber
High-Temperature Environments: Silicone rubber
Food Industry: Food-grade polyurethane or silicone rubber

This is typically caused by insufficient friction or tension. We recommend selecting materials with higher friction coefficients (e.g., patterned PU or EPDM) and inspecting the tensioning system for proper function.

poly-V belts：PJ PK PL PM
Timing belt：T2.5 T5 T10 AT5 AT10 3M 5M 8M RPP etc.
Falt belt:PU plastic, nylon, rubber
Variable Speed belt
Joined v-belt
All of the above can be used as the transmission type of “haul off belts”. Various wear-resistant coatings of different materials are added on the surface, such as TPU, EPDM, CR rubber, PVC, silicone, etc.

Western Union, Paypal, Ali Secure Pay or T/T (company account and personal account)
Russia accepts payments from VTB Bank

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

We conduct R&D in China first. The Yonghang brand is particularly popular in China. We have collaborated with many well-known domestic companies such as Rifeng and Liansu to develop numerous models of haul off belts. These belts perform exceptionally well when used on pipe, wire, and cable extrusion machines.

A simple method is the “finger-press test”: Press the belt between two rollers; it should exhibit moderate elasticity (typically depressing 1-2 cm). The most accurate method is to measure with a tension gauge.

Of course. All our products undergo 100% factory inspection before shipment to customers. We conduct visual inspections, hardness tests, tensile tests, dimensional measurements, and a series of other checks. We have 5 QC staff members, and we also hold a monthly company-wide quality feedback meeting.
