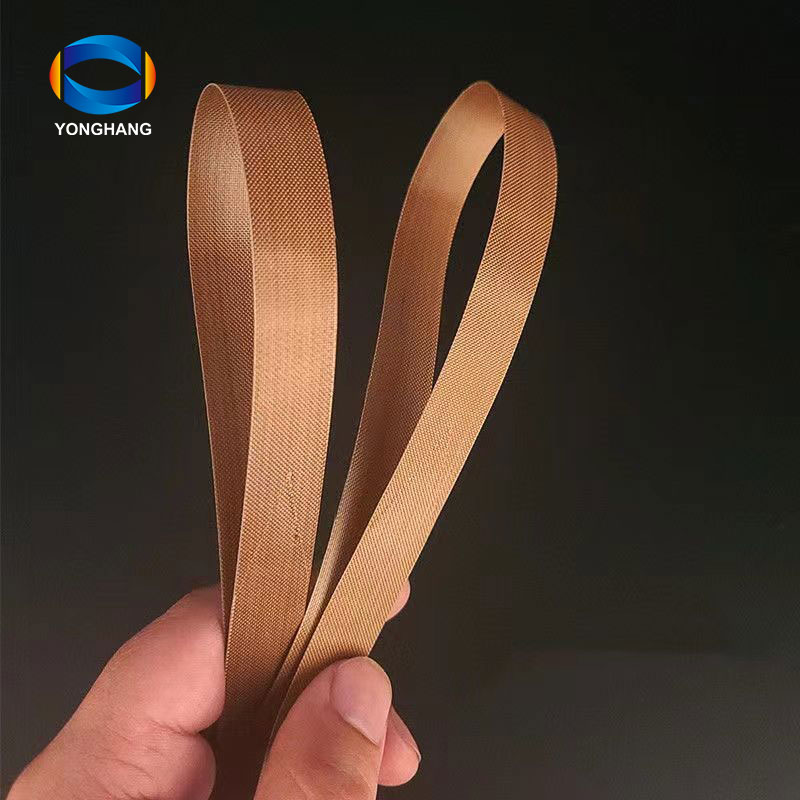

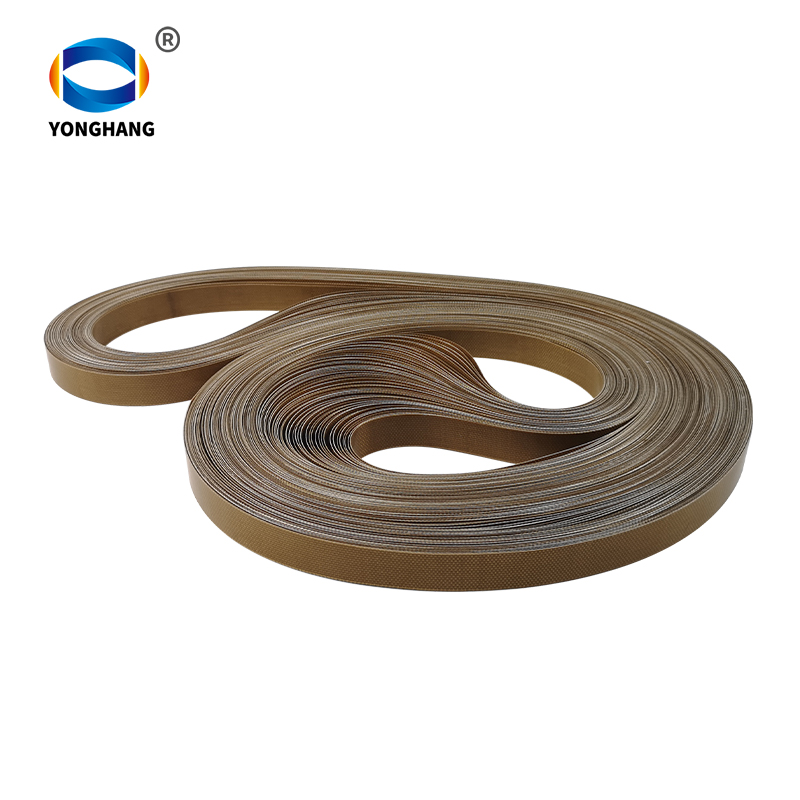

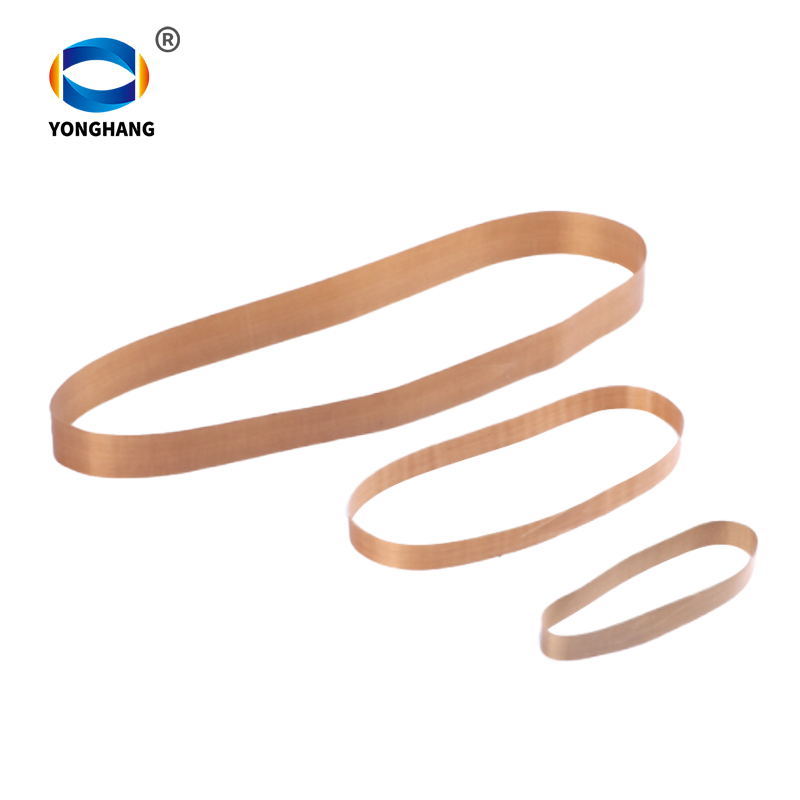

teflon Packaging Sealing Machine Sealing Belt

Teflon belts for continuous sealing machines are seamless PTFE loop belts custom-made exclusively for fully automatic continuous film sealing machines, vertical packaging sealing machines and horizontal continuous sealing machines. Unlike standard Teflon conveyor belts, they are specifically optimised for continuous heat sealing, pressing and film feeding operations. They are manufactured using a high-density, seamless tubular glass fibre substrate, laminated at high temperature with a food-grade pure Teflon coating.

parameter

Company	Guangzhou Yonghang Transmission Belt Co., Ltd.
Product	seamless teflon conveyor belt
Material	PTFE
Color :	Beige/yellow/brown
Size:	ODM/OEM and regular size Stocks
Width range:	15/20/25/28/30mm(max.width 200mm)
Thickness:	0.18/0.2/0.25mm
Applications	Suitable for a wide range of equipment, including fully automatic continuous film sealing machines, vertical/horizontal continuous sealing machines, plastic bag sealing machines, vacuum packaging sealing machines, sealing machines for personal care products, and sealing machines for pharmaceutical packaging
Joint	seamless
Working temperature	-70°C—+260°C
Features:	High Temperature Resistance, Non-Stick Surface,Chemical Resistance, Flame Retardant, Waterproof

High-Speed Thermal Heat Transfer: The thickness profile is engineered to be extremely thin (typically 0.08mm to 1mm). This thin cross-section ensures that thermal energy from the machine’s heating blocks passes instantly through the belt into the packaging film without thermal lag or energy loss.

Continuous Thermal Resistance: Capable of maintaining structural integrity and high flexibility under constant operating temperatures ranging from -70°C to +260°C (-94°F to +500°F), easily handling hot-melt sealing thresholds for PE, PP, OPP, and heavy laminated aluminum foil pouches.

Instant Polymer Release: The pure PTFE outer coating features an extremely low coefficient of friction. Molten plastic resins, ink prints, and hot-melt adhesives will not adhere to the belt face, completely eliminating film tearing, bunching, or polymer buildup on the machinery.

Seamless vs. Splice-Joint Engineering

Splice-Joint Bands: Woven flat and joined via a precision 45° angled overlap thermal splice. This is a highly cost-effective, versatile option suitable for general, low-to-medium speed packaging lines.

Seamless Endless Bands: Woven as an entirely continuous, joint-free cylindrical tube before PTFE saturation. With zero overlap seams, it eliminates “joint thumping,” ensures identical heat distribution along the entire loop, and delivers up to 3 times the service life on high-speed automatic packaging lines.

Sealing Machine Sealing Belt regular size

length	width	thickness
750	15	0.2
770	15	0.2
810	15	0.2
1010	15	0.2
1120	15	0.2
1210	15	0.2
1170	15	0.2
1366	15	0.5
750	20	0.2
770	20	0.2
810	20	0.2
750	30	0.2
770	30	0.2
810	30	0.2

Apart from the aforementioned length, we can customize other length. The standard widths available in stock are 15/20/25/28/30. The thickness ranges from 0.08 to 1mm.

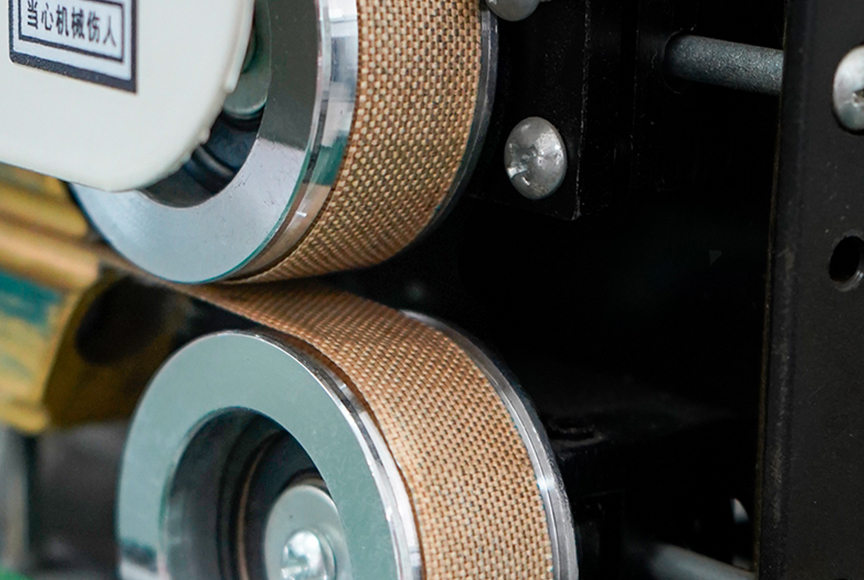

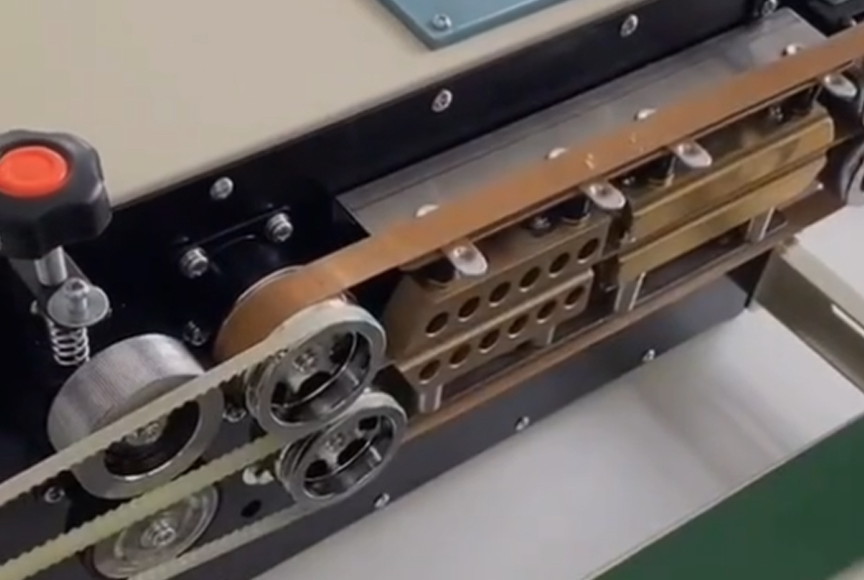

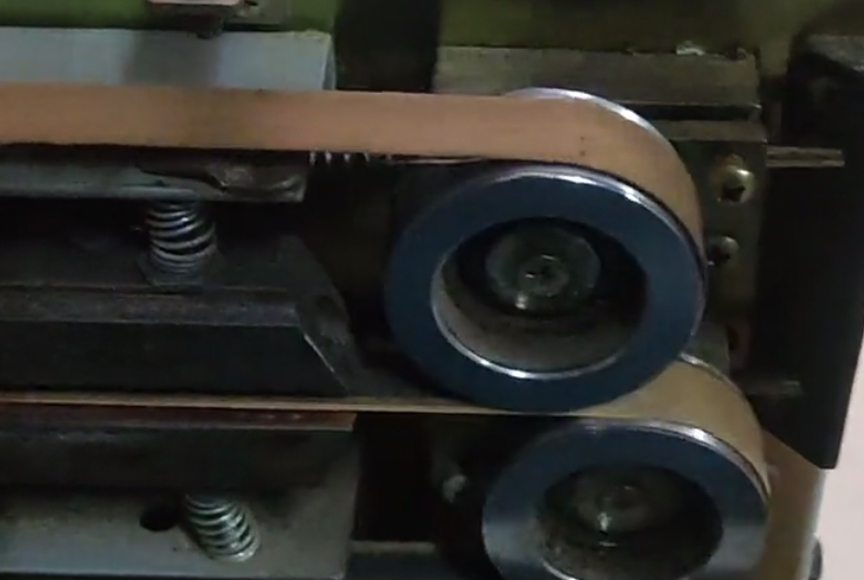

application scenarios

Suitable for a wide range of equipment, including fully automatic continuous film sealing machines, vertical/horizontal continuous sealing machines, plastic bag sealing machines, vacuum packaging sealing machines, sealing machines for personal care products, and sealing machines for pharmaceutical packaging
