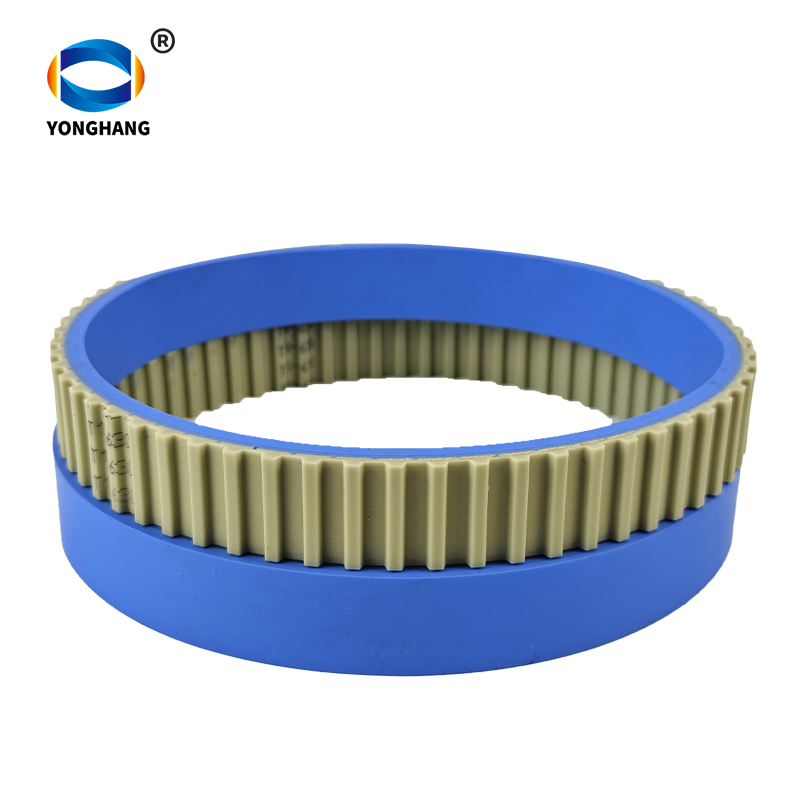

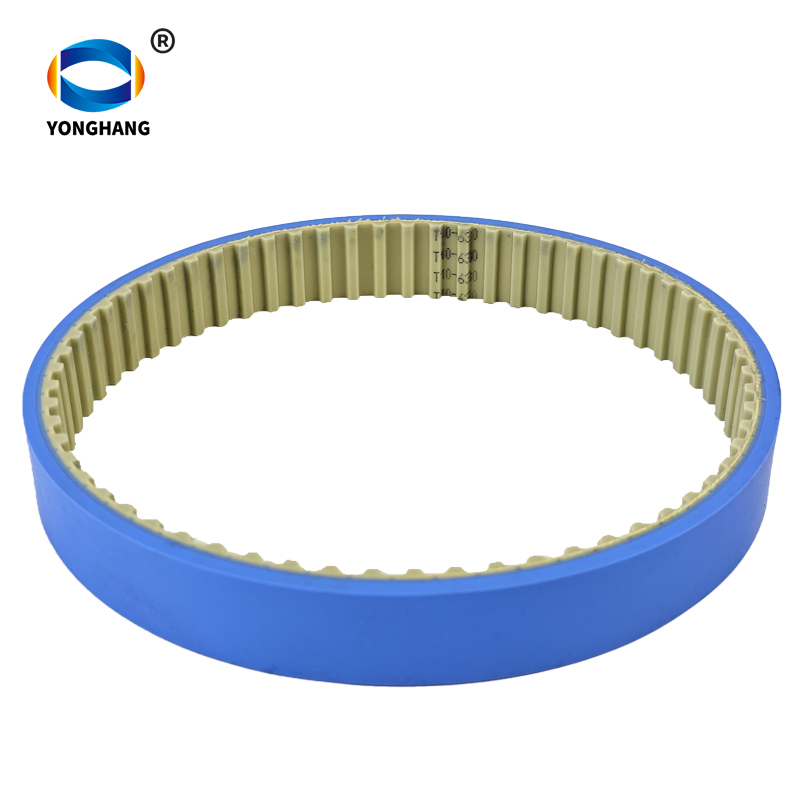

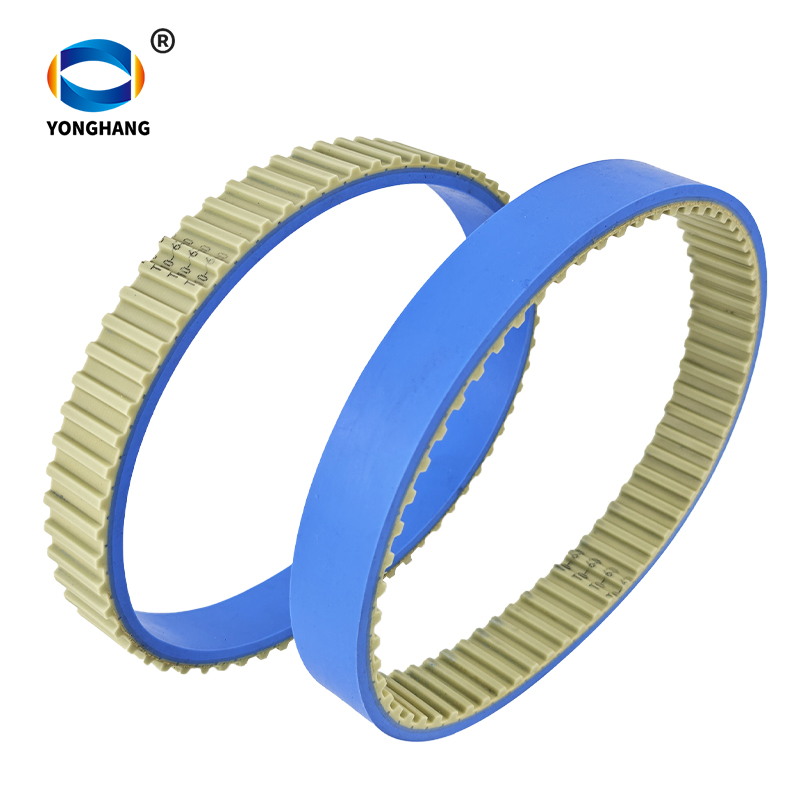

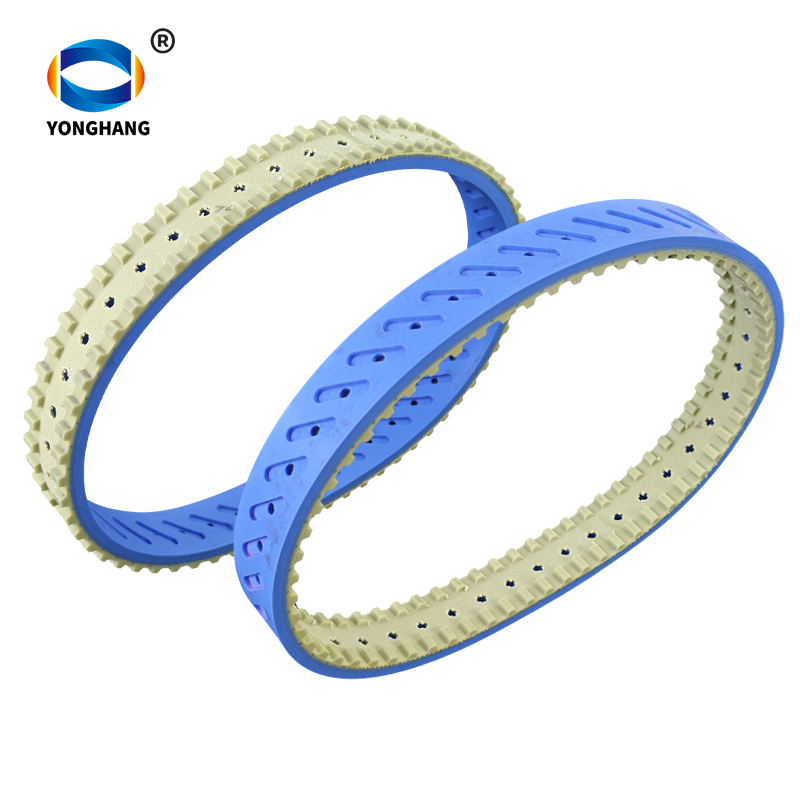

T10-920-30+4Blue silicone coated PU timing belt for vertical form fill seal machine
T10-920-30+4Blue silicone coated PU timing belt for vertical form fill seal machine,Also known as a VFFS timing belt, its distinctive feature is the absence of wire channels in the base belt; this design ensures a tighter seal when used in vacuum packaging machines. There are two types of perforations, with the holes oriented in opposite…

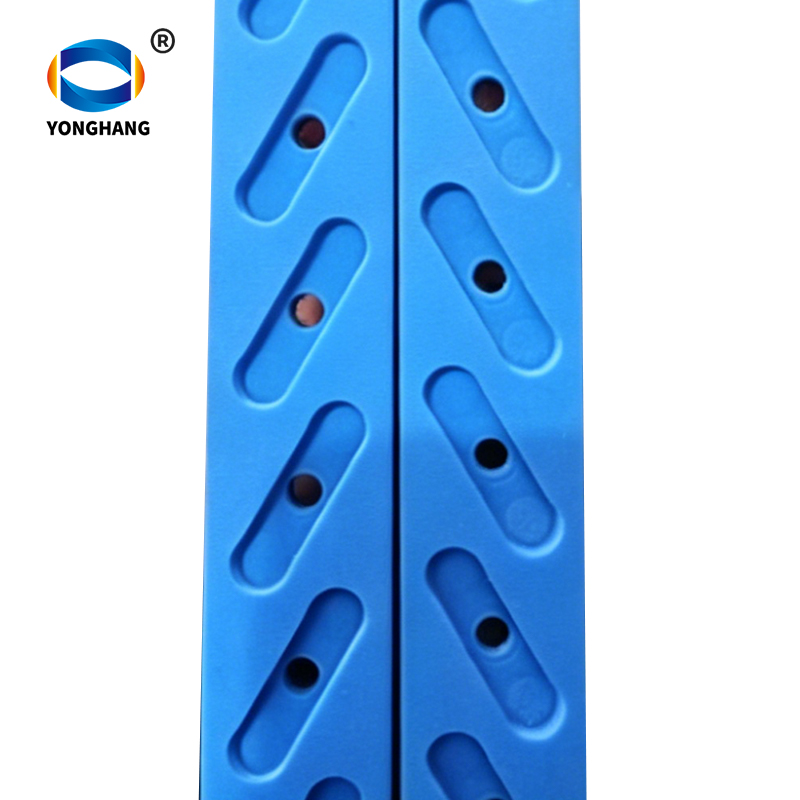

T10-920-30+4Blue silicone coated PU timing belt for vertical form fill seal machine,Also known as a VFFS timing belt, its distinctive feature is the absence of wire channels in the base belt; this design ensures a tighter seal when used in vacuum packaging machines. There are two types of perforations, with the holes oriented in opposite directions on the left and right sides.
Blue silicone coating data table
| Brand | Yonghang |
| Color : | Blue |
| Size: | T10 |
| Length: | 920mm |
| Width | 30mm |
| Coated: | 4mm |
| Working temperature | -40℃~+220℃ |
| Applications | form fill seal machine/vertical packing machine/vffs machine |
| Material | PU+Silicone |
| Base Material | PU timing belt etc. |
| Coating Shore hardness (A)： | ≈45°Shore A |
| Joint | vulcanization/Seamless (moulded) |
| Cords： | steel/ kevlar |
characteristic

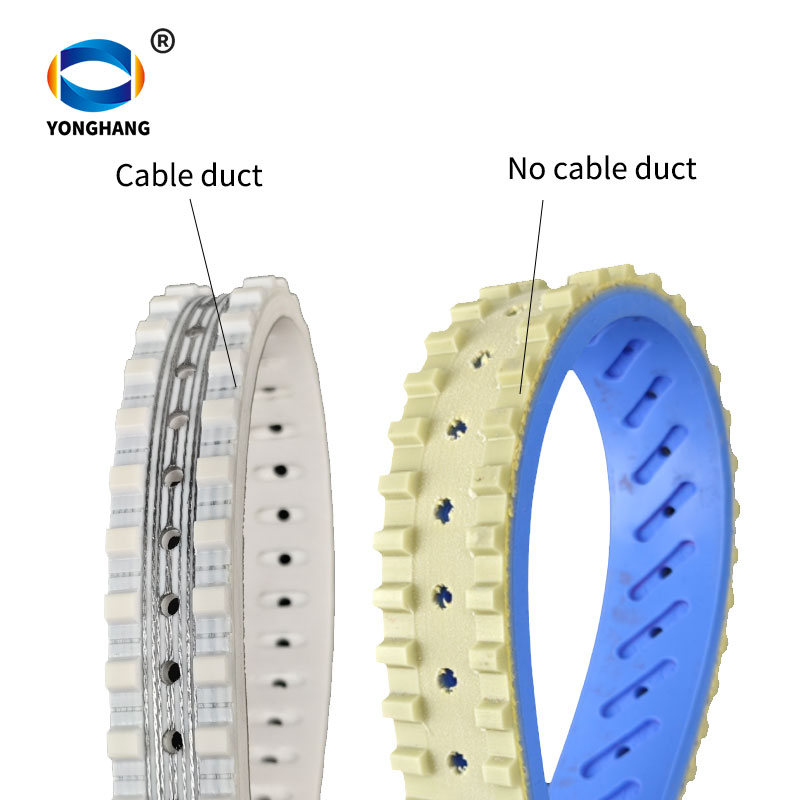

During the production of PU timing belts, the core in the centre must have a groove for the cord. This base belt can be manufactured with the groove on the reverse side, meaning that the groove comes into contact with the silicone coating, thereby achieving a more effective seal.

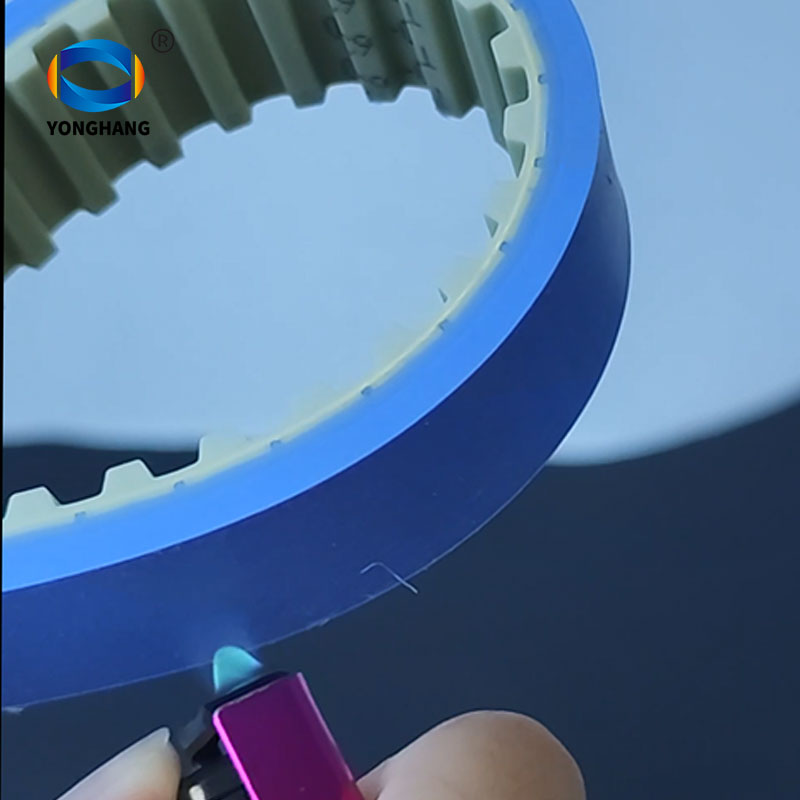

Silicone surfaces can withstand temperatures of up to 220°C, whilst polyurethane has a maximum operating temperature of 80°C and rubber has a maximum operating temperature of 120°C.

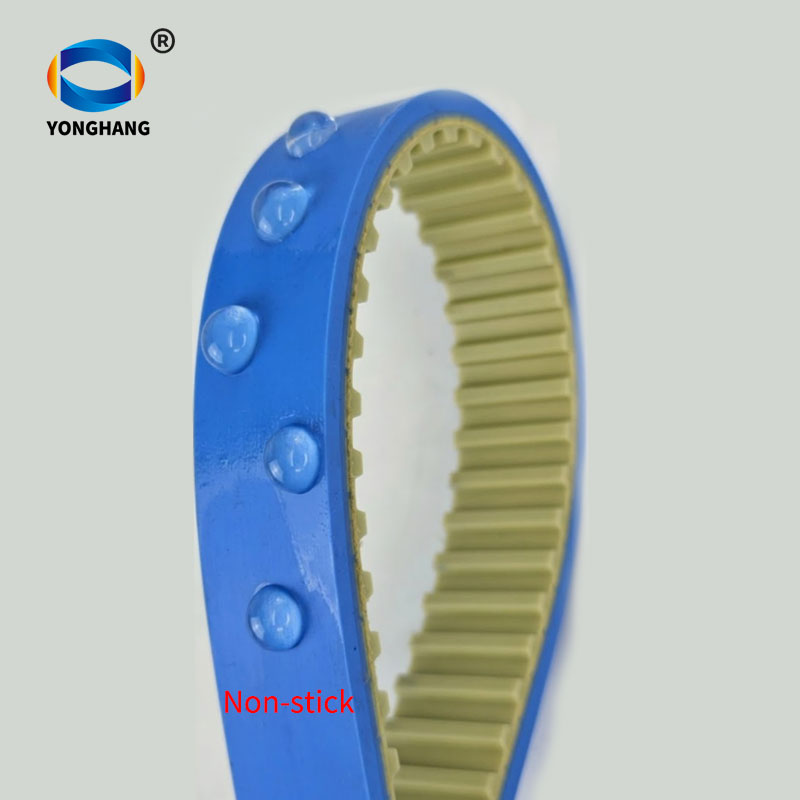

Silicone-coated, non-stick, non-toxic, resistant to most acids and alkalis, and waterproof
