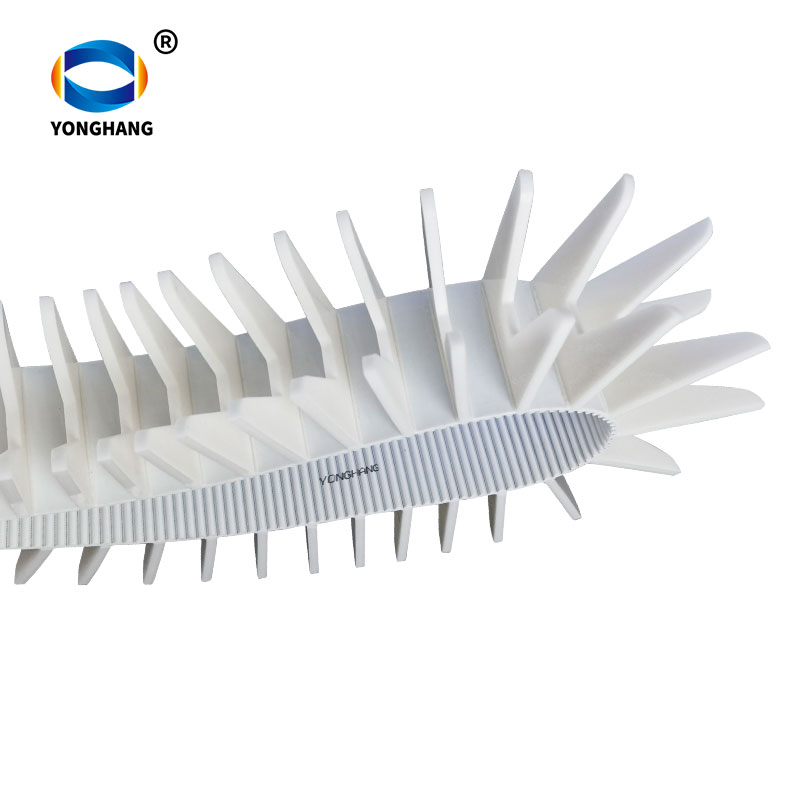

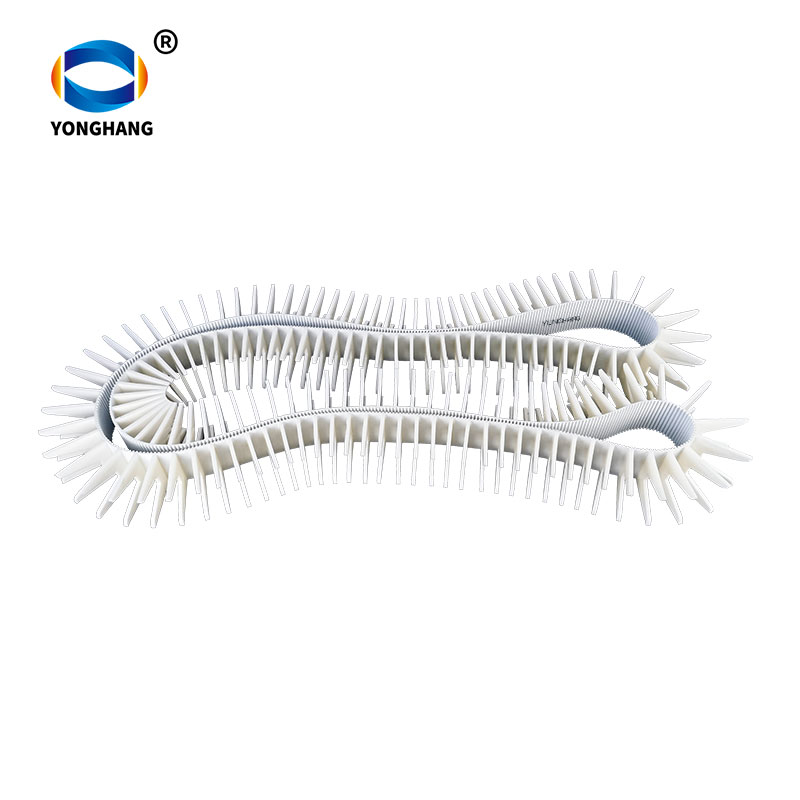

Pu timing belt with V cleats/Profiles
High-precision polyurethane (PU) timing belts with integrated V-cleats and profiles. Engineered for secure gripping, synchronized sorting, and vertical conveying. Durable steel or Kevlar reinforcement. Available with FDA compliance. These “V” attachments are engineered to interlock with specific product shapes, creating a mechanical interface that prevents product slippage, misalignment, or “tumbling” during high-speed indexing, vertical conveying,…
High-precision polyurethane (PU) timing belts with integrated V-cleats and profiles. Engineered for secure gripping, synchronized sorting, and vertical conveying. Durable steel or Kevlar reinforcement. Available with FDA compliance.
These “V” attachments are engineered to interlock with specific product shapes, creating a mechanical interface that prevents product slippage, misalignment, or “tumbling” during high-speed indexing, vertical conveying, or sorting operations.
.Technical Specifications
| Base Belt Material | High-Grade Thermoplastic Polyurethane (PU), Standard White |
| Tension Member (Cord) | High-Tensile Steel Cords (Standard), Kevlar® (for light weight), Stainless Steel (for food/corrosive) |
| V-Cleat/Profile Shape | Custom designed based on your product (e.g., V-Groove, V-Cleat for tube holding) |
| Attachment Process | Integral Molding (strongest bonding) or Thermal Welding (most flexible customization) |
| Tooth Profiles | T10, AT5, AT10, AT20,HTD8M, STD8M,HTD14M,STD14M(Custom pitches available) |
| Profile Hardness | Standard is 75-92 Shore A (Matches belt body); Customizable softer formulations |
| Temperature Range | -20℃-+80℃ |
Applications
These belts are favored by engineers for specialized automation tasks, including:
- Bottling & Pharmaceutical Lines: Indexing bottles or vials for filling, capping, or labeling.
- Tube & Pipe Handling: Conveying and sorting glass tubing, metal rods, or plastic pipes.
- Sorting Systems: High-speed sorting of irregularly shaped or round products into specific channels.
- Packaging Machine Feeding: Synchronized feeding of products into horizontal or vertical packaging systems.
Fabrication & Design Options
We offer extensive customization for your Pu timing belt with V cleats/Profiles:
- CNC Grinding: If a precise V-groove is required in the belt body or a thicker cleat, we offer precision milling.
- Cleat Geometry: We can design profiles to match your unique CAD drawings of your product.
- Slotting: Profiles can be slotted for sensor detection or water drainage.
- FDA/Food Grade: Available with white or blue FDA-compliant polyurethane and stainless steel cords.
