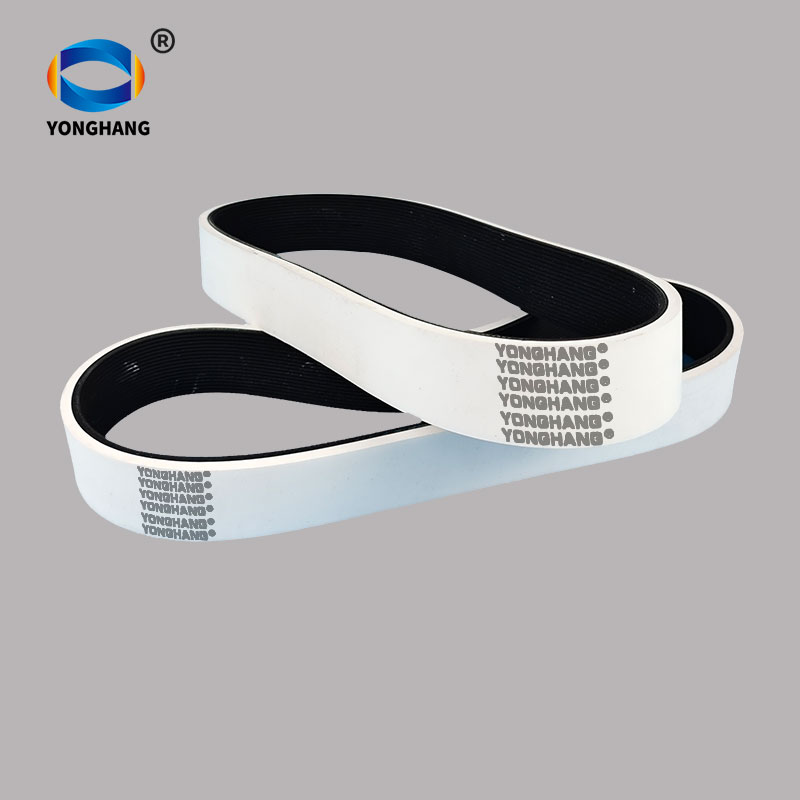

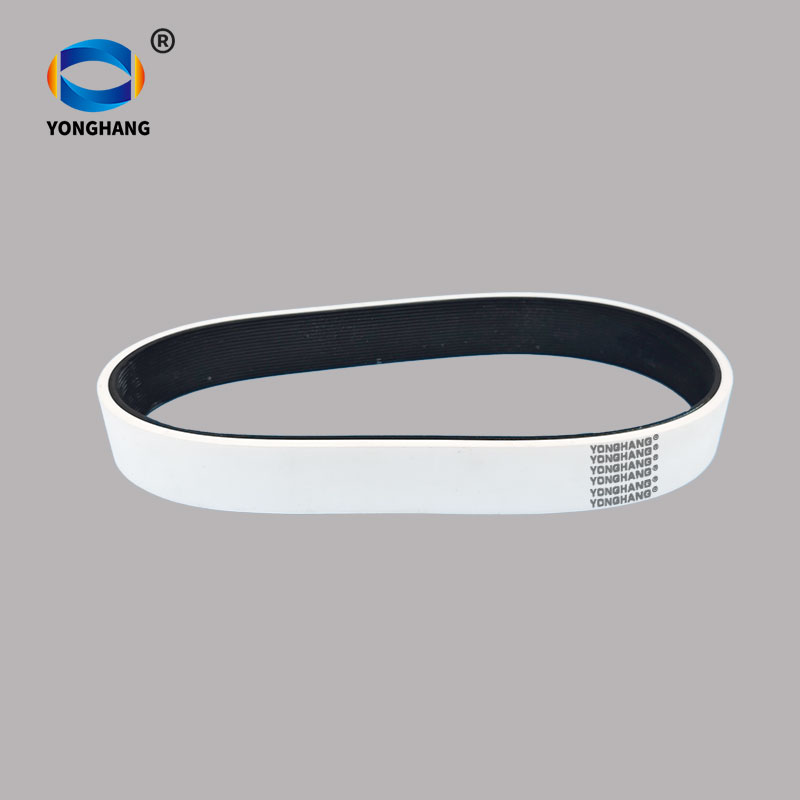

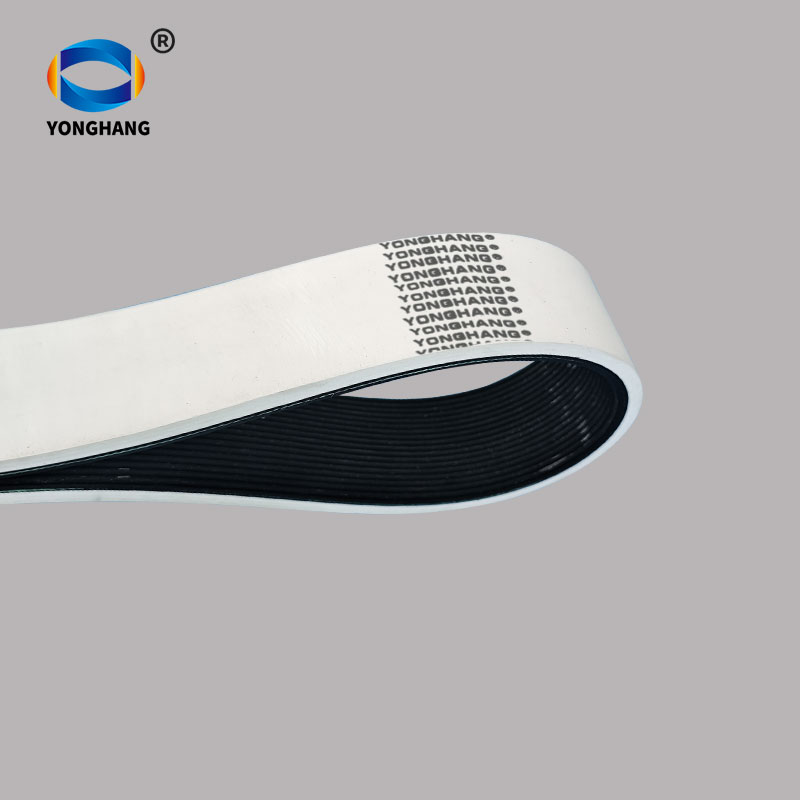

Poly V belts with Silicone coating

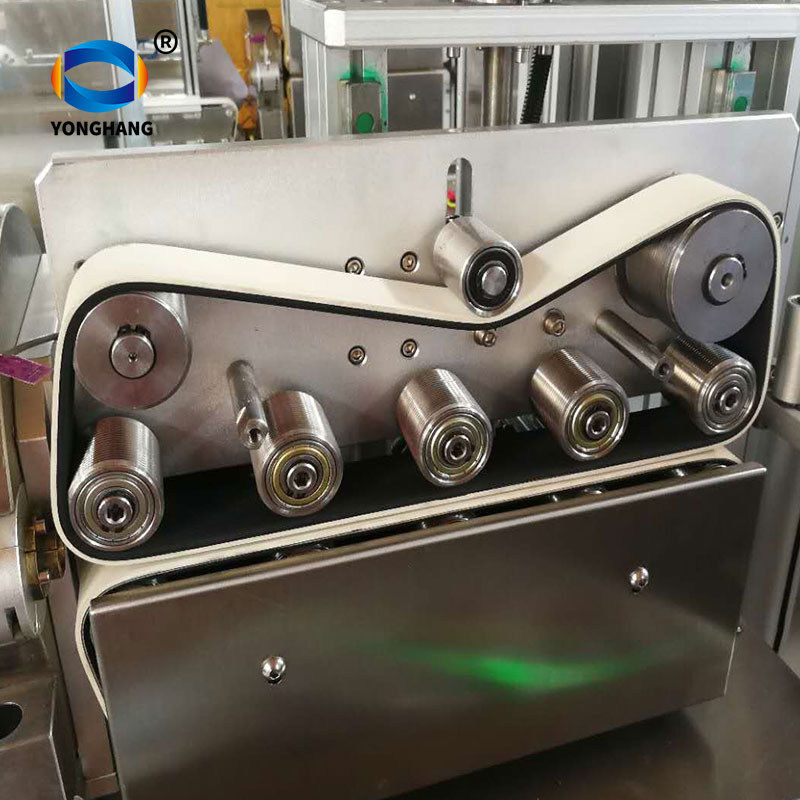

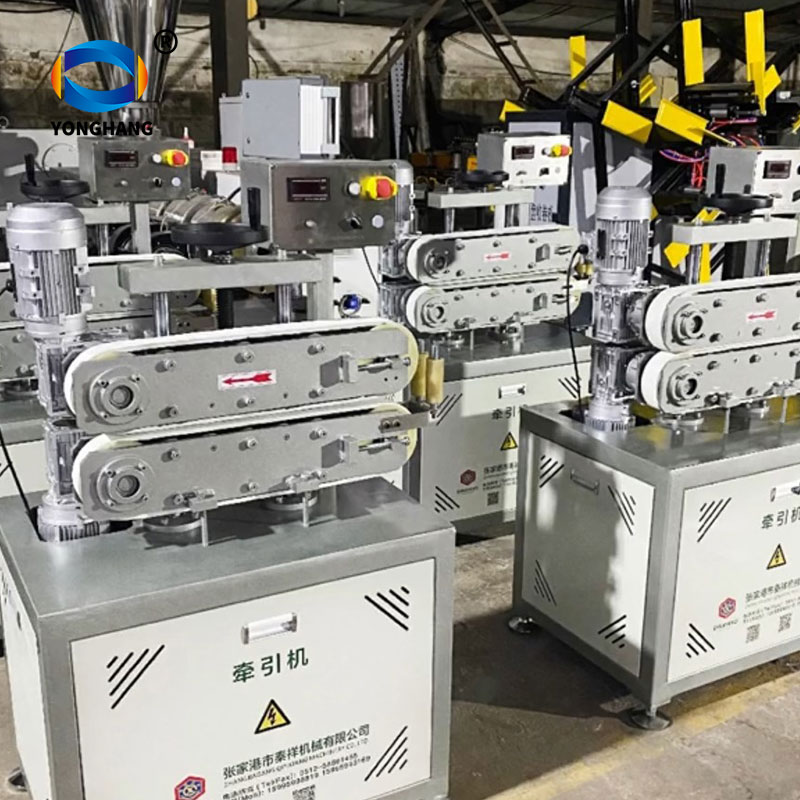

Poly V belts with silicone coating are specifically designed for traction and pulling operations in extrusion, profile processing, and cable and pipe production lines. The integrated multi-rib structure provides powerful friction transmission and stable traction, whilst the high-quality silicone coating offers excellent heat resistance, non-stick properties and food-grade material characteristics; it is environmentally friendly and non-toxic. Siliconeeffectively prevent material adhesion, residue build-up and damage to the surface of processed products, ensuring continuous and smooth traction operations. They are particularly suitable for medical tubing pulling and packaging lines in the food industry.

parameters

Product Name	Poly V belts with Silicone coating
Bottom belt model	PJ PK PL
Color	White
Coated Layer	Silicone
Bottom Layer	Rubber: CR or EPDM ; Reinforcement: Polyester Cord + Fabric
Mechanical Properties	High Breaking Load;High Wear Resistance;Low Elongation At Working Load;

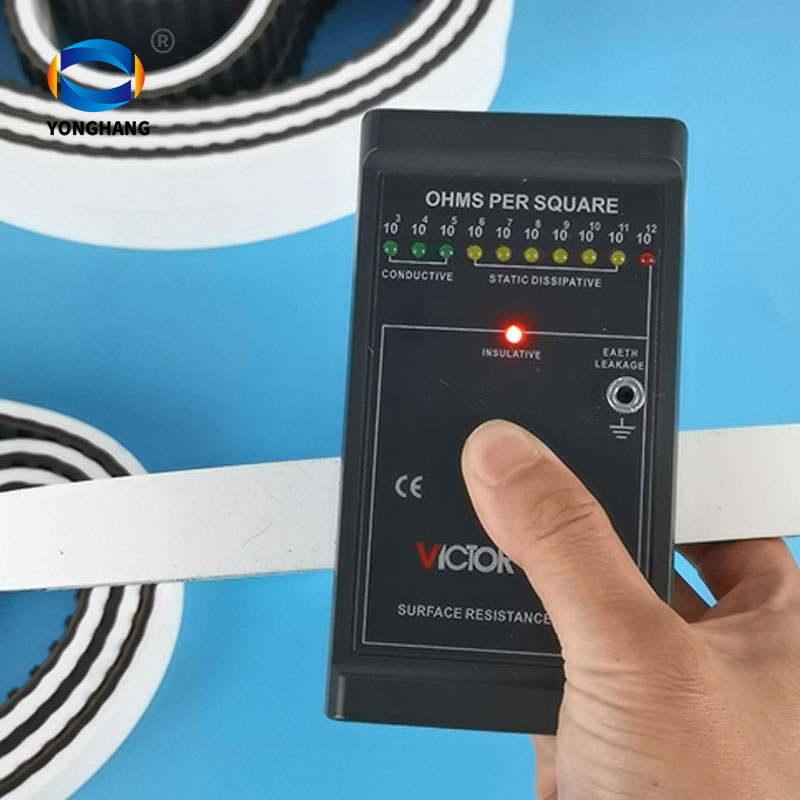

Chemical properties	Non-sticky, non-toxic, silicone with FDA certification, insulating, high-temperature resistant
Silicone coating Hardness	35A-65A（Available range）
Max. Temperature	+220℃

Advantages of Silicone Coated Poly V Belts

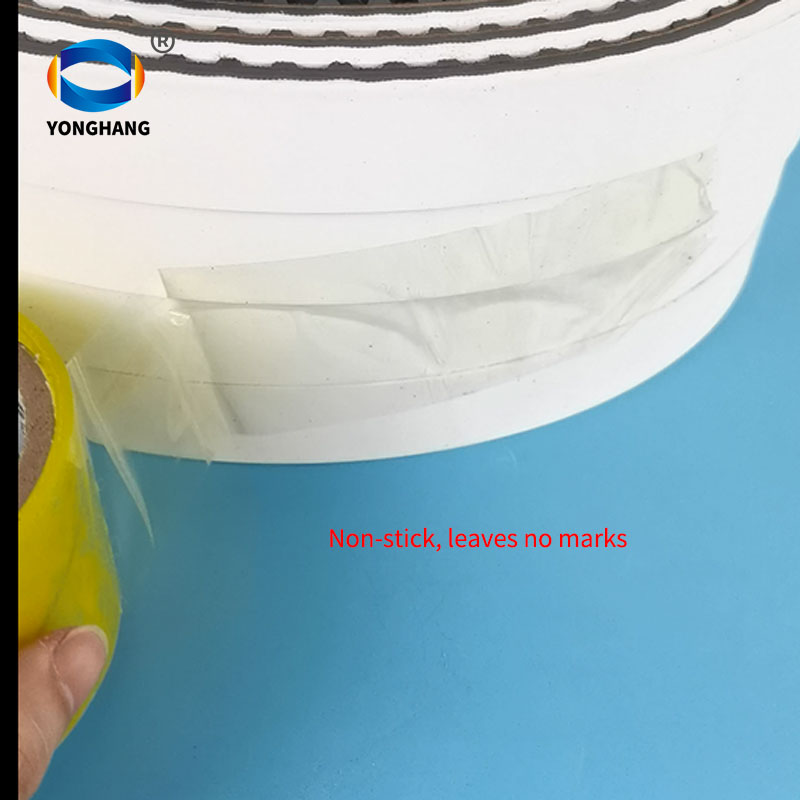

Excellent Non-stick Performance

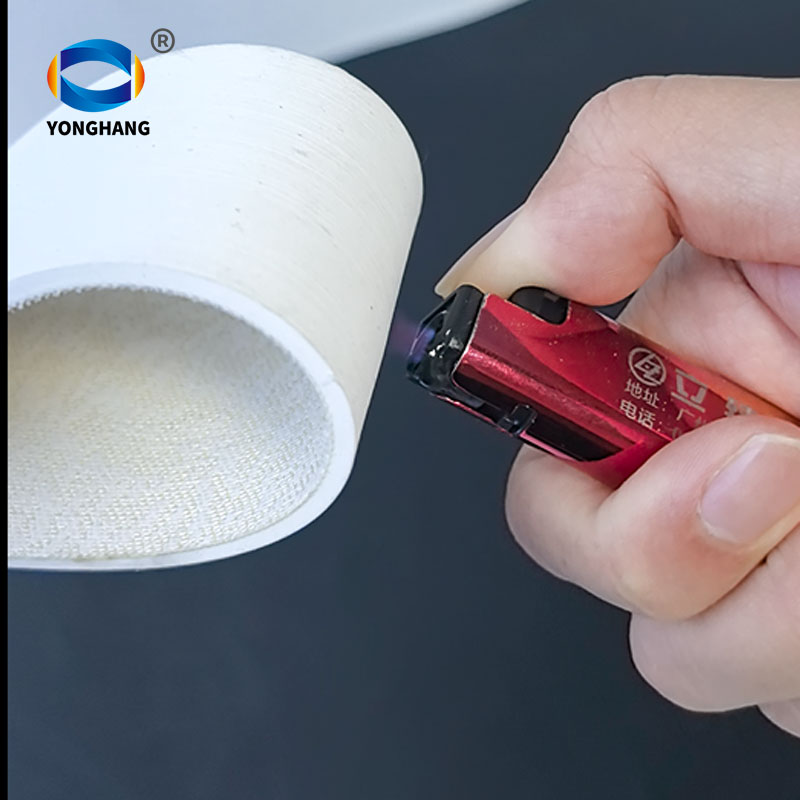

High Temperature Resistance
Stable Traction & Uniform Grip
soft:perfectly suitable for processing soft PVC, TPE, rubber profiles and sensitive materials.
Abrasion & Aging Resistance
Oil & Chemical Resistance
Low Noise & Flexible Operation

Application

Food packaging machinery: Suitable for coarse foodstuffs; safe and non-toxic
Medical industry: FDA-certified
Rubber/silicone extrusion haul-off: Soft and non-scratching

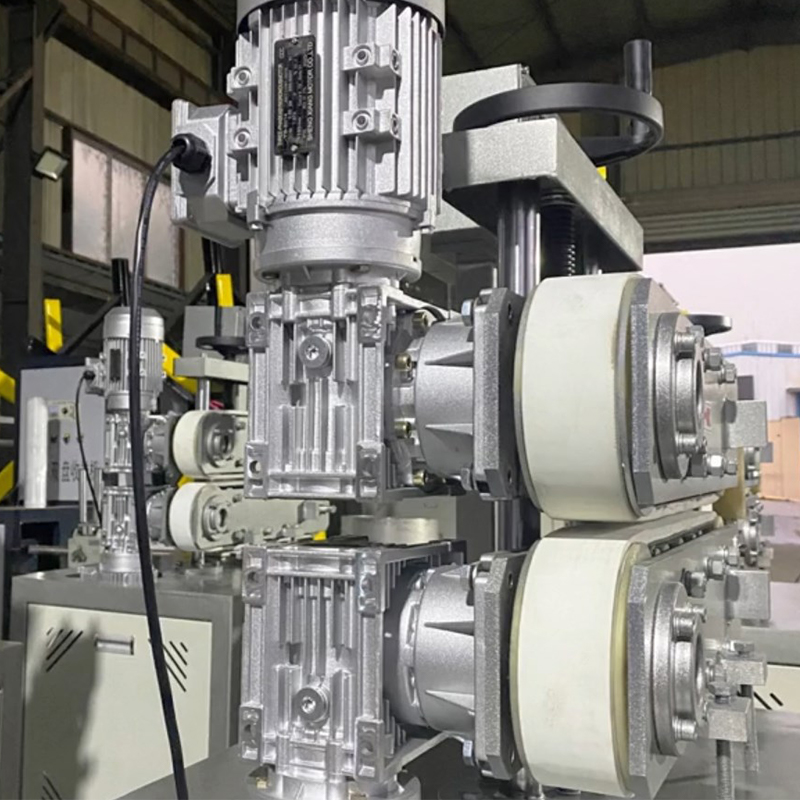

Plastic pipe/profile extrusion haul-off: Operating conditions: high temperatures (80–180°C); requires non-stick properties, high friction and scratch resistance
