Non-mesh brown PTFE （teflon） belt

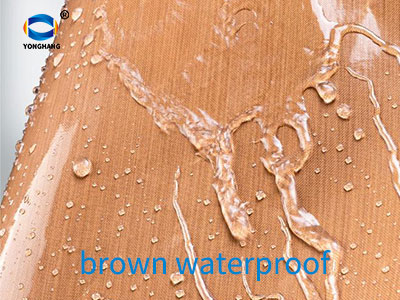

Non-mesh brown solid PTFE belt is solid plain fiberglass base fabric fully impregnated & double-side coated with modified brown PTFE resin, no mesh holes, fully compact smooth surface, finished into endless/open conveyor belt for high-temperature non-stick conveying. Brown pigmented PTFE coating improves abrasion resistance & anti-aging performance vs standard natural white PTFE fabric, compact seamless…
Non-mesh brown solid PTFE belt is solid plain fiberglass base fabric fully impregnated & double-side coated with modified brown PTFE resin, no mesh holes, fully compact smooth surface, finished into endless/open conveyor belt for high-temperature non-stick conveying. Brown pigmented PTFE coating improves abrasion resistance & anti-aging performance vs standard natural white PTFE fabric, compact seamless surface prevents leakage of fine powder & sticky liquid, widely customized for thermal pressing, drying and heat-sealing production lines.
specifications

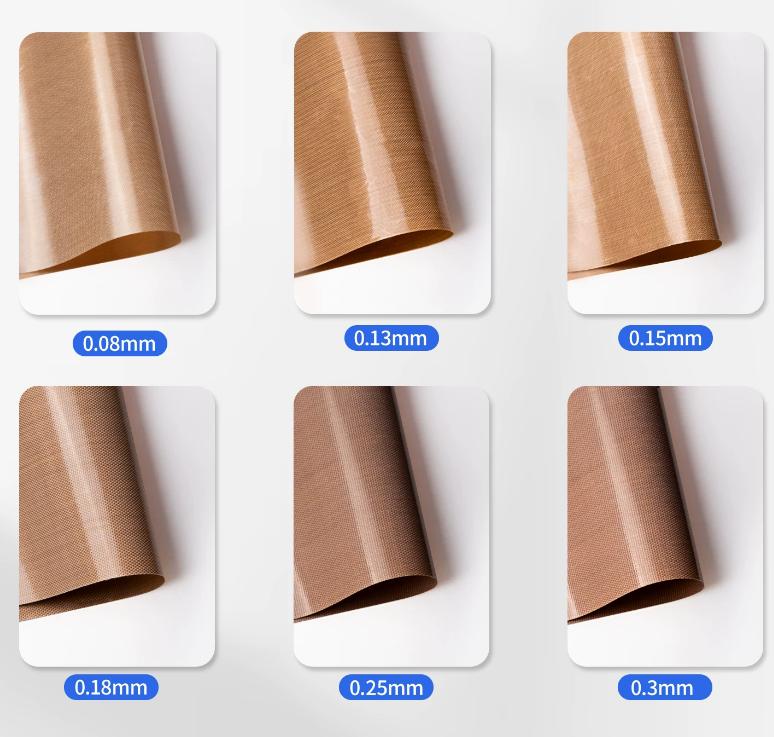

| thickness | max width | tensile strength | colour |
| 0.08mm | 1270mm | 500±50N/5CM | Brown |
| 0.13mm | 1270mm | 1000±50N/5CM | Brown |
| 0.15mm | 1270mm | 1600±50N/5CM | Brown |
| 0.18mm | 1270mm | 1800±50N/5CM | Brown |
| 0.25mm | 2400mm | 1422N±50N/5CM | Brown |
| 0.30mm | 2600mm | 1642N±50N/5CM | Brown |

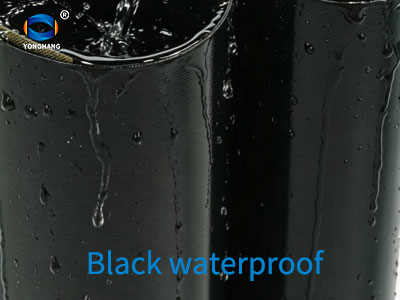

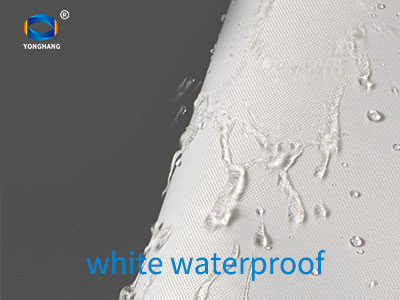

| 0.35mm | 2600mm | 1722N±50N/5CM | Brown/White/Black |
| 0.50mm | 2600mm | 1822N±50N/5CM | Brown/White/Black |
| 0.65mm | 2600mm | 2252N±50N/5CM | Brown |
| 0.75mm | 2600mm | 2642N±50N/5CM | Brown/White/Black |
| 0.90mm | 2600mm | 3267N±50N/5CM | Brown/White/Black |
| 1.0mm | 2600mm | 3822N±50N/5CM | Brown/White/Black |
Key Advantages
Completely leak-proof
Adhesives, resins, hot-melt adhesives and liquid materials will not leak through the belt, making it suitable for lamination, hot-pressing and coating processes.
Thermal Insulation
With no mesh holes, hot air cannot penetrate, ensuring more uniform temperatures inside the oven. Designed specifically for heat press machines and photovoltaic laminators.
Exceptional Surface Flatness
With no uneven mesh patterns, the surface of laminated products will not retain grid marks. The preferred choice for laminating sheets, films and silicone.
Abrasion-Resistant and Jam-Resistant
A smooth, dense surface prevents small particles from becoming lodged in the mesh, making cleaning simple.
Common Applications
Solar PV laminators (seamless solid fabric belts are the industry standard)
Garment bonding machines and heat transfer printers
Silicone/rubber hot-press moulding
Hot-pressing and laminating equipment for lithium-ion battery electrodes
Packaging sealing machines and hot-melt adhesive laminators
Key Performance Parameters
Temperature resistance: Long-term -70°C to 260°C; short-term peak 360°C; no deformation or cracking at high or low temperatures
Non-stick Properties: PTFE has an ultra-low coefficient of friction (0.04–0.15); completely non-stick to dough, resins, adhesives and hot-melt glues; can be cleaned with plain water
Chemical Inertness: Resistant to strong acids, strong alkalis, organic solvents and grease corrosion; suitable for both chemical and food applications
Dimensional Stability: Glass fibre backing provides high tensile strength; elongation <0.5%; no stretching or tracking at high temperatures
Safety and Compliance: Odourless and non-toxic; complies with FDA food contact standards; suitable for baking and pharmaceutical applications

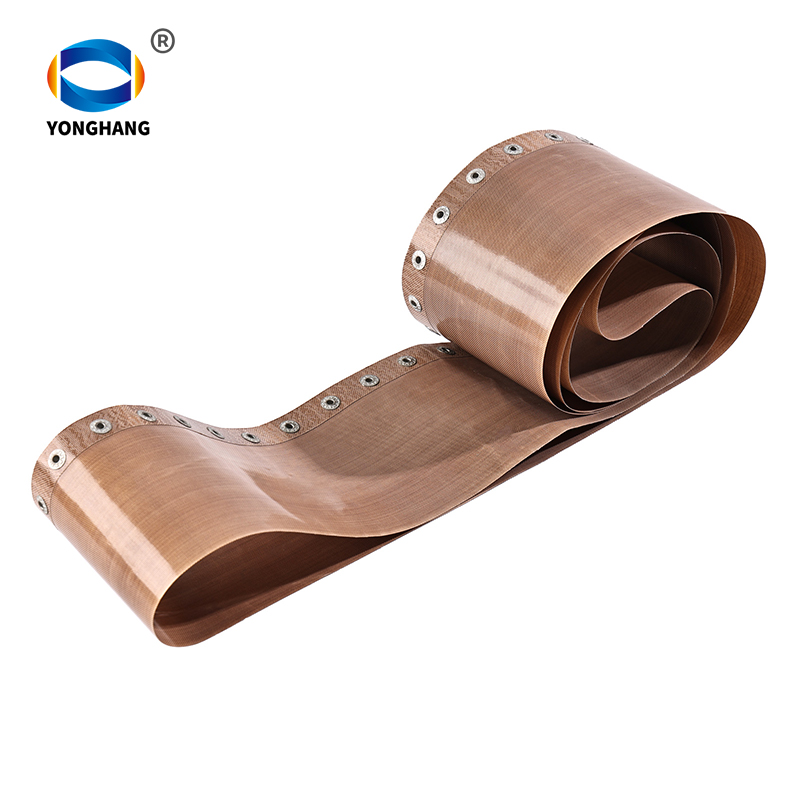

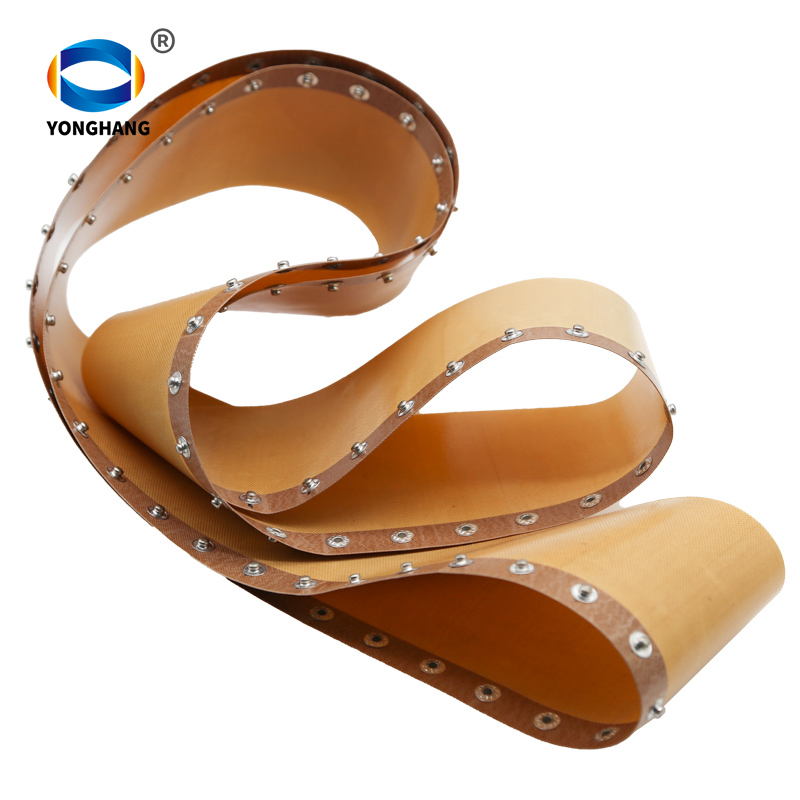

Additional Options: Anti-static coating, red-edged/Kevlar fabric reinforcement for tear resistance, guide strips to prevent tracking, seamless loop joints, etc.
