Double-sided Poly V Roller Mill Belt:19DPK1505

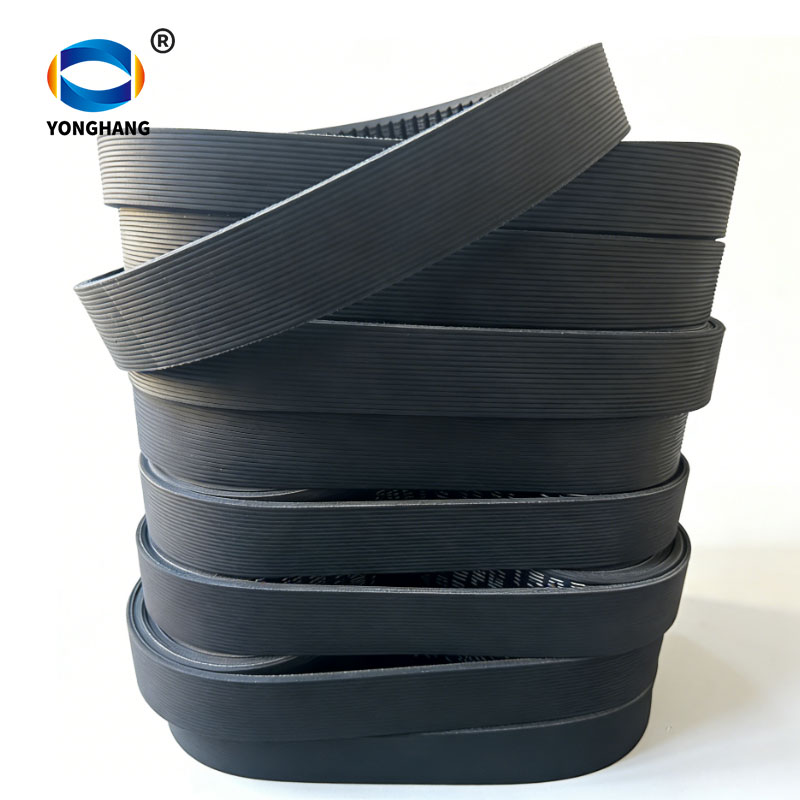

Double-sided Poly V belt (also known as double-sided serpentine belt) has longitudinal ribs on both sides of the belt. This structure enables the belt to bend in both forward and reverse directions in complex gear systems, and can drive multiple pulleys simultaneously. It is a commonly used transmission scheme in international mainstream grinding machines such…
Double-sided Poly V belt (also known as double-sided serpentine belt) has longitudinal ribs on both sides of the belt. This structure enables the belt to bend in both forward and reverse directions in complex gear systems, and can drive multiple pulleys simultaneously. It is a commonly used transmission scheme in international mainstream grinding machines such as Bühler and Ocrim.
Flour Roller Mill Belts usually consist of EPDM rubber body, fiberglass cord and nylon tooth facing, while custom materials available upon request. Special cords include aramid (kevlar), steel and carbon fiber.
Specifications
| Profile | DPK |
| Tooth Pitch [mm] | 3.56 |
| Width Tolerance [mm] | +/- 0.2 |
| Length Tolerance [mm] | +/- 0.5 |
| Thickness Tolerance [mm] | +/- 0.2 |
| Hardness | 65 Shore A |
| Tensile Members | fiberglass/aramid fiber |
| Color | black |
| Material | EPDM or CR |
| Working temperature | -30℃to+120℃ |
| Minimum Pulley Diameter [mm] | 60 |
| Tooth Angle 2β [°] | 40 |

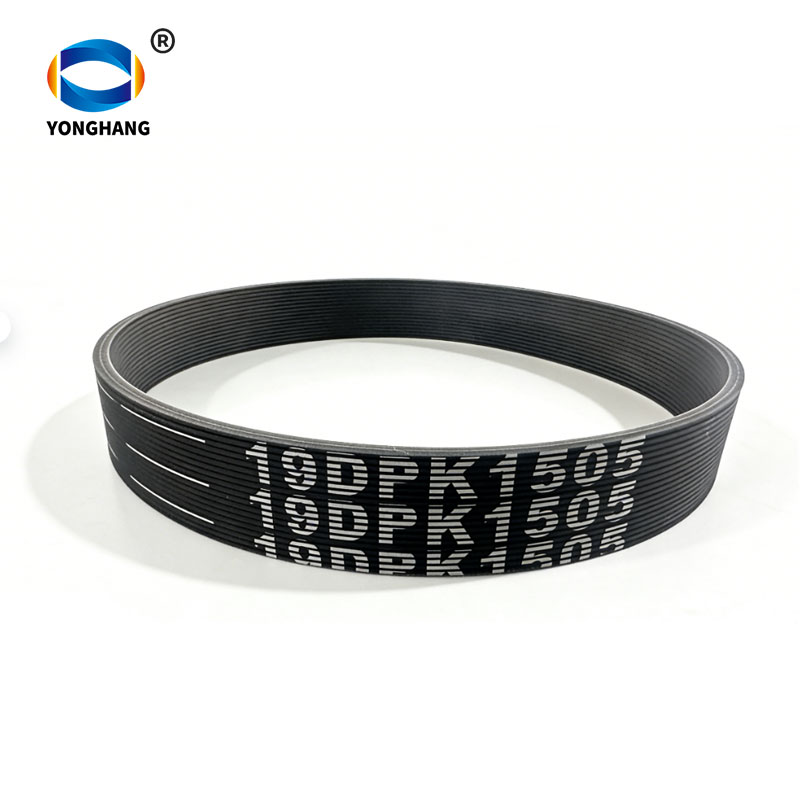

Double-sided Poly V Roller Mill Belt:19DPK1505
19= Number of Ribs
1505 = Pitch Length [mm]
D = Dual Sided
PK= K Rib Profile（Pitch=3.56mm）
