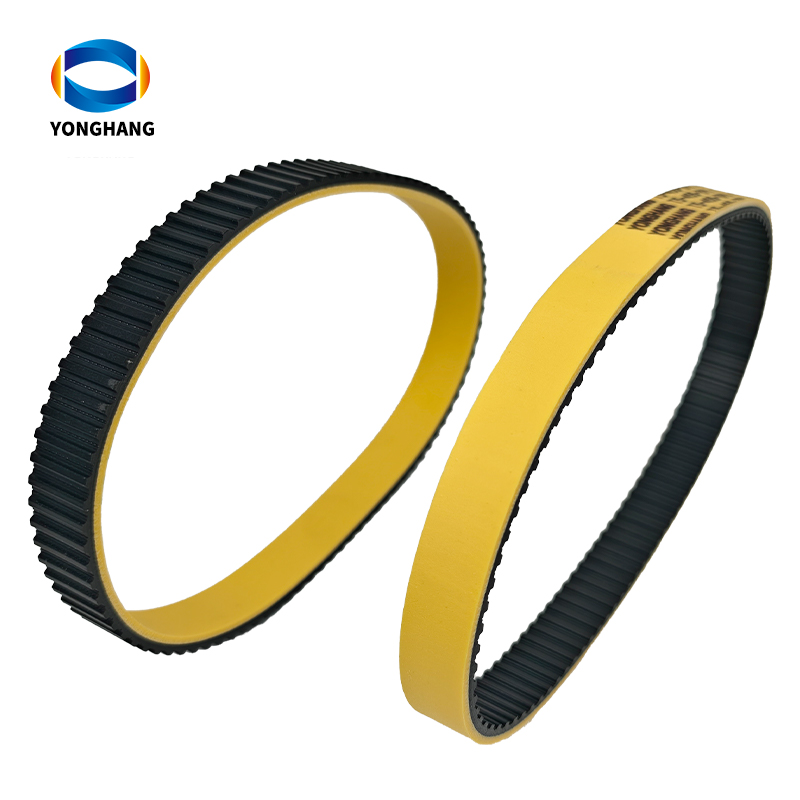

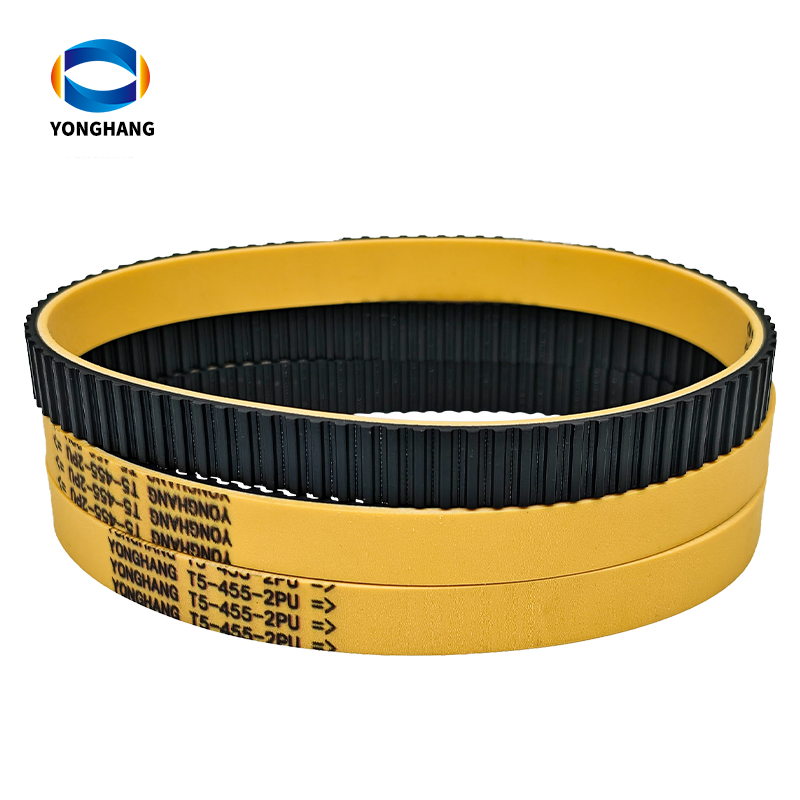

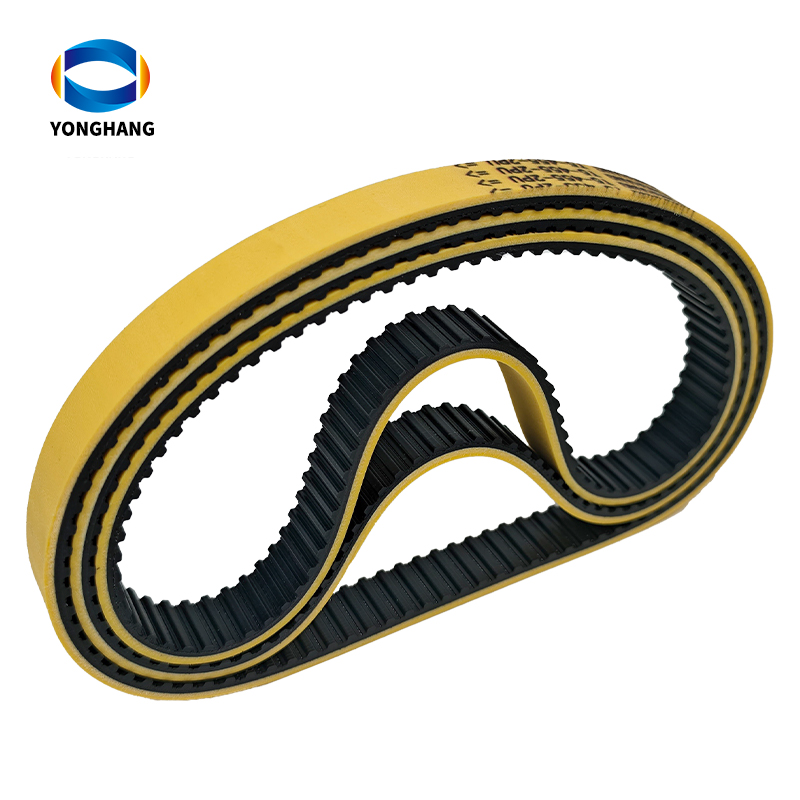

16T5-455+2 pu timing belts for wire harness cutting machine
This 16T5-455+2mm pu timing belt is a critical consumable component in the wire harness manufacturing industry (such as fully automatic wire cutting and stripping machines). Due to its 2mm thickened cover layer, it primarily serves as a “pull belt” or “feed belt.” This specialized coating allows the machine to pull wires and cables at high…
This 16T5-455+2mm pu timing belt is a critical consumable component in the wire harness manufacturing industry (such as fully automatic wire cutting and stripping machines). Due to its 2mm thickened cover layer, it primarily serves as a “pull belt” or “feed belt.”
This specialized coating allows the machine to pull wires and cables at high velocities without causing surface slippage or leaving “crush marks” on the delicate insulation. It is the ideal replacement belt for leading wire processing brands such as Komax, Schleuniger, and various high-speed automatic cutters.
Parameter
| Tooth Profile | T5 |
| Number of Teeth | 91 teeth |
| Width | 16mm |
| Top Coating | +2mm (yellow PU or white wear-resistant rubber) |
| Base Material | Thermoplastic PU |
| Tension Member | Steel Cord or Kevlar |
| Hardness | Base layer: 92 Shore A; Top layer: 35–70 Shore A (depending on flexibility requirements) |
Key Features:
- Non-Marking Transport: The 2mm soft overlay protects sensitive wire jackets (PVC, Silicone, Teflon) from damage.
- Synchronized Feeding: CNC-milled tooth profiles ensure perfectly timed movement with no pitch accumulation error.
- Paired Precision: We offer matched sets to ensure consistent thickness and grip across the upper and lower drive units.
Yonghang Professional Maintenance Tips
Paired Replacement: Wire cutting machines typically use two belts—one upper and one lower—to apply pressure and feed the material. To ensure even feeding pressure, we strongly recommend replacing the belts in pairs to guarantee that both belts have exactly the same thickness and friction.
Cleaning Tips: If you notice feeding slippage, use industrial alcohol to wipe away wire shavings and powder from the surface of the thickened layer. Avoid using highly corrosive solvents.
CNC Custom Grooving: If your wire harness is relatively thick, Yonghang can provide custom CNC longitudinal grooving (V-groove or U-groove) to allow the wires to be embedded in the grooves, resulting in more stable feeding.
16T5-455+2 pu timing belts
