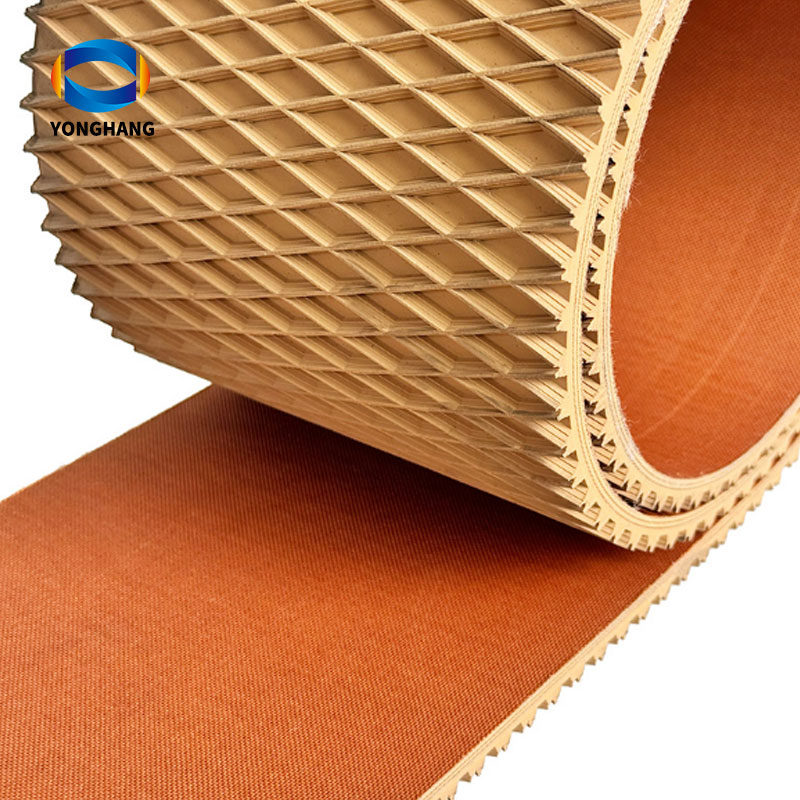

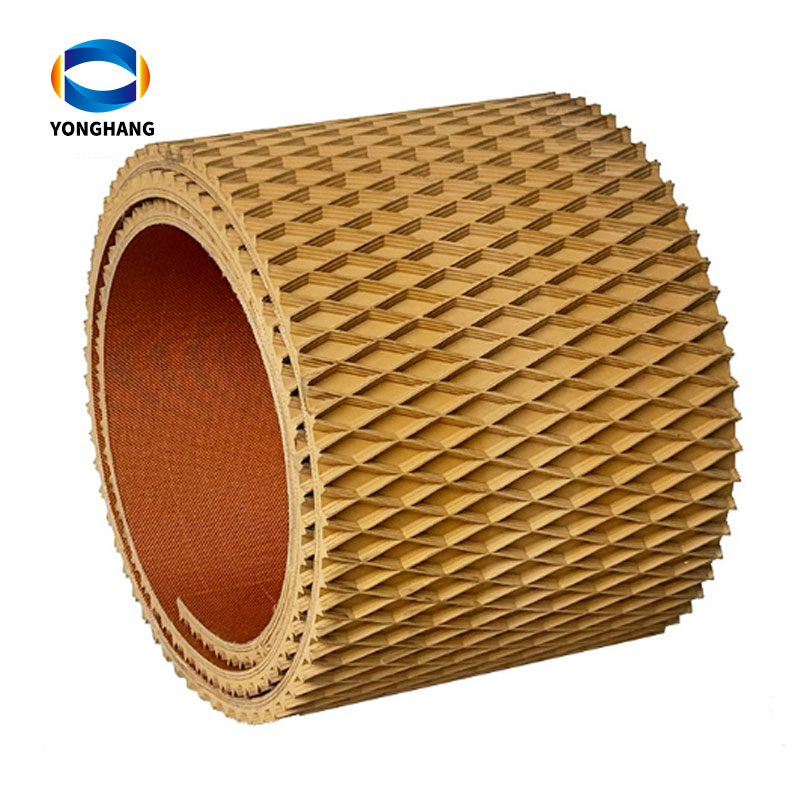

yellow rubber Rhombus Pattern Surface Conveyor Belt
yellow rubber Rhombus Pattern Surface Conveyor Belts are manufactured from rubber and polyester fiber reinforcement materials. Compared to PVC conveyor belts, they offer superior resistance to oil, acids, alkalis, abrasion, cold temperatures, and high heat, while also providing a longer service life. Primarily used in woodworking sanding machine belts, timber conveyor belts, and Hay Grower Cuts Baler…
yellow rubber Rhombus Pattern Surface Conveyor Belts are manufactured from rubber and polyester fiber reinforcement materials. Compared to PVC conveyor belts, they offer superior resistance to oil, acids, alkalis, abrasion, cold temperatures, and high heat, while also providing a longer service life.

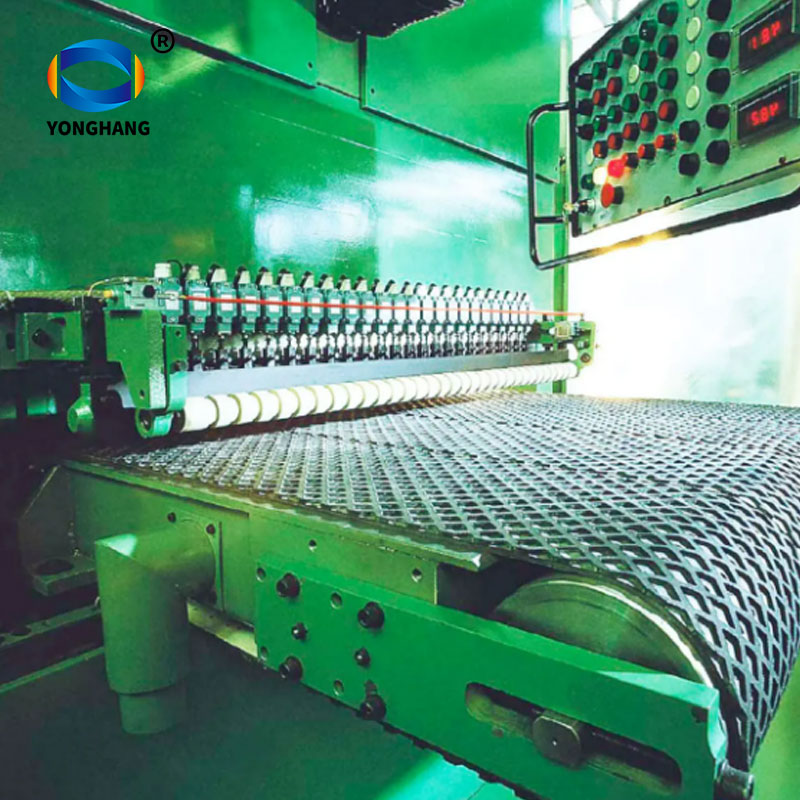

Primarily used in woodworking sanding machine belts, timber conveyor belts, and Hay Grower Cuts Baler Belt, they feature waterproofing, slip resistance, and wear resistance.
Product parameter
| Product | yellow rubber Rhombus Pattern Surface Conveyor Belt |
| specifications | Flexible customization |
| Width | Maximum 3000 mm |
| Thickness | 7/8/9mm |
| Colour | yellow/black |
| Working temperature | -20℃~+85℃ |
| Base Material | polyester fabric |
| Material | CR rubber/NBR rubber |
| Coating Hardness | 55A |
advantage
- Improved tracking and resistance to highly abrasive conditions
- Minimized down time in the field
- Reduced risk of belt fragmentation due to direct pattern-vulcanization
- Belt can be freely cut to length; choose between Langya buckles or steel buckles for the interface.
- The replacement is quick and simple.
Application

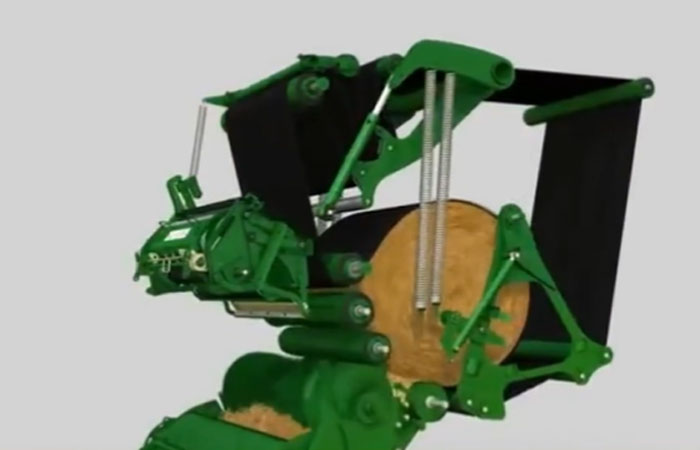

Our belting is manufactured from premium quality materials and vulcanized under extreme heat and pressure, so it won’t shrink, rot, or mildew. The belts will withstand the extreme flexing common on large round balers. The highly stable fabric used in the manufacturing of the belts prevents premature failure caused by belt stretching.

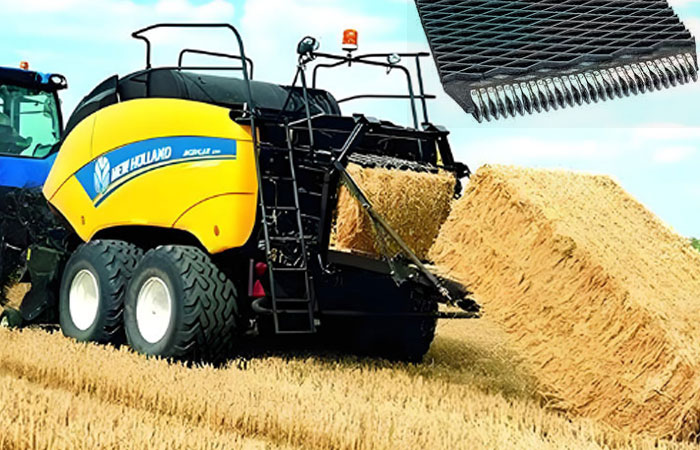

Our baler, thresher and conveyor belts are manufactured to meet the demands of today’s high-density balers. All belts stretch to some degree with time and use, and adjustments to the machine are necessary. To ensure even tension throughout the machine, it is better to replace the entire set of belts whenever any replacement is necessary.
However, if in an emergency situation it is necessary to replace less than a full set, the remaining belts should be measured and the replacement belt(s) cut accordingly.

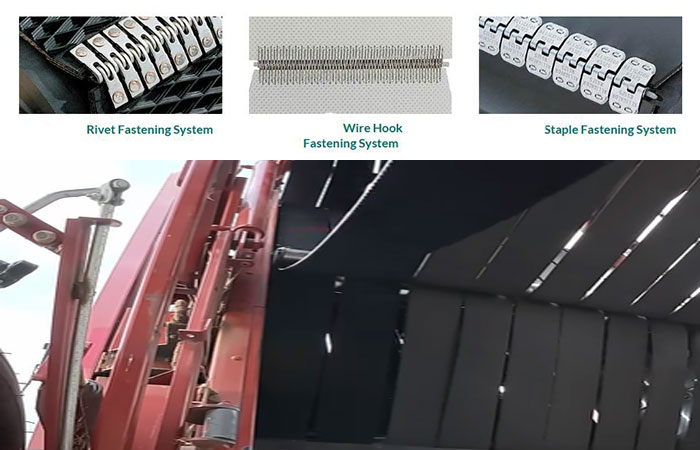

You may also want to order Clipper Lacers with Galvanized Round Hook & Pin to secure two pieces of belting together.
