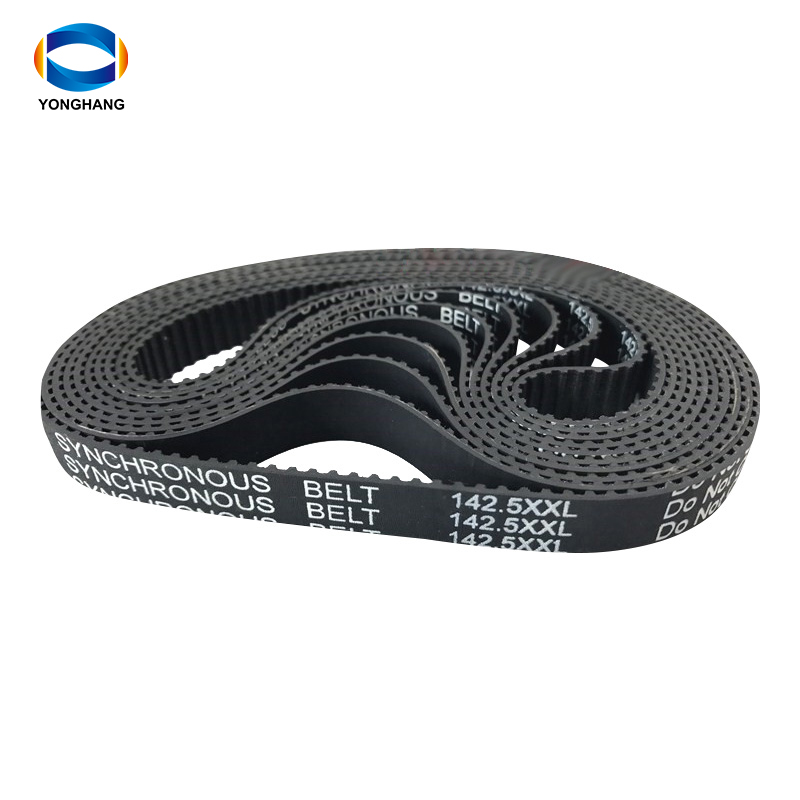

XXL Rubber Timing Belt
The XXL Rubber timing belt is standard delivered with Fiberglass cores. The XXL Rubber toothed belt has a pitch of 3.175mm mm , extremely suitable for transport where good positioning is required. We can customize the XXL Rubber timing belt according to your wishes. Product details Timing belt XXL Colour Black Shore hardness (A) 75° Shore…
The XXL Rubber timing belt is standard delivered with Fiberglass cores. The XXL Rubber toothed belt has a pitch of 3.175mm mm , extremely suitable for transport where good positioning is required. We can customize the XXL Rubber timing belt according to your wishes.
| Product details Timing belt XXL | |
| Colour | Black |
| Shore hardness (A) | 75° Shore A |
| Cords | Fiberglass cores |
| Width | 5-400mm |
| Length | Open length |
| Seamless (moulded) | |
| Working temperature | -20-+80C |
| Standard cords | Fiberglass cores 0.3 mm |
| Width tollerance | +/- 0.3 mm |
| Height tollerance | +/- 0.2 mm |
| Length tollerance | +/- 0.5 mm |
| Weight per meter | +/- 20g/10mm belt width per meter |
| Minimum diameter pulley | 19.95mm |
| Minimum diameter counterbend | 50mm |
