XXL PU Timing Belts
The XXL PU timing belt is standard delivered with steel or kevlar cords. The XXL PU toothed belt has a pitch of 3.175mm , extremely suitable for transport where good positioning is required. We can customize the XXL PU toothed belt according to your wishes. XXL PU Timing Belt Description Model XXL Material Polyurethane Pitch…
The XXL PU timing belt is standard delivered with steel or kevlar cords. The XXL PU toothed belt has a pitch of 3.175mm , extremely suitable for transport where good positioning is required. We can customize the XXL PU toothed belt according to your wishes.
- Extra-lightweight tooth profile for small pitch applications.
- Ideal for compact and precise machinery.
- High positioning accuracy with minimal slippage.
- Low noise and vibration, maintenance-free in most environments.
XXL PU Timing Belt Description
| Model | XXL |
| Material | Polyurethane |

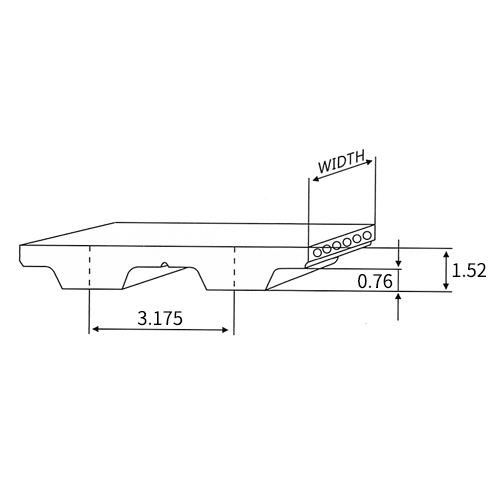

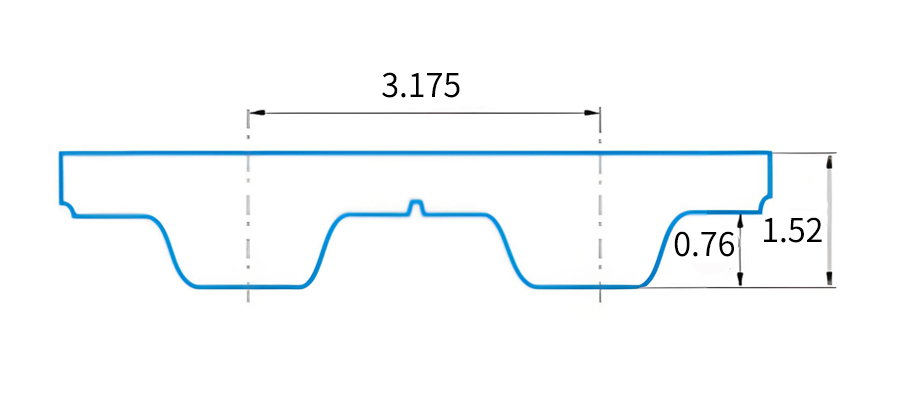

| Pitch | 3.175mm |
| Color | White/Black |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Minimum Pulley Diameter | 50mm |
