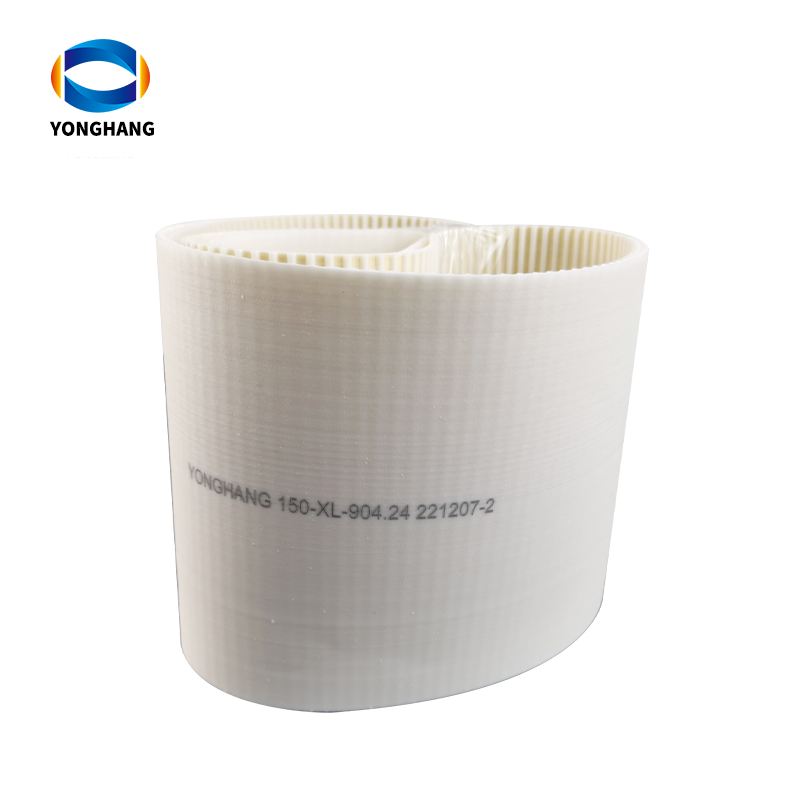

XL PU Timing Belt
The XL PU timing belt is standard delivered with steel or kevlar cords. The XL PU toothed belt has a pitch of 5.08mm , extremely suitable for transport where good positioning is required. We can customize the XL PU toothed belt according to your wishes. XL PU Timing Belt Description Model XL Material Polyurethane Pitch…
The XL PU timing belt is standard delivered with steel or kevlar cords. The XL PU toothed belt has a pitch of 5.08mm , extremely suitable for transport where good positioning is required. We can customize the XL PU toothed belt according to your wishes.
- Extra-lightweight tooth profile for small pitch applications.
- Ideal for compact and precise machinery.
- High positioning accuracy with minimal slippage.
- Low noise and vibration, maintenance-free in most environments.
XL PU Timing Belt Description
| Model | XL |
| Material | Polyurethane |

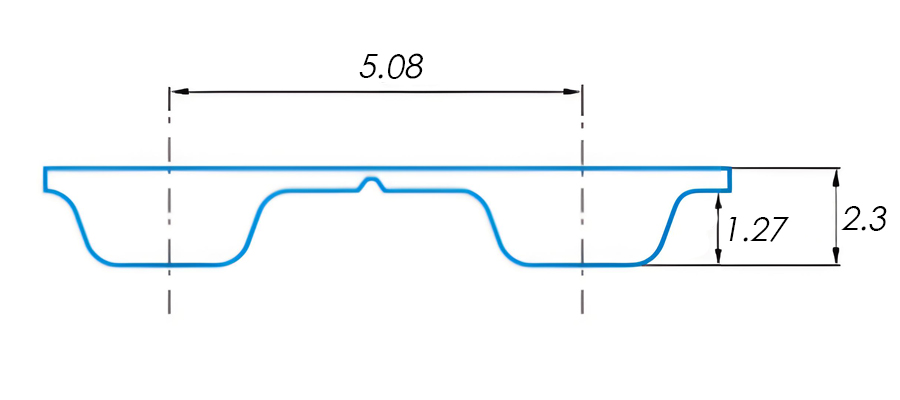

| Pitch | 5.08mm |
| Color | White/Black |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Minimum Pulley Diameter | 16.25mm |
