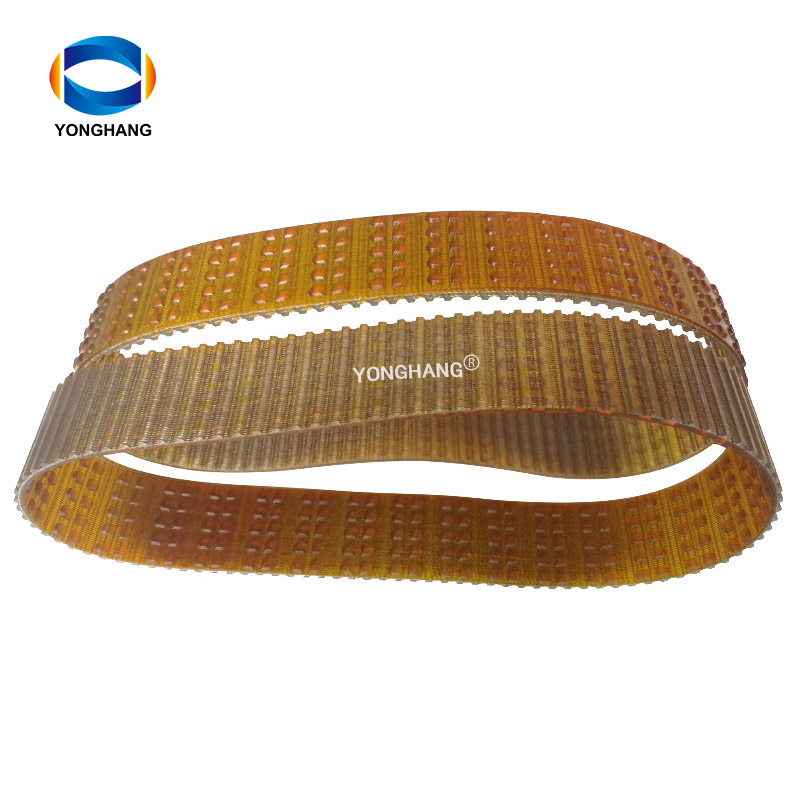

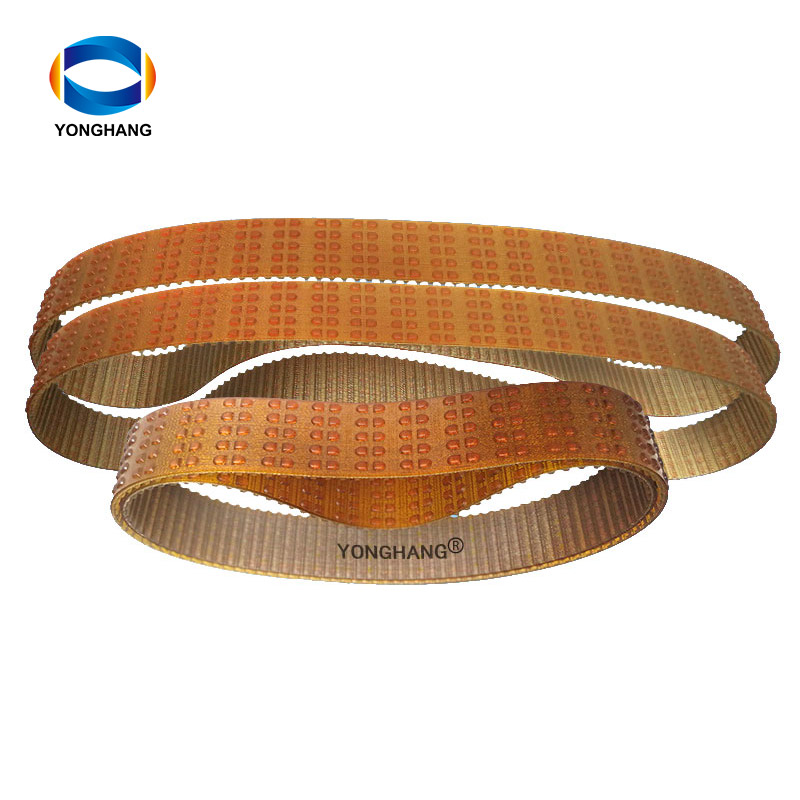

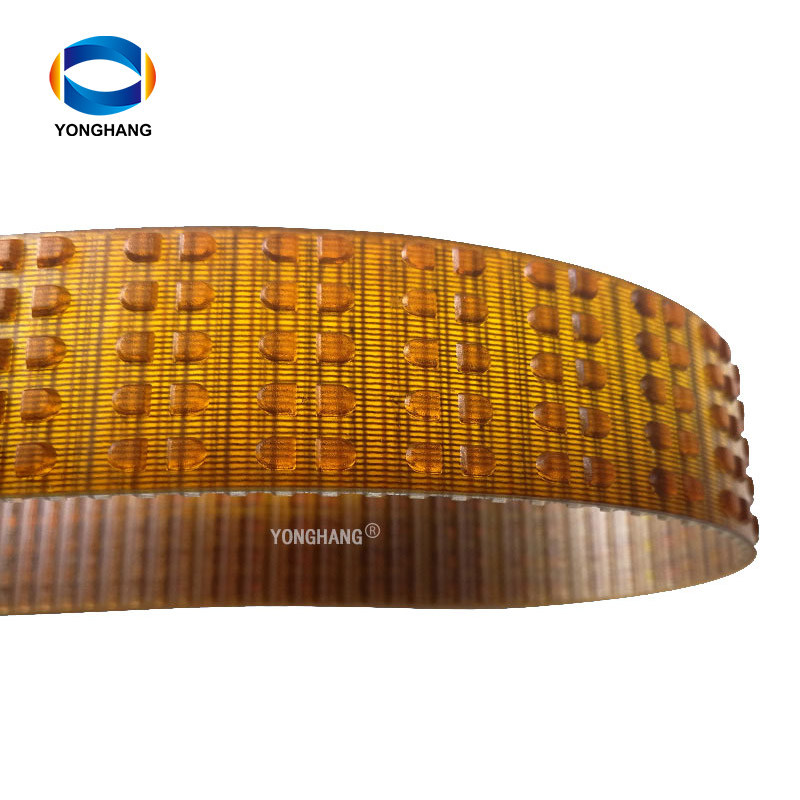

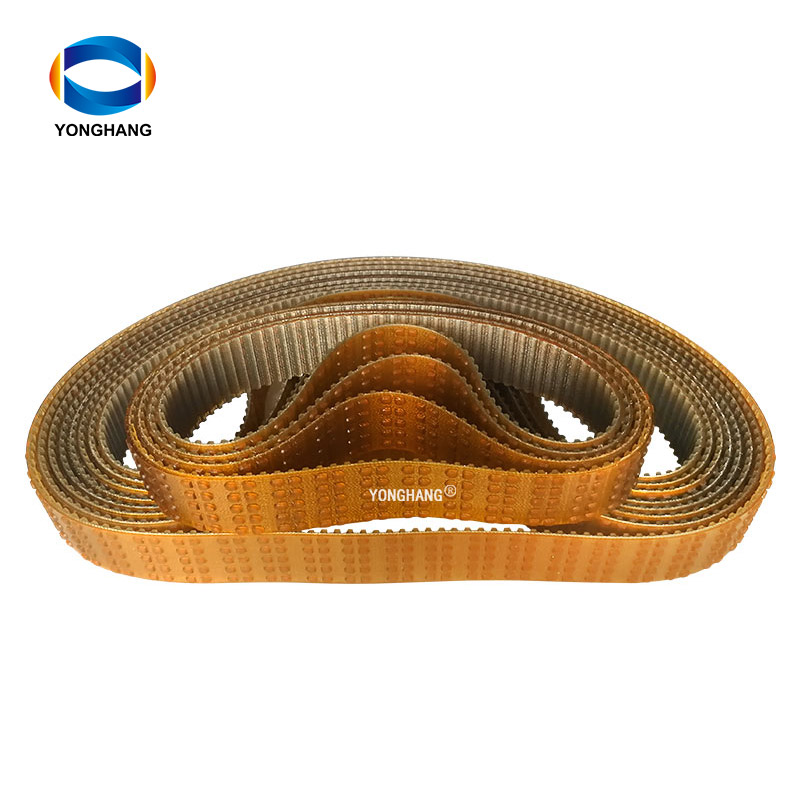

T5-510-32/T5-840-32 seamless Sausage machine belt

T5-510-32/T5-840-32 seamless Sausage machine belt is a T-type synchronous belt with a pitch of 5mm.made of PU timing belt with dimpled surface Coating , The common width of the machine is 32mm. (It can also be cut according to the requirements.), This product is manufactured a seamless one-piece vulcanization molding process, ensuring no layering or cracking. It is made from TPU oil-resistant food-grade material with a steel wire core, and supports customization with Kevlar or polyester fiber cores. The material meets FDA Rosh Certification, Currently, there are four available mold specifications: T5-510, and T5-840. If you have Other size, we can custom-mold the product for you. The minimum order quantity (MOQ) is one mold, with a low minimum order quantity. Currently, there are many other types. If you have any requirements, please contact us, and we will respond within 24 hours.

Parameters

brand	yonghang
Color :	Transparent+brown
Size:	T5-510, andT 5-840
Length:	510/840mm
Width	32/30/29mm(It can also be cut according to the requirements.)
Types：	T-type timing belts
Working temperature	﹣10℃~+85℃
Applications	Sausage machine
Material	PU
Shore hardness (A)：	≈92°Shore A
Joint	Seamless (moulded)
Cords：	steel（Kevlar）

Applications

– Meat Industry, belts for transporting sausages

Unique Characteristics/Advantage

– Made of environmentally friendly materials
– Aramid kevlar or steel cord reinforcement
– Hardness: 92 Shore A
– Heat resistance on operating temperature 80 C (on short run up to 100 C Degrees)
– Good behavior at low temperature
– Very good resistance to hydrolysis
– Good resistance to abrasion
– Good resistance to oil, solvents, hydrocarbons
– Loadability is equal with normal PU timing belts
– Compliant with FDA food-grade certification
