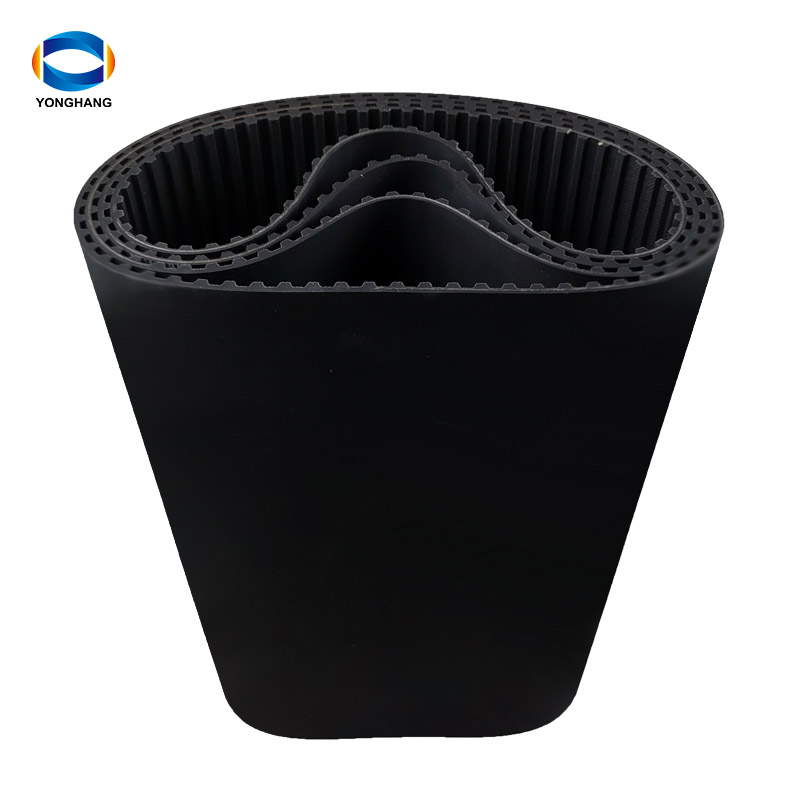

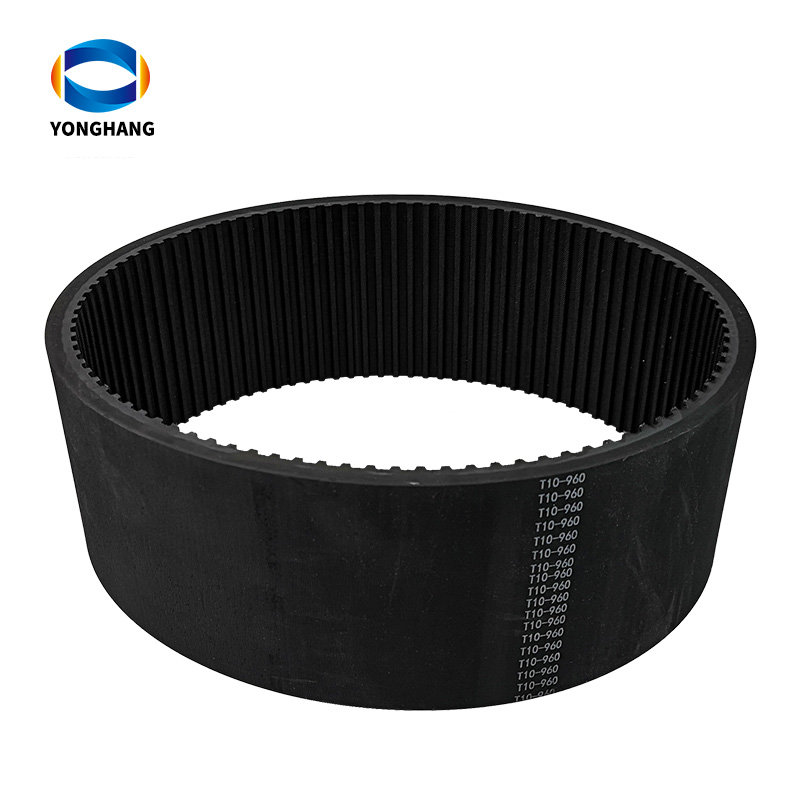

T10 rubber timing belt
The pitch of the T10 timing belt is 10 millimeters. It transmits power through the meshing of teeth with pulleys, effectively avoiding issues common in chain or gear drives while eliminating the slippage inherent in belt drives. This achieves high transmission precision and efficiency. This design makes it highly suitable for equipment requiring precise transmission…
The pitch of the T10 timing belt is 10 millimeters. It transmits power through the meshing of teeth with pulleys, effectively avoiding issues common in chain or gear drives while eliminating the slippage inherent in belt drives. This achieves high transmission precision and efficiency. This design makes it highly suitable for equipment requiring precise transmission and conveying.

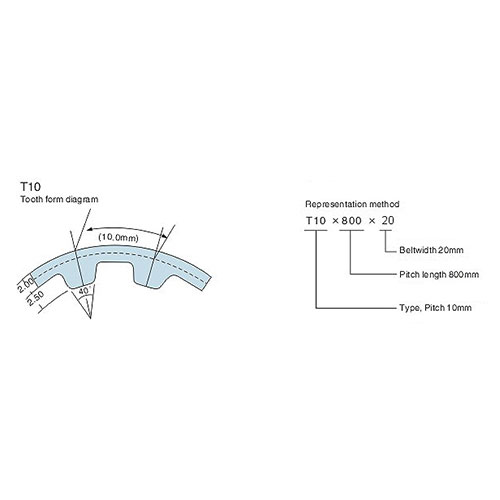

Specifications
| Trapezoidal Profile | T10 |
| Tooth Pitch t [mm] | 10 |
| Base Belt Thickness H [mm] | 2 |
| Tooth Height h [mm] | 2.5 |
| Overall Belt Thickness H [mm] | 4.5 |
| Width Tolerance [mm] | +/- 0.5 |
| Length Tolerance [mm] | +/- 0.5 |
| Thickness Tolerance [mm] | +/- 0.2 |
| Hardness | 65 Shore A |
| Tensile Members | fiberglass |
| Color | black |
| Minimum of Teeth on Pulley | 12 |
| Minimum Pulley Diameter [mm] | 60 |
| Tooth Angle 2β [°] | 40 |
| Ultimate Tensile Strength | 3120 |
| [N/10mm belt width] | |
| Maximum Allowable Tensile Strength M | 780 |
| [N/10mm belt width] | |
| Unit Mass kg/m [Width: 10mm] | 0.042 |
