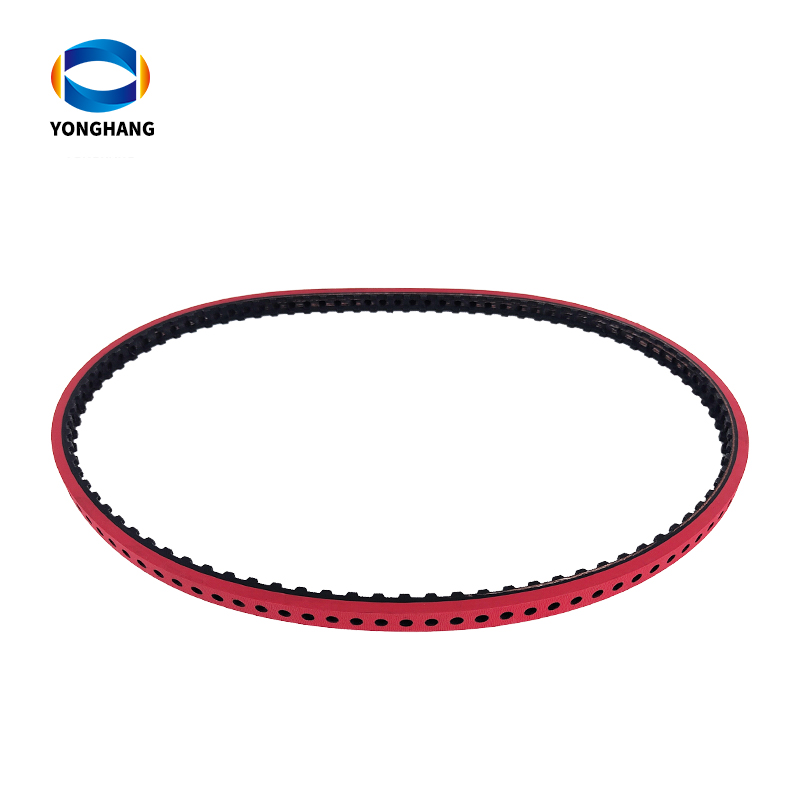

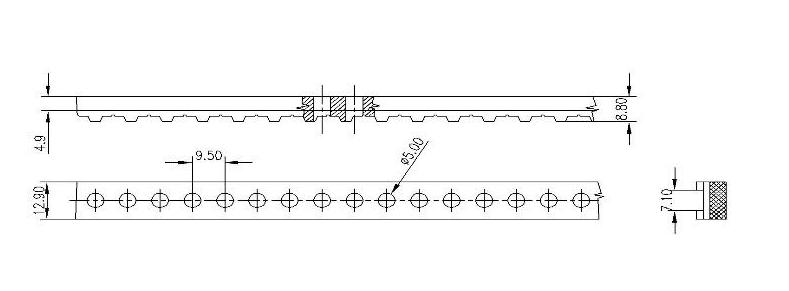

T10.5-934.5-12.5 Vacuum timing belt

T10.5-934.5-12.5 Vacuum timing belt for pulling applications，10.5mm pitch 934.5mm length，This is a special pitch designed specifically for tobacco packaging machines. It is a vacuum conveyor belt.

Part No	T10.5-934.5-12.5 Vacuum timing belt	Length	934.5mm
Width	12.5-12.9mm	Number of Teeth	89
Pitch	10.5mm	Covering Thickness	3-6mm
Tooth Profile	T	Covering Materials	Rubber | PU | Silicone
Body Material	Rubber | PU	Belt Type	Endless
Coating Material	Rubber/Linatex or silicone 40 ShA	Coatings & Coverings	Black, Red, Blue, Yellow ，white | Custom Colors
Tensile Cord	Fiberglass | Kevlar	Operating Temp C	-30 Degrees ~ +90 Degrees C
Tooth Facing	Nylon	OEM	Slots, Grooves, Holes & Tooth Removal

Application

In the tobacco industry, suction tapes are mainly used in the tobacco conveying system of high-speed cigarette making machines. Through adsorption, tobacco is conveyed from the tobacco storage cabinet to the rolling part of the cigarette making machine, achieving continuous and stable transportation of tobacco.

advantage

1. Strong and small elongation: The suction ribbon needs to withstand greater tension and have a small elongation during use to ensure the stability and accuracy of tobacco delivery.
2. Friction and high temperature resistance: Since the suction ribbon frequently contacts tobacco and may be in a high temperature environment, it must have excellent friction and high temperature resistance.
3. Non-toxic and harmless: The suction ribbon is in direct contact with tobacco, so non-toxic and harmless materials must be selected to prevent contamination of tobacco products.
4. Easy to clean: In order to maintain the hygiene of the production environment and prevent cross contamination, the suction ribbon should be easy to clean.
