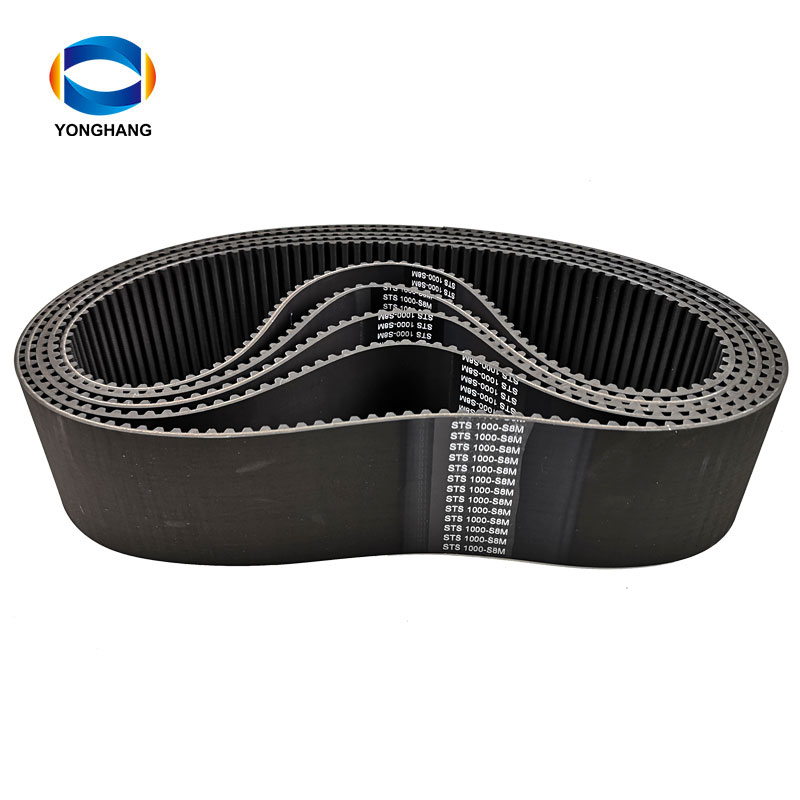

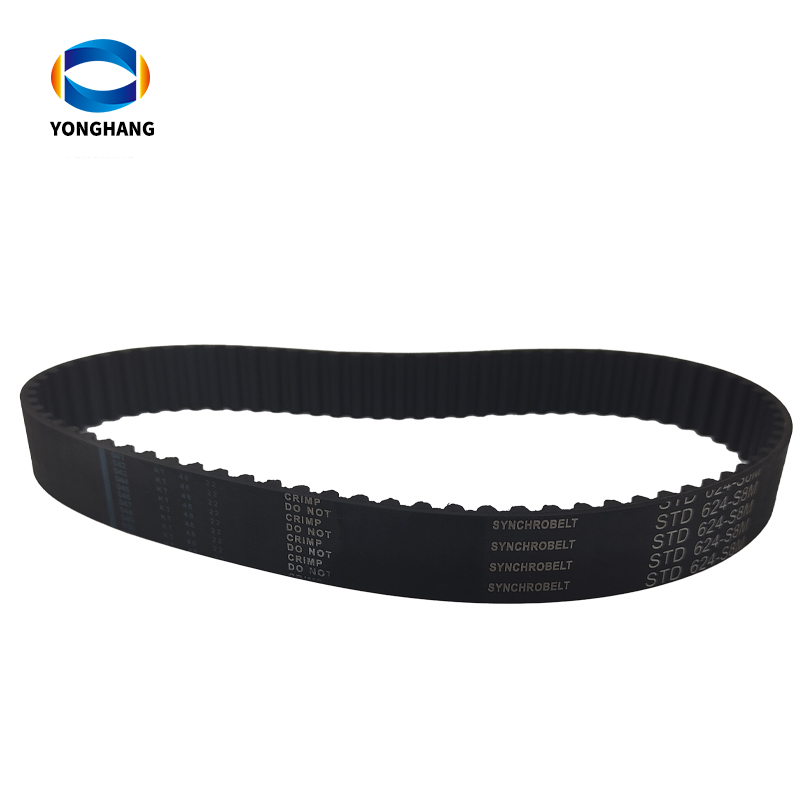

STD8M Rubber Timing Belt
The STD8M Rubber timing belt is standard delivered with Fiberglass cords. The STD8M Rubber toothed belt has a pitch of 8mm , extremely suitable for transport where good positioning is required. We can customize the S8M rubber toothed belt according to your wishes. Product details Timing belt STD8M Colour black Shore hardness (A) 75° Shore A…
The STD8M Rubber timing belt is standard delivered with Fiberglass cords. The STD8M Rubber toothed belt has a pitch of 8mm , extremely suitable for transport where good positioning is required. We can customize the S8M rubber toothed belt according to your wishes.
| Product details Timing belt STD8M | |
| Colour | black |
| Shore hardness (A) | 75° Shore A |
| Cords | steel/ kevlar |
| Width | 5-400mm |
| Length | Open length |
| Seamless (moulded) | |
| Working temperature | -20-+80C |
| Standard cords | steel 0.5 mm |
| Width tollerance | +/- 0.5 mm |
| Height tollerance | +/- 0.2 mm |
| Length tollerance | +/- 0.5 mm |
| Weigth per 100 tooth | 42.90g |
| Minimum diameter pulley | 40mm |
