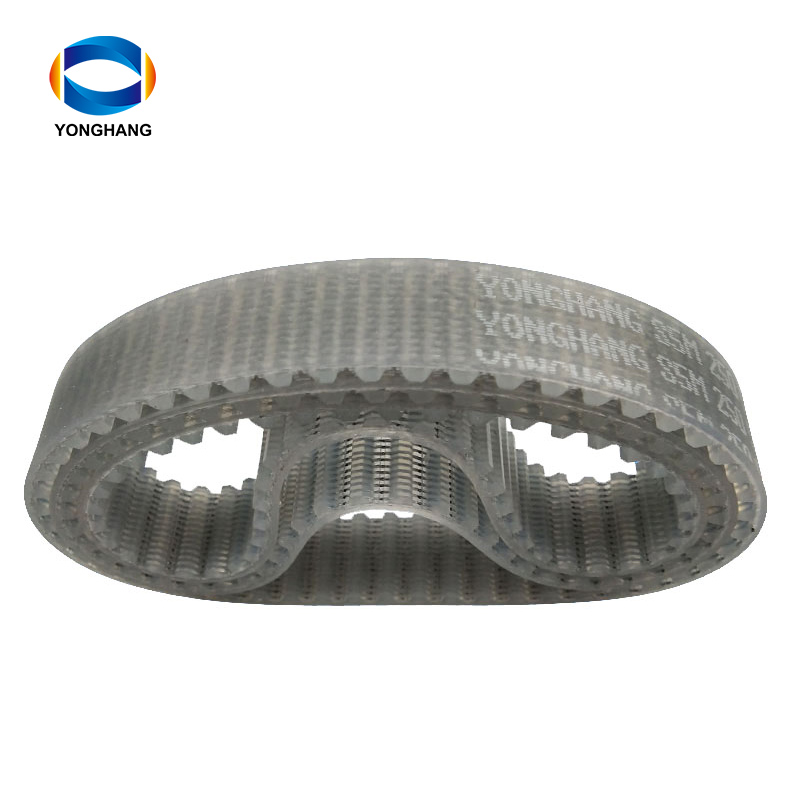

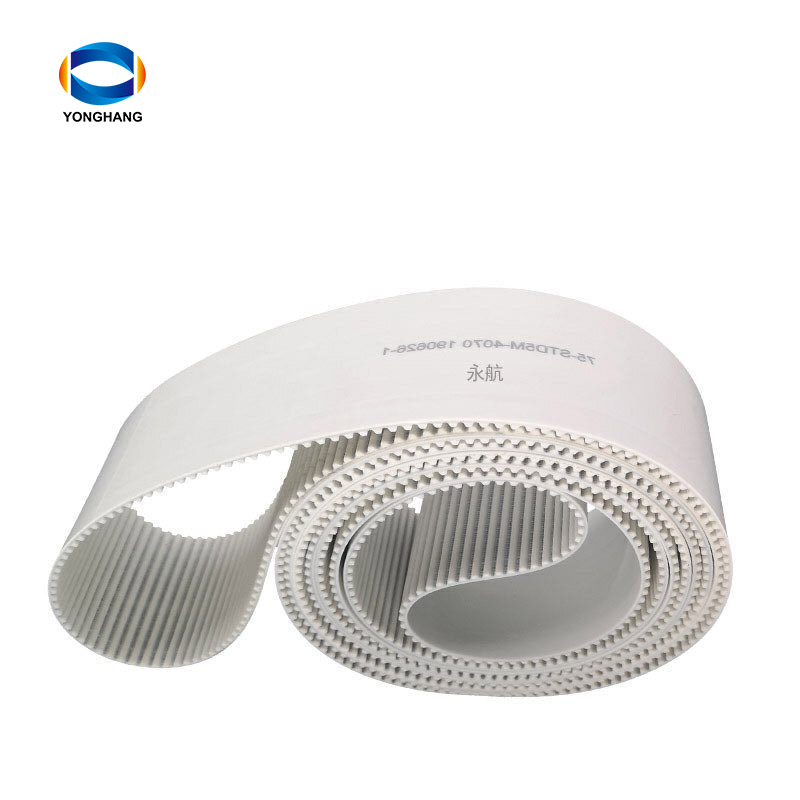

STD5M PU Timing Belt
The STD5M PU timing belt is standard delivered with steel or kevlar cords. The STD5M PU timing belt has a pitch of 5mm , extremely suitable for transport where good positioning is required. We can customize the STD5M PU timing belt according to your wishes. STD5M PU Timing Belt Description Model STD5M Material Polyurethane Pitch…
The STD5M PU timing belt is standard delivered with steel or kevlar cords. The STD5M PU timing belt has a pitch of 5mm , extremely suitable for transport where good positioning is required. We can customize the STD5M PU timing belt according to your wishes.
- High Accuracy
- Long Life Service
- Low Noise Operation
- Efficient Performance

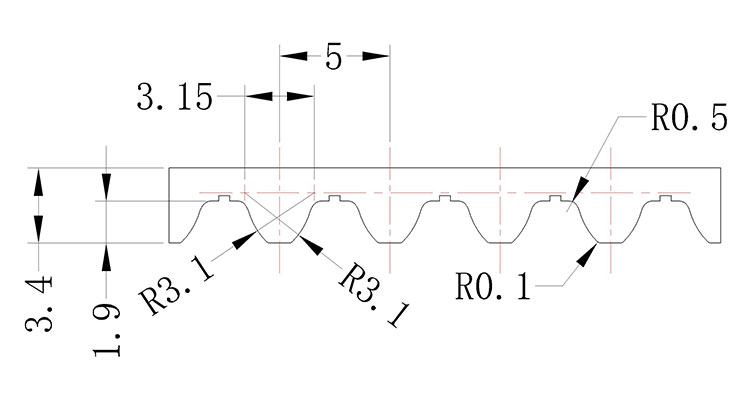

STD5M PU Timing Belt Description
| Model | STD5M |
| Material | Polyurethane |
| Pitch | 5mm |
| Color | White/Black |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Minimum Pulley Diameter | 22.28mm |
