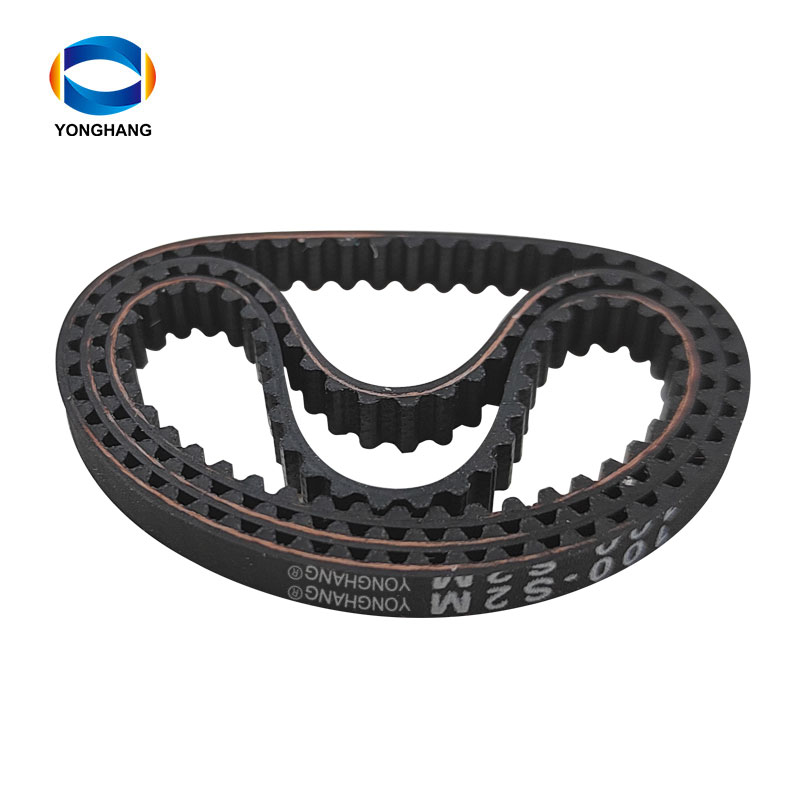

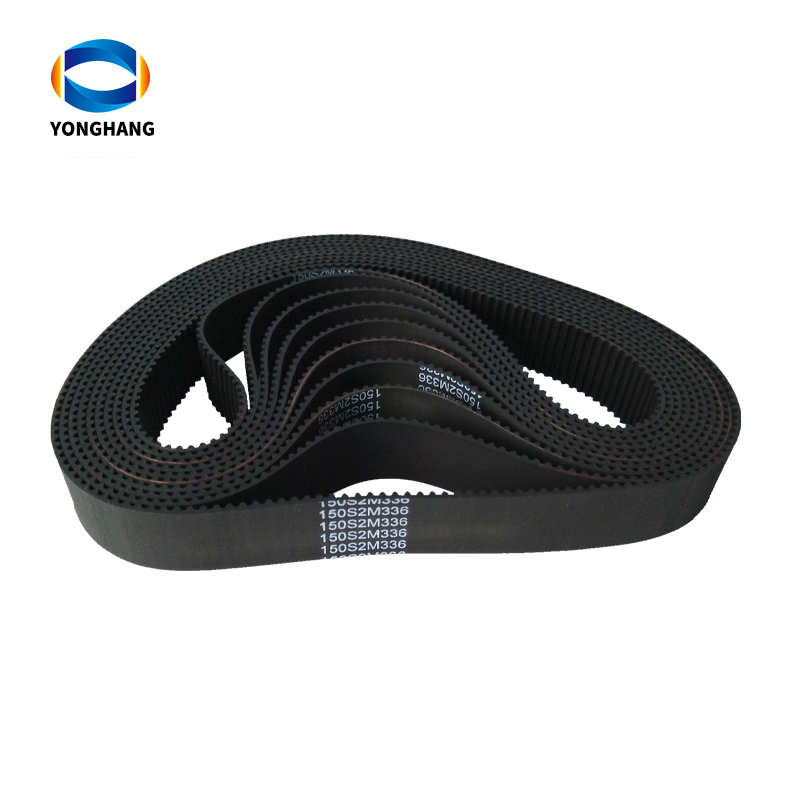

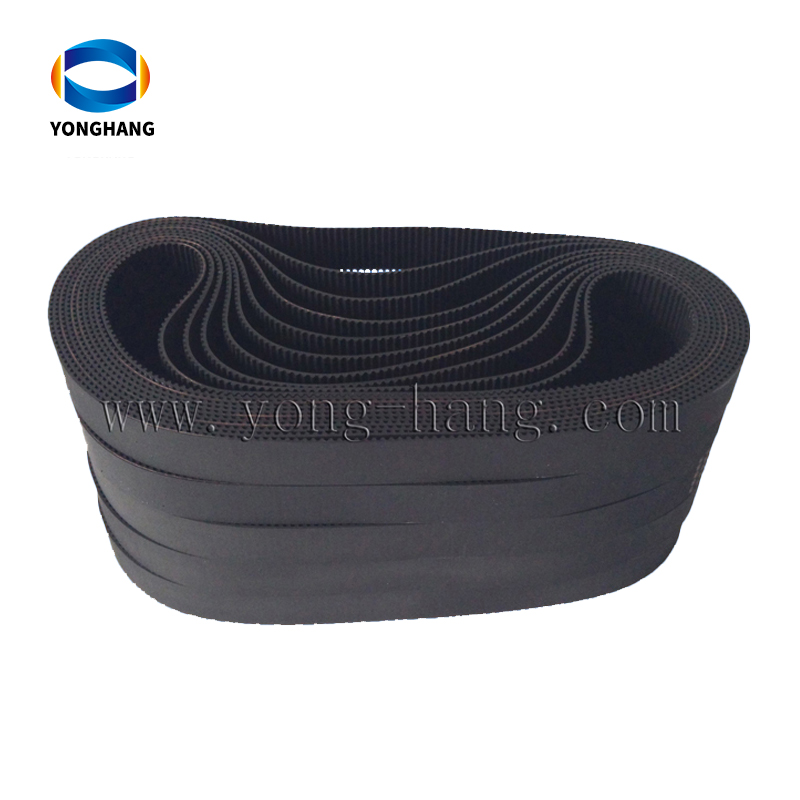

STD2M Rubber Timing Belts
The STD2M Rubber timing belt is standard delivered with Fiberglass cords. The STD2M Rubber toothed belt has a pitch of 2mm , extremely suitable for transport where good positioning is required. We can customize the STD2M rubber toothed belt according to your wishes. Product details Timing belt STD2M Colour black Shore hardness (A) 75° Shore A…
The STD2M Rubber timing belt is standard delivered with Fiberglass cords. The STD2M Rubber toothed belt has a pitch of 2mm , extremely suitable for transport where good positioning is required. We can customize the STD2M rubber toothed belt according to your wishes.
| Product details Timing belt STD2M | |
| Colour | black |
| Shore hardness (A) | 75° Shore A |
| Cords | Fiberglass cords |
| Width | 5-400mm |
| Length | Open length |
| Seamless (moulded) | |
| Working temperature | -20-+80C |
| Standard cords | 0.3 mm |
| Width tollerance | +/- 0.5 mm |
| Height tollerance | +/- 0.2 mm |
| Length tollerance | +/- 0.3 mm |
| Weigth per 100 tooth | 8.10g |
| Minimum diameter pulley | 17mm |
