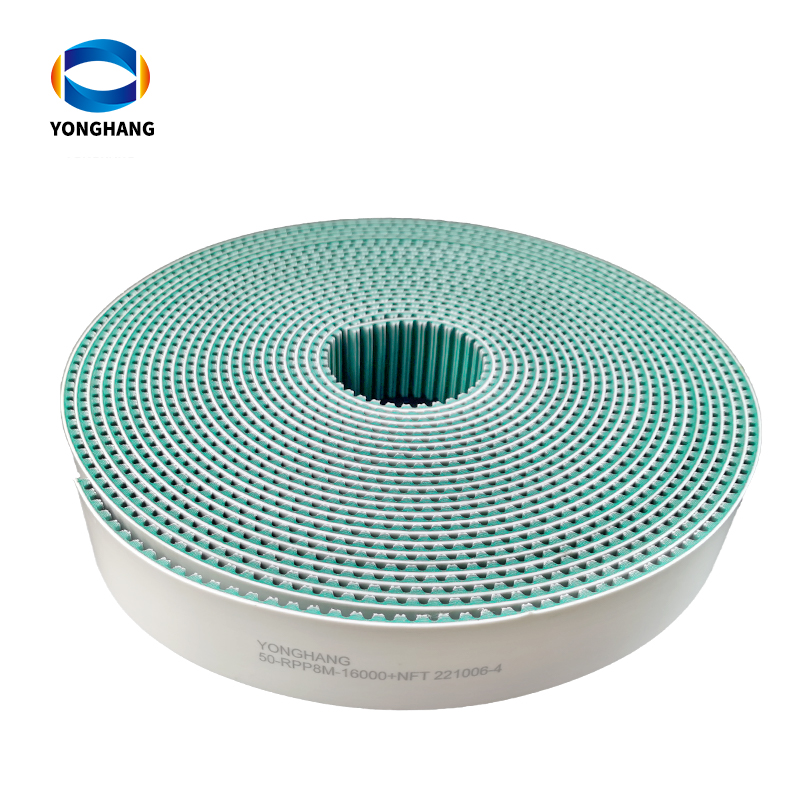

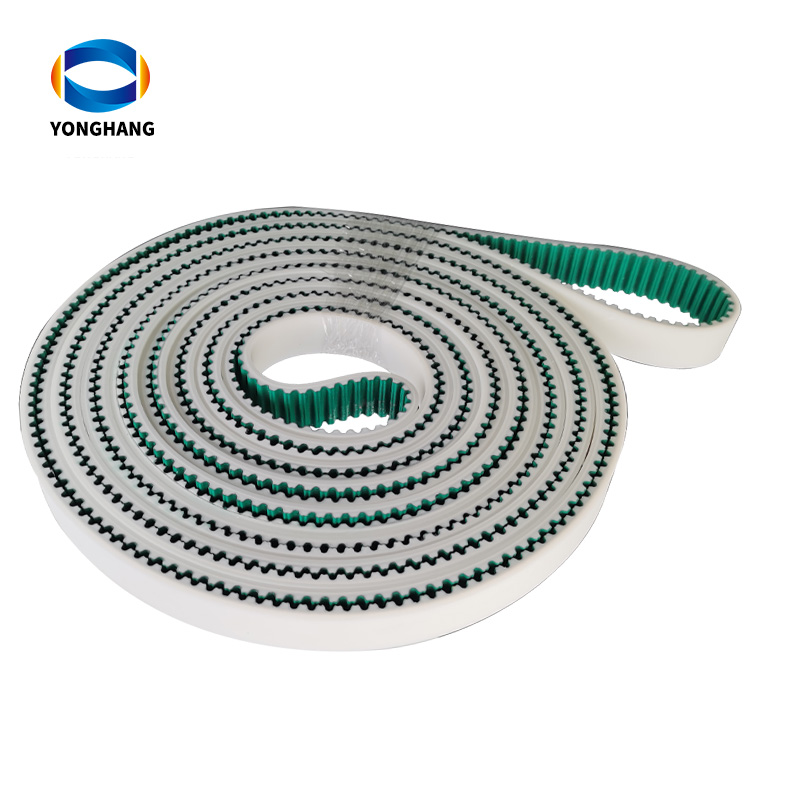

RPP8M PU Timing Belt
PP8M PU timing belt has a pitch of 8mm, famous for its special tooth shape design which improves the belt flexibility. It is available in wire and Kevlar core, NFT and NFB. RPP8M pU Timing Belt Description Model RPP8M Material Polyurethane Pitch 8mm Color White Core Steel/Kevlar Hardness 90-92 Shore A Length/Width Tolerance ±0.5mm Thickness Tolerance…
PP8M PU timing belt has a pitch of 8mm, famous for its special tooth shape design which improves the belt flexibility. It is available in wire and Kevlar core, NFT and NFB.

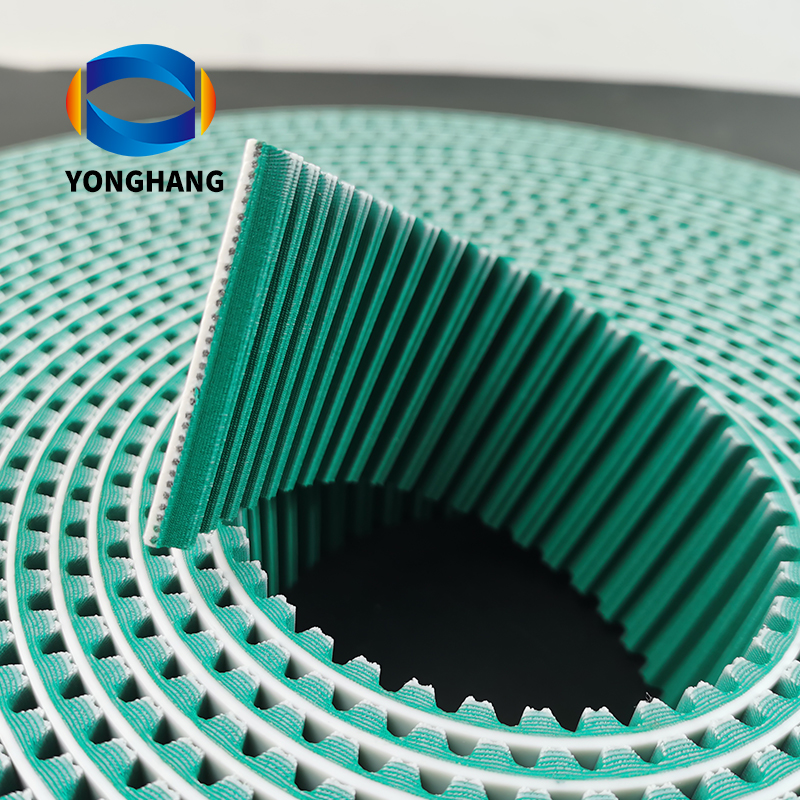

- Reduced Noise: RPP8M is usually in teeth green cloth(NFT), which reduce the meshing between the belt and the pulley, achieving the effect of reduced noise.
- Anti-fatigue
- Good Turing Effect: The belt tooth shape like rabbit teeth, this design improves the belt flexibility and turning effect by spreading the force to teeth two peaks.
RPP8M pU Timing Belt Description
| Model | RPP8M |
| Material | Polyurethane |
| Pitch | 8mm |
| Color | White |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Minimum Pulley Diameter | 50mm |
