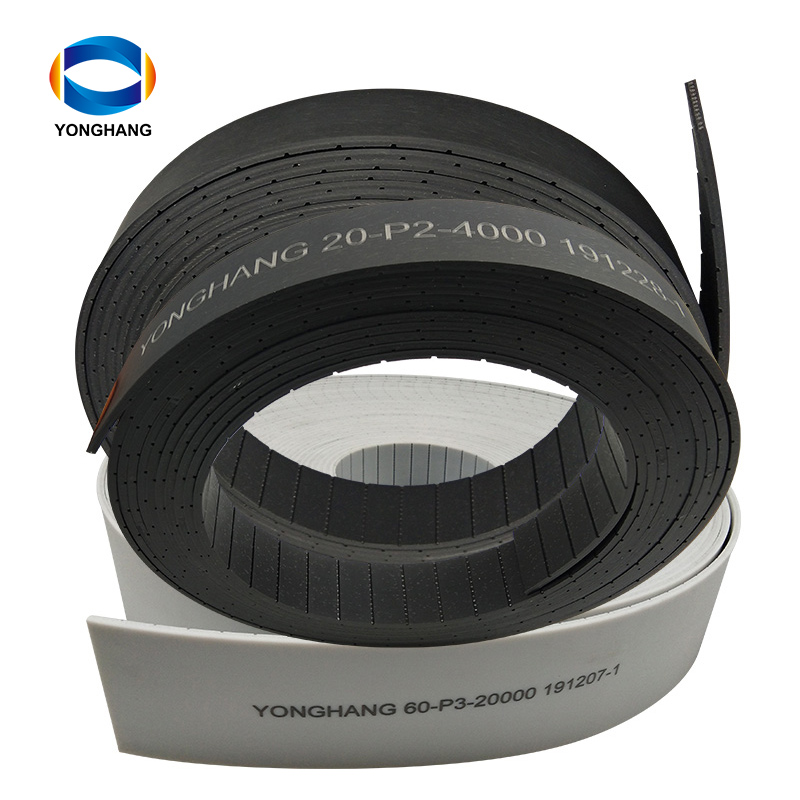

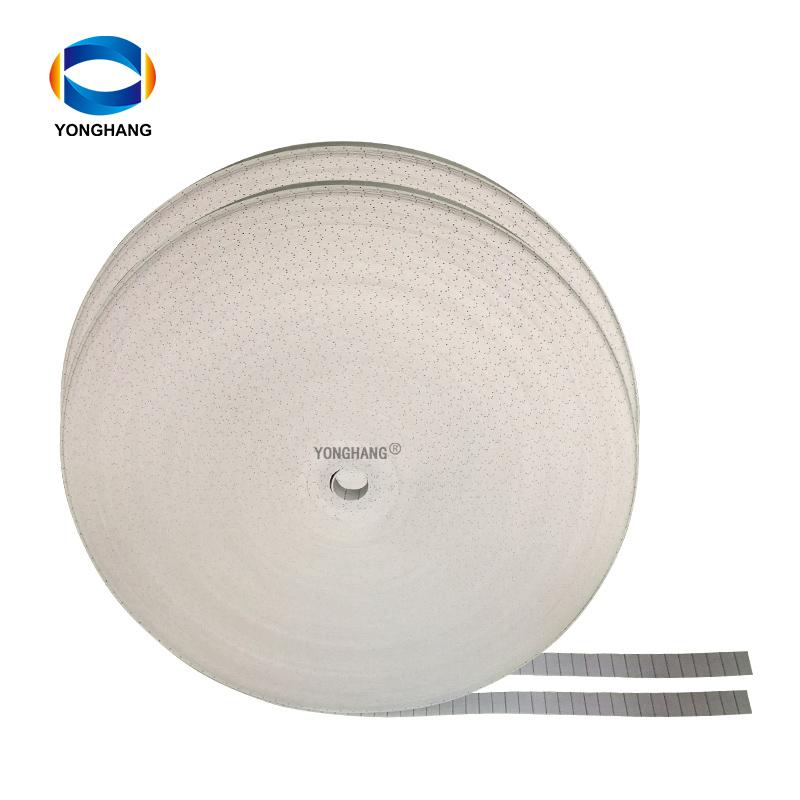

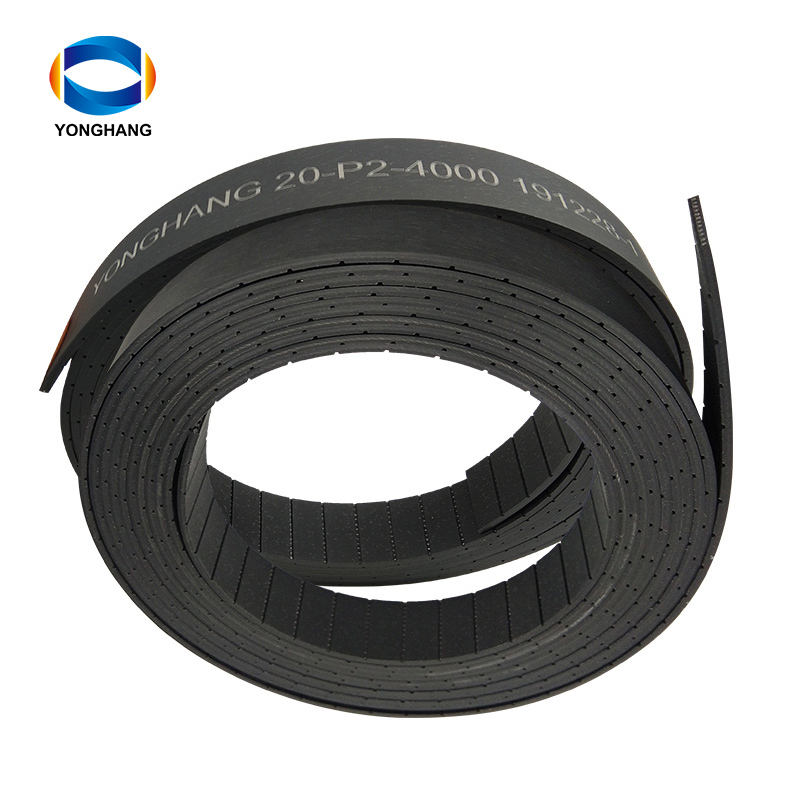

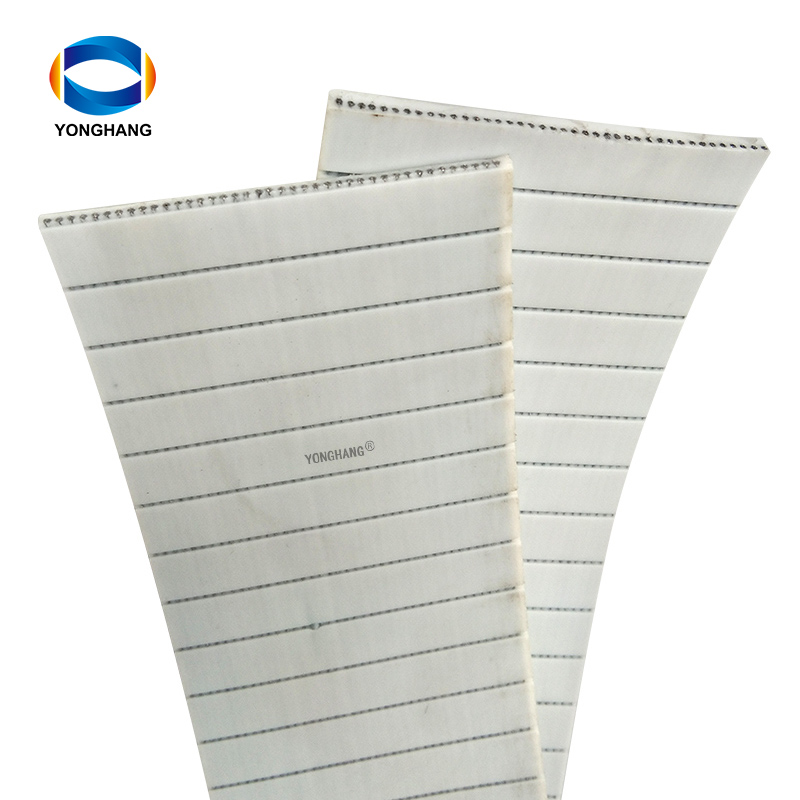

Polyurethane flat belt

Polyurethane flat belt made of polyurethane and tensile wire core steel or Kevlar, is a high-precision, high pull, low elongation of flat beltYonghang is a factory that has been producing polyurethane for 20 years and can manufacture various polyurethane products, including synchronous belts and flat belts. This type of polyurethane flat belt is usually used in elevators. Its sizes are P1, P2, P3, P4, P5, and P6, and the tension and thickness are different.

P1 P2 P3 P4 PU open flat belts are most commonly offered in widths of 10mm, 12mm, 15mm, 16mm, 20mm, 25mm, 30mm, 32mm, 40mm, 50mm, 60mm, 75mm, 100mm, and 120mm, while custom sizes (lengths, widths and thicknesses) are available upon request.

The Yonghangbelt is a PU flat belt, which is manufactured in open lengths and can be continuously welded. All tension members are arranged parallel to the edges of the belt, however in the join area, only half of the tension members assume part of the load.

Its applications include lifting tables, lift systems, car washes or similar .It is either supplied with steel or stainless steel tension member.Special cords include aramid (kevlar), stainless steel and carbon fiber. The belt backing and running side are both made of polyurethane.

Brand	Yonghang
ypes	P1, P2, P3, P4, P5,P6
Material	Polyurethane
Width	10-100mm
Standard length	rolls of 100m
Lengths > 100 m	on request
Color	White/Black
Core	Steel/Kevlar
Hardness	90-92 Shore A
Length/Width Tolerance	±0.3mm
Thickness Tolerance	±0.1mm
Minimum counter bending	30mm
Minimum Pulley Diameter	15mm

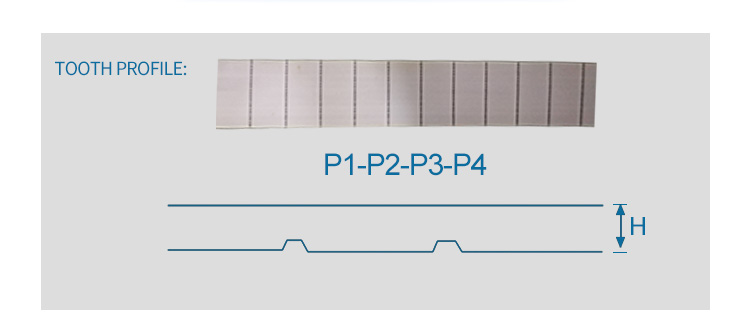

Type	H（mm）
P1	1
P2	2
P3	3
P4	4
P5	5
P6	6
