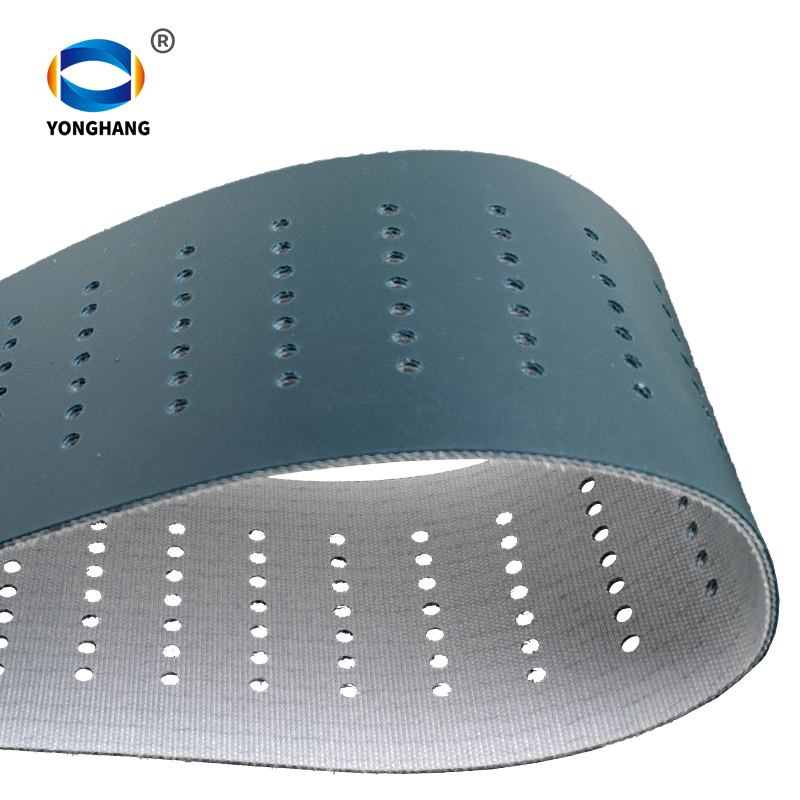

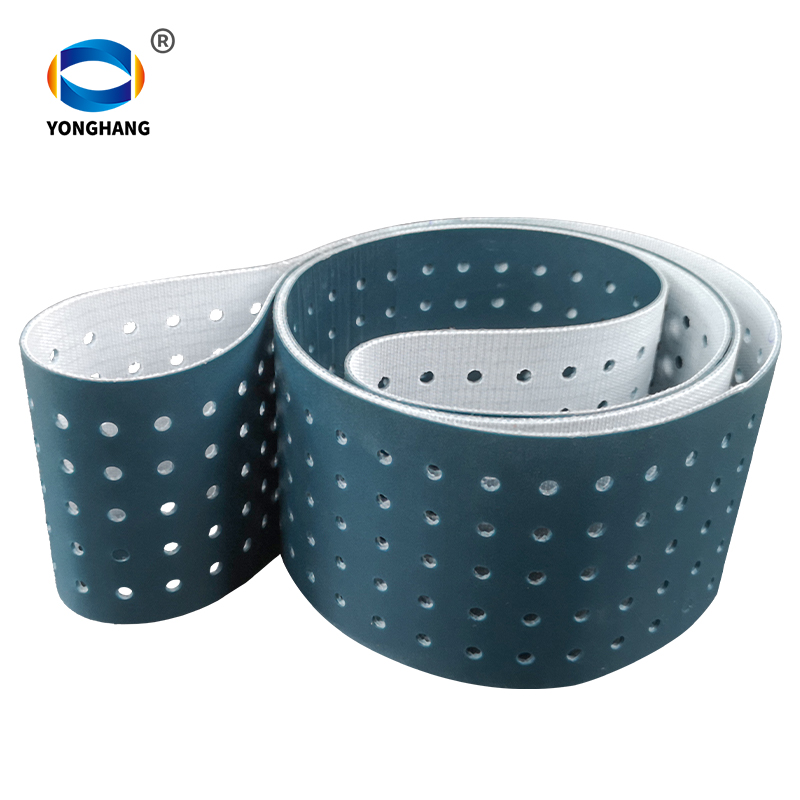

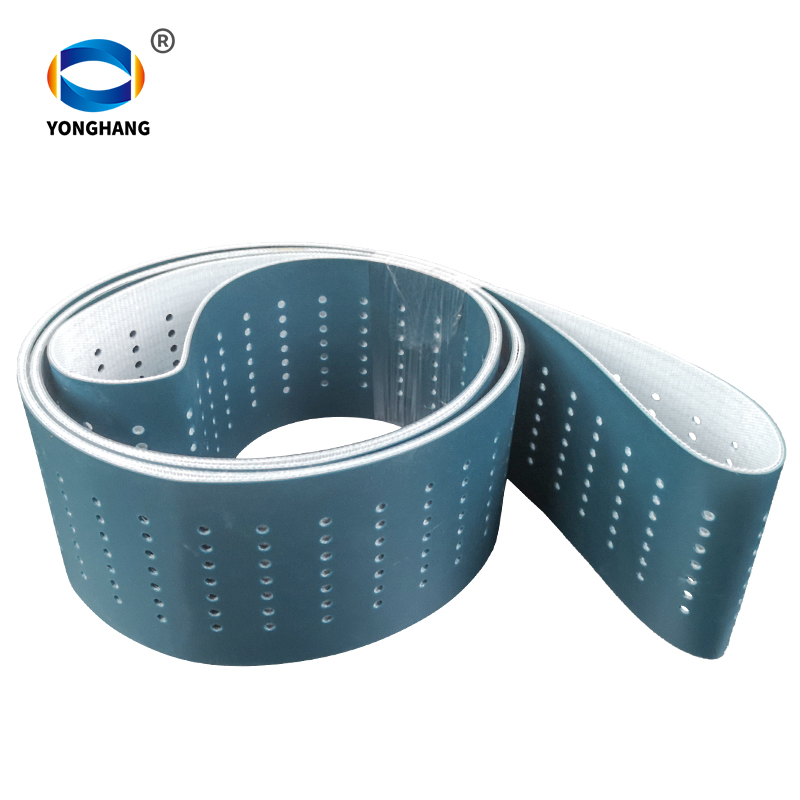

Perforated PU Conveyor Belt

The Perforated PU Conveyor Belt is a high-performance conveying solution specially designed for applications requiring air permeability, vacuum suction, and precise material control.
Manufactured by Yonghang China, this belt features evenly distributed air holes across its surface, enabling controlled airflow—ideal for vacuum conveying systems, cooling, drying, dewatering, and packaging production lines.

our laser-beam drilling machineand and NCN hole punching machine, we have the possibility to supply perforated belts with multiple configurations for different applications.Including oval holes, circular holes, and various other shapes and densities of holes

Technical specifications of perforated belts:

Belt width limitations:
Maximum width: 3000mm.
Minimum width: 20mm.
Minimum endless belt length: 500mm.
Maximum belt width that can be wound up onto a carton tube (long belts): 600mm.
Belts wider than 600mm will be folded manually on the floor.
Maximum belt thickness: 8mm.

Hole diameters*:
Ø2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16mm.
Ø18, 20, 22, 24, 26, 28, 30mm.

*For belts with thickness > 6mm and holes of > Ø15mm, please consult our workshop.

Minimum distance between holes: 1mm (<1mm consultar taller).
