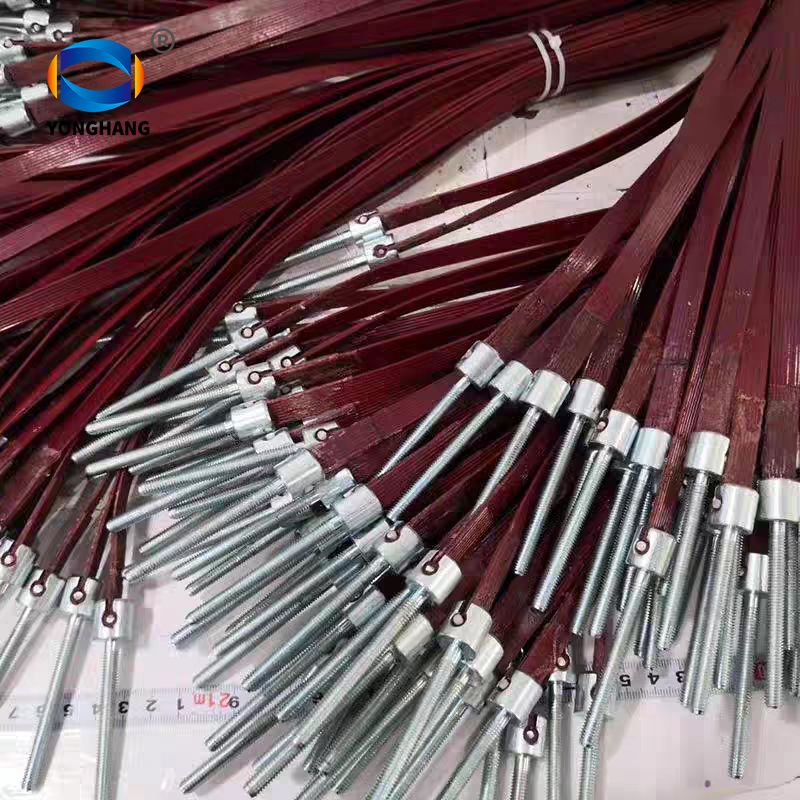

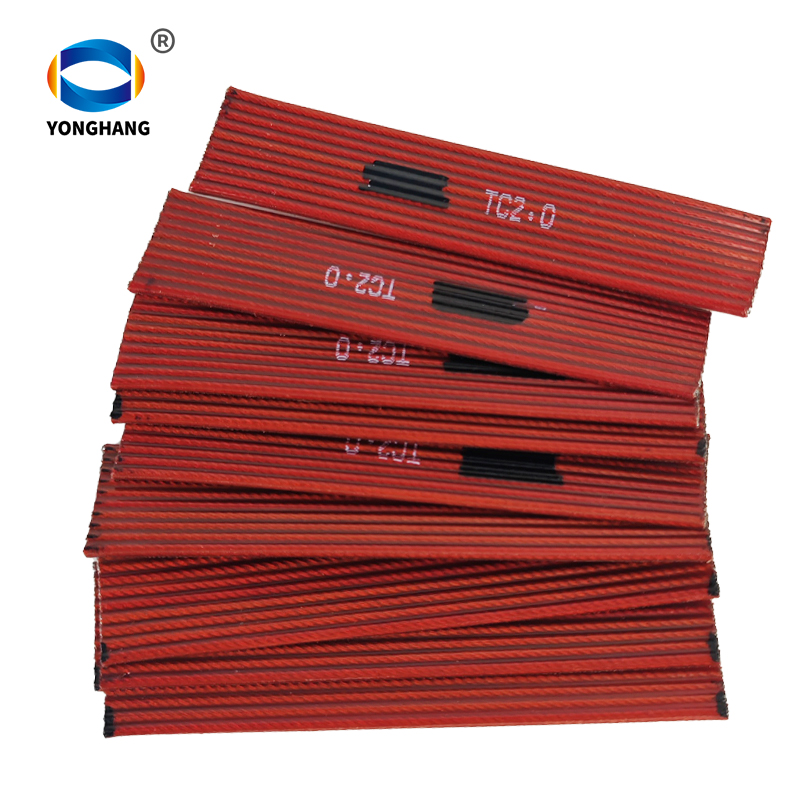

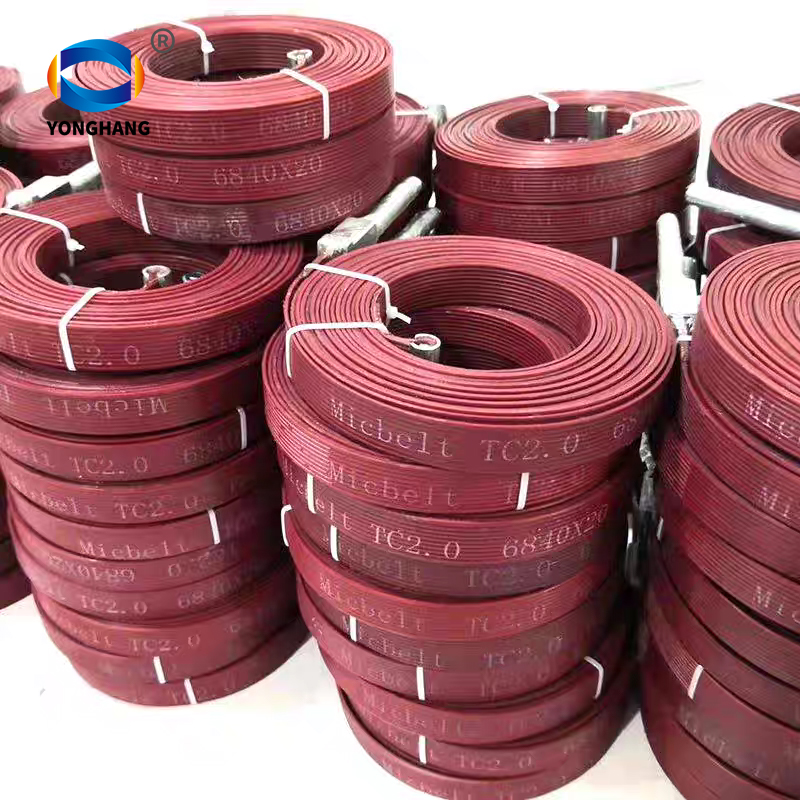

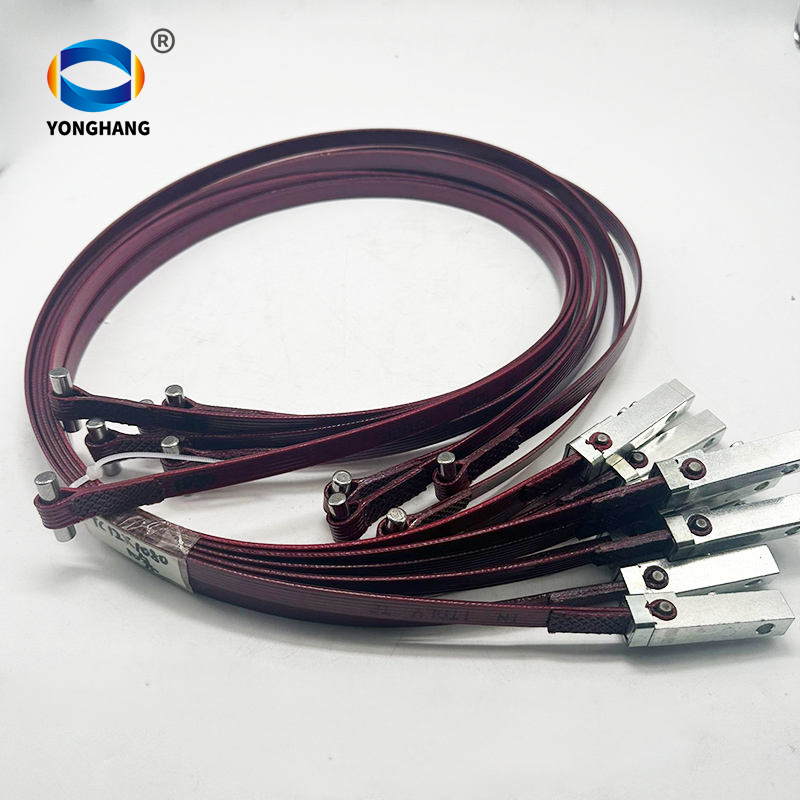

Nylon Steel lifting tape, For Industrial Belt
Nylon Steel lifting tape has the advantages of high strength, anti flexibility, no elongation or deformation, durability, and is not affected by environmental factors. Specially suitable for mechanical use with high loads, such as fine yarn machines, twisting machines, and roving machines.Can replace various metal chains parameter Width 32 mm Color red Material Nylon Usage/Application…
Nylon Steel lifting tape has the advantages of high strength, anti flexibility, no elongation or deformation, durability, and is not affected by environmental factors. Specially suitable for mechanical use with high loads, such as fine yarn machines, twisting machines, and roving machines.Can replace various metal chains
parameter
| Width | 32 mm |
| Color | red |
| Material | Nylon |
| Usage/Application | Industrial |
| Thickness | Min-1mm,Max-2mm |
| Brand | Yonghang |
| Availability | In Stock |
Features:
- High tensile strength
- Non-deforming
- High flexibility
- No need for adjustment, maintenance, or lubrication
- Can replace any traction chain
- Anti oil and acid resistant
- durable and long-lasting
| Model | Thickness | 10mm width | Pulley/Small Diameter | Width | |
| load- bearing capacity | Breaking strength | ||||
| TA | 1 mm | 70 kg | 200 kg | 30 mm | 5~60mm |
| TB | 1.2 mm | 150 kg | 450 kg | 40 mm | 8~60mm |
| TB (for wet-spinning fine spinning frames) | 1.2 mm | 130kg | 400 kg | 40 mm | 8~60mm |
| TC | 2 mm | 350 kg | 1100 kg | 85mm | 5~50mm |
Thickness 1.0 mm load capacity: 70 kg/10 mm width Breaking strength: 200 kg/10 mm width Minimum pulley diameter: 30 mm Minimum width: 5 mm Maximum width: 60 mm
Thickness 1.2 mm load capacity: 150kg/10mm width, breaking strength 450kg/10mm width, minimum pulley diameter 40mm. Minimum width 8mm, maximum width 60mm.
Thickness 1.2 INOX load capacity: 130kg/10mm width, breaking strength 400kg/10mm width, minimum pulley diameter 40mm. Minimum width 8mm, maximum width 60mm.
Thickness 2.0 mm load capacity: 350kg/10mm width, breaking strength 1100kg/10mm width, minimum pulley diameter 85mm. Minimum width 5mm, maximum width 50mm.
