Industrial stacker timing belts&pu timing belt with Profiles/Flights/cleats
, Industrial Stacker Timing Belts and PU Timing Belts with Profiles (Cleats) are the backbone of precise vertical and horizontal positioning. These belts transform a standard power transmission component into a sophisticated “pick-and-place” or “indexing” tool. Our PU Timing Belts with Profiles are specifically engineered for Industrial Stacker Systems, sorting lines, and automated storage and…
, Industrial Stacker Timing Belts and PU Timing Belts with Profiles (Cleats) are the backbone of precise vertical and horizontal positioning. These belts transform a standard power transmission component into a sophisticated “pick-and-place” or “indexing” tool.

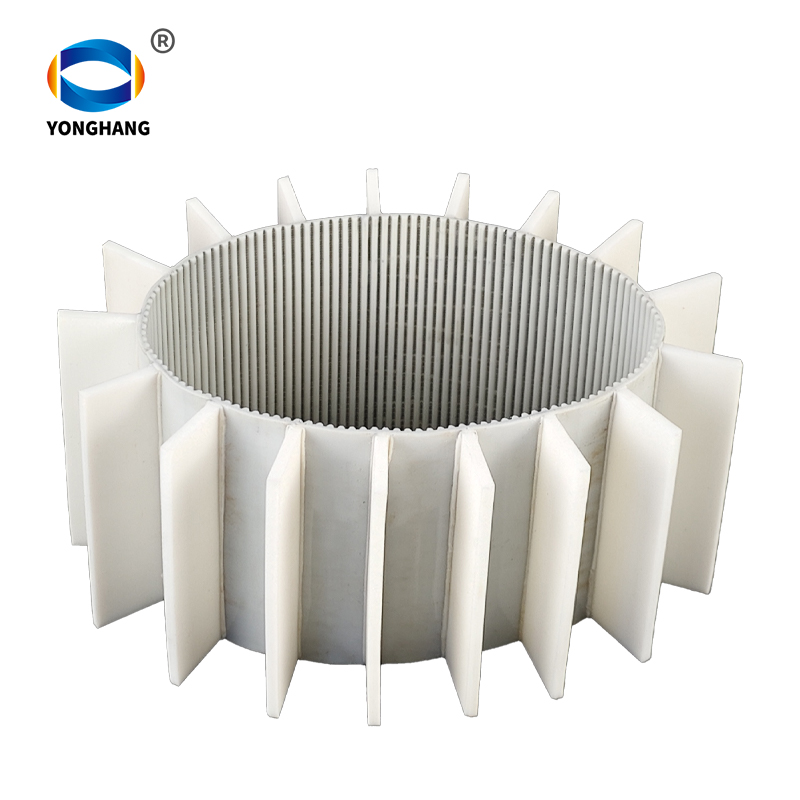

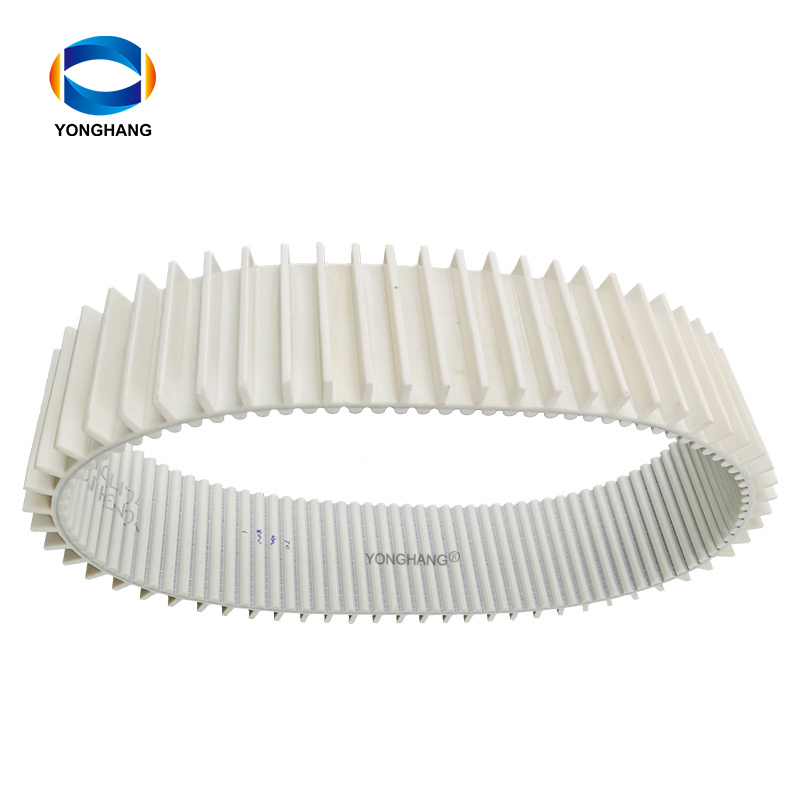

Our PU Timing Belts with Profiles are specifically engineered for Industrial Stacker Systems, sorting lines, and automated storage and retrieval systems (AS/RS). By combining the non-slip, synchronized drive of a timing belt with customized, high-strength welded profiles (cleats), these belts provide the mechanical “fingers” needed to grip, push, and stack products with millimeter precision.
Technical Specifications Table
| Pitch Types | T5, T10, T20, AT5, AT10, AT20, HTD 8M, 14M |
| Colour | White / Transparent |
| Profile Material | Matching TPU (Hardness 70° – 95° Shore A) |
| Base Belt Material | 92° Shore A White/Blue/Transparent TPU |
| Working temperature | -20°C to +80°C |
| Welding Method | High-Frequency / Thermal / Mechanical (False Tooth) |
| Minimum pulley diameter | It depends on the Pitch Types and the height and thickness of the Profile. |
Technical Features & Advantages
Permanent Profile Bonding: We utilize High-Frequency (HF) Welding or Thermal Fusion to bond profiles to the belt back. This ensures the cleats become an integral part of the belt, resisting detachment even under heavy shear forces or high-speed indexing.
High-Tensile Reinforcement: Available with Steel or Aramid (Kevlar) cords, ensuring zero-stretch performance and high load-bearing capacity during vertical stacking or heavy lifting.
Customizable Geometry: * Shapes: T-cleats, I-cleats, U-shaped grippers, and offset profiles.
Precision: Automated CNC welding ensures a pitch tolerance of±0.5mm between profiles.
Material Excellence: Made from high-grade Thermoplastic Polyurethane (TPU), offering superior resistance to oils, abrasion, and chemicals, with options for Antistatic (ESD) or Food-Grade (FDA) compliance.
Low Maintenance: Unlike chains, our PU timing belts require no lubrication, operate quietly, and significantly reduce system downtime.
Applications
- Industrial Stackers: Vertical lifting and stacking of boxes, crates, or panels.
- Packaging Lines: Gapping, collating, and feeding products into cartons.
- Automated Warehousing (AS/RS): Precise tray handling and shuttle system positioning.
- Wood & Glass Processing: Using non-marking profiles to push or separate delicate sheets.
