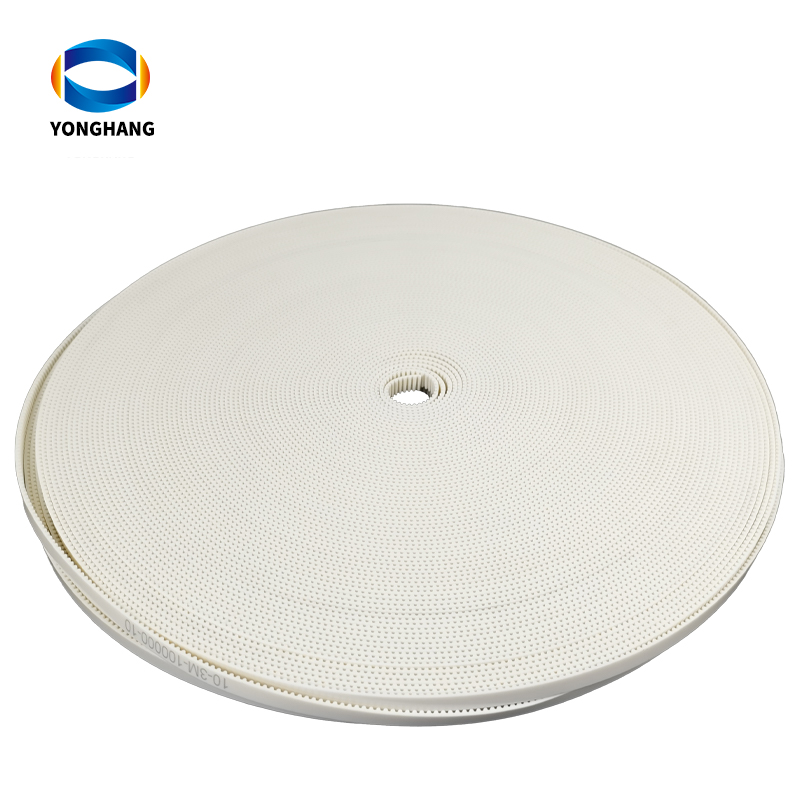

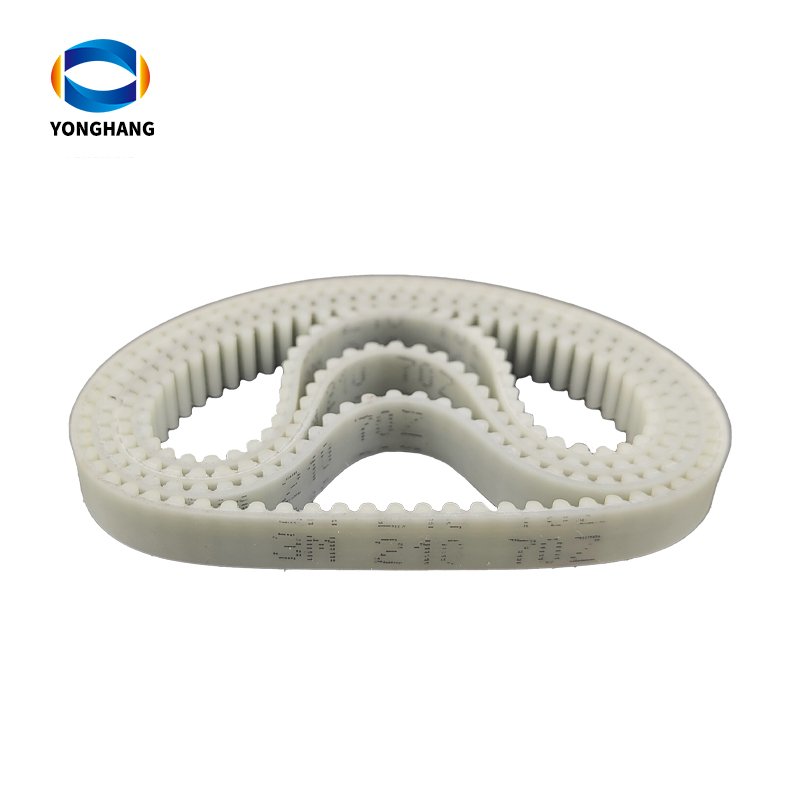

HTD3M PU Timing Belt
HTD3M PU timing belt belongs to standard semi-circular tooth structure with steel core or Kevlar reinforced core. It is widely used in low and medium power, high precision positioning transmission field. HTD3M PU Timing Belt Description Model HTD3M Material Polyurethane Pitch 3mm Color White/Black Core Steel/Kevlar Hardness 90-92 Shore A Length/Width Tolerance ±0.5mm Thickness Tolerance…
HTD3M PU timing belt belongs to standard semi-circular tooth structure with steel core or Kevlar reinforced core. It is widely used in low and medium power, high precision positioning transmission field.
- Compact Structure: 3 mm pitch, suitable for small mechanical equipment with limited space.
- Precise Positioning: The tooth shape is smooth and the force is uniform, which is ideal for the situations with high positioning accuracy requirements.
- International Quality Compatibility: In line with ISO 13050 standard, ensure the precision and transmission stability.

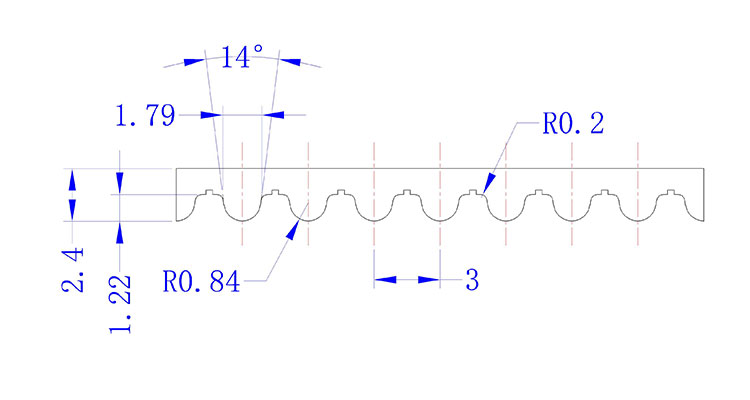

HTD3M PU Timing Belt Description
| Model | HTD3M |
| Material | Polyurethane |
| Pitch | 3mm |
| Color | White/Black |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Minimum Pulley Diameter | 20mm |
