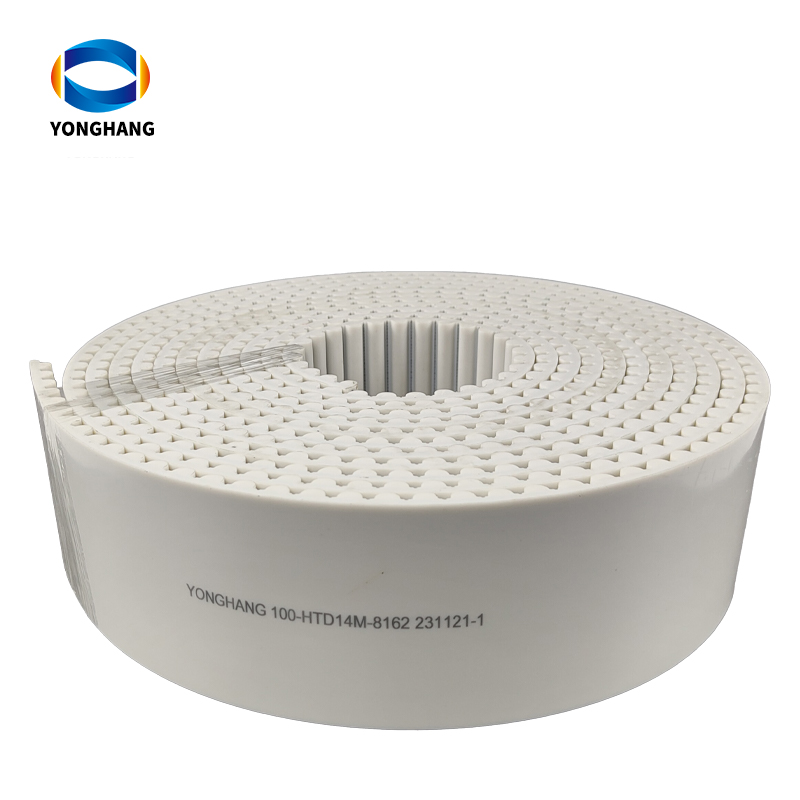

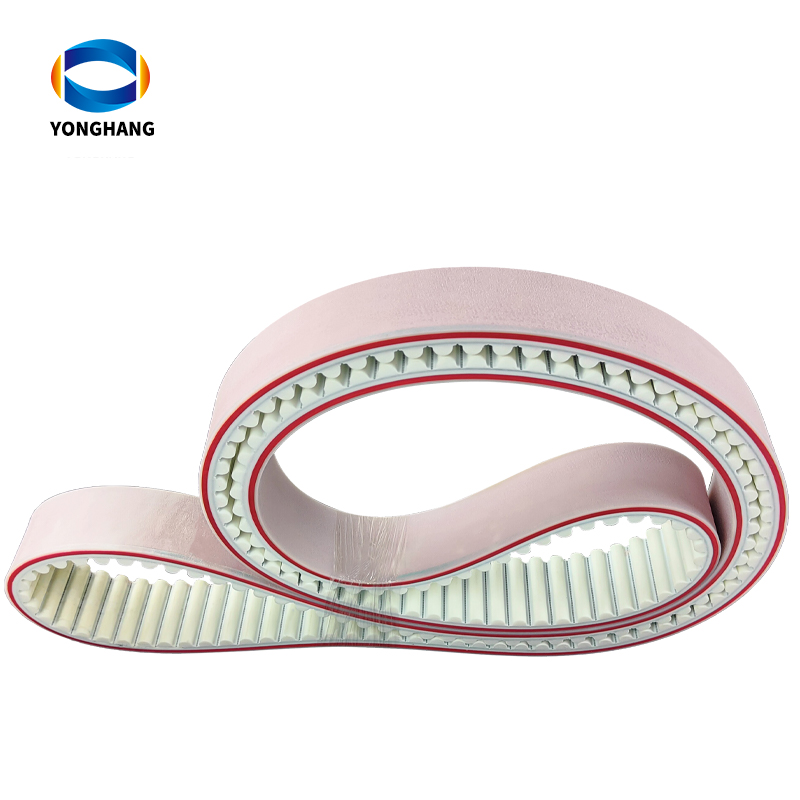

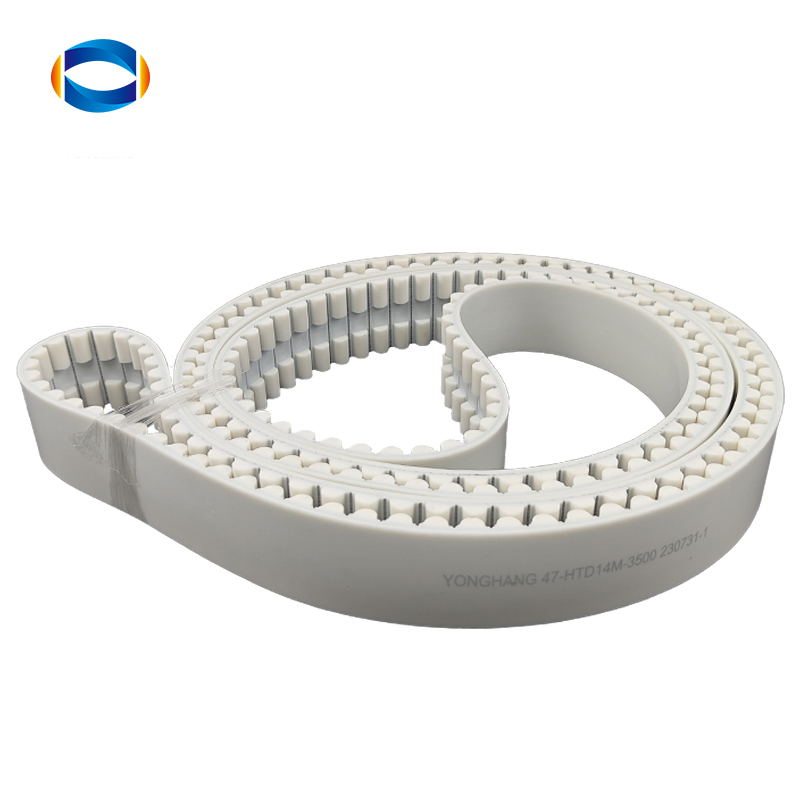

HTD14M PU Timing Belt
HTD14M PU timing belt has semi-circular tooth (HTD) structure with 14mm pitch, which is widely used in industrial automation and precision equipment. HTD14M pU Timing Belt Description Model HTD14M Material Polyurethane Pitch 14mm Color White/Black Core Steel/Kevlar Hardness 90-92 Shore A Length/Width Tolerance ±0.5mm Thickness Tolerance ±0.3mm Minimum Pulley Diameter 108.7mm
HTD14M PU timing belt has semi-circular tooth (HTD) structure with 14mm pitch, which is widely used in industrial automation and precision equipment.
- High Strength Transmission: The inner tension material is steel wire or Kevlar fiber to ensure the stable transmission of power under high load.
- Flexible Customization: The belt can be customized according to length and width, support open-ended, closed ring loop and molded seamless.
- Easy to Maintain: Generally no need lubrication, suitable for low maintenance or maintenance-free scenarios.
HTD14M pU Timing Belt Description
| Model | HTD14M |
| Material | Polyurethane |
| Pitch | 14mm |
| Color | White/Black |
| Core | Steel/Kevlar |
| Hardness | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm |
| Thickness Tolerance | ±0.3mm |
| Minimum Pulley Diameter | 108.7mm |
