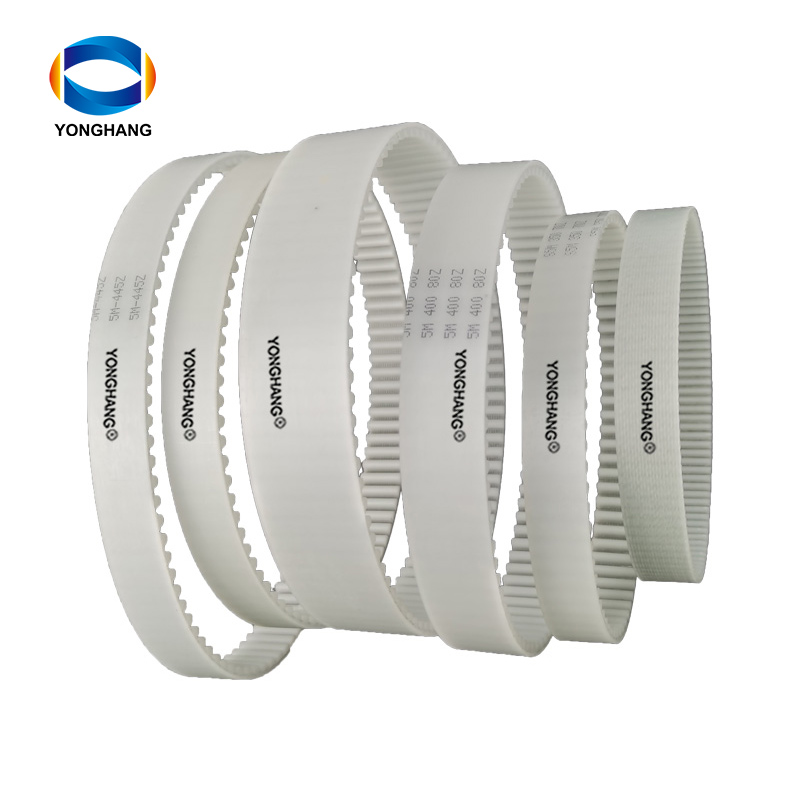

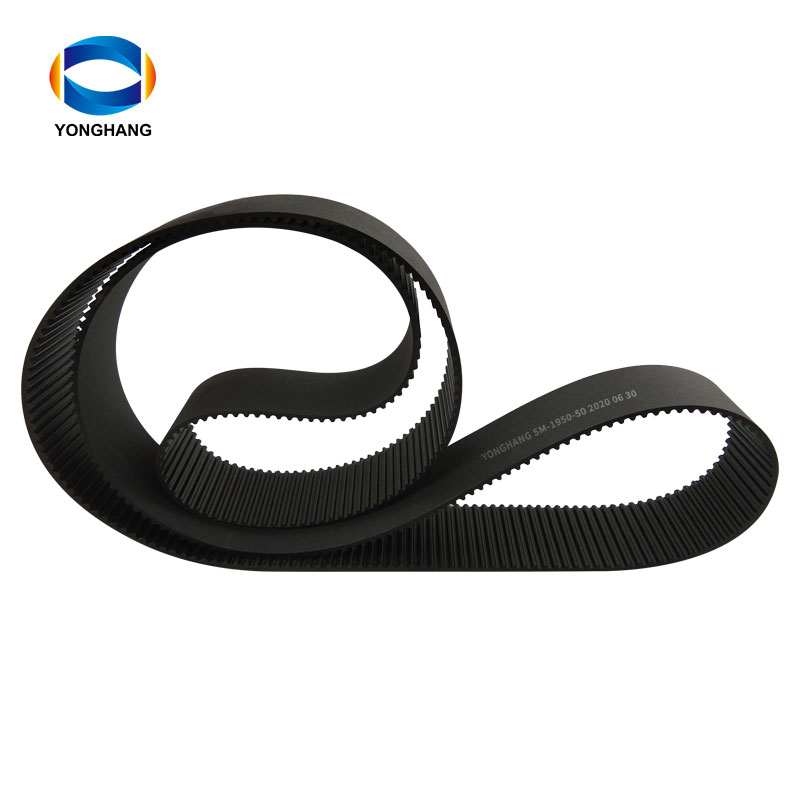

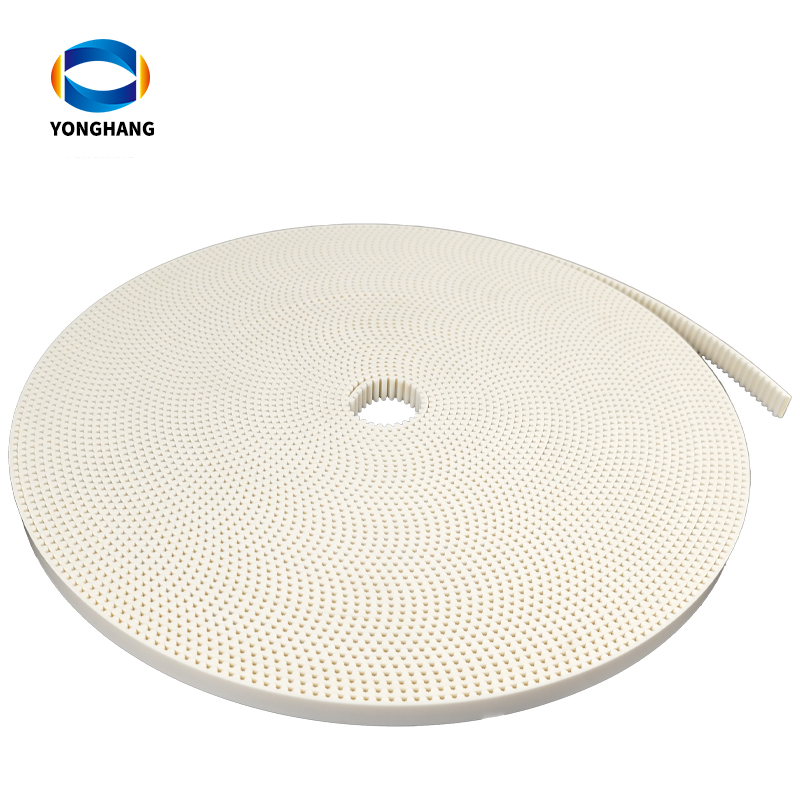

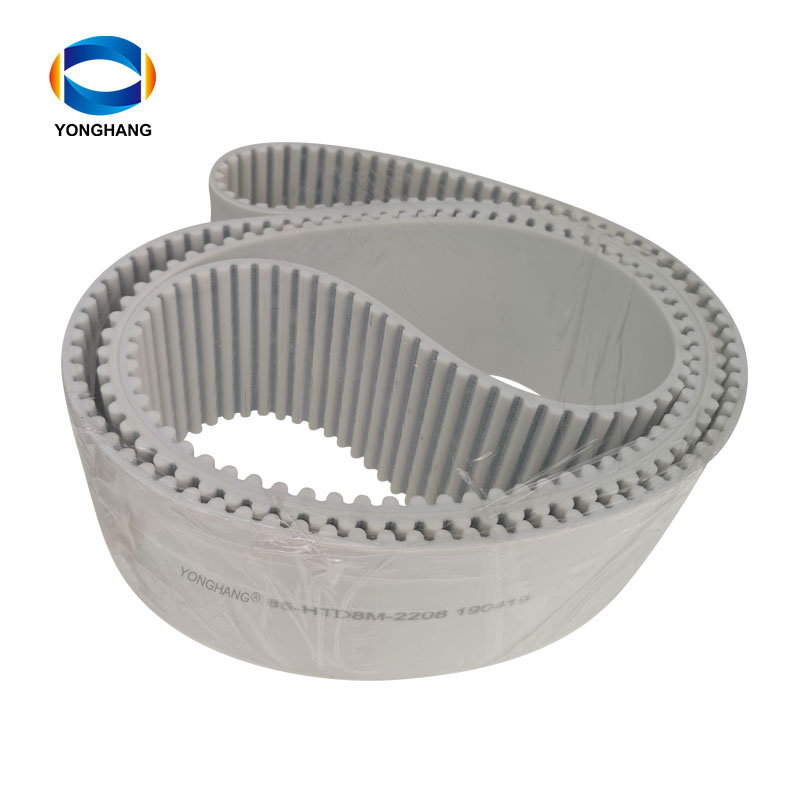

HTD Timing Belt – HTD3M、HTD5M、HTD8M、HTD14M
HTD timing belt is designed for high torque transmission and commonly used in industrial automation and mechanical power transmission. HTD Timing Belt Description HTD stands for High Torque Drive. HTD belt is characterized by large tooth pitch, high strength, strong load capacity, suitable for high torque transmission occasions. Circle-arc tooth shape design of HTD timing…
HTD timing belt is designed for high torque transmission and commonly used in industrial automation and mechanical power transmission.
- Excellent Load Capacity
- High Strength
- Superior Precision
- Low Noise & Vibration
HTD Timing Belt Description
HTD stands for High Torque Drive. HTD belt is characterized by large tooth pitch, high strength, strong load capacity, suitable for high torque transmission occasions. Circle-arc tooth shape design of HTD timing belt, which helps to distribute load evenly. Puteken supplies HTD3M, HTD5M, HTD8M and HTD14M Timing Belts They can deal with heavy load without slipping.

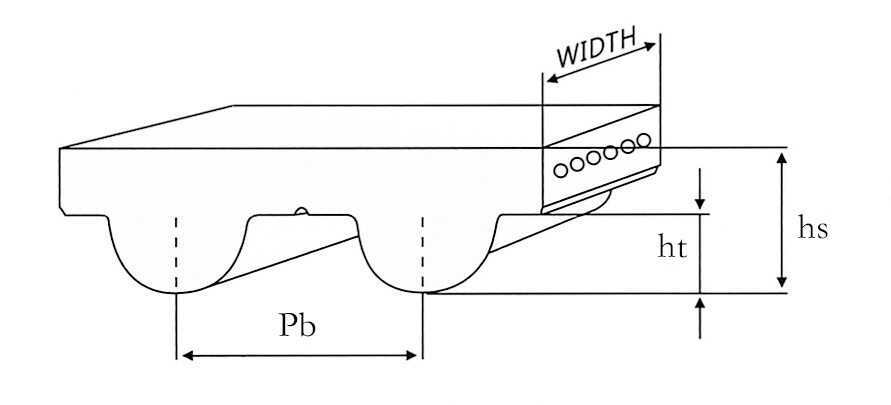

| Type（mm） | HTD3M | HTD5M | HTD8M | HTD14M |
| Pb | 3 | 5 | 8 | 14 |
| ht | 1.22 | 2.06 | 3.38 | 6.02 |
| hs | 2.4 | 3.8 | 5.6 | 10 |
HTD Timing Belt Data Sheet
| Model | HTD3M | HTD5M | HTD8M | HTD14M |
| Material | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
| Pitch | 3mm | 5mm | 8mm | 14mm |
| Color | White/Black | White/Black | White/Black | White/Black |
| Core | Steel/Kevlar | Steel/Kevlar | Steel/Kevlar | Steel/Kevlar |
| Hardness | 90-92 Shore A | 90-92 Shore A | 90-92 Shore A | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
| Thickness Tolerance | ±0.3mm | ±0.3mm | ±0.3mm | ±0.3mm |
| Minimum Pulley Diameter | 20mm | 21.14mm | 44.47mm | 108.7mm |
