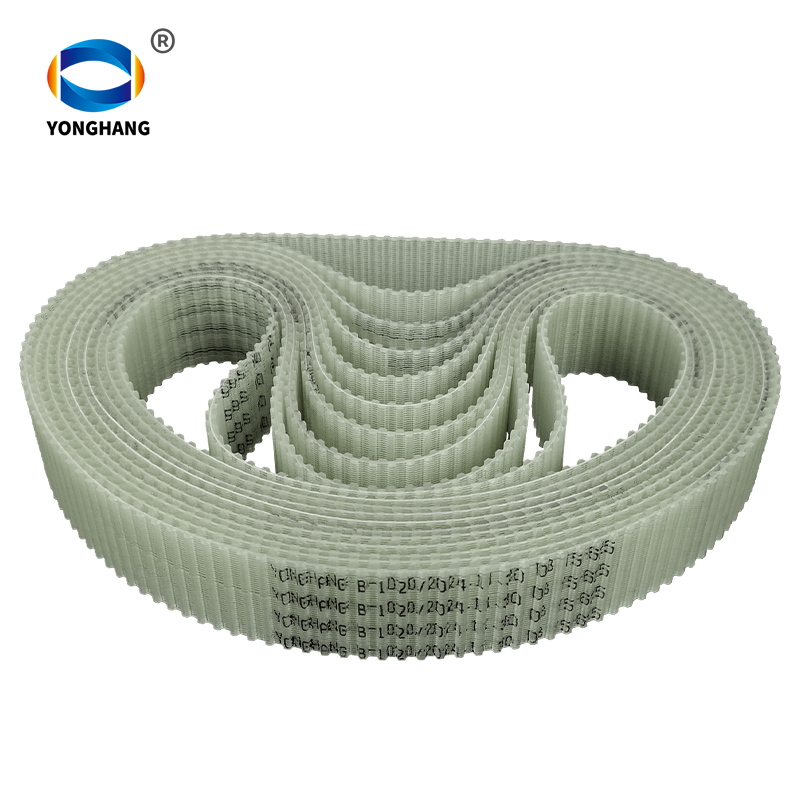

Double-sided tooth DBT5-460-30mm Sausage  Belts are potential replacement belts for Sausage Feeders or Cutting Machines，The material used is food-grade polyurethane for the outer casing.True seamless integral vulcanization molding，There are two types of wire cores to choose from：steel wire and Kevlar.Length can be made 300 to 5000 mm.The standard width is 30/32 mm.（The width can be cut to the required size.）FDA Rosh Certification.

parameter

Part No.	DB T5-460-30mm	Length [mm]	460
Width [mm]	30	Number of Teeth	92
Pitch [mm]	5	Minimum Pulley Diameter [mm]	25
Profile	DB-T5	Tensile Cord	Aramid Kevlar | Steel | Stainless Steel
Body Material	Polyurethane	Operating Temp C	-20 Degrees ~ +85 Degrees C
Nylon Fabric	PAZ NFT On Request	Operating Temp F	-4 Degrees ~ +185 Degrees F
Belt Type	Endless	Coatings & Coverings	FDA PU On Request
Color	Transparent/White	Special Requirements	On Request

Note : Custom sizes, colors & materials available upon request

Applications
– Meat Industry, belts for transporting sausages

Unique Characteristics/Advantage

– Made of environmentally friendly materials
– Aramid kevlar or steel cord reinforcement
– Hardness: 92 Shore A
– Heat resistance on operating temperature 80 C (on short run up to 100 C Degrees)
– Good behavior at low temperature
– Very good resistance to hydrolysis
– Good resistance to abrasion
– Good resistance to oil, solvents, hydrocarbons
– Loadability is equal with normal PU timing belts
– Compliant with FDA food-grade certification

Common Specifications and Sizes Table
