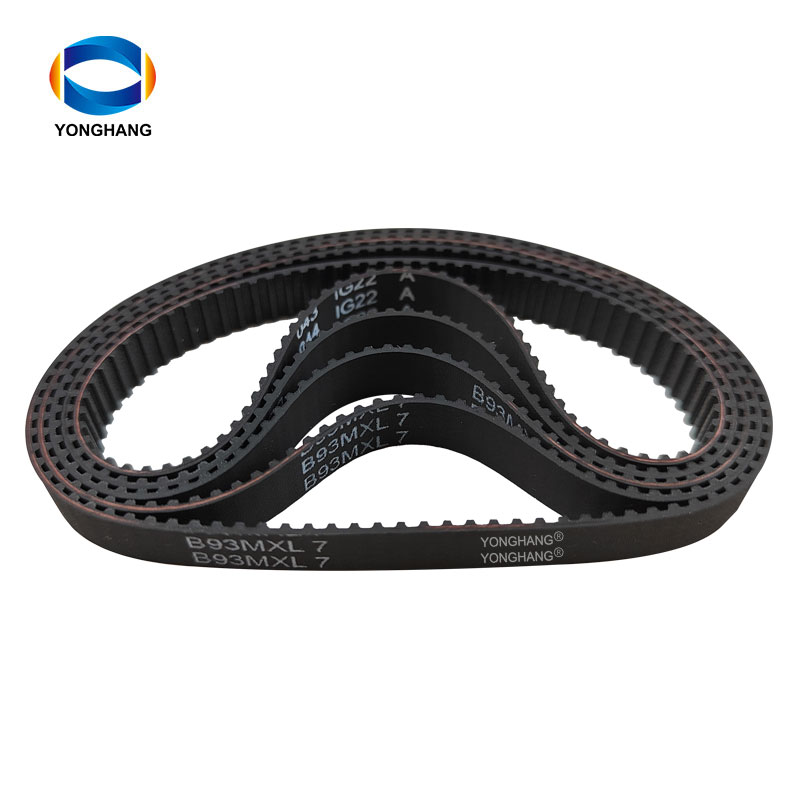

BMXL rubber timing belts

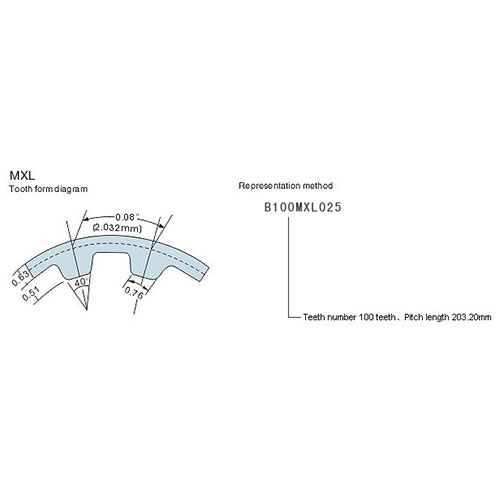

The pitch of the MXL timing belt is 2.032mm. It is a very small toothed synchronous belt, commonly used in printers, digital home appliances, vacuum cleaners and other small household appliances. The tooth profile is similar to that of GT2, but the pitch of GT2 is 2mm. There is a slight difference in pitch between…
The pitch of the MXL timing belt is 2.032mm. It is a very small toothed synchronous belt, commonly used in printers, digital home appliances, vacuum cleaners and other small household appliances. The tooth profile is similar to that of GT2, but the pitch of GT2 is 2mm. There is a slight difference in pitch between MXL and GT2. Please do not confuse or apply them incorrectly. Otherwise, the gears may skip teeth.
Specifications
| Trapezoidal Profile | mxl |
| Tooth Pitch t [mm] | 2.032 |
| Base Belt Thickness H [mm] | 0.63 |
| Tooth Height h [mm] | 0.51 |
| Overall Belt Thickness H [mm] | 1.14 |
| Width Tolerance [mm] | +/- 0.2 |
| Length Tolerance [mm] | +/- 0.5 |
| Thickness Tolerance [mm] | +/- 0.2 |
| Hardness | 75±5 Shore A |
| Tensile Members | fiberglass |
| Color | black |
| Minimum of Teeth on Pulley | 24 |
| Minimum Pulley Diameter [mm] | 15 |
| Tooth Angle 2β [°] | 40 |
| Ultimate Tensile Strength | 800 |
| [N/10mm belt width] | |
| Maximum Allowable Tensile Strength M | 600 |
| [N/10mm belt width] | |
| Unit Mass kg/m [Width: 10mm] | 0.0155 |
We have a large number of MXL molds. Below is our mold list.
