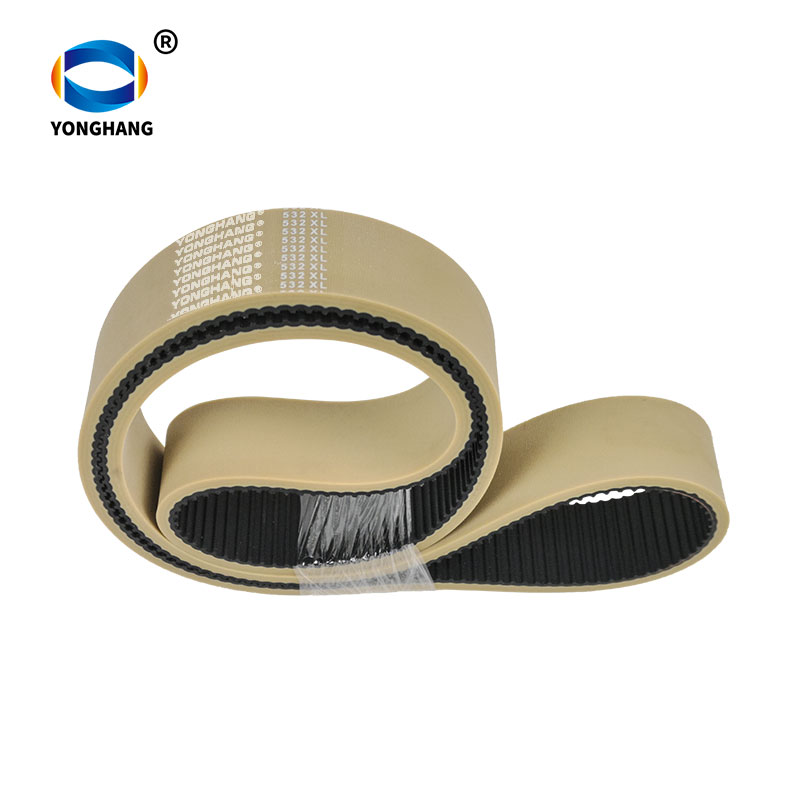

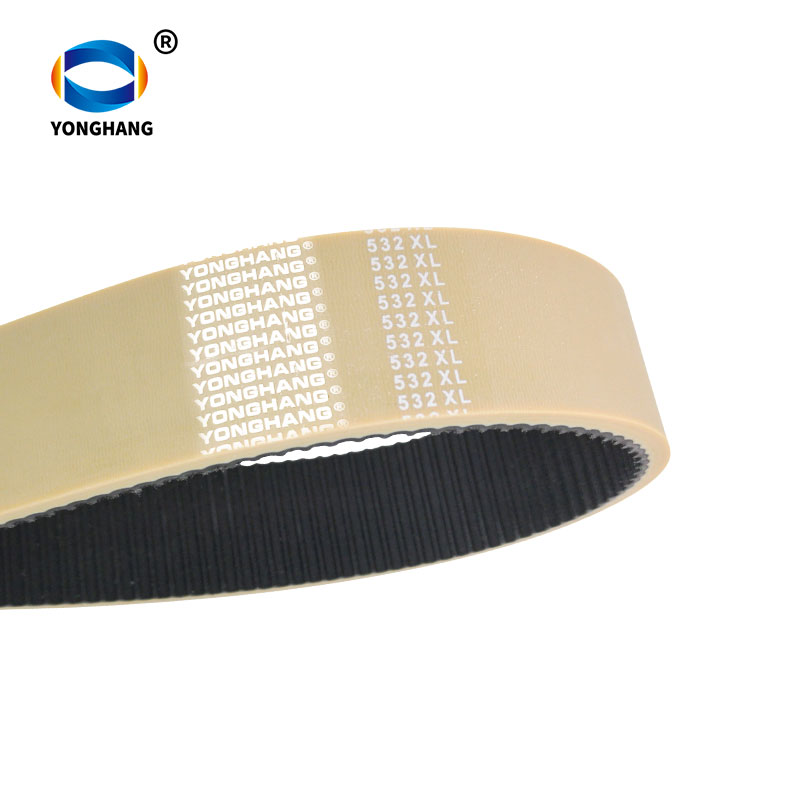

532XL brown rubber timing belt paper feed belt
Yonghangbelt 532XL timing belt paper feed belt adopts seamless one-piece vulcanization moulding process, CR rubber material, adding special wear-resistant fibre to make the belt’s performance more outstanding and wear-resistant, the surface can be opened pj groove to increase the friction! It can be made of brown rubber/green rubber/red rubber and white rubber, usually used in…
Yonghangbelt 532XL timing belt paper feed belt adopts seamless one-piece vulcanization moulding process, CR rubber material, adding special wear-resistant fibre to make the belt’s performance more outstanding and wear-resistant, the surface can be opened pj groove to increase the friction! It can be made of brown rubber/green rubber/red rubber and white rubber, usually used in box gluing machine, paper conveyor and other printing and packaging machines.
The seamless coatings have a high frictional value and are very wear-resistant, any mechanical operation is possible.
Parameters
| Brand | Yonghang |
| Type | Standard Parts endless XL Timing Belt |
| Coating Color | brown |
| Construction | Brown CR rubber coated rubber timing belt |
| Total thickness | 8mm/10mm |
| Length | ≈1351.28mm |
| width | 1″ 1.5″ 2″ or 25mm/30mm/35mm/40mm/50mm |
| Teeth | 266Teeth |
| Coating Hardness | 35A-40A-45A-50A-55A |
| Working temperature | -20℃~+80℃ |
| Min. use diameterSurface | 35mm |
