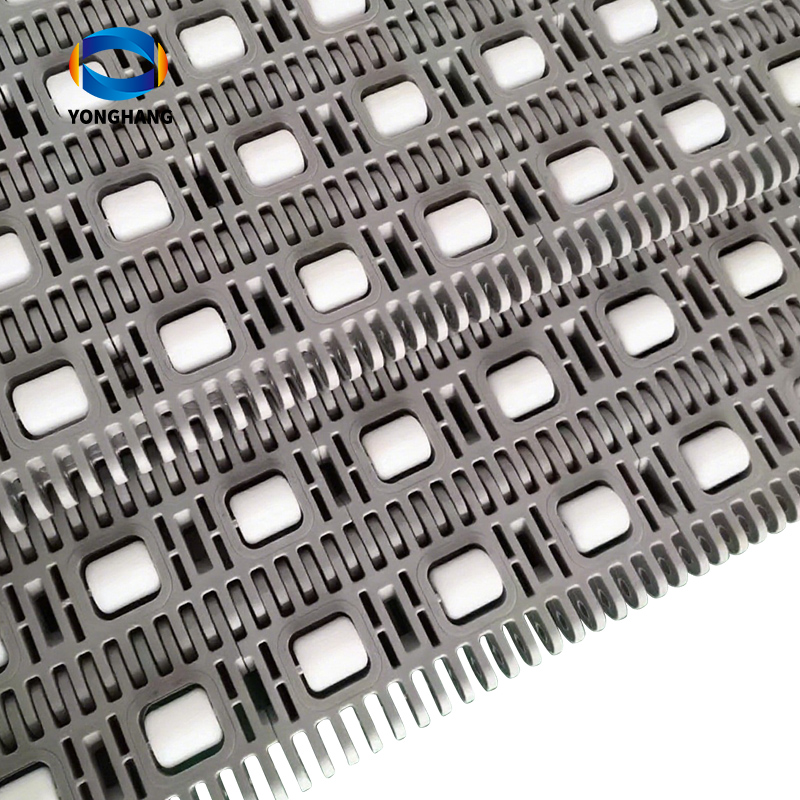

400 series Horizontal ball bearing module conveyor belt

Our products use POM/PP/PE material so our products are wear resistant and resistant to heat .
They are mainly used to the following aspect:
In beverage industry palletizes, depolarizers, washers, labelers, fillers, pasteurizers, incliners, out feeds, elevators and accumulation tables are equipped with slat top chains, curves, sprockets, belts, leveling elements and many more conveyor components.
For the container manufacturing industry special products and materials are available, such as abrasion resistant polyamide for glass plants, vacuum chains for can making and gripper chains for vertical transport.
In automotive industry the products are engineered to meet the most demanding applications, such as rubber processing and tire handling.

400 series ball bearing module conveyor belt information
Belt type	Pitch	Belt material	Pin Material	Pin Diameter	Working load(max)	Weight	thickness	Width (Single piece)	Back flex radius (min)	Width (Assembly)
	mm			mm	N(21℃	Kg/m2	mm	mm	mm	mm
400BT	50.8	POM	PP	6	47600	17.9	16	152.4/101.6	100	152.4+50.8*N
	50.8		PA	6	48000	18	16	152.4/101.6	100
	50.8	PP	PP	6	36000	12	16	152.4/101.6	100
	50.8	PE	PE	6	27000	13	16	152.4/101.6	100

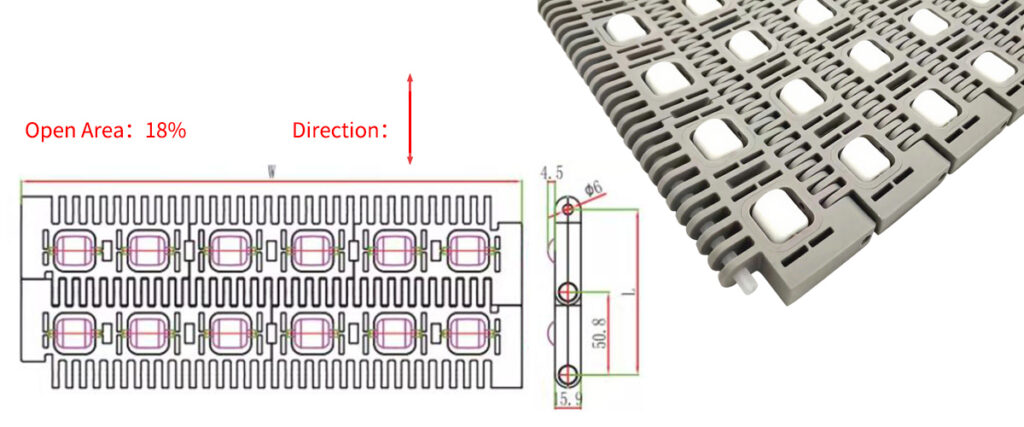

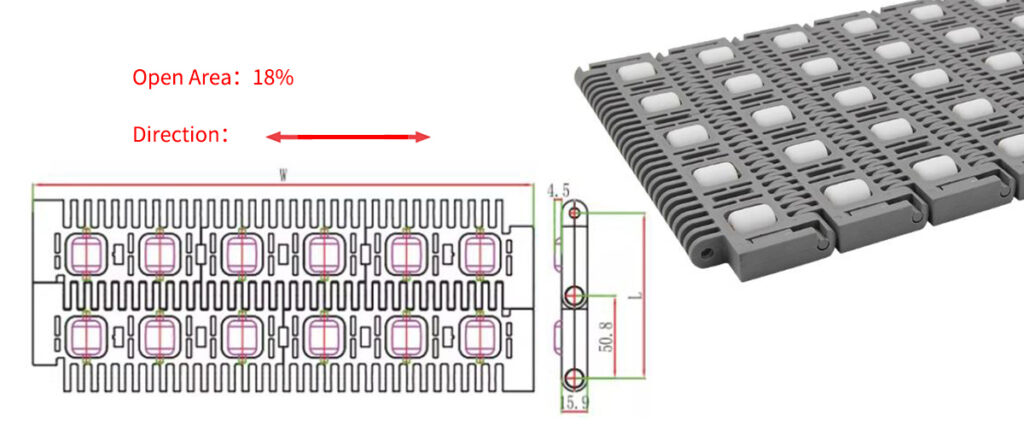

Open Area：18%    Width reduction：0.1%-0.3% The direction can be either horizontal or vertical.

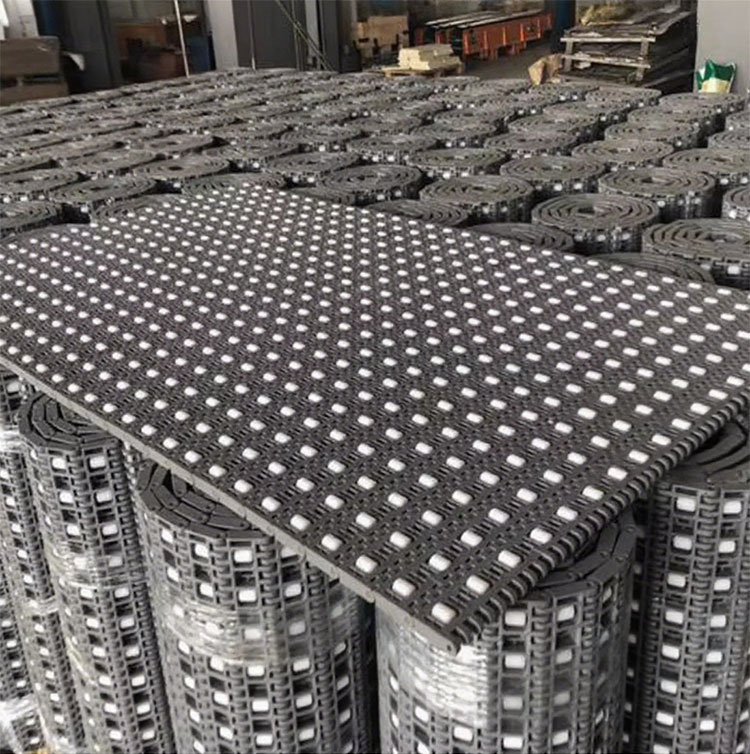

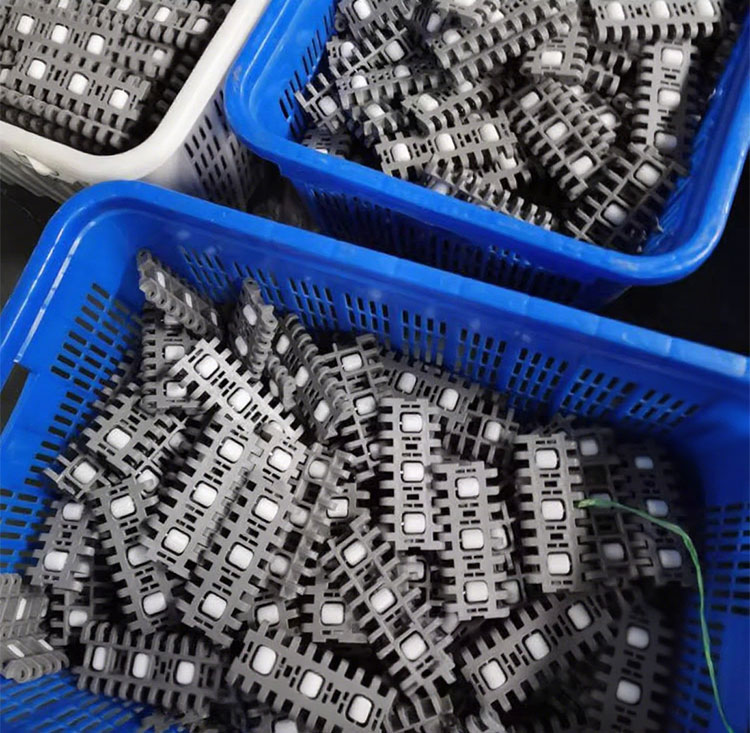

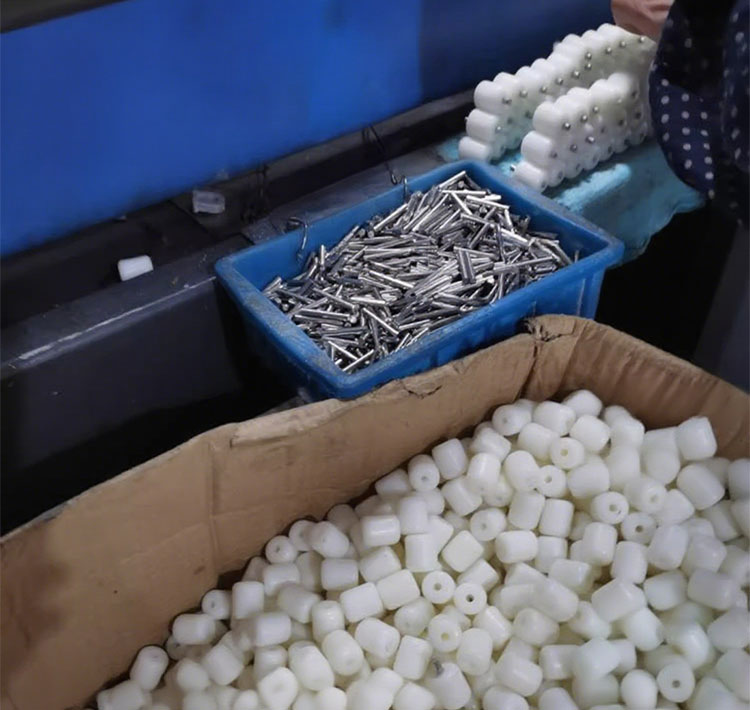

A corner of Yonghang Factory

Advantages of the yonghang Plastic modular conveyor belts:

1.This modular conveyor belts are convenient to assembly and maintain
2.All color could be available.
3.This modular conveyor belts can bear High mechanical strength.
4.This modular conveyor belts has Excellent product handling performance.
5.These modular conveyor belts are wear resistance and Oil Resistant.
6.We can provide good after-sale service.
7.Every product can be customized.

Certificate

We hold more than 40 national authorized patents and software certifications
Allseries of modular Plastic chain plate products have obtained the US “FDA” food grade certification And “EU” certification in Europe
Obtained “ISO9001-2008” quality management system certification

about us

1.We are a professional Transmission belts manufacturer, our product line contains modular belt, slat top chain, timing belts（PU and rubber),PUlleys,Conveyor belts
2.We Cooperated with DHL & Amazon to Help Them Solve Multi-scenario Application Parcel Sorting
3.In China, we help 20,000 companies solve transmission system solutions.
4.yonghangbelt not only has a complete production line to meet different application needs, but also can provide comprehensive product knowledge and experience.
5.After 20 years of innovative research and development, we can provide more than 5000 kinds of solutions to provide perfect support for you in the field of Transmission and transportation.
6.We have an experienced foreign trade team with global delivery capabilities.And we will offer you the lowest transportation cost.
7.We hope to recruit one agent in each country in Central and South Asia, the Middle East, Africa, and Russia for in-depth cooperation. We guarantee the quality of our products and the lowest prices. You are responsible for local sales, installation, and after-sales service.
