Sausage timing belt Description

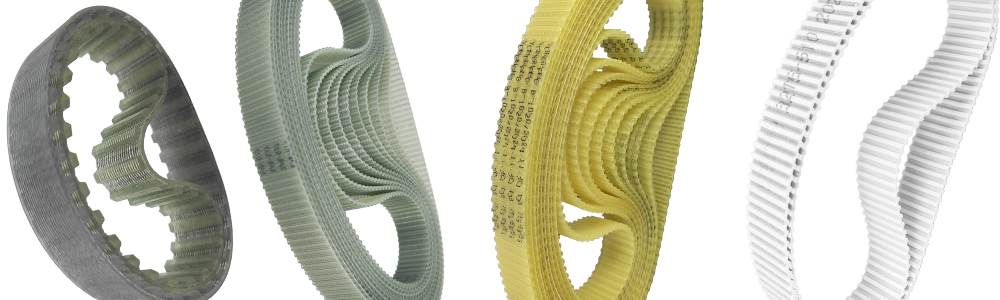

The sausage cutting machine uses the belt made of polyurethane with dimpled surface, and also use the DB double-sided tooth type.Please refer to Table 1 and Table 2

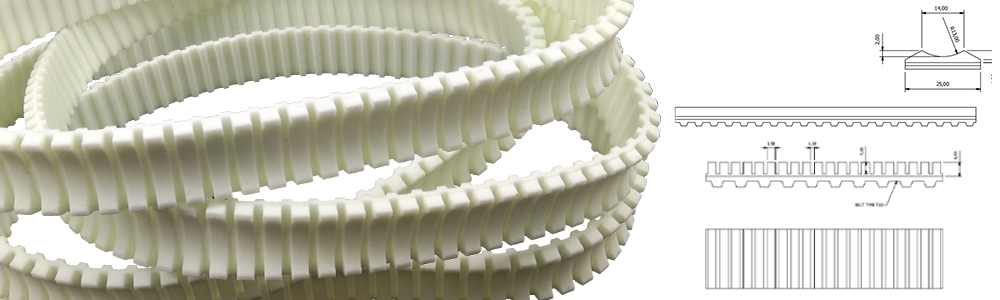

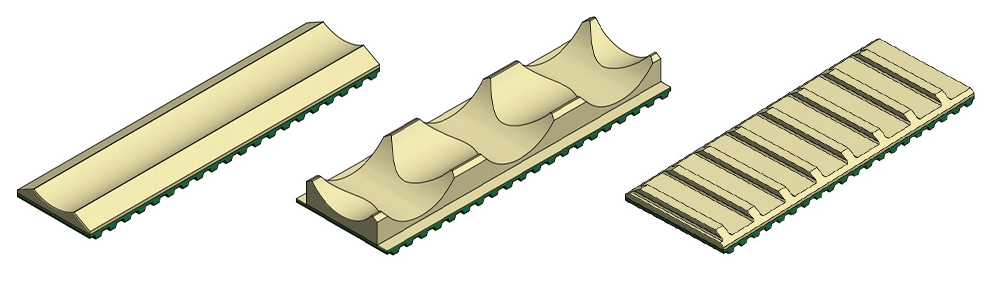

The sausage filling machines are L tooth type with U-shaped vertical and horizontal grooves in PU coating.Please refer to Table 3
Commercial Sausage stuffer machine uses the T5 model with a PU coating and U / V grooves.Please refer to Table 4
The Sausage Hanging Machine is model T10 with PU coating and horizontal grooves.Please refer to Table 5
Sausage timing belt Material
We manufacture sausage timing belts using food-grade PU and silicone materials, with both options available for selection.
| Material | Polyurethane / PU | Silicone |
| Working temperature | -20℃~+80℃ | -30℃~+220℃ |
| Physical Properties | High strength, wear-resistant, dimensionally stable, oil-resistant and hydrolysis-resistant | High-temperature resistant, non-toxic and odorless, high elasticity |
| Major advantage | Good overall mechanical properties, relatively low cost | Stable performance at high temperatures, high hygiene standards, and extended service life. |
| Drawback | It tends to soften and deform under long-term high-temperature conditions. | It has slightly lower wear resistance than PU and is more expensive. |
| Applicable | Sausage room-temperature filling, low-temperature cooling/fermentation, conventional smoking | Sausage high-temperature steaming, baking, high-temperature sterilization, deep-freeze rapid freezing |

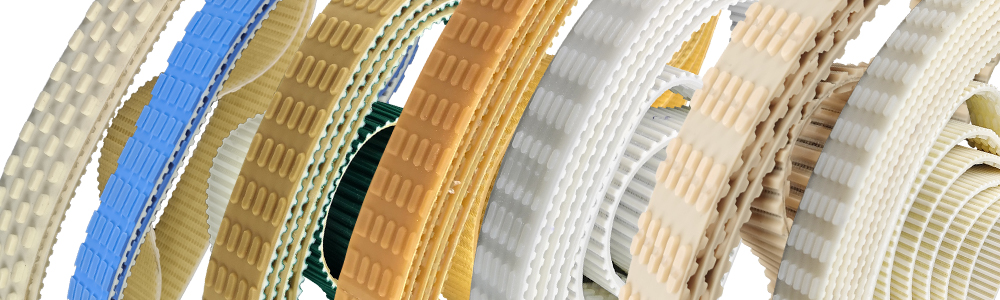

Sausage Timing Belts
-

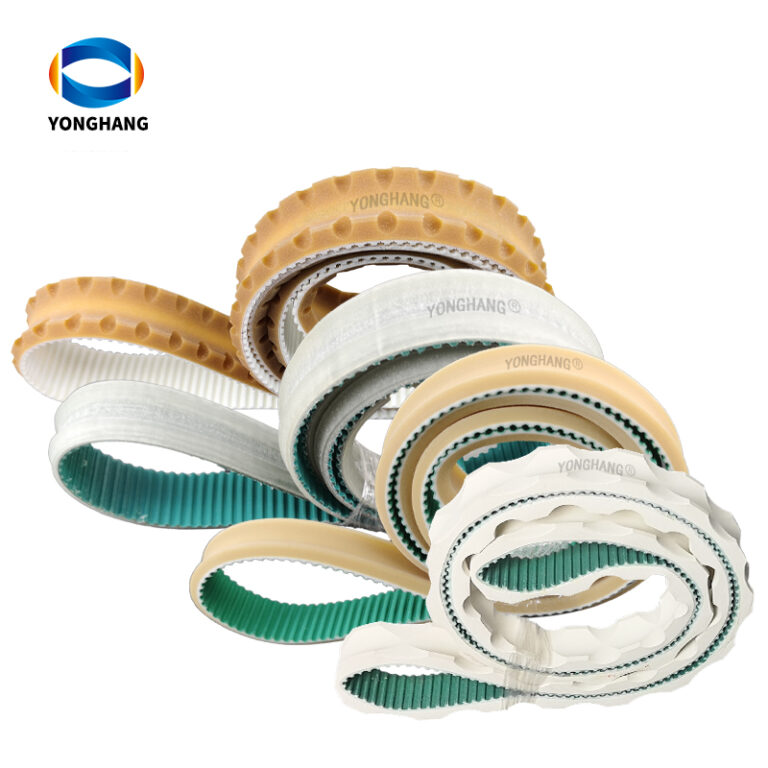

customized sausage belt from China yonghang
By • 16.12.2025These customized sausage belts are potential replacement belts for sausage feeders such as Inotec Delinker, Ari Makina, Duker-Rex, Finova, Handtmann, Hitec, Signal-Pack, Vemag, Risco, Inox Meccanica, Seydelmann. yonghang customized Sausage belts usually consist of polyurethane body and steel cord, while custom materials available upon request. Special cords include aramid (kevlar), stainless steel and carbon fiber. These… -

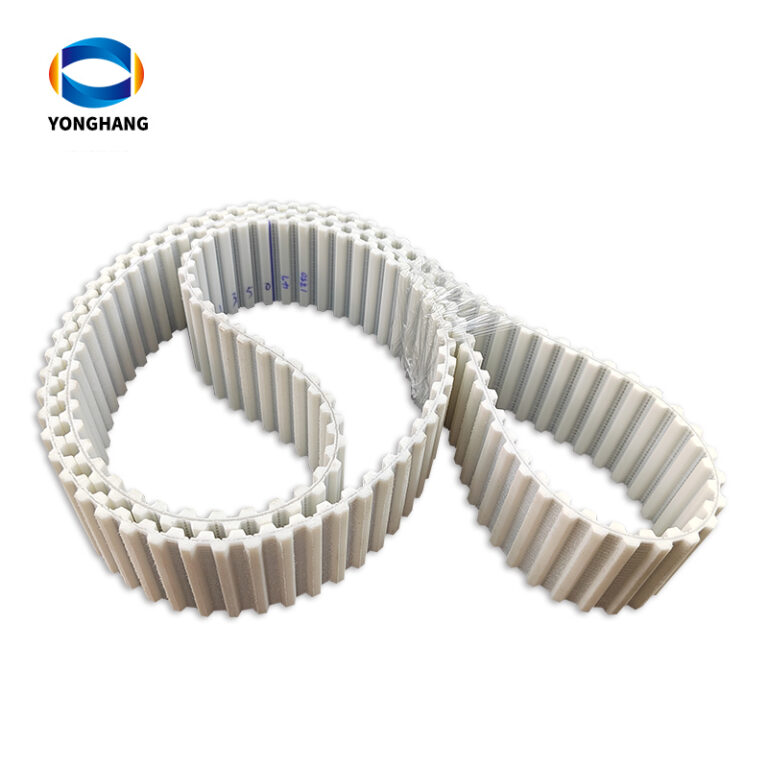

DBT9-1350-47 Double-sided tooth timing belt for sausage machine
By • 16.12.2025DBT9-1350-47 double-sided tooth timing belt,It is one of the belts of the sausage manufacturing machine.Food-grade polyurethane material, double-sided teeth, steel wire core, T series teeth, pitch is 9mm (is an uncommon pitch),The length is 1350mm, and the standard width is 47mm. (The width can also be customized according to your needs), truly seamless,The standard color is… -

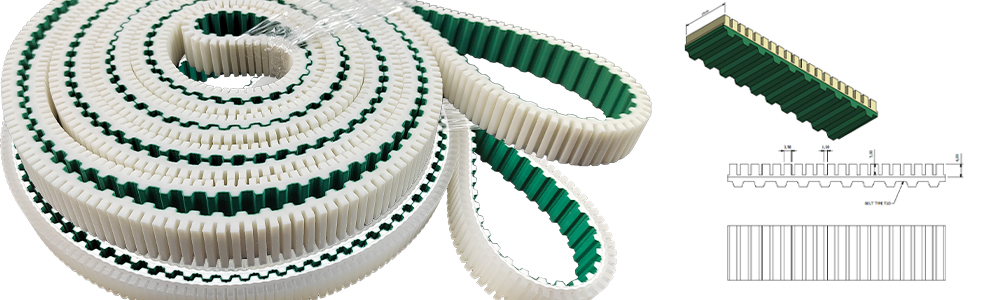

sausage Aufhängeeinheit – hanging unit belt
By • 16.12.2025sausage Aufhängeeinheit – hanging unit belt size :25-T10-4710+6PU mm/25-T10-6300+6PU mm,The two specifications that are currently in common use are these.This hanging unit belt is used as a drive belt for suspending sausages immediately after the sausage calibration device or directly from the housing bracket of the vacuum filler.From there, the twisted-off sausage chain is taken… -

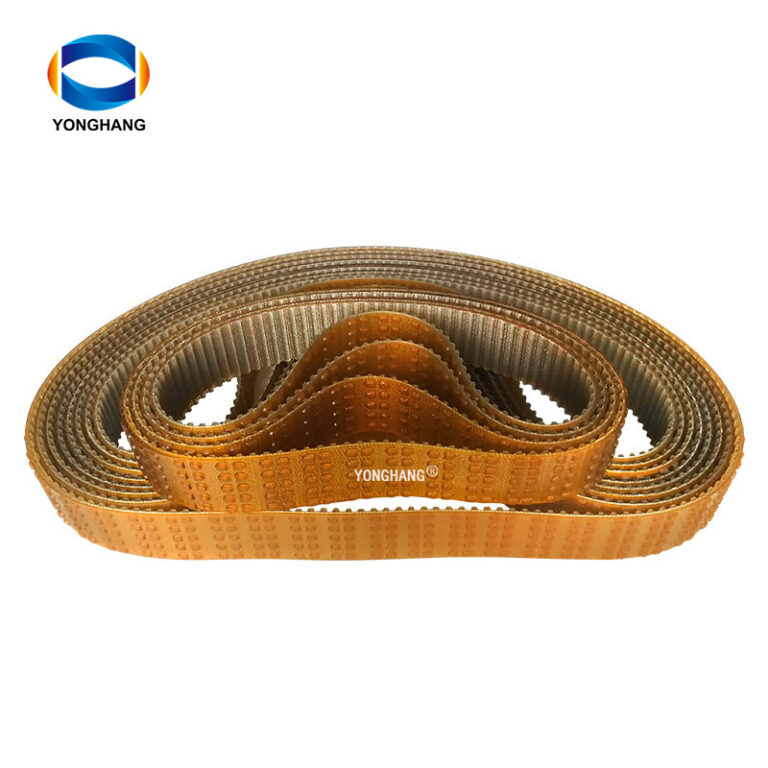

T5-510-32/T5-840-32 seamless Sausage machine belt
By • 16.12.2025T5-510-32/T5-840-32 seamless Sausage machine belt is a T-type synchronous belt with a pitch of 5mm.made of PU timing belt with dimpled surface Coating , The common width of the machine is 32mm. (It can also be cut according to the requirements.), This product is manufactured a seamless one-piece vulcanization molding process, ensuring no layering or… -

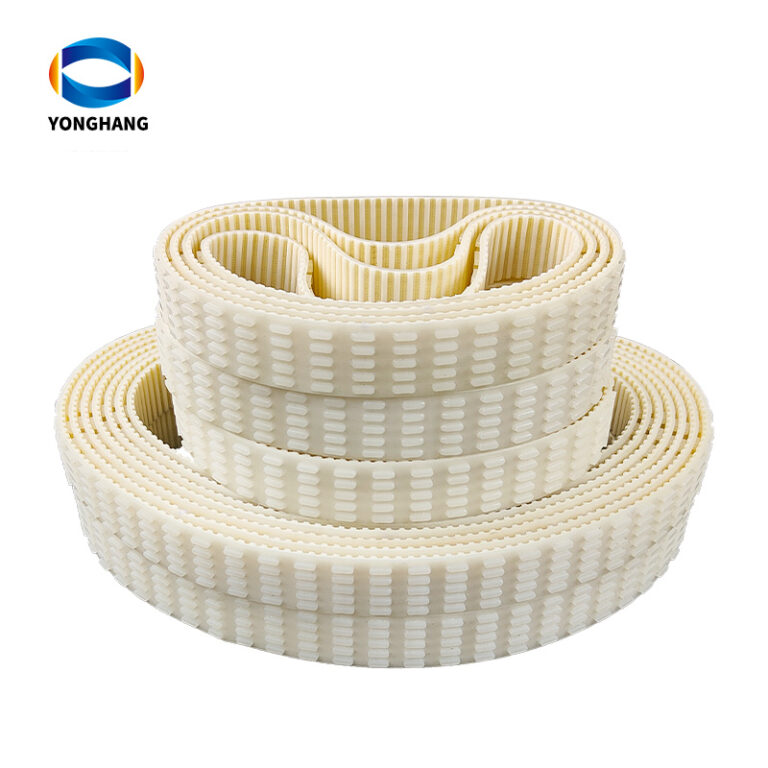

T5-625-30 Sausage Belts
By • 15.12.2025T5-625-30 Sausage Belts are potential replacement belts for Sausage Feeders or Cutting Machines,It is made of Kevlar core PU timing belt and PU coated food-grade material, and has passed FDA inspection. parameters Part No T5-625-30 Length [mm] 625 Width [mm] 30 Number of Teeth 125 Pitch [mm] 5 Minimum Pulley Diameter [mm] 30 Profile T5… -

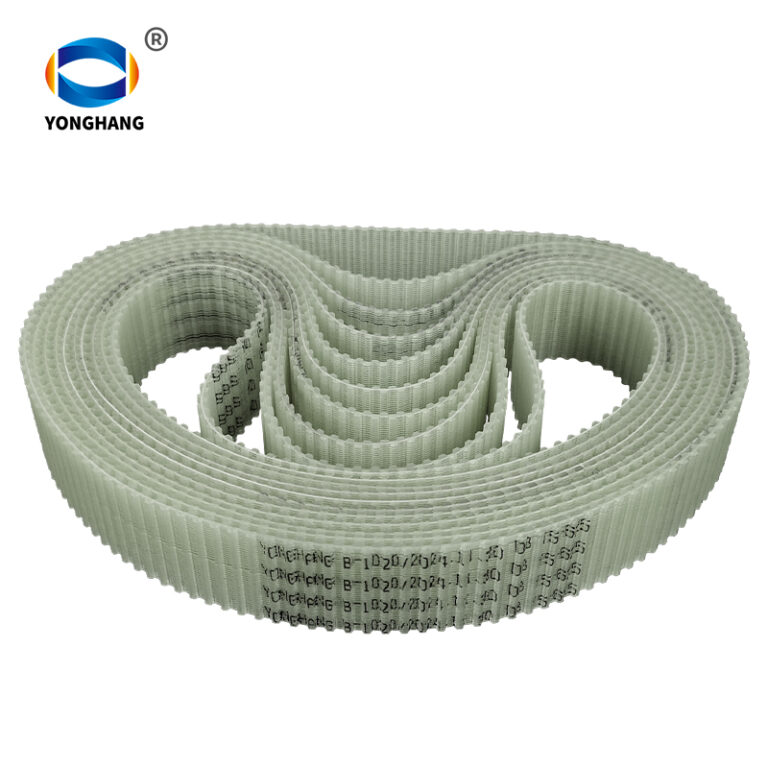

DBT5-460-30mm Sausage Timing Belts
By • 15.12.2025Double-sided tooth DBT5-460-30mm Sausage Belts are potential replacement belts for Sausage Feeders or Cutting Machines，The material used is food-grade polyurethane for the outer casing.True seamless integral vulcanization molding，There are two types of wire cores to choose from：steel wire and Kevlar.Length can be made 300 to 5000 mm.The standard width is 30/32 mm.（The width can be cut…

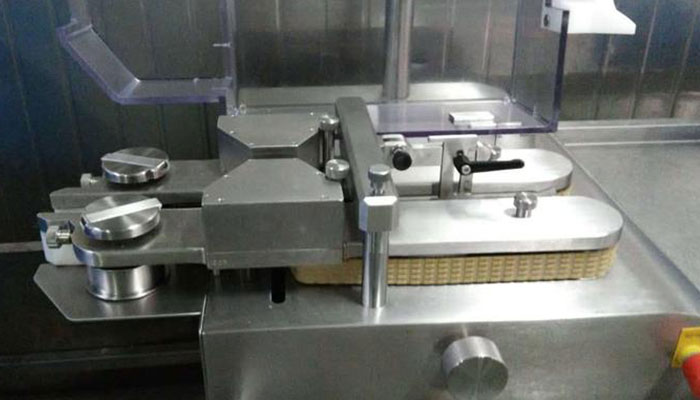

Wide Applications of sausage timing belts
Yonghang transmission belts serve as comprehensive meat Industry drive system solutions, widely applied across diverse belts for transporting sausages industries and scenarios. We can help you optimize your design and recommend the right solution, The sausage machine belt that complies with the FDA food production standards.
The sausage timing belt usually adopts PU synchronous belt.This is because PU synchronous belts offer high tensile strength, environmental friendliness, oil resistance, and resistance to most chemical solvents.
If you have any other meat-based food processing needs, please feel free to contact us at any time for custom consultation.

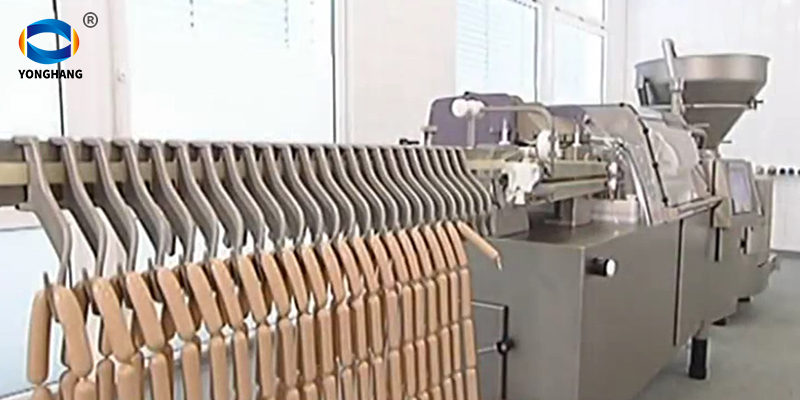

Sausage Hanging Machine belt
sausage filling machine belts

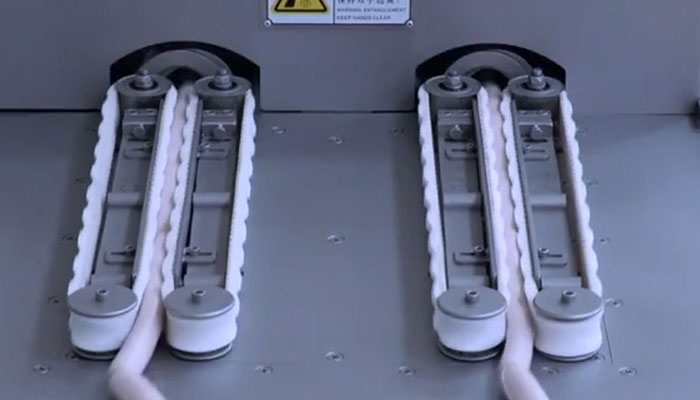

sausage cutting machine
Mainly applied to commercial sausage making Production line：
sausage binding machine
sausage binding wire machine
sausage stuffer machine
sausage binder machine
sausage casing machine
sausage dryer machine
sausage drying machine
sausage egg mcmuffin machine
sausage emulsifier machine
sausage cutter machine
sausage filler machine
sausage filling machine
sausage link machine
sausage linking machine
sausage machine parts
sausage tie machine
sausage twister machine
automatic sausage clipper machine
automatic sausage linking machine
sausage stuffer machine
electric sausage machine
sausage maker machine
sausage stuffing machine
sausage grinder machine
sausage machine
automatic sausage making machine
automatic sausage tying machine
sausage link cutter machine
About yonghang
We are a factory in China that has been in operation for 20 years. Our main products include PU Timing belts,Timing belt coatings, Pulley, etc. The sausage machine belts we produce are a type of PU Timing belts and are certified by FDA. If you need them, please contact us.
Yonghang have large-scale production plants and standardized management and production processes to ensure the efficiency of production capacity and product quality. In every production link, we will arrange quality inspection to ensure that every piece of goods received by customers is high-quality products.
Cooperation Case
We are skilled in the transmission and transportation of meat. In China, we have provided timing belts for sausages to large meat factories such as Shuanghui.
Our sausages are very popular locally in Russia and Europe. If you are interested in selling them in other countries or cities, please contact us. We normally accept agents.
