Our pu conveyor belts can be fabricated with bottom v-guides and top cleats,Sidewall,Punching holes etc.

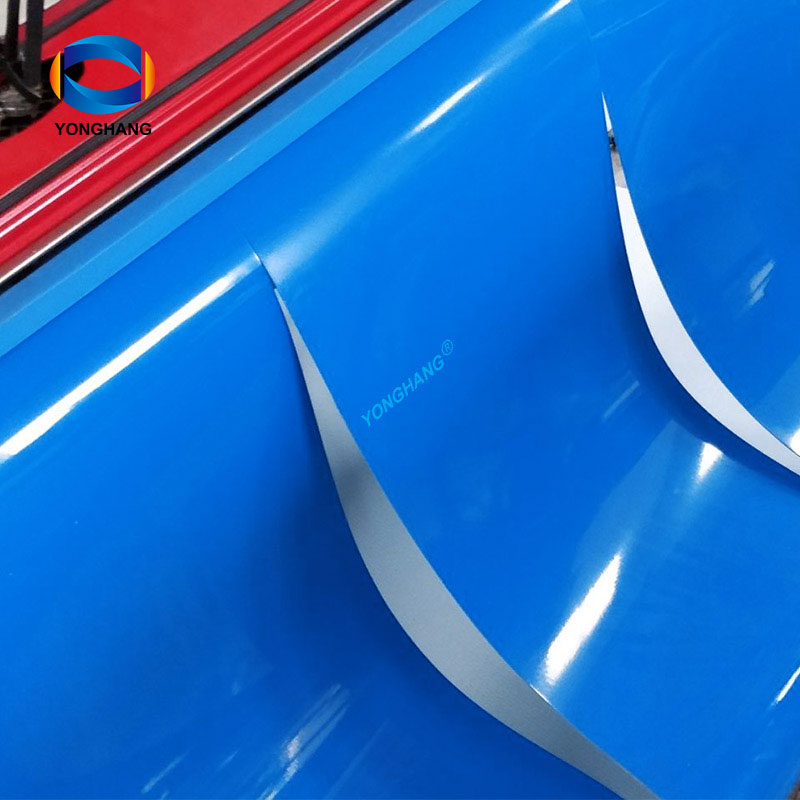

Polyether-based polyurethane belts possess all standard properties of TPU conveyor belts, such as resistance to vegetable, animal, and mineral oils and fats, excellent resistance to most chemicals and solvents, high hardness, and high abrasion and cut resistance. Additionally, they offer enhanced properties including superior abrasion resistance, extended temperature tolerance, excellent hydrolysis resistance, antimicrobial properties, and wear-resistant fabrics. Compared to PVC conveyor belts, they are more environmentally friendly and durable.
We wholesale rolls and operate a finished product processing workshop, offering custom lengths and widths per customer requirements, along with support for processing based on provided drawings or samples. PU conveyor belts are widely used in high-cleanliness industries such as food and medical care, meeting diverse conveying needs across various operating conditions. We commit to delivering consistent quality and efficient service, ensuring every batch undergoes rigorous quality inspection.
For end users,we can make the egde sealing, add guides, cleats and sidewalls for the PU conveyor belts. For wholesalers and dealers or clients have their workshop for the belts processing, we can supply the materials of edge sealing belts, cleats, guides,sidewalls ect. the materials have large selection of colors and size.
| Brand | Yonghang |
| Material | Polyurethane +Polyester Fabric |
| Maximum Width | 3000mm |
| Thickness | 1-6mm |
| Ply | 1-6 ply |
| Color | Green/White/Black/Blue/Dark green/transparent/blue-green/red/yellow |
| Hardness | 85 Shore A |
| Operating Temperature | -20℃-90℃ |
Preferred method:FOF (Finger Over Finger)
Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
High-temperature hot-melt seamless tooth joints for greater strength, beauty and resistance to tearing!
Clipper Wire Hook
APF Fasteners
Alligator Rivet Fastener
Alligator Lacing Staple Fastening System
Plastic Spiral Finger
Fexco Rivet Solid Plate
Alliqator Plastic Rivet
Flexco Rivet Hinged
(polyurethane) PU conveyor belts are resistant to all types of grease, abrasive substances, and friction. They are widely used in all industries and agriculture, for transportation of various products in bakeries, cookery, confectionery, fish preparation, woodworking workshops, tobacco product lines, etc.

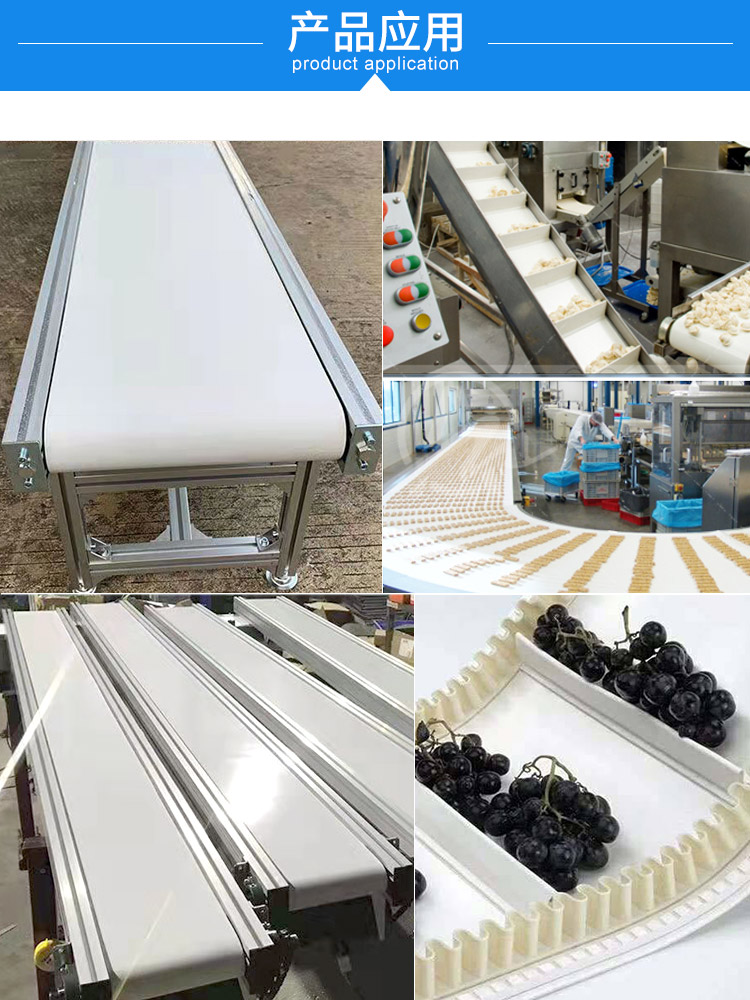

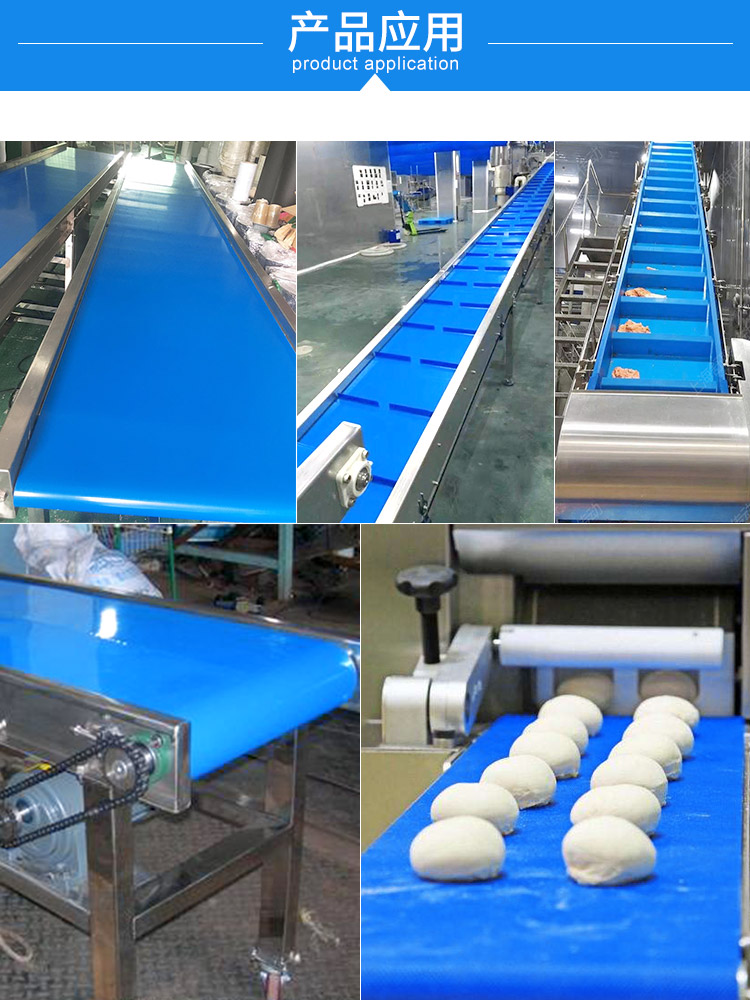

Application Scenarios: Conveying, processing, and packaging of bread, cookies, candy, meat, fruits, vegetables, etc.
Features: Compliant with food-grade standards (e.g., FDA, EU certification), easy to clean, non-stick, grease-resistant.
Application Scenarios: washing elevators, fresh cut, cooked, and frozen package lines ect.
Features:food-grade standards (e.g., FDA, EU certification), easy to clean, non-stick,
Application Scenarios: Poultry & Meat Industy have very strict requirement on safey.
Features: Yonghang PU conveyor belts have good oil & fat resistance,hygienic and chemical resistance feature belts for the belting solutions
Features: Bakery conveyor belts need good oil & fat resistance, and non sticky, easy to clean features.Yonghang offer ideal solutions for the bakery processing.
Features: PU covneyor belts compliance with FDA standard, which are safely used in pharmaceutical and medical industries
We can produce PU conveyor belts with spliced joints or as small seamless conveyor belts.
For more styles, please consult our team.
Yonghang have 6 extrusion production lines for PU conveyor belts, three for 2m width belts, three for 3m width belts. the production process is simple and the production efficiency is high; the strength of raw materials is reduced less, and the strength of the conveyor belt is higher than that of the blade coating process; the TPU adhesive layer is not easy to generate air bubbles, the structure is dense, and the thickness uniformity is high.
Yonghang produce v-guides in materials of PVC & TPU, which can be made in food grade FDA standard guides. various colors & sizes to choose. we have plain guide and teethed guide which ensures correct tracking and counteract some of the lateral forces.
Yonghang manufacture cleats which supply to conveyor belt fabricators. Cleats can be PVC or TPU materials; different colors and sizes to choose. Cleats used to help products go through inclines/declines well & can provide good spacing between products.

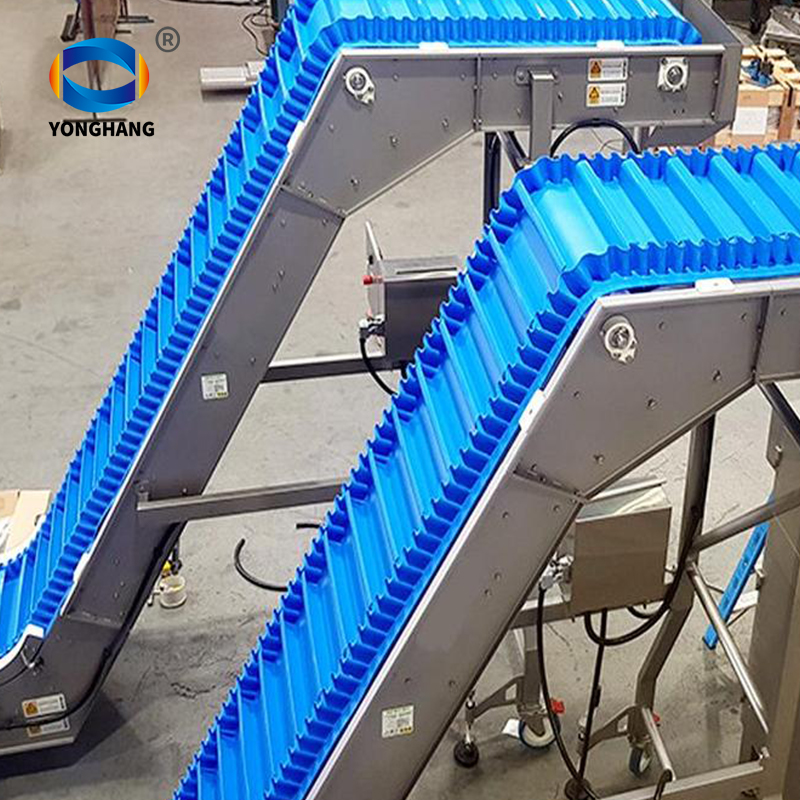

Sidewalls normally used with cleat together, which can help to prevent products falling from sideways of the conveyor belt. Sidewall can produced in materials of PVC & TPU with various colors and size to choose. OEM production is acceptable.
We use advanced High frequency welded machine to weld the cleat & sidewall profiles. The high frequency welding process creates a strong, consistent bond between two polymers.
There are different types of belt fasteners, Welded Hook Fasteners,Alligator Fasteners,and Butterfly Fasteners suitable with different sizes.

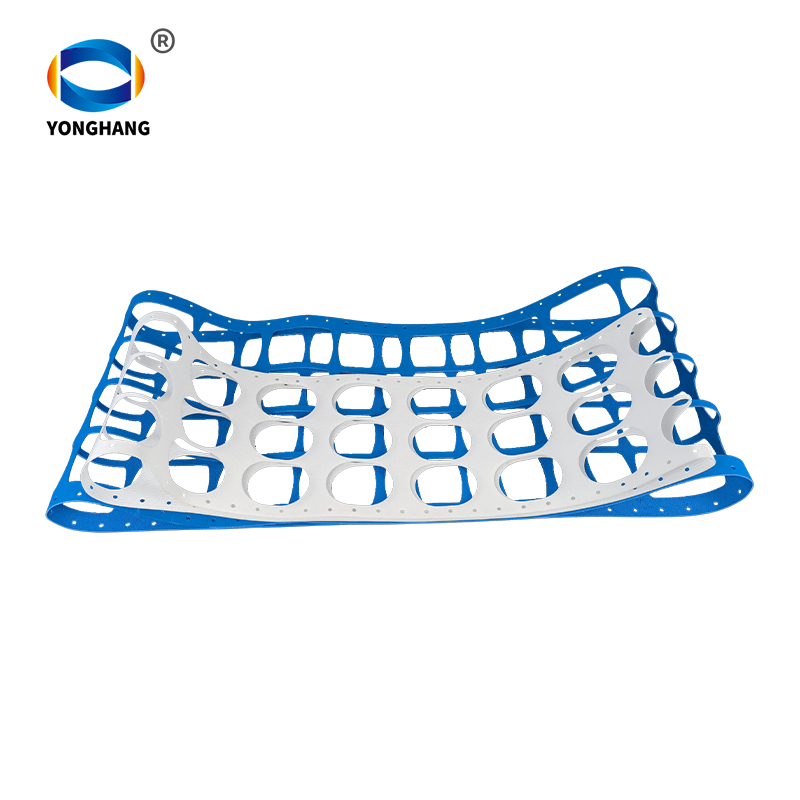

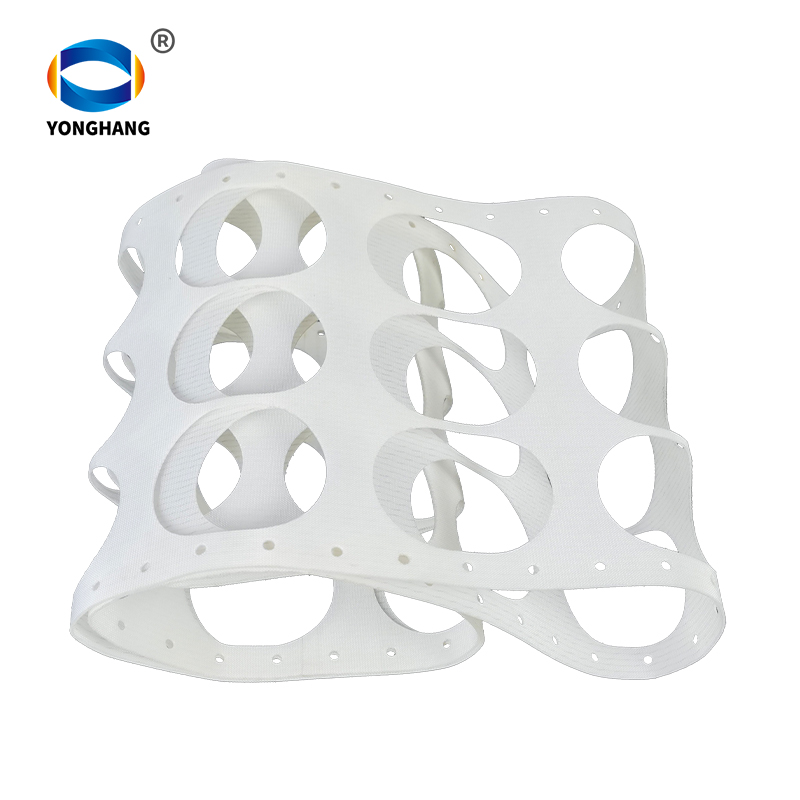

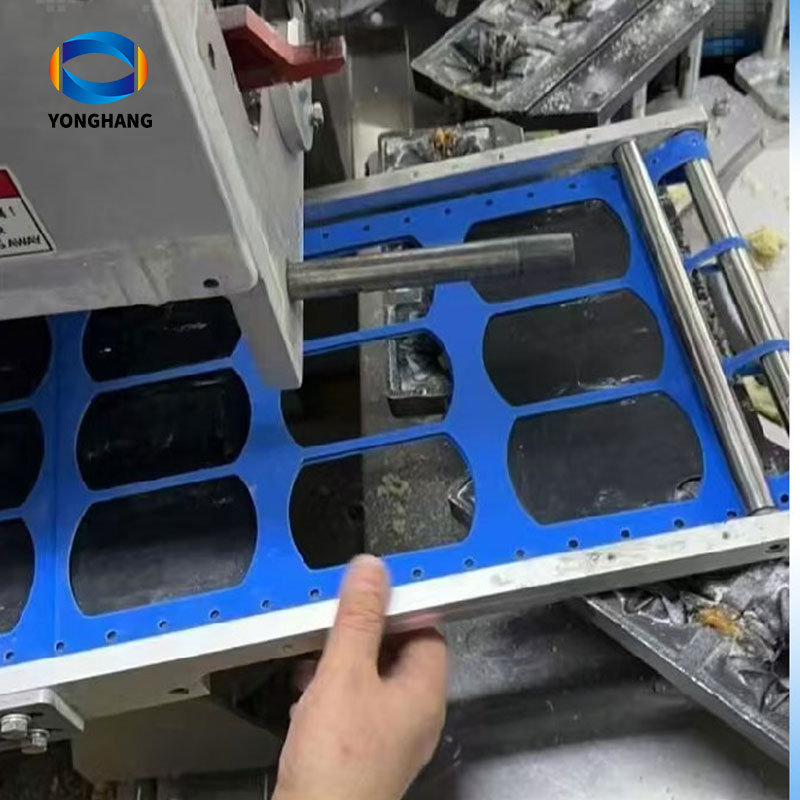

our laser-beam drilling machineand and NCN hole punching machine, we have the possibility to supply perforated belts with multiple configurations for different applications.Including oval holes, circular holes, and various other shapes and densities of holes,The holes form a suction force that keeps the conveyed product fixed on the belt.
Hole diameters:
Ø2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16mm.
Ø18, 20, 22, 24, 26, 28, 30mm.
Minimum distance between holes: 1mm (<1mm consultar taller).
| Comparison Dimension | PVC conveyor belt | PU conveyor belt | Rubber conveyor belt |
| Core Material | polyvinyl chloride | Polyurethane | CR Rubber/EPDM rubber/NBR rubber |
| Structure & Manufacturing | PVC coating + polyester base fabric | pu coating + polyester base fabric | rubber+ (polyester/nylon/steel wire) core |
| Key Performance Traits | Affordable, indispensable for general conveyor belts | FDA certification, environmental protection, high cost-effectiveness for use in food conveying belts, resistant to common oils | Best abrasion & impact resistance High load capacity, anti-stretch Cost-effective (for heavy-duty) |
| Temperature Range | -10℃ to +80℃ | -20℃ ~ +90℃,(Special temperature-resistant modified material for 130°C) | -70°C to +350°C(Heat-resistant belts, wear-resistant belts, burn-resistant belts, oil-resistant belts, alkali-resistant belts, heat-resistant belts, cold-resistant belts |
| Common Applications | General transportation, logistics, packaging, tobacco, etc. | Widely used in the food processing industry | Mining, metallurgy, coal, ports |
19.12.2025
11.11.2025
The primary raw material for PU conveyor belts consists of a multi-layer composite structure featuring a polyurethane elastomer surface coating reinforced by a polyester or nylon fiber fabric skeleton.
Compared with PVC conveyor belts, PU conveyor belts have the advantages of greater wear resistance, better oil resistance and being environmentally friendly without any odor. They are more suitable for fields that have higher requirements for hygiene and durability.
The MOQ for a seamless PU conveyor belt is a sleeve. The spliced belt has no minimum order quantity.

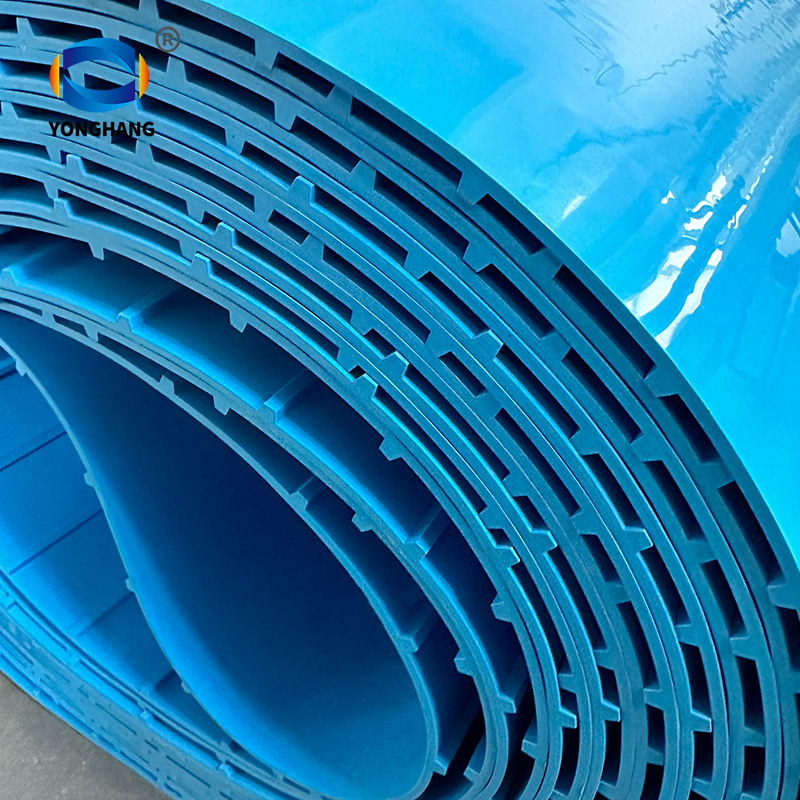

Selecting seamless, crack-free PU easy-clean belts manufactured through a single-pass extrusion process can eliminate this issue at its source.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
If it’s the roll material, we offer a 30-day no-reason return and exchange service. However, for the finished belts, we do not support returns or exchanges because the finished belts are custom-made according to your specified size.
We typically ship via DHL, UPS, FedEx, or TNT. Delivery usually takes 3-5 days. Air and sea shipping are also available.
