GT2&2GT 3D printer belt

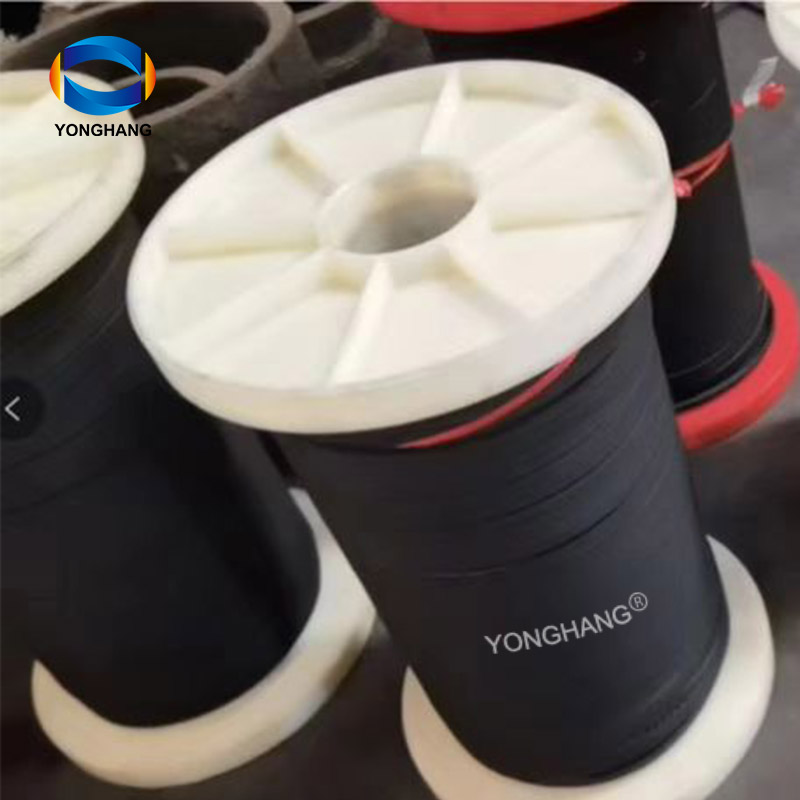

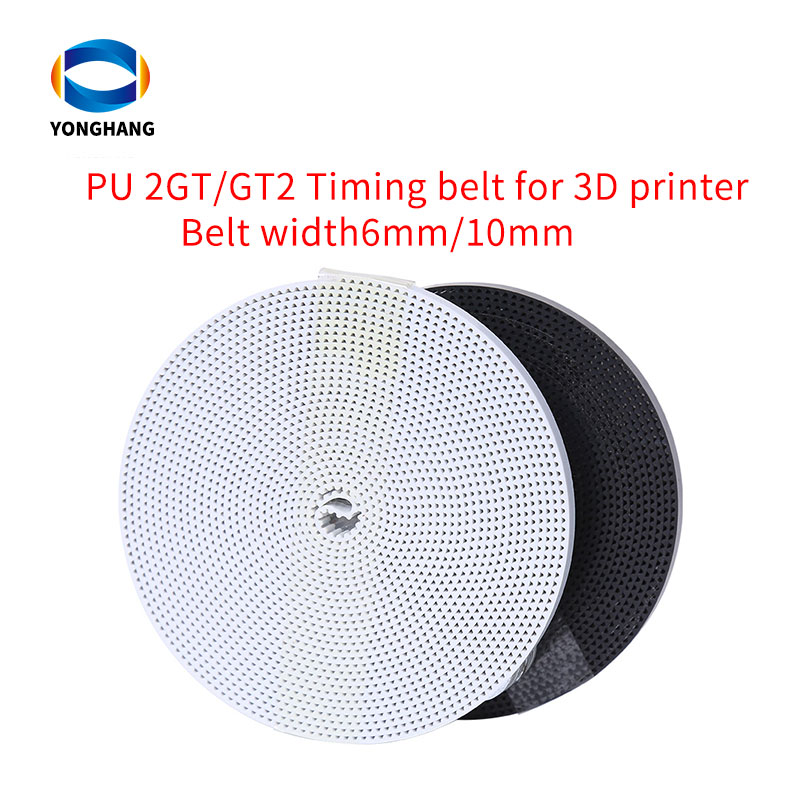

GT2&2GT 3D printer belt width is usually 6mm and 10mm, and the length is 100 meters per roll. Of course, we have in-stock products. You can also request a small sample. It comes in three materials: PU, rubber, and rubber with brown silent fabric.

type	Pitch	R1	R2	R3	tooth depth	tooththickness	total thickness	workingtemperature	weight g/m
2GT	2mm	1mm	0.15mm	0.56mm	0.75mm	0.63mm	1.38mm	-10 to 80℃	13

GT2 Open rubber Timing Belt Features:

1. * Type: 2GT-100meters
2. * Width:6mm/10mm
3. * GT2 Pitch :2mm
4. * Belt Height:1.38mm
5. * Tooth Height:0.75mm
6. * Material: NeopreneRubber With Fiberglass Core or Brown cloth

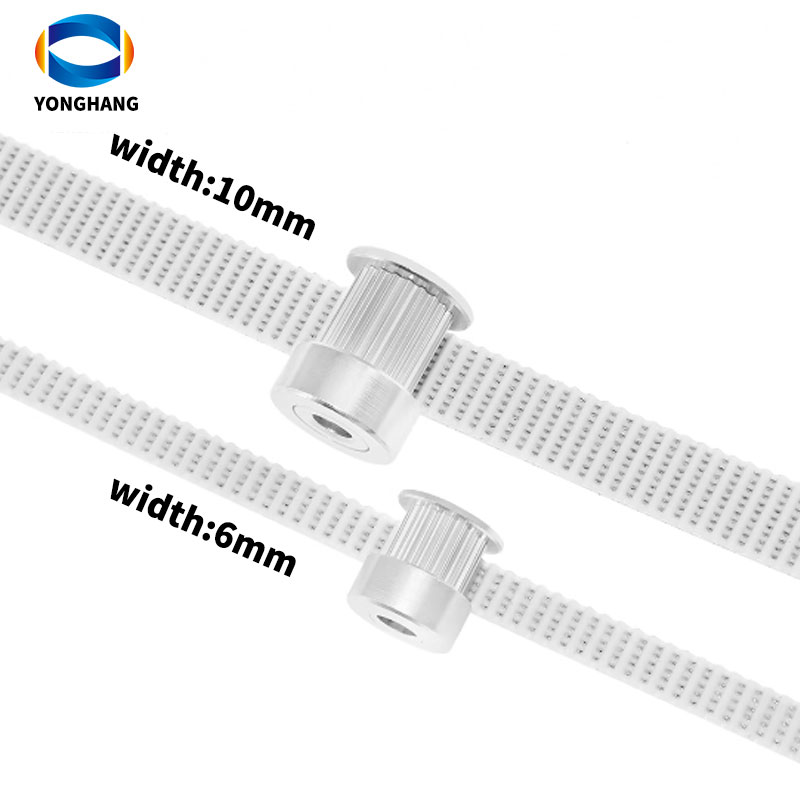

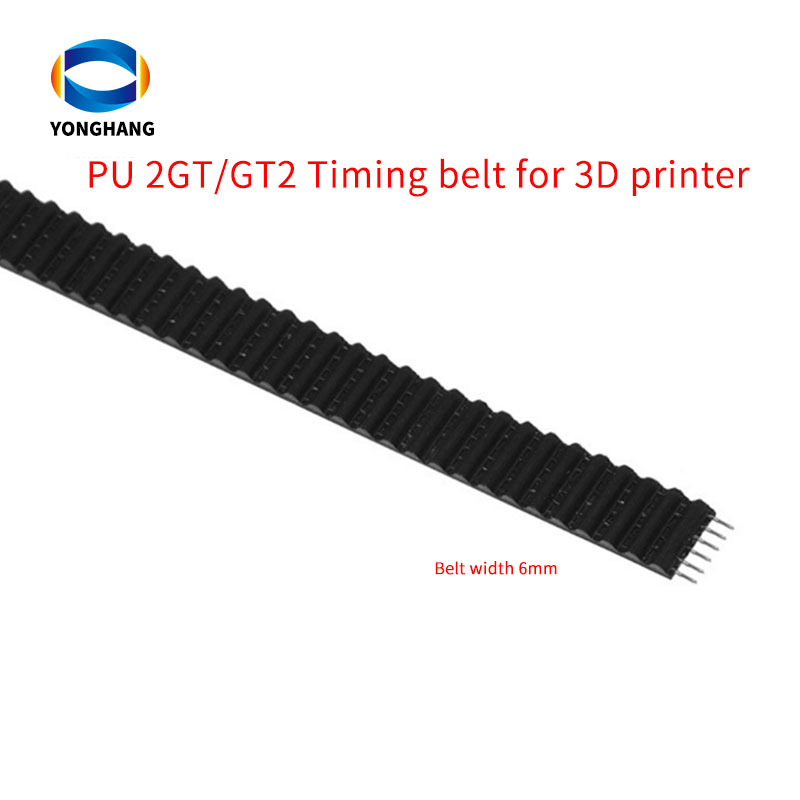

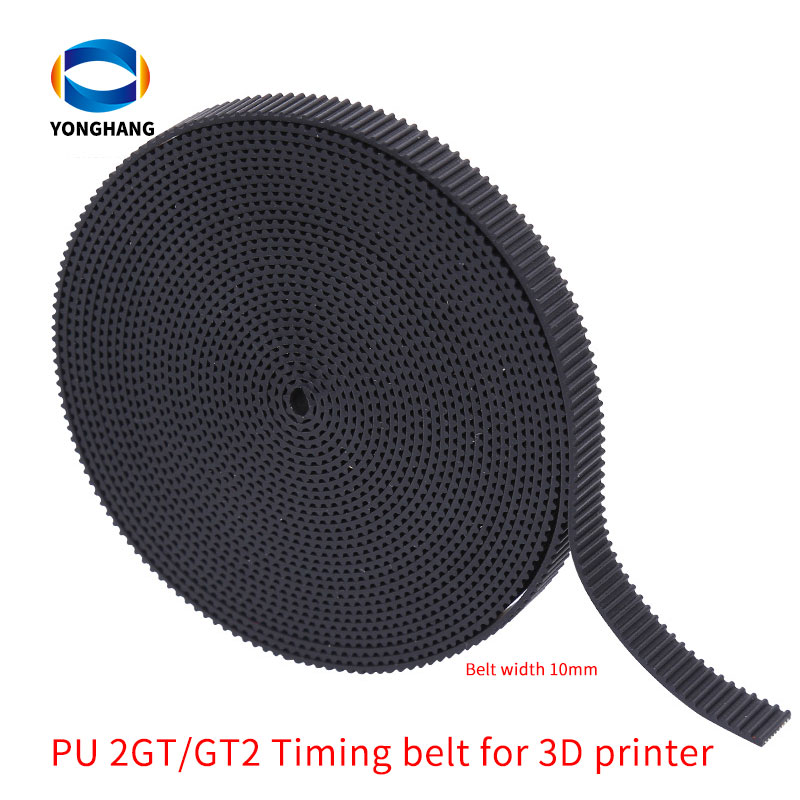

GT2 Open pu Timing Belt Features:

1. * Type: 2GT-100meters
2. * Width:6mm/10mm
3. * GT2 Pitch :2mm
4. * Belt Height:1.38mm
5. * Tooth Height:0.75mm
6. * Material: polyurethane With steel wire core

The PowerGrip GT2 system is an extension of the HTD system with greater load-carrying
capacity. HTD was developed for high torque drive applications, but is not acceptable for most precision indexing or registration applications.

As smaller diameter pulleys are used, the clearance required to operate properly is increased.
HTD drive clearance, using small diameter pulleys, is approximately four times greater than an equivalent GT2 timing belt drive.

circular arc tooth profile, tooth space is small, suitable for straight line driving.
