Refer to these handy tips the next time you need to identify and order a synchronous belt.
1. What is a Synchronous Belt?

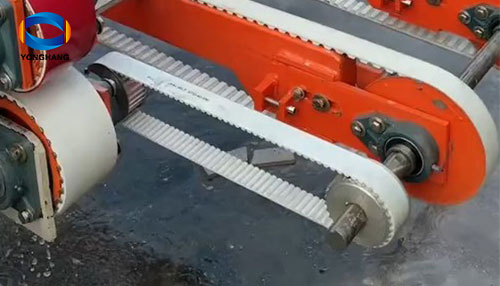

A synchronous belt, also known as a timing belt, is a mechanical transmission component with teeth on its inner surface that mesh with grooves on pulleys (sprockets). Unlike traditional V-belts or chains, it operates without slippage due to its precise tooth engagement, enabling constant speed ratio transmission. Key features include:
- Material: Typically made from polyurethane (PU) or rubber reinforced with fiberglass or steel cords for strength.
- Design: Available in (Trapezoidal teeth) or (Curvilinear teeth) profiles, with offering higher torque capacity.
- Advantages: High precision (±0.05mm positioning accuracy), low noise, maintenance-free operation, and resistance to environmental factors like moisture and oil.
2. Primary Applications
2.1 Vertical Packaging Machines
In automated packaging lines, synchronous belts ensure precise motion control for:
- Material Feeding: Conveying film or paper at high speeds while maintaining alignment for accurate sealing.
- Cutting and Sealing: Coordinating blade movements with product positioning to avoid misalignment. For example, in snack food packaging, belts enable seamless transition between filling and sealing stages.
- Hygiene Compliance: PU belts are preferred due to their smooth surface, which prevents bacterial buildup and facilitates cleaning in food-grade environments.
2.2 Sewing Machines
Synchronous belts replace noisy chains in modern sewing equipment:
- Needle and Bobbin Synchronization: Ensuring stitch formation by synchronizing the needle’s up-down motion with the bobbin rotation. This eliminates thread jams and improves stitch quality.
- Low Vibration: The flexible nature of belts reduces mechanical noise, enhancing operator comfort in industrial settings.
- Maintenance Efficiency: Unlike lubricated chains, belts require no periodic oiling, reducing downtime.
2.3 Textile Industry
In textile machinery, synchronous belts are critical for:
- Weaving Looms: Driving shuttle movement at high speeds while maintaining warp tension consistency. The (wear resistance) of PU belts prolongs life in dusty environments.
- Spinning Machines: Ensuring precise yarn winding by synchronizing spindle rotation with traverse mechanisms.
- High-Speed Operations: Withstanding repetitive stress during fabric processing, where (chains) would wear out faster.
3. When to Replace Synchronous Belts
3.1 Wear Indicators
- (Tooth Wear): Visible flattening or cracking of teeth, which reduces grip on pulleys.
- (Cracks): Longitudinal or transverse fissures, especially in rubber belts exposed to heat or chemicals.
- (Increased Elongation): Loss of tension due to stretching, causing misalignment in (transmission systems).
3.2 Performance Issues
- Slippage: Audible squeaking or inconsistent speed, indicating tooth engagement failure.
- Vibration: Excessive shaking during operation, often caused by belt misalignment or worn pulleys.
- (Hygiene Concerns): In food or medical packaging, belts with embedded contaminants must be replaced immediately.
3.3 Replacement Guidelines
- (Regular Inspection): Check every 3–6 months for wear in high-duty applications (e.g., (textile machines)).
- (Lifetime): PU belts typically last 2–5 years under normal conditions; replace sooner in harsh environments (e.g., (high-temperature baking)).
- (Preventive Maintenance): Replace belts proactively after 10,000–15,000 hours of operation to avoid catastrophic failures.
4. Conclusion
How to Identify and Measure Synchronous (Timing) Belts
In an ideal situation, you can identify the belt you have by its markings alone. Typically, those are alphanumeric labels that identify the belt’s specifications, often describing the most important dimensions critical to properly identify them.
For example, in Gates nomenclature, in their PowerGrip range, you’ll see a marking that designates the belt’s pitch length, pitch and tooth profile (the letters), and the width.
14MGT-2800-50
|
14MGT |
14mm pitch |
|
GT |
GT profile |
|
2800 |
pitch length（mm） |
|
50 |
width（mm） |
Note:
- This applies to both single-side and double-sided synchronous belts.
- Nomenclature and order may vary by manufacturer.
You may, however, be in a situation where you don’t have access to that information for many reasons, such as:
- The belt is still installed in the pulley and there’s no way you can see the markings.
- The belt is already snapped and torn.
- The markings are too faded or dirtied to be read.
In this case, you may have to manually figure out your belt specifications. We hope this article points you in the right direction.
Here are the 3 key identifiers you need to determine to order the belt:
1. What is the tooth profile of the belt?
2. What is the length?
3. What is the width?
1. What is the tooth profile of the belt?
This is the most important identifying factor of synchronous belts, so it’s important to get this right. If you get the wrong profile, it may not fit the pulley at all and, if it does, it will wear out very quickly.
You can tell the profile of the belt by its pitch and shape. You can also measure the thickness as a cross-check.
1. What is the tooth profile of the belt?
This is the most important identifying factor of synchronous belts, so it’s important to get this right. If you get the wrong profile, it may not fit the pulley at all and, if it does, it will wear out very quickly.
You can tell the profile of the belt by its pitch and shape. You can also measure the thickness as a cross-check.
Pitch
- This is the “centre-to-centre” distance between two adjacent teeth.
- To get this number, measure the distance between the middle of one tooth, to the middle of the adjacent tooth.
- Imperial vs Metric: This is another key factor in finding the type of belt you have, so it’s equally important to get this right.
Important: When manually measuring the pitch, please make sure to use the metric system (eg. by millimeters), as we often do here in Australia. Otherwise, let us know that you’re giving us the measurement in imperial, so we can help you work out its metric equivalent.
In this sample reference from the Gates PowerGrip range, you’ll see the pitch is indicated in imperial units (eg. 1/5 inch), as it would be typically written.
Timing belts play a critical role in power transmission, automation, and industrial machinery. Choosing the right belt and ensuring accurate measurements are essential for efficiency, safety, and cost savings. If you are wondering how to identify and measure a timing belt, this guide covers everything you need to know, from tooth profile to pitch, width, and belt tension.
